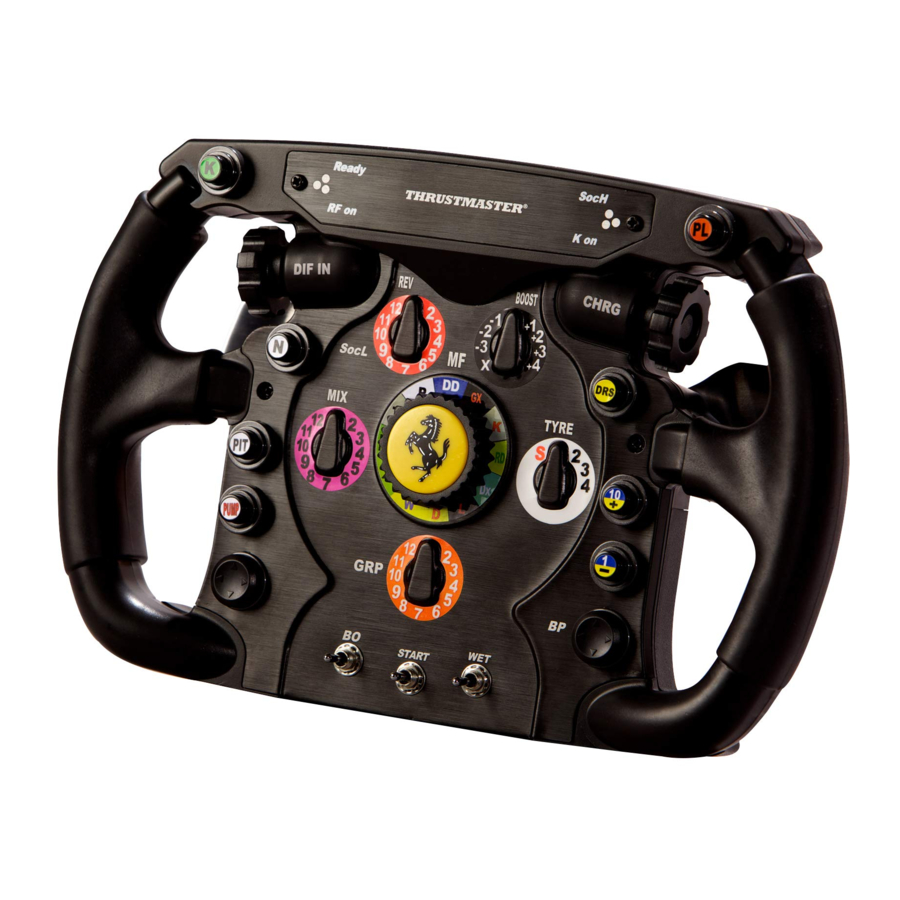

Thrustmaster F1-ADD-ON - Paddle Shifts Kit Manual
- Assembly instructions manual (7 pages)
Advertisement
Assembly instructions
Take care to follow the instructions carefully and retain all small parts (screws, springs, etc.) when disassembly.
Once the product has been opened, take the opportunity to remove any accumulated dust and dirt with a soft cloth or compressed air (at low pressure).
Tools
| Phillips screwdriver S2 PH1 |  |
| Tweezers (Optional) |  |
Content
| Paddle kit |  |
Disassembly
| Step | Action | Illustration |
| 1. | Unscrew the 2 screws from the front. |  |
| Tools: Philipps screwdriver | ||
| 2. | Unscrew the 12 screws from the back. Tools: |  |
| 3. | Carefully unplug the 3 paddle shifts connectors. Tools: |  |
| 4. | Separate the two covers |  |
| 5. | Unscrew the 4 screws from paddle shifter module. Tools: |  |
| 6. | Remove the paddle shifter module |  |
Reassembly
| Step | Action | Illustration |
| 1. | Setting up the new module |  |
| 2. | Screw the 4 screws from paddle shifter module. Tools: |  |
| 3. | Assemble the two covers and plug connectors. Tools: |  |
| 4. | Screw the 12 screws from the back. Tools: |  |
| 5. | Screw the 2 screws from the front. Tools: |  |
