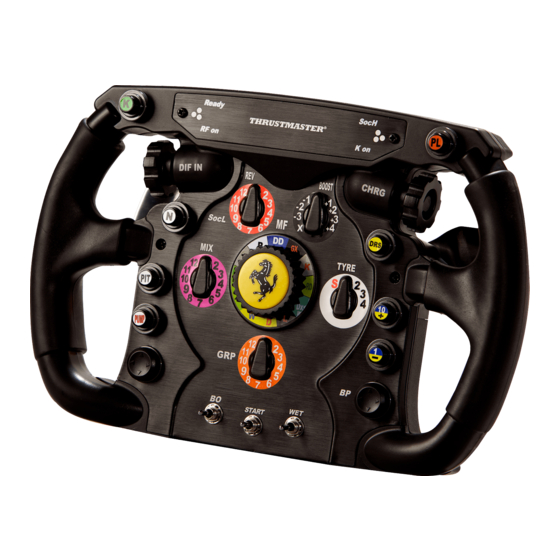

F1-ADD-ON Paddle Shifts Kit
Assembly instructions
Take care to follow the instructions carefully and retain all small parts (screws, springs, etc.) when
disassembly.
Once the product has been opened, take the opportunity to remove any accumulated dust and dirt with
a soft cloth or compressed air (at low pressure).
F1 Add On Paddle Shifts Kit
Page 1
4060365
Advertisement
Table of Contents
Related Manuals for Thrustmaster F1-ADD-ON
Summary of Contents for Thrustmaster F1-ADD-ON
- Page 1 F1-ADD-ON Paddle Shifts Kit Assembly instructions Take care to follow the instructions carefully and retain all small parts (screws, springs, etc.) when disassembly. Once the product has been opened, take the opportunity to remove any accumulated dust and dirt with a soft cloth or compressed air (at low pressure).
- Page 2 Summary Tools ..........................................3 Content ........................................3 Disassembly ....................................... 4 Reassembly ........................................ 6 F1 Add On Paddle Shifts Kit Page 2 4060365...
-
Page 3: Tools
Tools Phillips screwdriver S2 PH1 Tweezers (Optional) Content Paddle kit F1 Add On Paddle Shifts Kit Page 3 4060365... -
Page 4: Disassembly
Disassembly Step Action Illustration Unscrew the 2 screws from the front. Tools: Philipps screwdriver Unscrew the 12 screws from the back. The 4 screws (On purple) placed on the middle are bigger than the others, take care to identified them for reassembly step. - Page 5 Carefully unplug the 3 paddle shifts connectors. ---------------------------------------------- Tools: Tweezers Separate the two covers Unscrew the 4 screws from paddle shifter module. ---------------------------------------------- Tools: Phillips screwdriver F1 Add On Paddle Shifts Kit Page 5 4060365...
-
Page 6: Reassembly
Remove the paddle shifter module Reassembly Step Action Illustration Setting up the new module Screw the 4 screws from paddle shifter module. ---------------------------------------------- Tools: Phillips screwdriver F1 Add On Paddle Shifts Kit Page 6 4060365... - Page 7 Assemble the two covers and plug connectors. ---------------------------------------------- Tools: Tweezers Screw the 12 screws from the back. ---------------------------------------------- Tools: Phillips screwdriver Screw the 2 screws from the front. ---------------------------------------------- Tools: Phillips screwdriver F1 Add On Paddle Shifts Kit Page 7 4060365...
