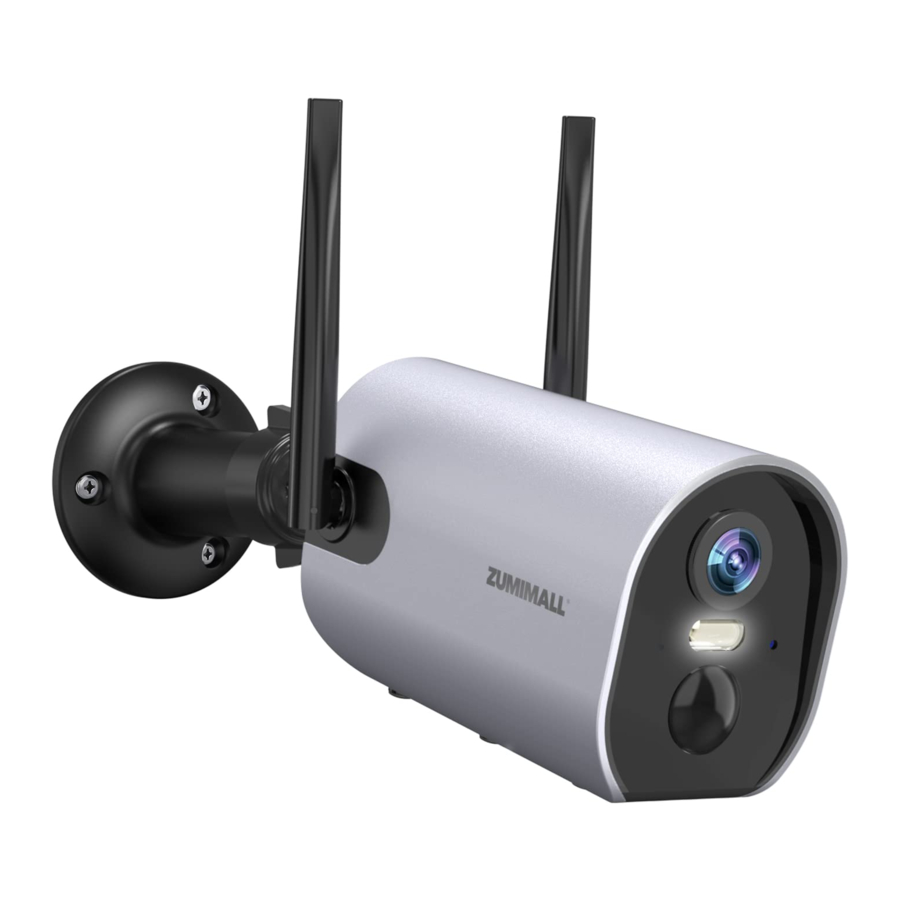

ZUMIMALL GX1S - Battery Powered Camera Manual

Brand Story

Founded in 2008, Zumimall focuses on the design and research of intelligent security technology. Zumimall insists on taking consumer needs as its core and strives to create smart home products that lead a global home fashion trend for consumers. Zumimall believes that craftsmanship creates top quality and technology changes life. With high-quality products and first-class service, Zumimall won the love and trust of millions of customers as soon as it went public. Over the years, Zumimall has served 45 continents of America, covering 80% of the population. Zumimall is the provider of a smart lifestyle and a guardian of the wonderful moments of your life.

Product Diagram

1. Camera Lens
2. IR Lamp
3. White Light
4. PIR Sensor

5. Antenna
6. Camera Mode Indicator
7. Microphone
8. Reset Button

9. LED Indicator
10. Speaker
11. Power Button
12. SD Card Slot
13. USB Port

Reset Camera

1. Keep pressing to remove device

2. Press the reset button for 5-10s until hear the 'Boogu' sound

3. Reconnect as before...


NOTE: Please turn on both of the following permissions.

1. Allow ZUMIMALL App to access mobile cellular data and wireless LAN, otherwise it will fail to connect the camera.

2. Allow ZUMIMALL App to receive pushed messages, otherwise, the phone will not receive alarms when motion is detected.


Account Registration

New user needs to sign up ZUMIMALL App with email address. Click 'Sign up' to create a New Account and follow the steps to complete registration.

Add Camera to App

Preparations for connection

1. Insert a Micro SD Card into the camera to save video clips or you can start the 7-day free cloud service. Without Micro SD Card or cloud service, no video will be saved.
2. The camera only works with 2.4GHz Wi-Fi, not support 5GHz.
3. When connecting to the network, please take the camera close to the router
   (Recommended within 10-15ft).

Connect Camera to App

Tap 'Add Device'

Select 'Battery Camera'

Turn on the Camera

Reset the Camera

Input Wi-Fi Password

Prepare the Scanning

Scan QR Code when Indicator Flashing Slowly in Red

Finished Installation When Reaches 100%

Perform Network Diagnosis

View Installation Tips

Camera Installation

1. Fix the bracket to where you want to install the camera with the supplied screw.
2. Fasten the camera on the metal mount, and fix them.
3. Adjust the viewing angle of the camera.

Important Notes

To reduce false alarms, please note that:

1. Do not install the camera in a position facing strong lights/mirror/window/swimming pool.
2. Do not place the camera too close to any angel with busy traffic.
3. Keep camera away from the outlets, including air conditioner vents, humidifier outlets, the heat transfer vents of the projectors, etc.
4. Keep the camera at least 1 meter away from any wireless devices to avoid interference, such as microwave stove, Wi-Fi routers and etc.

Monitoring Area

1. It is not suggested to install the camera vertically towards the moving objects, otherwise, it may not detect the motion events or cause delay.
2. It is suggested to make the angle between PIR Sensor and detected objects more than 10 degrees.
3. The camera motion sensor is much more sensitive to side-to-side movement across its field of view than to movement directly toward or away from the camera.

1. Add Camera
2. Device List
3. Real Time
4. Live View Button
5. Camera Name
6. Settings
7. Device Homepage
8. Messages
9. Explore
10. Personal Homepage
11. Quit Live Viewing
12. Setting Manual
13. View Live
14. SD Card History

15. Cloud Storage
16. Screenshot to Phone
17. Two-Way Talk
18. Record to Phone
19. Motion Detection On/Off
20. Light
21. Siren
22. Audio warning and strobe light
23. Album
24. Time Bar
25. Zoom
26. Date of History Record
27. Alarm time point

Two - Way Audio

1. Open the microphone permission of ZUMIMALL APP.
2. Long press the intercom button to start speaking, and the sound will be emitted from the camera at this time.
3. Release the intercom button to listen to the speech, and the sound will be emitted from the mobile phone.

PIR Motion Detection

Motion Detection Alarm Setting

Motion detection sensitivity can be adjusted from 1 to 10. Please refer to the image below.

NOTE: The higher the sensitivity is, the longer distance the PIR can detect. Accordingly, the battery will drain faster.

Alarm Notification

This camera does not support 7*24 hours all day recording, it is an event recording camera. It is only triggered when body motion is detected. Here are system's reactions:

1. Alarm notifications with sounds from App.
2. Pictures/videos automatically stored in Micro SD Card or Cloud.

Record/Playback/Delete

1. On 'MESSAGES' page, click 'Alarm Messages', you can view all the records listed.
2. Click the following buttons to playback or delete.
3. All screenshots or manually recorded videos on live/history/ cloud page will be saved in Pictures & Videos. Files here can be saved in your phone Album or shared with others directly.

Power Saving Settings

Alarm Interval

This is a function that avoids repeated alarms for the same event. You can choose an alarm interval of different lengths, if the interval is 5 minutes, then the camera is triggered at 08:00, you will receive an alarm message, and you will not receive a new alarm push in the next 5 minutes, even if motion detection continues to occur.
NOTE: This function is off by default, you can set it as needed.

Recording Time

You can choose a different recording length if you set the recording length to 20 seconds, then after the camera is triggered, you can view the 20 seconds of alarm video in the history of cloud playback.

Alarm Plan

You can set the weekly/daily alarm schedule as you need. If you set the camera's working hours from 0:00 to 1:00.The camera will only be triggered and record alarm video during this time period.
NOTE Alarm schedule can be set for up to 4 time periods.

Battery Management

1. The camera has a built-in high-capacity battery, which can be used for 2-3 months, assuming the camera wakes up 15 times per day and play video for 10 minutes each day.
   NOTE: The battery durability depends on how frequently the camera is woken up. The more it wakes up, the faster the battery drains. It is recommended to lower down the 'Motion Detection' sensitivity or turn it off occasionally.
2. When power is less than 20%, the App will send you reminding messages for charging in time.
3. Charge the camera with DC 5V 2A charger, until it is fully charged after 6-8 hours.

Multi-User Sharing

NOTE: One App account (A) can't login on multiple devices at the same time. One camera can't be connected to multiple App accounts either. But camera can be shared form A to B.

Share steps

1. B download ZUMIMALL App to his/her phone and create a new account in the App.
2. Click 'Add' in App on A's phone.
3. A scan B's QR Code or input B's account ID.
4. B accept share and refresh the device page.

Click Device Share

Watch the instructional video and click Add

ZUMIMALL FAQ

Unable to connect network

1. Check WiFi name and password (password cannot contain special symbols)
2. Make sure WiFi is 2.4GHz, 5GHz is not supported.
3. Please make sure the camera and mobile phone are in the same WiFi environment when connecting, and add the camera near the router.

Connect to a new network

1. Remove camera from ZUMIMALL APP.
2. Long press the reset button to restore factory settings.
3. Reconnect.

Reset the camera

1. Long press the reset button until you hear the sound of "Boogu"
2. Wait for the camera status indicator to flash red slowly.

Can't charge

1. Charge at least 8~10 hours with a 5V/2A adapter.
2. Ensure that the charging cable and power adapter can be used normally.
3. The red light of the charging indicator is always on, indicating that it is charging, and the indicator turns blue when it is fully charged.

Frequently received alarm information

1. Reduce the sensitivity of motion detection alarm
2. Check whether there is any object within the detection range of the camera to interfere with triggering the PIR sensor.
3. Turn on "Alarm only when people appear", and use the humanoid algorithm to filter false positives.

Some people pass by without calling the police

1. Ensure that the network is in good condition, and the WiFi signal value cannot be lower than 70%
2. Ensure that motion detection is turned on and increase the sensitivity of the camera.
3. Make sure the motion occurs within the detection range of the PIR.

No alarm video recording

1. Make sure the camera is triggered
2. Ensure that the Micro SD card is inserted correctly and recognized successfully, or subscribe to cloud services.

No alarm push

1. Open the phone settings, click the notification, find the "ZUMIMALL" APP, and open the permission notification.
2. Open the "ZUMIMALL" APP, in the "Settings" interface, enable the alarm push.
3. In the "My" interface, enter the settings and turn on the push sound.
4. Ensure that the motion detection function of the device is successfully turned on.
5. Restart the phone, try to clear the cache on the Android phone.
6. Check whether the network is good.

Unable to play local history playback

1. Check the status of the Micro SD card in "Settings" to ensure that the Micro SD card has been successfully recognized.
2. Reinsert the Micro SD card.
3. Format the Micro SD card in the APP.
4. Use a new Micro SD card.

Click Device Information
