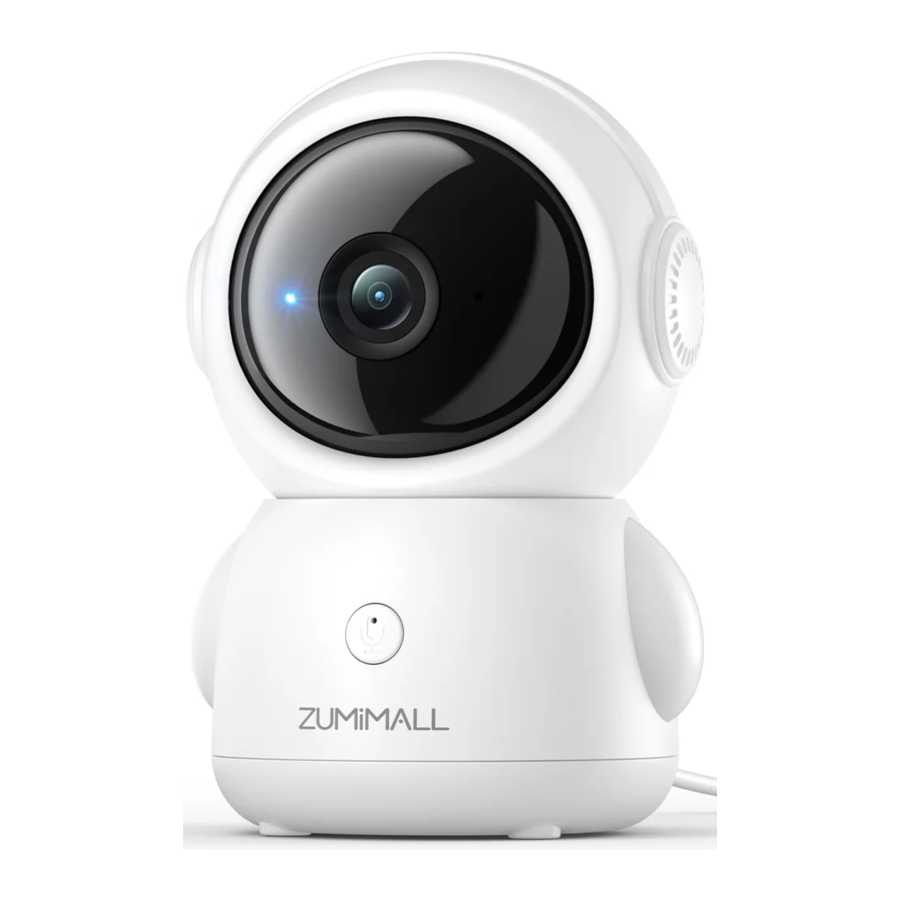

ZUMIMALL BF-BK06 Manual

What's in the Box


Camera * 1
Power Adapter * 1
Quick User Guide * 1
Screws Set * 1
Charging Cable * 1
Bracket * 1
Warning Sticker * 1
Location Sticker * 1

Product Diagram

Product Diagram

Reset Button Keep pressing for 5 seconds to reset
Solid Red Light on The camera is turning on or malfunctional
Red Light Slowly Blinking Awaiting WiFi connection
Red Light Quickly Blinking Connecting the WiFi
Blue Light Blinking It is in connecting
Solid Blue Light on The camera runs correctly

Download and Install App

Download ZUMIMALL App from Google Play™ or App Store™.
Or scan the QR codes below, with your smartphone.

NOTE: Please turn on both of the following permissions.

  1. Allow ZUMIMALL App to access mobile cellular data and wireless LAN, otherwise it will fail to connect the camera.
  2. Allow ZUMIMALL App to receive pushed messages, otherwise the phone will not receive alarms when motion is detected.

Account Registration

New user needs to sign up ZUMIMALL App with an email address. Click 'Sign up' to create a New Account and follow the steps to complete registration.
Account Registration

Add Camera to App

Preparations for connection

  1. Insert a Micro SD Card into the camera to save video clips or you can start the 7-day free cloud service. Without Micro SD Card or cloud service, no video will be saved.
  2. Please select 2.4G/5GWiFi to ensure good signal.
  3. For successful pairing, ensure that both the phone and camera are connected to the same network.
  4. When connecting to the network, please take the camera close to the router(Recommended within 10-15ft).

Method 1: Bluetooth Setup (RECOMMENDED)
Bluetooth Setup(RECOMMENDED)

  1. On the Homepage, tap ' Add ' or ' + ' in the upper right corner, tap ' Add Device '.
  2. If the Bluetooth of the cellphone doesn't turn on, the app will show a pop-up, please allow it to turn on Bluetooth.
  3. After Bluetooth turns on, the app will automatically search for devices that are on and not bound. Select the device you want to connect to in the search list.
  4. To connect the camera, select either the 2.4GHz or 5GHz Wi-Fi and enter the password. The app will automatically display the Wi-Fi you may be using when Bluetooth is turned on. Usually, the name and password for both Wi-Fi networks are the same or similar. If you cannot find the Wi-Fi network, please contact your router provider to check your router's Wi-Fi settings.
  5. The app will automatically go to the page where the wifi connection is in progress. A sound will be heard. Wait until the connection is successful and camera indicator light changes to steady blue. Click ' Next ' to edit the camera name and choose a family. Click ' Done ' to finish the setup.
  6. If failed to connect, check the reason and resolution shown on the app. Long press the reset button until hearing a ' Boogu ' sound to reset the camera and start again, or try the other methods below.

Method 2: QR Code Setup


Tap 'Add Device'


Select Camera


Turn on the Camera


Input Wi-Fi Password


Prepare the Scanning


Scan QR Code


Installation Complete at 100%


Name the Camera


View Installation Tips


Perform Network Diagnosis


Using the Camera

How to Reset the Camera

How to Reset the Camera

  1. Go to the device homepage, select the camera that needs to be reset, and keep pressing it to remove it from the app.
  2. Press the camera's reset button for 5s until hearing the ' Boogu ' sound.
  3. Reconnect as a new camera.

Camera Installation

  1. Secure the camera bracket to the desired position using the screws provided, then rotate the camera against the bracket to snap it into the slot.
    Camera Installation - Step 1
  2. Or place the product directly on a clean and flat countertop.
    Camera Installation - Step 2

Important Notes

caution To reduce false alarms, please note that:

  1. Do not install the camera in a position facing strong lights/mirror/window/swim-ming pool.
  2. Do not install the camera in areas with heavy traffic. Recommended distance between the camera and motion objects is within 32ft.
  3. Keep camera away from the outlets, including air conditioner vents, humidifier outlets, the heat transfer vents of the projectors, etc.
  4. Keep the camera at least 1 meter away from any wireless devices to avoid interference, such as microwave stove, Wi-Fi routers, etc.

Monitoring Area

Monitoring Area
Suggestion: The best downward tilt angle of the lens is 15° to obtain the best alarm detection range.
Recommended installation height: 8-10 feet above the ground, at this height, the sensor will provide a detection distance up to 40 feet.

  1. It is not suggested to install the camera vertically towards the moving objects, otherwise it may not detect the motion events or cause delay.
  2. It is suggested to make the angle between PIR Sensor and detected objects more than 10 degrees.
  3. The camera motion sensor is much more sensitive to side-to-side movement across its field of view than to movement directly toward or away from the camera.

Device Menu

Device Menu

  1. Add Device and Scan Code
  2. More Functions
  3. Basic Equipment Information
  4. Connection Status
  5. Device Homepage
  6. Messages
  7. Explore
  8. Personal Homepage
  9. Quit Live Viewing
  10. Setting Manual
  11. View Live
  12. SD Card History
  13. Cloud Storage
  14. Screenshot to Phone
  15. Two-Way Talk
  16. Original Sound
  1. Record to Phone
  2. Motion Detection On/Off
  3. PTZ
  4. Light
  5. Lens Switch
  6. Temperatura & Humidity
  7. Music
  8. Album
  9. Time Bar
  10. Adjusting the Timeline
  11. Date of History Record
  12. Alarm Time Point
  13. Screenshot
  14. Record
  15. Download Video
  16. Delete Video Recording

Two-Way Audio

  1. Open the microphone permission of ZUMIMALL APP.
  2. Long press the intercom button to start speaking, and the sound will be emitted from the camera at this time.
  3. Release the intercom button to listen to the speech, and the sound will be emitted from the mobile phone.

PIR Motion Detection

Motion Detection Alarm Setting

Motion detection sensitivity can be adjusted from Low to High. Please refer to the image below.


Tap on 'Motion Detection'


Set it up

Sensitivity Detecting Distance
LOW 3-16ft (1-5meters)
MID 16-32ft (5-10meters)
HIGH 32-49ft (10-15meters)

Alarm Notification

This camera supports 24/7 recording, and also supports event recording.
Here are the system's reactions:

  1. Alarm notifications with sounds from App.
  2. Pictures/videos automatically stored in Micro SD Card or Cloud.

Record/Playback/Delete

Record/Playback/Delete

  1. On 'MESSAGES' page, click 'Alarm Messages', you can view all the records listed.
  2. Click the following buttons to playback or delete.
  3. All screenshots or manually recorded videos on live/history/cloud page will be saved in Pictures & Videos. Files here can be saved in your phone Album or shared with others directly.

Multi-Device Management

Multi-Camera Management

Multi-Camera Management

Multi-User Sharing

NOTE: One App account (A) cannot log in on multiple devices simultaneously.
One camera can't be connected to multiple App accounts either. But camera can be shared form A to B.

Share steps:

  1. downloads ZUMIMALL App to his/her phone and creates a new account in the App.
  2. Click ' Add ' in App on A's phone.
  3. scan B's QR Code or input B's account ID.
  4. accept share and refresh the device page.


On the camera's settings page, tap Share


You have two ways to share: QR code and enter your account number


The person being shared clicks on the QR code on the 'My' page


Scan this QR code


Or enter the account number of the person being shared


Customise the permissions of the person being shared


View Shared Records


Accepting sharing requests

FAQ

Unable to connect network

  1. Check WiFi name and password (password cannot contain special symbols).
  2. Please select 2.4G/5GWiFi to ensure good signal.
  3. Please make sure the camera and mobile phone are in the same WiFi environment when connecting, and add the camera near the router.

Connect to a new network

  1. Remove camera from ZUMIMALL APP.
  2. Long press the reset button to restore factory settings.
  3. Reconnect.

Reset the camera

  1. Long press the reset button until you hear the sound of ' Boogu '.
  2. Wait for the camera status indicator to flash red slowly.

Frequently received alarm information

  1. Reduce the sensitivity of motion detection alarm.
  2. Check whether there is any object within the detection range of the camera to interfere with triggering the sensor.

Some people pass by without triggering the alarm

  1. Ensure that the network is in good condition, and the WiFi signal strength should be at least 70%.
  2. Ensure that motion detection is turned on and increase the sensitivity of the camera.
  3. Make sure the motion occurs within the detection range.

No alarm video recording

  1. Make sure the camera is triggered.
  2. Ensure that the Micro SD card is inserted correctly and recognized successfully, or subscribe to cloud services.

No alarm push

  1. Open the phone settings, click the notification, find the ' ZUMIMALL ' APP, and open the permission notification.
  2. Open the ' ZUMIMALL ' APP, in the ' Settings ' interface, enable the alarm push.
  3. In the 'My' interface, enter the settings and turn on the push sound.
  4. Ensure that the motion detection function of the device is successfully turned on.
  5. Restart the phone, try to clear the cache on the Android phone.
  6. Check whether the network is good.

Unable to play local history playback

  1. Check the status of the Micro SD card in ' Settings ' to ensure that the Micro SD card has been successfully recognized.
  2. Reinsert the Micro SD card.
  3. Format the Micro SD card in the APP.
  4. Use a new Micro SD card.

Unable to play cloud playback

  1. Make sure the cloud service function is enabled.
  2. Open cloud storage button in cloud service interface.

Device offline

  1. Check whether the device has sufficient battery power, and observe whether the camera status indicator lights up normally.
  2. Check whether the WiFi network is good, restart the router.
  3. If the camera is installed far away from the router and cannot obtain a good WiFi signal, it is recommended to move the router to a closer place or install a WiFi signal extender to increase the WiFi strength.
  4. Delete the camera from the ZUMIMALL account, reset the device and add it again.
  5. Check if the device version and ZUMIMALL APP are the latest version.

ZUMIMALL APP crashes

  1. Re-download the latest version of ZUMIMALL APP.
  2. The mobile phone's operating system version may be too old or too new. Clear the phone cache.

Unable to register an account

  1. Ensure that ZUMIMALL APP has access to mobile cellular data and wireless LAN.
  2. Use an unregistered email to create a new account and ensure that the email format is correct.

Unable to share device

  1. The accounts you and your friends have registered must be in the same country.
  2. For example, UK users cannot share with US users.

No sound is heard when the device is talking

  1. Open the speaker button on the APP.
  2. Adjust the intercom volume in the settings.
  3. Turn on the phone media volume.
  4. Release the intercom button and listen to the other party.

Noise during two-way intercom

  1. If the distance between the camera and the mobile phone is too close (1~2 meters), there will be howling, which is a normal phenomenon.
  2. It is recommended to keep a certain distance between the camera and the mobile phone during the intercom.

Live video is blurry

  1. Check the lens for dust and wipe it clean.
  2. Try switching between different resolutions.
  3. Re-add camera after reset.

The live broadcast at night has white spots

  1. When the light source is directly on the lens, there will be white spots on the screen.
  2. Avoid pointing the lens directly at strong light sources.

If you have other questions, please send us the SN number of your camera and describe the problem you have encountered, we will solve it as soon as possible.
Email: Support@zumimall.com

How to find SN number?


Click Settings


Click Device Information


View SN ID
