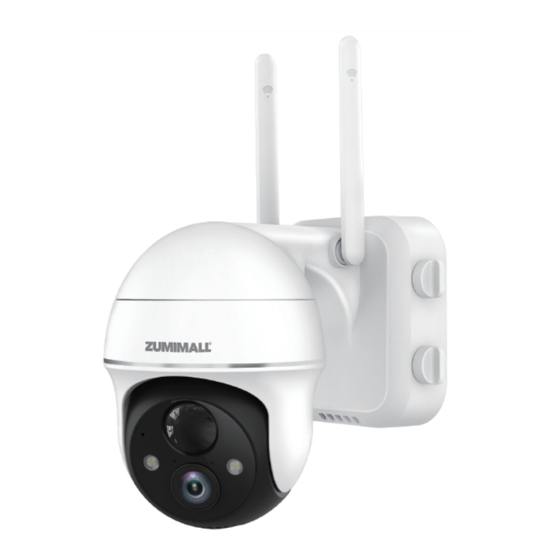

- Page 1 Get Smarter About Your Security QUICK START GUIDE GX2S PAN TILT BATTERY CAMERA FCC ID：2AZL7-ZS-GX1S WIRELESS丨OUTDOOR丨WATERPROOF丨Wi-Fi...
- Page 2 24 hours. In addition, your advice or suggestions will be much appreciated and welcomed. Register via link below to get 3 Years Warranty Extension. http://bit.ly/zuReg Product Service Email: Tech@zumimall.com Distributor: distributor@zumimall.com More About Us Web: www.zumimall.com Facebook: www.facebook.com/zumimalloffice Amazon Store: www.amazon.com/zumimall...
- Page 3 Over the years, Zumimall has served 45 continents of America, covering 80% of the population. Zumimall is the provider of a smart lifestyle and a guardian of the wonderful moments of your life.
-
Page 4: Table Of Contents
INDEX PAGE 1. What’s in the Box ----------------------------------------- P1 2. Product Diagram -----------------------------------------P2 3. Reset Camera -------------------------------------------P3 4. Download and Install App ----------------------------------P4 5. Account Registration -------------------------------------- P5 6. Add Camera to App -------------------------------------- P5 6.1 Preparations for Connection ------------------------------P5 6.2 Connect Camera to App --------------------------------P6 7. - Page 5 13.2 Maximum Shooting Time & Recording Time ----------------P13 13.3 Alarm Plan ------------------------------------------ P14 14. Battery Management ------------------------------------ P15 15. Multi Device Management -------------------------------- P16 15.1 Multi Camera Management ---------------------------- P16 15.2 Multi User Sharing ------------------------------------ P16 16. ZUMIMALL FAQ ------------------------------------------ P18...
-
Page 6: What's In The Box
1. What’s in the Box ZUMIMALL Battery Camera * 1 Outdoor Metal Mount *1 Quick User Guide *1 USB Cable *1 Screws Set *1 Thumb Screw Set*1 NOTE: Micro SD card and power adapter are not included. -
Page 7: Product Diagram
2. Product Diagram Wi-Fi Antenna Thumb Screw USB Charge Port PIR Sensor DC 5V Microphone Power Key Power Light Speaker White Light Reset Key Power Reset Lens SD Card Slot Mode Indicator Power Button Keep pressing for 5-10 seconds to power on/power off Reset Button Keep pressing for 5-10 seconds to reset Blink Slowly in Red... -
Page 8: Reset Camera
3. Reset Camera ① Keep pressing to remove device ② Press the reset button for 5-10s until hear the 'Boogu' sound ③ Reconnect as before… 5:48 5:51 Home Home All Devices Living room Bedroom All Devices Living room Bedroom 02 -1 6 - 20 2 2 0 1 :5 6 : 08 P M Tips 064958492 Are you sure you would like to... -
Page 9: Download And Install App
① Allow ZUMIMALL App to access mobile cellular data and wireless LAN, otherwise it will fail to connect the camera. ② Allow ZUMIMALL App to receive pushed messages, otherwise, the phone will not receive alarms when motion is detected. 5:51 5:51 <... -
Page 10: Account Registration
5. Account Registration New user needs to sign up ZUMIMALL App with email address. Click 'Sign up' to create a New Account and follow the steps to complete registration. 5:51 5:51 5:51 < < Sign Up Sign Up Welcome United States Account 2365894254@qq.com... -
Page 11: Connect Camera To App
6.2 Connect Camera to App 5:49 5:48 5:48 < Select Device Home Add Battery Camera All Devices Living room Bedroom Battery Camera Battery Camera Smart Doorbell Power Plug Camera Baby Camera Hold the device power button to start Floodlight Add Device the device. - Page 12 5:50 5:50 < < Connect Network Scan QR Code 02:06 Make sure the device in an energized state Make sure the device is connected to the router Scan the QR code below with the device Make sure the device and the phone are at a distance of 5-8 inches.
-
Page 13: Camera Installation
7. Camera Installation ① Fix the bracket to where you want to install the camera with the supplied screw. ② Fasten the camera on the metal mount, and fix them. ③ Adjust the viewing angle of the camera. NOTE: Move the lens horizontally and tilt it The camera len supports horizontal rotation of 355°... -
Page 14: Monitoring Area
9. Monitoring Area ① It is not suggested to install the camera vertically towards the moving objects, otherwise, it may not detect the motion events or cause delay. ② It is suggested to make the angle between PIR Sensor and detected objects more than 10 degrees. -
Page 15: Device Menu
10. Device Menu 5:51 5:51 5:51 5:51 < < < 060238708 060238708 060238708 Home 02-16-2022 01:53:01 PM 02-16-2022 01:53:01 PM 02-16-2022 01:55:10 PM All Devices Living room Bedroom 02 - 1 6-2 02 2 01 : 5 6 : 08 PM Bit Rate:5KB/s WiFi:82% Bit Rate:5KB/s... -
Page 16: Two-Way Audio
11. Two - Way Audio 5:51 < 060238708 ① Open the microphone permission of ZUMIMALL APP. 02-16-2022 01:53:01 PM ② Long press the intercom button to start speaking, and the sound will be emitted from the camera at this time. -
Page 17: Alarm Notifications
12.2 Alarm Notification This camera does not support 7*24 hours all day recording, it is an event recording camera. It is only triggered when body motion is detected. Here are system's reactions: ① Alarm notifications with sounds from App. ② Pictures/videos automatically stored in Micro SD Card or Cloud. 12.3 Record/Playback/Delete ①... -
Page 18: Power Saving Settings
13. Power Saving Settings 13.1 Alarm Interval This is a function that avoids repeated alarms for the same event. You can choose an alarm interval of different lengths, if the interval is 5 minutes, then the camera is triggered at 08:00, you will receive an alarm message, and you will not receive a new alarm push in the next 5 minutes, even if motion detection continues to occur. -
Page 19: Alarm Plan
13.3 Alarm Plan You can set the weekly/daily alarm schedule as you need. If you set the camera's working hours from 0:00 to 1:00 .The camera will only be triggered and record alarm video during this time period. NOTE：Alarm schedule can be set for up to 4 time periods. 5:51 5:51 5:51... -
Page 20: Battery Management
14. Battery Management ① The camera has a built-in high-capacity battery, which can be used for 2-3 months, assuming the camera wakes up 15 times per day and play video for 10 minutes each day. NOTE: The battery durability depends on how frequently the camera is woken up. The more it wakes up, the faster the battery drains. -
Page 21: Multi Device Management
One camera can’t be connected to multiple App accounts either. But camera can be shared form A to B. Share steps： ① B download ZUMIMALL App to his/her phone and create a new account in the App. ② Click 'Add' in App on A’s phone. - Page 22 5:49 5:49 5:51 5:48 < < Enter account Select Device Device Share Home All Devices Living room Bedroom 02 -1 6-2 022 0 1 :5 6 :0 8 P M Scan QR Code Enter account Recent Contacts Please enter the other party’s account 064958492 The device has not been shared with anyone.
-
Page 23: Zumimall Faq
③ Please make sure the camera and mobile phone are in the same WiFi environment when connecting, and add the camera near the router. 2. Connect to a new network ① Remove camera from ZUMIMALL APP. ② Long press the reset button to restore factory settings. ③ Reconnect. - Page 24 ② Ensure that the Micro SD card is inserted correctly and recognized successfully, or subscribe to cloud services. 8. No alarm push ① Open the phone settings, click the notification, find the "ZUMIMALL" APP, and open the permission notification. ② Open the "ZUMIMALL" APP, in the "Settings" interface, enable the alarm push.
- Page 25 WiFi signal, it is recommended to move the router to a closer place or install a WiFi signal extender to increase the WiFi strength. ④ Delete the camera from the ZUMIMALL account, reset the device and add it again. ⑤ Check if the device version and ZUMIMALL APP are the latest version.
- Page 26 14. Unable to register an account ① Ensure that ZUMIMALL APP has access to mobile cellular data and wireless LAN. ② Enter an unregistered account and make sure the format of the registered account is correct. 15. Unable to share device ①...
- Page 27 If you have other questions, please send us the SN number of your camera and describe the problem you have encountered, we will solve it as soon as possible. Email: Tech@zumimall.com How to find SN number? 5:51 5:51 5:51 <...
