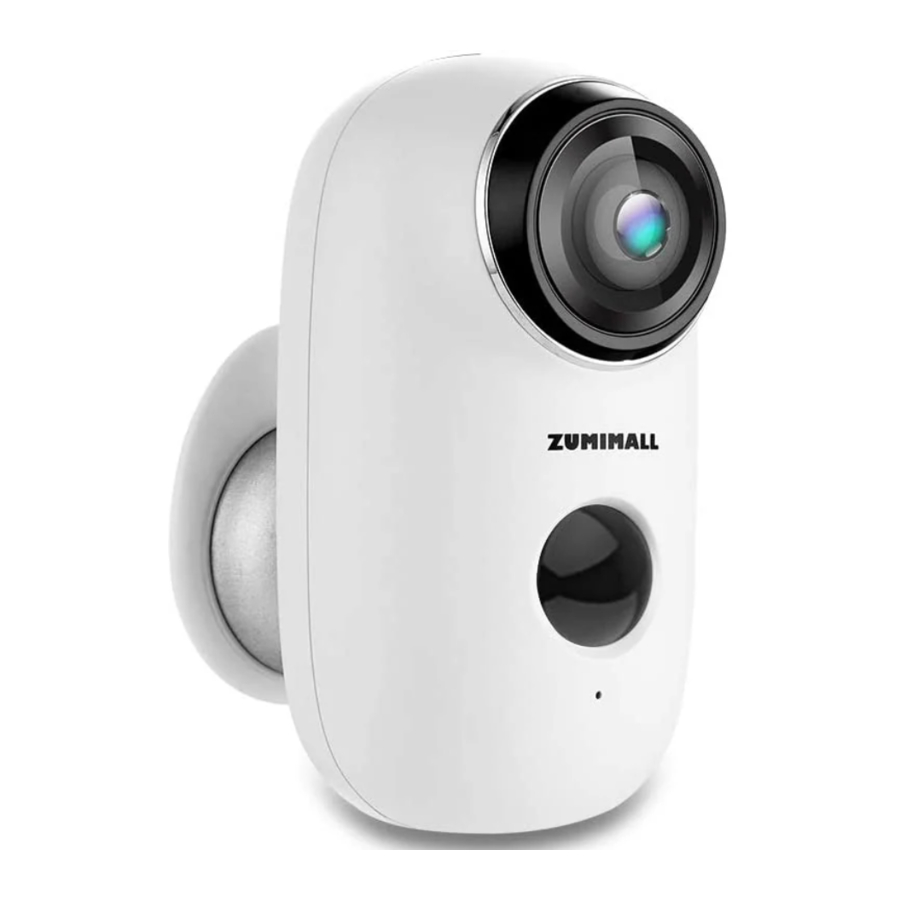

ZUMIMALL A3P - BATTERY POWERED CAMERA Manual

More Products from ZUMIMALL
Search zumimall on amazon to reach us or find us by
https://www.amazon.com/zumimall

What's in the Box

ZUMIMALL Battery Camera*1
Outdoor Metal Mount*1
Iron Ball Wall Mount*1
Double-Sided Adhesive*2
Quick User Guide*1
Screws Set*1
USB C able*1

Product Diagram

1. Camera Lens
2. PIR Sensor
3. LED Indicator
4. IR Lamp
5. Microphone
6. Speaker
7. SD Card Slot
8. USB Port
9. Iron Ball Wall Mount
10. Reset Hole
11. Power Button

Download & Install App

Download ZUMIMALL APP from Google Play™ or App Store™. Or scan the QR codes as below, with QR code scanner in your smart phone.

* Tips: Please turn on both of the following permissions.

1. Allow ZUMIMALL to access mobile cellular data and wireless LAN,otherwise it will fail to connect the camera.
2. Allow ZUMIMALL to receive pushed messages, otherwise thephone will not receive alarms when motion is detected.


*Tips: For your safety, please fasten your camera on a flat, clean, and indoor surface. If the location is undesirable (outdoor, rough, wooden, cement or ceramic tile surfaces), please follow the instruction below.

Outdoor Metal Mount
Step 1:
Fix the bracket to where you want to install the camera with the supplied screw.

Step 2:
Fasten the camera on the metal mount, and fix them.

Step 3:
Adjust the viewing angle of the camera.

*Tips: Secure the Joint Lock tightly to avoid the camera dropping down.

7. Monitoring Area:
   It is not suggested to install the camera vertically towards the moving objects, otherwise it may not detect the motion events or cause delay. It is suggested to make the angular between PIR and detected objects more than 10 degrees.

8. Notice for Reducing False Alarms:
   To reduce false alarms, please note that:

• Do not install the camera in a position facing strong lights/mirror/ window/swimming pool.
• Do not place the camera too close to any angel with busy traffic. Recommended distance between the camera and motion objects is within10M (32ft).
• Stay away from the outlets, including air conditioner vents, humidifier outlets, the heat transfer vents of the projectors, etc.
• Keep the camera at least 1 meter away from any wireless devices to avoid interference, such as microwave stove, Wi-Fi routers and etc.

9. Device Menu:


10. Camera Settings

11. PIR Body Detection:
    1. Body Detection Alarm Setting
       PIR 'Body Detection' is default to be 'High' level. But it is adjustable. Please refe' to the pictures as below.


*Tips: Higher sensitivity offers longer detection distance and more alarms.

2. Alarm Notification
   This camera is not designed for7x24 all day recording. It is only triggered when body motion is detected. Here are system's reactions:
   1. Alarm notifications with sounds from APP.
   2. Pictures/videos automatically storage in SD Card or Cloud.
3. Records/Playback/Delete
   1. On 'MESSAGES' page, click 'Alarm Messages', you can viewall the records listed.
   2. Click the following buttons to playback or delete.
   3. All screenshots or manually recorded videos on live/history/cloud page will be saved in Pictures & Videos. Files here can be saved in your phone Album or shared to others directly.


12. Two - Way Audio:
    Go to the live view page
    Step 1: Activate the audio option.
    Step 2: Press and hold the intercom button to speak.
    Step 3: Release the button to listen.

13. Battery Management:
    1. The camera has a built-in 6000mAh 18650 battery, which can be used for 2-5 months, assuming the camera wakes up15 times per day and plays video for 10 minutes.
       *Tips: The battery durability depends on how frequently the camera is woke up. The more it wakes up, the faster the battery level is consumed. It is recommended to lower down the "Body Detection" sensitivity or turn it off occasionally.
    2. When the battery level is less than 20%, the APP will send youreminding messages for charging in time.
    3. Charge the camera with DC 5V1A/2A phone charger, until itis fully charged after 6 hours.
    4. To check the battery charging status, you need to quit the'ZUMIMALL'---Charging the camera---Enter again the 'ZUMIMALL', you can see the charging icon and battery bars on live view page. PS: (Adapter Not included)

14. Multi Device Management:
    1. Multi Camera Management

    2. Multi-User Sharing
       Notice: One App account (A) can't login on multiple devices at the same time. One camera can't be connected to multiple devices either.
       But camera can be shared form A to B account.
       Step 1: Create another new APP account (B) and login on another Phone.
       Step 2: Click 'share' on the main phone (A account phone)
       Step 3: Use A to scan Q R code or Input account ID of B.
       Step 4: Accept sharing on B account and refresh page to check


15. Reset:


Trouble Shooting

Please Email us for Better Solution before returning any unqualified product to Amazon
