ZUMIMALL A3K - BATTERY POWERED CAMERA Manual

What's in the Box


ZUMIMALL Battery Camera*1
Metal Mount( For Solar Panel)*1
Iron Ball Wall Mount*1
Quick User Guide*1
USB Cable*1
Solar Panel*1
Metal Mount( For Camera)*1
Double-Sided Adhesive*2
Screws Set*2

Product Diagram

Product Diagram

  1. Camera Lens
  2. PIR Sensor
  3. LED Indicator
  4. IR Lamp
  1. Microphone
  2. Speaker
  3. SD Card Slot
  4. USB Port
  1. Iron Ball Wall Mount
  2. Reset Hole
  3. Power Button
Power Button Keep pressing for 5 seconds to power on/power off
Reset Button Keep pressing for 5 seconds to reset and restart
Blink Slowly in Red Awaiting Wi-Fi connection, ready for adding devices
Blink Fast in Red Wi-Fi connecting
Red Spot Network problem
Blue Spot Wi-Fi connected, camera running normally
Blink Slowly in Blue AP mode

Download & Install App:

Download ZUMIMALL App from Google Play™ or App Store™. Or scan the QR codes as below, with QR code scanner in your smart phone.
iOS
www.apple.com

ZUMIMALL

Android
play.google.com

* Tips: Please turn on both of the following permissions.

  1. Allow ZUMIMALL to access mobile cellular data and wireless LAN, otherwise it will fail to connect the camera.
  2. Allow ZUMIMALL to receive pushed messages, otherwise the phone will not receive alarms when motion is detected.

Account Registration

New user needs to sign up 'ZUMIMALL' App with email. C lick 'Sign up' to create a New Account and follow the steps to complete registration.
Account Registration

Add Camera to App

Preparations for connection

Preparations for connection

  1. Insert Mirco SD card (NOT included) when the camera is off, for saving videos caused by motion detection automatically. (Supports up to128GB)
  2. Camera only works with 2.4G Wi-Fi, not support 5G.

Connect Camera to App


Tap '+' to Add Device


Select 'Battery Camera'


Tap 'Next'


Reset it and Tap 'Next'


Input Wi-Fi Password


Prepare the Scanning


Scan QR Code When Indicator Flashing Slowly in Red


Finished Installation When Reaches 100%

Camera Installation

Magnetic Ball Holder

  1. Choose desired location for camera housing installation. Verify mounting structure and surface is capable of supporting the camera. Select a flat, clean, and indoor surface, paste the bracket mount on where you want to install the camera with a double-sided adhesive.
  2. Leave the fasten bracket for at least 24 hours before you connect the camera with the bracket.
  3. Adjust the viewing angle of the camera.

*Tips: For your safety, please fasten your camera on a flat, clean, and indoor surface. If the location is undesirable (outdoor, rough, wooden, cement or ceramic tile surfaces), please follow the instruction below.

Outdoor Metal Mount

  1. Fix the bracket to where you want to install the camera with the supplied screw.
  2. Connect the camera with the Joint Lock connected to the bracket, and secure the Joint Lock to fix.
  3. Adjust the viewing angle of the camera.

*Tips: Secure the Joint Lock tightly to avoid the camera dropping down.

Monitoring Area

It is not suggested to install the camera vertically towards the moving objects, otherwise it may not detect the motion events or cause delay.
It is suggested to make the angular between PIR and detected objects more than 10 degrees.
Monitoring Area

Important Notes for Reducing False Alarms

caution To reduce false alarms, please note that:

  • Do not install the camera in a position facing strong lights/mirror/window/swimming pool.
  • Do not place the camera too close to any angel with busy traffic.
  • Recommended distance between the camera and motion objects is within10M (32ft).
  • Stay away from the outlets, including air conditioner vents, humidifier outlets, the heat transfer vents of the projectors, etc.
  • Keep the camera at least 1 meter away from any wireless devices to avoid interference, such as microwave stove, Wi-Fi routers and etc.

Device Menu

Device Menu

  1. Device List
  2. Add Camera
  3. Real Time
  4. Live View Button
  5. Camera Name
  6. History Playback
  7. Cloud Storage
  8. Messages
  9. My Device List
  10. Personal Homepage
  11. Quit Live Viewing
  12. Setting Manual
  13. Battery Status
  14. HD/SD Switch
  1. Volume On/Off
  2. Full Screen
  3. Preview
  4. Screenshot Button
  5. Body Detection On/Off
  6. Notification History
  7. Cloud Storage
  8. Record Video to Phone
  9. Two-Way Talk
  10. Zoom
  11. Time Bar
  12. History Screenshot
  13. Alarm Record Album
  14. Date of History Record

Camera Settings

Camera Settings

PIR Body Detection

Body Detection Alarm Setting

PIR "Body Detection" is default to be on 'High' level. But it is adjustable.
Please refer to the pictures below.
Body Detection Alarm Setting

Sensitivity Detecting Distance (For moving and living objects)
Low Up to 5 meters (16ft)
High Up to 8 meters (26ft)

*Tips: Higher sensitivity offers longer detection distance and more alarms.

Alarm Notification

This camera is not designed for7x24 full day recording. It is only triggered when body motion is detected. Here are system's reactions:

  1. Alarm notifications with sounds from APP.
  2. Pictures/videos automatically stored in SD Card or Cloud.

Records/Playback/Delete

Records/Playback/Delete

  1. On 'MESSAGES' page, click 'Alarm Messages', you can view all the records listed.
  2. Click the following buttons to playback or delete.

Two - Way Audio

  1. Activate the audio option.
  2. Press and hold the intercom button to speak.
  3. Release the button to listen.

Battery Management

  1. The camera has a built-in 6000mAh 18650 battery, which can be used for 2-5 months, assuming the camera wakes up15 times per day and plays video for 10 minutes.
    *Tips: The battery durability depends on how frequently the camera is woke up. The more it wakes up, the faster the battery level is consumed. It is recommended to lower down the 'Body Detection' sensitivity or turn it off occasionally.
  2. When the battery level is less than 20%, the APP will send you reminding messages for charging in time.
  3. Charge the camera with DC 5V1A/2A phone charger, until it is fully charged after 6 hours.
    PS: (Adapter Not included)

Solar Panel

Solar Panel

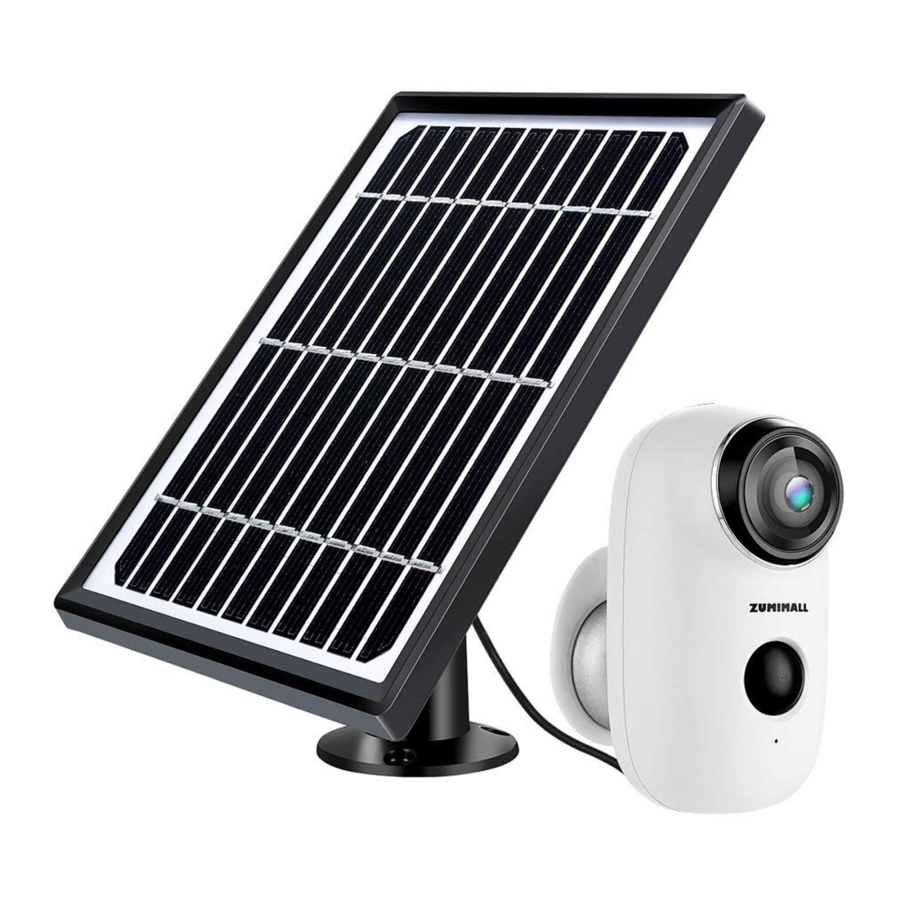

  1. Please select a position with the most sunlight throughout the year for your solar panel. The ZUMIMALL solar panel only needs a few hours of direct sunlight to sufficiently power your camera daily. The amount of energy that the solar panel can produce is affected by weather conditions, seasonal changes, geographic locations, etc.
  2. Mount the bracket with the mounting template and the screws provided in the package
  3. Slot the solar panel into the bracket and make sure it's secure
  4. Loosen the adjusting control on the bracket and adjust the angle of the solar panel to make it receive direct sunlight, and then retighten the adjusting control to secure your setting
  5. Connect the solar panel to the ZUMIMALL Camera with the micro USB cable.

Important Notes:

  1. Make sure that there is NO blocking on the solar panel. The energy harvesting efficiency drops drastically even when a small portion of the solar panel is blocked.
  2. Please don't install the solar panel completely horizontally. Otherwise your solar panel might accumulate dust and other debris easily. It's advised to install the solar panel angularly to make it receive direct sunlight.
  3. Wipe the solar panel regularly to remove the dust or debris.

Multi Device Management

Multi Device Management

Reset

 Reset

Trouble Shooting

NO. Description Solution
1

Unable to Connect

Check your Wi-Fi name and password
Ensure your Wi-Fi is 2.4G. Not support 5G
Ensure your camera and phone close to router for set up
2

Reset

Keep pressing the reset button for 3~5 seconds
Hear 'Boogu' LED blink slowly in Red
3

Change to a New Network

Remove the camera in ZUMIMALL APP
Press the reset button to factory setting
Re-connenction
4

No person on Alarm Videos

Adjust camera sensitivity to'HIGH'. The moving objects may appear from the corner of camera coverage, please adjust the lens angle.
5

Frequent Alarm

Adjust the camera alarm sensitivity to 'Low'
6

No Alarm when someone passes by

Make sure motion detection is turned on. Ensure motion happens beyond the range of PIR monitoring area
7

No Alarm Push

Make sure Notification is turned on from ZUMIMALL and phone
8

No Alarm Video

Make sure insert a SD Card or activate Cloud Service. Click triangle button to play videos.
9

Device Offline

Charge the camera and reconnect it. Ensure the WiFi signal strength is good as above 75%.
10

Battery Durability

Reduce frequency of Motion Detection, Two-way talk, and frequency of viewing Live Feeds
11

Unable to Charge

Charge at least 8-16 hours with a 5V 1A/2A phone charger. LED turns to be red means your camera is charging correctly. Make sure USB power cable and the phone charger both work well.
12

ZUMIMALL APP Flashback

Phone system version is too low or too high.
13 Unable to Register Account Make sure to select correct country.
14 Unable to Add Friend Your account and friend's account must be in the same country. For example, accounts in Europe and America cannot share with each other.

Please Email us for Better Solution before returning any unqualified product to Amazon a3k@zumimall.com
