Electrolux EVLDE46K, EVLDE46X - Microwave Combi-Oven Manual

PRODUCT DESCRIPTION

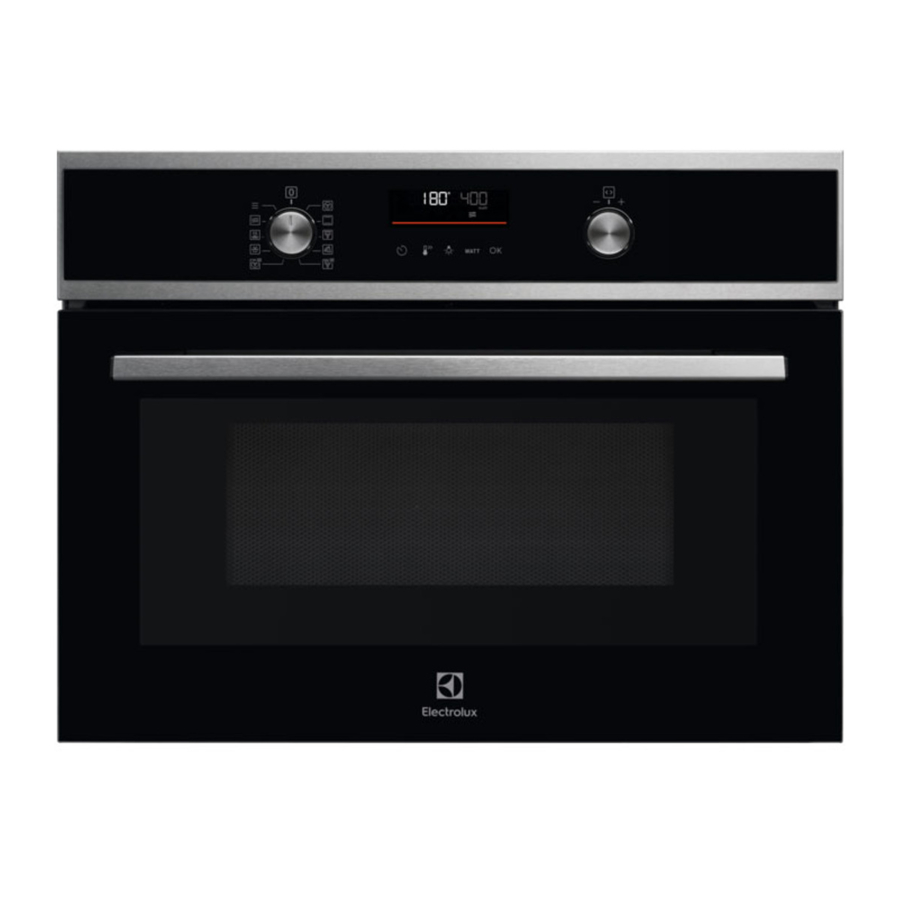

General overview
General overview

  1. Control panel
  2. Knob for the heating functions
  3. Display
  4. Control knob
  5. Heating element
  6. Microwave generator
  7. Lamp
  8. Fan
  9. Shelf support, removable
  10. Shelf positions

Accessories

  • Wire shelf
    For cake tins, ovenproof dishes, roast dishes, cookware / dishes. It can be used with microwave functions.
  • Grill- / Roasting pan
    To bake and roast or as pan to collect fat.
  • Microwave bottom glass plate
    To prepare food in microwave mode.

CONTROL PANEL

Turning the appliance on and off
To turn on the appliance:

  1. Press the knobs. The knobs come out.
  2. Turn the knob for the heating functions to select a function.
  3. Turn the control knob to adjust settings. To turn off the appliance: turn the knob for the heating functions to the off position .

Control panel overview

Press to set timer functions.
Press to set: Fast Heat Up.
Press to turn the appliance lamp on and off.
Press to set: Microwave power.
Press to confirm your selection.

Display indicators
Display indicators
Display with key functions.

The appliance is locked.
Enter the menu and select the icon to open: Assisted Cooking.
Enter the menu and select the icon to open: Settings
Microwave function is turned on.
Minute minder is turned on.
End time is turned on.
Time Delayed Start is turned on.
Uptimer is turned on.
For temperature or time. The bar is fully red when the appliance reaches the set temperature.

BEFORE FIRST USE


Refer to Safety chapters.

Setting the time
After the first connection to the mains, wait until the display shows: "00:00".

  1. Turn the control knob to set the time.
  2. Press .

Initial preheating and cleaning
Preheat the empty appliance before the first use and contact with food. The appliance can emit unpleasant smell and smoke. Ventilate the room during preheating.

  1. Remove all accessories and removable shelf supports from the appliance.
  1. Set the function . Set the maximum temperature. Let the appliance operate for 1 h.
  2. Set the function . Set the maximum temperature. Let the appliance operate for 15 min.
  3. Set the function . Set the maximum temperature. Let the appliance operate for 15 min.
  4. Turn off the appliance and wait until it is cold.
  5. Clean the appliance and the accessories only with a microfibre cloth, warm water and a mild detergent.
  6. Put the accessories and removable shelf supports back to their initial position.

DAILY USE


Refer to Safety chapters.

Heating functions
Standard heating functions

True Fan Cooking
To roast meat and bake cakes. Set a lower temperature than for Conventional Cooking as the fan distributes heat evenly in the oven interior.
Conventional Cooking
To bake and roast food on one shelf position.
Pizza Function
To bake pizza and other dishes that require more heat from below.
Turbo Grilling
To roast large meat joints or poultry with bones on one shelf position. To bake gratins and to brown.

Microwave functions

Defrost
Defrosting various types of food, power range: 100 - 200 W
Reheat
Heating up pre-prepared meals, power range: 300 - 700 W
Microwave
Heating up, cooking, power range: 100 - 1000 W

Microwave combi functions

Turbo Grilling + MW
To roast large pieces of meat on one shelf position. To bake gratins and to brown. The function with MW boost, power range: 100 - 600 W.
True Fan Cooking + MW
Baking on one shelf position. The function with MW boost, power range: 100 - 600 W.

informationThe lamp may turn off automatically at a temperature below 80°C during some heating functions.
There are additional heating functions available in the submenu: Assisted Cooking. Refer to "Daily use" chapter, Assisted Cooking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy saving tips.

Setting: Heating functions

  1. Turn the knob for the heating functions to select a heating function.
  2. Turn the control knob to set the temperature.
  3. Press .
    - press and hold to turn on the function: Fast Heat Up. It is available for some oven functions.

Setting: Microwave functions

  1. Remove all accessories.
  2. Insert microwave bottom glass plate.
  3. Insert the food into the appliance.
  4. Turn the knob for the heating functions to select the microwave function.
  5. Press to start with default settings. The display shows: duration and microwave power.
  6. Turn the control knob to adjust the duration. Press .
  7. Press . Turn the control knob to adjust the microwave power. Press . You can adjust settings while cooking.

The maximum time of microwave functions depends on microwave power you set:

Microwave power (W) Maximum time (min)
100 - 600 59:55
> 600 7

informationIf you open the door, the microwave function stops. To start it again, close the door. Press .

Setting: Microwave combi functions

  1. Remove all accessories.
  2. Insert microwave bottom glass plate. Place the food on the microwave bottom glass plate.
  3. Turn the knob for the heating functions to select the microwave combi function.
  4. Turn the control knob to adjust the temperature.
  5. Press . Turn the control knob to adjust the microwave power. Press .
  6. Press to start the function.
  7. Turn the knob for the heating functions to the off position to turn off the appliance.
    You can adjust settings while cooking.

Entering: Menu
Open the Menu to access additional heating functions, Assisted Cooking dishes and settings.

  1. Turn the knob for the heating functions to .
    The display shows .
  2. Turn the control knob and select the icon to enter submenu. Press .

Setting: Assisted Cooking
Assisted Cooking submenu consists of a set of additional heating functions and programmes that are designed for dedicated dishes. Programmes start with a suitable setting. You can adjust the time, temperature and if available microwave power during cooking.

  1. Turn the knob for the heating functions to .
  2. Turn the control knob to select . Press .
  3. Turn the control knob to select a function (F1 - F...). Press .
  4. Turn the control knob to select a dish (P1 - P...). Press .
  5. Turn the control knob to adjust the weight. Option is available for selected dishes. Press .
  6. Place the food inside the appliance. Press .
  7. When the function ends, check if the food is ready. Extend the cooking time, if needed.

Submenu: Assisted Cooking
The display shows F and a number of the function that you can check in the table.

Heating function Description
F1 Grill To grill thin pieces of food and to toast bread.
F2 Bottom Heat To bake cakes with crispy bottom and to preserve food.
F3 Frozen Foods To make convenience food crispy, e.g. french fries, potato wedges or spring rolls.
F4 Conventional Cooking + MW Baking and roasting food on one shelf position. The function with MW boost, power range: 100 - 600 W.
F5 Grill + MW To grill and brown food on one shelf position. Function with MW boost, power range: 100 - 600 W.
Legend
Weight adjustment available.
Function with microwave power. Use microwave safe accessory.
Preheat the appliance before you start cooking.
Shelf level. Refer to "Product description" chapter.

The display shows P and a number of the dish that you can check in the table.

Dish Weight Shelf level / Accessory
P1 Roast Beef, rare
1 - 1.5 kg; 4 - 5 cm thick pieces

1; baking tray
Fry the meat for a few minutes in a hot pan. Insert to the appliance.
P2 Roast Beef, medium
P3 Roast Beef, well done
P4 Steak, medium 180 - 220 g per piece; 3 cm thick slices 2; roasting dish on wire shelf
Fry the meat for a few minutes in a hot pan. Insert to the appliance.
P5 Beef roast / braised (prime rib, top round, thick flank) 1.5 - 2 kg 1; roasting dish on wire shelf
P6 Roast Beef, rare (slow cooking) 1 - 1.5 kg; 4 - 5 cm thick pieces
1; baking tray
Fry the meat for a few minutes in a hot pan. Insert to the appliance.
P7 Roast Beef, medium (slow cooking)
P8 Roast Beef, well done (slow cooking)
P9 Fillet of beef, rare (slow cooking)
0,5 - 1.5 kg; 5 - 6
cm thick pieces

1; baking tray
Fry the meat for a few minutes in a hot pan. Insert to the appliance.
P10 Fillet of beef, medium (slow cooking)
P11 Fillet of beef, done (slow cooking)
P12 Veal roast (e.g. shoulder) 0.8 - 1.5 kg; 4 cm thick pieces 1; roasting dish on wire shelf
Fry the meat for a few minutes in a hot pan. Add liquid. Insert to the appliance.
P13 Pork roast neck or shoulder 1.5 kg 1; ceramic or glass casserole dish on wire shelf, MW suitable
Turn the meat after half of the cooking time.
P14 Pulled pork (slow cooking) 1.5 - 2 kg 1; baking tray
Turn the meat after half of the cooking time to get an even browning.
P15 Pork loin, fresh 1 - 1.5 kg; 5 - 6 cm thick pieces 1; roasting dish on wire shelf
P16 Pork spare ribs 2 - 3 kg; use raw, 2 - 3 cm thin spare ribs 2; deep pan
Add liquid to cover the bottom of a dish. Turn the meat af‐ ter half of the cooking time.
P17 Lamb leg with bones 1.5 - 2 kg; 7 - 9 cm thick pieces 1; roasting dish on baking tray
Fry the meat for a few minutes in a hot pan. Add liquid. Turn the meat after half of the cooking time.
P18 Whole chicken 1 - 1.1 kg; fresh 1; ceramic or glass casserole dish on wire shelf, MW suitable
Put the chicken breast-side down and turn it over after half of the cooking time.
P19 Half chicken 0.5 - 0.8 kg 2; baking tray
P20 Chicken breast 180 - 200 g per piece 1; casserole dish on wire shelf
Fry the meat for a few minutes in a hot pan.
P21 Chicken legs, fresh 250 - 400 g 2; baking tray
If you marinated chicken legs first, set lower temperature and cook them longer.
P22 Duck, whole 1.5 - 2.5 kg 1; roasting dish on wire shelf
Put the meat on roasting dish. Turn the duck after half of the cooking time.
P23 Goose, breast 1kg 1; roasting dish on wire shelf
Turn the goose after half of the cooking time.
P24 Meat loaf 1 kg 1; wire shelf
P25 Whole fish, grilled 0.5 - 1 kg per fish 1; baking tray Fill the fish with butter, spices and herbs.
P26 Fish fillet - 2; casserole dish on wire shelf
P27 Cheesecake - 1; 28 cm springform tin on wire shelf
P28 Apple cake - 2; baking tray
P29 Apple tart - 1; pie form on wire shelf
P30 Apple pie - 1; 22 cm pie form on wire shelf
P31 Brownies 2 kg of dough 2; deep pan
P32 Muffins - 2; muffin tray on wire shelf
P33 Loaf cake - 1; loaf pan on wire shelf
P34 Baked potatoes 1 kg 1; baking tray
Put the whole potatoes with skin on baking tray.
P35 Wedges 1 kg 2; baking tray lined with baking paper
Cut potatoes into pieces.
P36 Grilled mixed vegetables 1 - 1.5 kg 2; baking tray lined with baking paper
Cut the vegetables into pieces.
P37 Croquettes, frozen 0.5 kg 2; baking tray
P38 Pommes, frozen 0.75 kg 2; baking tray
P39 Meat / vegetable lasagna with dry pasta sheets 1 - 1.5 kg 1; ceramic or glass casserole dish on wire shelf, MW suitable
P40 Potato gratin (raw potatoes) 1.1 kg ; 2; ceramic or glass casserole dish on wire shelf, MW suitable
Rotate the dish after half of the cooking time.
P41 Pizza fresh, thin - 1; baking tray lined with baking paper
P42 Pizza fresh, thick - 1; baking tray lined with baking paper
P43 Quiche - 1; baking tin on wire shelf
P44 Baguette / Ciabatta / White bread 0.8 kg 1; baking tray lined with baking paper
More time needed for white bread.
P45 Whole grain / Rye / Dark bread 1 kg 1; baking tray lined with baking paper / loaf pan on wire shelf

Changing: Settings

  1. Turn the knob for the heating functions to to enter Menu.
  2. Select . Press .
  3. Turn the control knob to select the setting. Press .
  4. Adjust the value. Press.
    Turn the knob for the heating functions to the off position to exit Menu.

Menu: Settings

Setting Value
01 Time of day Change
02 Display brightness 1 - 5
03 Key tones 1 - Beep, 2 - Click, 3 - Sound off
04 Buzzer volume 1 - 4
05 Uptimer On / Off
06 Light On / Off
07 Demo mode Activation code: 2468
08 Software version Check
09 Reset all settings Yes / No

ADDITIONAL FUNCTIONS

Lock
This function prevents an accidental change of the appliance function. Turn it on when the appliance works - the set cooking continues, the control panel is locked. Turn it on when the appliance is off - it cannot be turned on, the control panel is locked.
press and hold to turn on the function. A signal sounds.
flashes 3 times when the lock is turned on.
press and hold to turn off the function.

Automatic switch-off
For safety reasons, if the heating function is active and no settings are changed, the appliance will turn off automatically after a certain period of time.

30 - 115 12.5
120 - 195 8.5
200 - 230 5.5

If you intend to run a heating function for a duration exceeding the automatic switch-off time, set the cooking time. Refer to the 'Clock functions' chapter. The Automatic switch-off does not work with the functions: Light, Time Delayed Start.

Cooling fan
When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

CLOCK FUNCTIONS

Clock functions description

Time of day
To set the clock that displays the current time.
Minute minder
To set a countdown timer. When the timer ends, the signal sounds. This function has no effect on the operation of the oven.
Cooking time
To set cooking duration. When the timer ends, the signal sounds and the heating function will automatically turn off.
Time Delayed Start
To postpone the start and / or end of cooking.
Uptimer
To show how long the appliance operates. Maximum is 23 h 59 min. This function has no effect on the operation of the oven.

Minute minder, Time Delayed Start and Cooking time are available for: True Fan Cooking, Conventional Cooking, Turbo Grilling, Pizza Function. Cooking time is also available for Turbo Grilling + MW, True Fan Cooking + MW.

Setting: Minute minder

  1. Press .
    The display shows: 0:00 and .
  1. Turn the control knob to set the Minute minder.
  2. Press . The timer starts counting down immediately.

When the time ends, press and turn the knob for the heating functions to the off position.

Setting: Cooking time

  1. Turn the knob to select the heating function and set the temperature.
  2. Press repeatedly.
    The display shows: 0:00 and .
  3. Turn the control knob to set the Cooking time.
  4. Press .

The timer starts counting down immediately. When the time ends, press and turn the knob for the heating functions to the off position.

Setting: Time Delayed Start

  1. Turn the knobs to select the heating function and set the temperature.
  2. Press repeatedly.
    The display shows: the time of day START.
  3. Turn the control knob to set the start time.
  1. Press .
    The display shows: --:-- STOP.
  2. Turn the control knob to set the end time.
  3. Press .
    The timer starts counting down at a set start time. When the time ends, press and turn the knob for the heating functions to the off position.

Setting: Uptimer

  1. Turn the knob for the heating functions to to enter Menu.
  2. Turn the control knob to select / Uptimer. Refer to "Daily Use" chapter, Menu: Settings.
  1. Press .
  2. Turn the control knob to turn the Uptimer on and off.
  3. Press .

Setting: Time of day

  1. Turn the knob for the heating functions to to enter Menu.
  2. Turn the control knob to select / Time of day.
  3. Turn the control knob to set the clock.
  4. Press .

USING THE ACCESSORIES


Refer to Safety chapters.

Inserting accessories
Use only suitable cookware and material. Refer to "Hints and tips" chapter, Microwave suitable cookware and materials.
A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping off the shelf.

Wire shelf
Inserting accessories - Step 1
Insert the shelf between the guide bars of the shelf support and make sure that the feet point down.

Deep pan
Inserting accessories - Step 2
Push the tray between the guide bars of the shelf support.

Microwave bottom glass plate
Inserting accessories - Step 3
Use the microwave bottom glass plate only with microwave function. It is not suitable for combined microwave function (e.g. microwave grilling). Put the accessory on the bottom of the cavity. You can put the food directly on the microwave bottom glass plate.

HINTS AND TIPS

Cooking recommendations
The temperature and cooking times in the tables are for guidance only. They depend on the recipes, quality and quantity of the ingredients used.
Your appliance may bake or roast differently than your previous appliance. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food.
Count the shelf positions from the bottom of the oven floor.
If you cannot find the settings for a specific recipe, look for a similar one.
For energy saving tips refer to "Energy efficiency" chapter.

Information for test institutes
Microwave function
Tests according to IEC 60705.
Use wire shelf unless otherwise specified.

Symbols used in the tables:

Food type
Heating function
Temperature
Accessory
Weight (kg)
Microwave power (W)
Shelf position
Cooking time (min)
Sponge cake 1) 600 0.475 Bottom 7 - 9
Meatloaf 1) 400 0.9 2 25 - 32
Egg custard 1) 500 1 Bottom 17 - 19
Meat defrosting 2) 200 0.5 Bottom 7 - 8
  1. Turn the container around by 1/4, halfway through the cooking time.
  2. Turn the meat upside down halfway through defrosting time.

Microwave Combi Function Use the wire shelf.

Cake1) Conventional Cooking + MW 100 0.7 200 2 23 - 27
Potato gratin 1) True Fan Cooking + MW 300 1.1 180 2 38 - 42
Chicken 2) Turbo Grilling + MW 400 1.1 230 1 35 - 40
  1. Turn the container around by 1/4, halfway through the cooking time.
  2. Put the meat in a round glass container and turn it upside down after 20 minutes of the cooking time.

Microwave recommendations
Place the food on the microwave bottom glass plate. Place the food on a plate at the bottom of the oven. Turn or stir the food halfway through the defrosting and cooking time.
Stir liquid dishes from time to time.
Stir the food before serving.
Cover the food for cooking and reheating.
Put the spoon to the bottle or glass when heating drinks to ensure better heat distribution. Place the food into the appliance without packaging. The packaged ready meals can be put into the appliance only when the packaging is microwave safe (check information on the packaging).

Microwave cooking
Cover the food before cooking. If you want to keep a crust, cook food without a cover.
Do not overcook the dishes by setting the power and time too high. The food can dry out, burn or cause fire.
Do not use the appliance to cook eggs or snails in their shells, because they can burst.
Pierce the yolk of fried egg before reheating it.
Pierce food with skin or peel several times before cooking.
Cut vegetables into similar-sized pieces.
After you turn off the appliance, take the food out and let it stand for a few minutes to allow the heat distribute evenly.

Microwave defrosting
Place the frozen, unwrapped food on a small upturned plate with a container below it, or on a defrosting rack or plastic sieve so that the defrosting liquid can leak out.
Remove defrosted pieces subsequently.
To cook fruit and vegetables without defrosting them first, you can use a higher microwave power.

Microwave suitable cookware and materials
For the microwave use only suitable cookware and materials. Use below table as a reference.
Check the cookware / material specification before use.

Cookware / Material
Ovenproof glass and porcelain with no metal components, e.g. heat-proof glass
Non-ovenproof glass and porcelain without any silver, gold, platinum or other metal decorations
Glass and glass ceramic made of ovenproof / frost-proof material
Ovenproof ceramic and earthenware without any quartz or metal components and glazes which contain metal
Ceramic, porcelain and earthenware with unglazed bottom or with small holes, e.g. on handles
Heat-resistant plastic up to 200°C
Cardboard, paper
Clingfilm
Microwave clingfilm
Roasting dishes made of metal, e.g. enamel, cast iron
Baking tins, black lacquer or silicon-coated
Wire shelf
Microwave glass bottom plate
Cookware for microwave use, e.g. crisp pan

Power settings
Below data is for guidance only.

700 - 1000 W

  • Searing at the start of the cooking process
  • Heating liquids

500 - 600 W

  • Cooking vegetables and egg dishes
  • Simmering stews
  • Heating one-plate meals
  • Defrosting and heating frozen meals

300 - 400 W

  • Melting cheese, chocolate, butter
  • Simmering rice
  • Heating baby food
  • Cooking / Heating delicate food
  • Continuing cooking

100 - 200 W

  • Defrosting bread, fruit and cakes, cheese, cream, butter, meat, fish

CARE AND CLEANING


Refer to Safety chapters.

Notes on cleaning
Cleaning Agents

  • Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.
  • Use a cleaning solution to clean metal surfaces.
  • Clean stains with a mild detergent.

Everyday Use

  • Clean the interior of the appliance after each use. Fat accumulation or other residue may cause fire.
  • Clean the appliance ceiling carefully from residue and fat.
  • Do not store food in the appliance for longer than 20 minutes. Dry the interior of the appliance only with a microfibre cloth after each use.

Accessories

  • Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.
  • Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

Removing the shelf supports
Remove the shelf supports to clean the appliance.
Removing the shelf supports

  1. Turn off the appliance and wait until it is cold.
  2. Carefully pull the shelf supports up and out of the front catch.
  3. Pull the front end of the shelf support away from the side wall.
  4. Pull the supports out of the rear catch.
    Install the shelf supports in the opposite sequence.

Replacing the lamp

Risk of electric shock. The lamp can be hot.

  1. Turn off the appliance and wait until it is cold.
  2. Disconnect the appliance from the mains.
  3. Place the cloth on the oven floor.


Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

Top lamp

  1. Turn the glass cover to remove it.
  2. Clean the glass cover.
  3. Replace the lamp with a suitable 300°C heat-resistant lamp.
  4. Install the glass cover.

TROUBLESHOOTING


Refer to Safety chapters.

What to do if...

Problem Check if...

You cannot activate or operate the appliance

The appliance is correctly connected to an electrical supply.

The appliance does not heat up

The automatic switch-off is deactivated.
The fuse is not blown.
Lock is deactivated.

The lamp does not work

The lamp is burnt out.

The display shows 00:00

There was a power cut. Set the time of day.

informationIf the display shows an error code that is not in this table, turn the house fuse off and on to restart the appliance. If the error code recurs contact an Authorised Service Centre.

Service data
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is located on the front frame of the appliance. It is visible when you open the door. Do not remove the rating plate from the appliance.
We recommend that you write the data here:
Model (MOD.):
Product number (PNC):
Serial number (S.N.):

ENERGY EFFICIENCY

Product Information for power consumption and maximum time to reach applicable low power mode

Power consumption in standby 0.8 W
Maximum time needed for the equipment to automatically reach the applicable low power mode 20 min

Energy saving tips
Following tips below will help you save energy when using your appliance.
Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.
Use metal cookware and dark, non-reflective tins and containers to improve energy saving (only when you use a non-microwave function).
Do not preheat the appliance before cooking unless specifically recommended.
Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan
When possible, use the cooking functions with fan to save energy.

Residual heat
When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.
Use the residual heat to keep the food warm or warm up other dishes.
When you turn off the appliance, the display shows the residual heat.

Keep food warm
Choose the lowest possible temperature setting to use residual heat and keep the food warm. The residual heat indicator or temperature appears on the display.

Cooking with the lamp off
Turn off the lamp during cooking. Turn it on only when you need it.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

  • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Keep all packaging away from children and dispose of it appropriately.

  • The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
  • If the appliance has a child safety device, it should be activated.
  • Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

  • This appliance is for cooking purposes only.
  • This appliance is designed for single household domestic use in an indoor environment.
  • This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
  • Only a qualified person must install this appliance and replace the cable.
  • Do not use the appliance before installing it in the built-in structure.
  • Disconnect the appliance from the power supply before carrying out any maintenance.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

  • Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

  • The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.
  • Always use oven gloves to remove or insert accessories or oven ware.
  • Do not activate the microwave function when the appliance is empty. Metal parts inside the cavity can create electric arcing.
  • Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

  • If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

  • Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

  • Do not heat liquids and other foods in sealed containers. They are liable to explode.
  • Use only utensils that are suitable for use in microwave ovens.
  • When heating food in plastic or paper containers, observe the appliance due to the possibility of ignition.
  • The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
  • If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
  • Microwave heating of beverages can result in delaye deruptive boiling. Care must be taken when handling the container.
  • The contents of feeding bottles and baby food jars shall bestirred or shaken and the temperature checked before consumption, in order to avoid burns.
  • Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
  • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
  • The appliance should be cleaned regularly and any food deposits removed.
  • Do not use a steam cleaner to clean the appliance.
  • Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
  • Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

SAFETY INSTRUCTIONS

Installation

Only a qualified person must install this appliance.

  • Remove all the packaging.
  • Do not install or use a damaged appliance.
  • Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
  • Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
  • Keep the minimum distance from other appliances and units.
  • Before mounting the appliance, check if the appliance door opens without restraint.
  • The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
  • The built-in unit must meet the stability requirements of DIN 68930.
Cabinet minimum height (Cabinet under the worktop minimum height) 444 (460) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 455 mm
Height of the back of the appliance 440 mm
Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 882 mm
Ventilation opening minimum size. Opening placed on the bottom rear side 560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side 1500 mm
Mounting screws 3.5x25 mm

Electrical connection

Risk of fire and electric shock.

  • All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
  • Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
  • Do not use multi-plug adapters and extension cables.
  • Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
  • Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
  • The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
  • Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
  • If the mains socket is loose, do not connect the mains plug.
  • Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
  • Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
  • The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.
  • This appliance is supplied only with a main cable.

Use

Risk of injury, burns and electric shock or explosion.

  • Do not change the specification of this appliance.
  • Make sure that the ventilation openings are not blocked.
  • Do not let the appliance stay unattended during operation.
  • Deactivate the appliance after each use.
  • Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
  • Do not operate the appliance with wet hands or when it has contact with water.
  • Do not apply pressure on the open door.
  • Do not use the appliance as a work surface or as a storage surface.
  • Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
  • Do not let sparks or open flames to come in contact with the appliance when you open the door.
  • Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
  • Do not use microwave function to preheat the appliance.

    Risk of damage to the appliance.
  • To prevent damage or discoloration to the enamel:
    • do not put aluminium foil directly on the bottom of cavity of the appliance.
    • do not put water directly into the hot appliance.
    • do not keep moist dishes and food in the appliance after you finish the cooking.
    • be careful when you remove or install the accessories.
  • Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
  • Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
  • If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

Care and cleaning

Risk of injury, fire, or damage to the appliance.

  • Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  • Make sure the appliance is cold. There is the risk that the glass panels can break.
  • Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
  • Be careful when you remove the door from the appliance. The door is heavy!
  • Make sure the cavity and the door are wiped dry after each use. Steam produced during the operation of the appliance condensates on cavity walls and can cause corrosion.
  • Clean regularly the appliance to prevent the deterioration of the surface material.
  • Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.
  • Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
  • If you use an oven spray, follow the safety instructions on its packaging.

Glassware use
Handling your glassware without an appropriate degree of care could result in breakage, chipping, cracking or severe scratching:

  • Do not spill cold water or other liquids on the glassware because a sudden temperature drop may cause immediate breakage of the glass. Broken glass pieces may be extremely sharp and difficult to locate.
  • Do not place hot glassware on a wet or cool surface, directly on countertop or metal surface, or in sink; or handle hot glassware with wet cloth.
  • Do not use or repair any glassware that is chipped, cracked or severely scratched.
  • Do not drop or hit glassware against a hard object or strike utensils against it.
  • Do not heat empty or nearly empty glassware in microwave, or overheat oil or butter in microwave (use minimum amount of cooking time).

Allow hot glassware to cool on a cooling rack, a potholder or a dry cloth. Make sure that the glassware is cool enough before washing, refrigerating or freezing.
Avoid handling hot glassware (including ware with silicone gripping surfaces) without dry potholders.
Avoid microwave misuse (i.e. running the oven without any load or small load).

Internal lighting

Risk of electric shock.

  • Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
  • This product contains a light source of energy efficiency class G.
  • Use only lamps with the same specifications.

Service

  • To repair the appliance contact the Authorised Service Centre.
  • Use original spare parts only.

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
Subject to change without notice.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Electrolux EVLDE46K, EVLDE46X - Microwave Combi-Oven Manual

Advertisement

Need help?

Need help?

Do you have a question about the EVLDE46K and is the answer not in the manual?

Questions and answers

Table of Contents
