Refer to Safety chapters.
Use the trivet only with the Grill- / roasting pan.
Sensor field / Button | Description |
![]() | To set the time. |
![]() | To set a clock function. |
![]() | To set the time. |
Refer to Safety chapters.
To set the Time of day refer to "Clock functions" chapter.
Remove all accessories and removable shelf supports from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories before the first use.
Put the accessories and the removable shelf supports back to their initial position.
Preheat the empty oven before first use.
Accessories can become hotter than usual. The oven can emit an odour and smoke. Make sure that the airflow in the room is sufficient.
Refer to Safety chapters.
To use the appliance press the knob. The knob comes out.
Oven function | Application |
![]() Off position | The oven is off. |
![]() Light | To turn on the lamp. |
![]() True Fan Cooking | To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40°C lower than for Conventional Cooking. |
![]() Moist Fan Baking | This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking. |
![]() Bottom Heat | To bake cakes with crispy bottom and to preserve food. |
![]() Grill | To grill thin pieces of food and to toast bread. |
![]() Fast Grilling | To grill thin pieces of food in large quantities and to toast bread. |
![]() Turbo Grilling | To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown. |
![]() Pizza Function | To bake pizza. To make intensive browning and a crispy bottom. |
![]() Conventional Cooking/Aqua Clean | To bake and roast food on one shelf position. Refer to "Care and cleaning" chapter for more information about: Aqua Clean. |
This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.
Clock function | Application | |
![]() | TIME OF DAY | To set, change or check the time of day. |
![]() | DURATION | To set how long the appliance operates. |
![]() | END | To set when the appliance deactivates. |
![]() | TIME DELAY | To combine DURATION and END function. |
![]() | MINUTE MINDER | To set countdown time. This function has no effect on the operation of the appliance. You can set the MINUTE MINDER at any time, also when the appliance is off. |
You must set the time before you operate the oven.
The flashes when you connect the appliance to the electrical supply, when there was a power cut or when the timer is not set.
Press the or
to set the correct time.
After approximately five seconds, the flashing stops and the display shows the time of day you set.
To change the time of day press again and again until
starts to flash.
The display shows
The display shows
Appliance turns on automatically later on, works for the set DURATION time and stops at the set END time. At the set time an acoustic signal sounds.
The Minute Minder starts automatically after 5 seconds.
The clock function goes out after some seconds.
Refer to Safety chapters.
Wire shelf:
Push the shelf between the guide bars of the shelf support and make sure that the feet point down.
Deep pan:
Push the deep pan between the guide bars of the shelf support.
Wire shelf and deep pan together:
Push the deep pan between the guide bars of the shelf support and the wire shelf on the guide bars above.
Small indentation at the top increase safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.
Be careful when you remove the accessories from a hot oven. There is a risk of burns.
You can use the trivet to roast larger pieces of meat or poultry on one shelf position.
You can use the trivet to grill flat dishes in large quantities and to toast.
When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.
Incorrect operation of the oven or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven turns on again automatically when the temperature drops.
Refer to Safety chapters.
The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.
The oven has five shelf positions.
Count the shelf positions from the bottom of the oven floor.
Your oven may bake or roast differently to the oven you had before. The below tables provide you with the standard settings for temperature, cooking time and shelf position.
If you cannot find the settings for a special recipe, look for the similar one.
The oven has a special system which circulates the air and constantly recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crusty outside. It decreases the cooking time and energy consumption.
Baking cakes
Do not open the oven door before 3/4 of the set cooking time is up.
If you use two baking trays at the same time, keep one empty level between them.
Cooking meat and fish
Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.
Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.
To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.
Cooking times
Cooking times depend on the type of food, its consistency, and volume.
Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.
Preheat the empty oven.
Preheat the empty oven.
Use the cake mould.
Use the second shelf position.
Use the wire shelf.
Use the second shelf position.
Preheat the empty oven.
Use the fourth shelf position.
Grill with the maximum temperature setting.
Preheat the empty oven.
Use the first or the second shelf position.
To calculate the roasting time multiple the time given in the table below by the centimetres of thickness of the fillet.
Cover trays with grease proof paper or baking parchment.
For a better result, stop the oven halfway through the drying time, open the door and let it cool down for one night to complete the drying.
For 1 tray use the third shelf position.
For 2 trays use the first and fourth shelf position.
![]() VEGETABLES | ||
![]() | ![]() (°C) | ![]() (h) |
Beans | 60 - 70 | 6 - 8 |
Peppers | 60 - 70 | 5 - 6 |
Vegetables for soup | 60 - 70 | 5 - 6 |
Mushrooms | 50 - 60 | 6 - 8 |
Herbs | 40 - 50 | 2 - 3 |
Set the temperature to 60 - 70°C.
![]() FRUIT | |
![]() | ![]() (h) |
Plums | 8 - 10 |
Apricots | 8 - 10 |
Apple slices | 6 - 8 |
Pears | 6 - 9 |
Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.
Pizza pan
Dark, non-reflective 28 cm diameter
Baking dish
Dark, non-reflective 26 cm diameter
Ramekins
Ceramic 8 cm diameter, 5 cm height
Flan base tin
Dark, non-reflective 28 cm diameter
For the best results follow suggestions listed in the table below.
Tests according to IEC 60350-1.
Refer to Safety chapters.
![]() Cleaning Agents | Clean the front of the oven with a soft cloth with warm water and a mild cleaning agent. |
To clean metal surfaces, use a dedicated cleaning agent. | |
Clean stubborn stains with a special oven cleaner. | |
![]() Everyday Use | Clean the oven cavity after each use. Fat accumulation or other food remains may cause fire. The risk is higher for the grill pan. |
Moisture can condense in the oven or on the door glass panels. To decrease the condensation, operate the oven for 10 minutes before cooking. Dry the cavity with a soft cloth after each use. | |
![]() Accessories | Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent. Do not clean the accessories in a dishwasher. |
Do not clean the non-stick accessories using aggressive agents, sharp-edged objects or in a dishwasher. |
Clean the oven door with a damp cloth or sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions.
Regularly do a check of the door gasket. The door gasket is around the frame of the oven cavity. Do not use the oven if the door gasket is damaged. Contact an Authorised Service Centre.
To clean the door gasket, refer to the general information about cleaning.
To clean the oven, remove the shelf supports.
Be careful when you remove the shelf supports.
Install the removed accessories in the opposite sequence.
This cleaning procedure uses humidity to help remove remaining fat and food particles from the oven.
Make sure that the oven is cold before you touch it. There is a risk of burns.
The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it. Read the whole "Removing and installing door" instruction before you remove the glass panels.
The oven door may close if you try to remove the internal glass panel before you remove the oven door.
Do not use the oven without the internal glass panel.
When the cleaning is completed, install the glass panel and the oven door.
The screen-printing zone must face the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screen-printing zones is not rough when you touch it.
When installed correctly the door trim clicks.
Make sure that you install the internal glass panel in the seats correctly.
Risk of electric shock.
The lamp can be hot.
Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.
The back lamp
Refer to Safety chapters.
What to do if...
Problem | Possible cause | Remedy |
The unit does not heat up | The oven is deactivated. | Activate the oven. |
The clock is not set. | Set the clock. | |
The necessary settings are not set. | Make sure that the settings are correct. | |
The fuse is blown. | Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician. | |
The lamp does not operate | The lamp is defective. | Replace the lamp. |
Steam and condensation settle on the food and in the cavity of the oven. | You left the dish in the oven for too long. | Do not leave the dishes in the oven for longer than 15 - 20 minutes after the cooking process ends. |
The display shows 12.00 | There was a power cut. | Reset the clock. |
The door gasket is damaged | - | Do not use the oven. Contact an Authorised Service Centre. |
Service data
If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.
The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.
Supplier's name | Electrolux | |

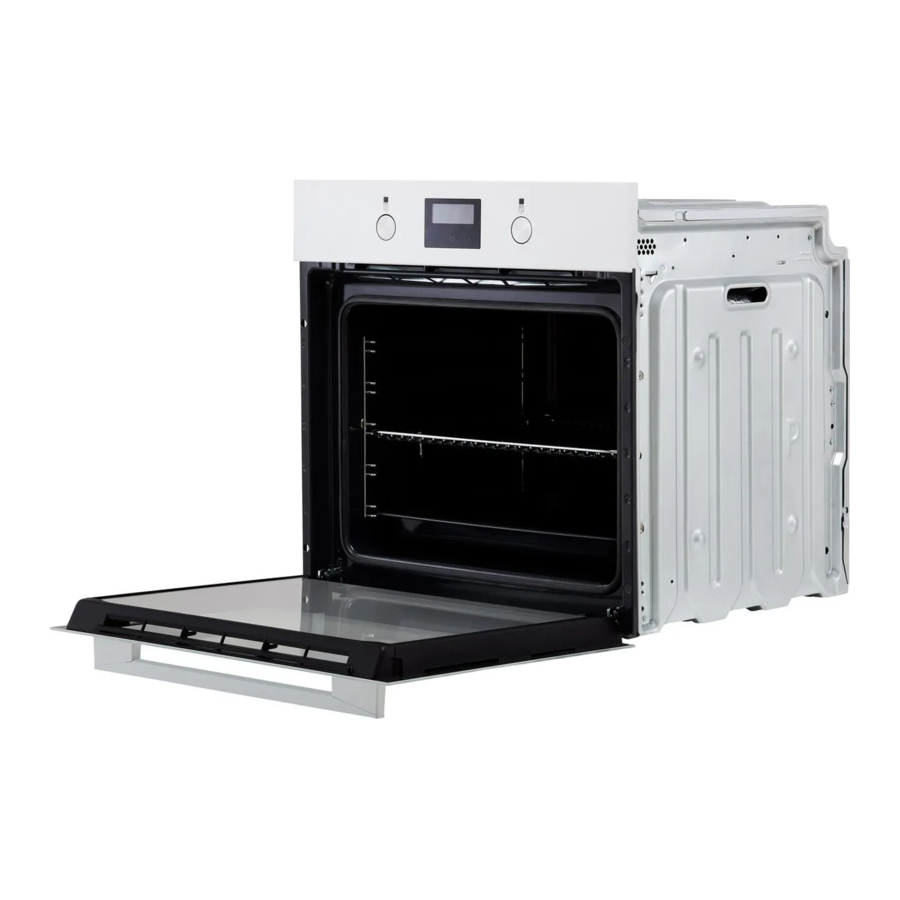

Model identification | KOFGH40TW 949496295 KOFGH40TX 949496296 | |
Energy Efficiency Index | 95.3 | |
Energy efficiency class | A | |
Energy consumption with a standard load, con‐ ventional mode | 0.93 kWh/cycle | |
Energy consumption with a standard load, fanforced mode | 0.81 kWh/cycle | |
Number of cavities | 1 | |
Heat source | Electricity | |
Volume | 72 l | |
Type of oven | Built-In Oven | |
Mass | KOFGH40TW | 27.4 kg |
KOFGH40TX | 27.4 kg |
* For European Union according to EU Regulations 65/2014 and 66/2014.
For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.
For Ukraine according to 568/32020. Energy efficiency class is not applicable for Russia. EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.
The oven contains features which help you save energy during everyday cooking.
Make sure that the oven door is closed properly when the oven operates. Do not open the door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.
Use metal cookware to improve energy saving.
When possible, do not preheat the oven before cooking.
Keep breaks between baking as short as possible when you prepare a few dishes at one time.
Cooking with fan
When possible, use the cooking functions with fan to save energy.
Residual heat
When the cooking duration is longer than 30 minutes, reduce the oven temperature to minimum 3 - 10 minutes before the end of cooking. The residual heat inside the oven will continue to cook.
Use the residual heat to warm up other dishes.
Keep food warm
Choose the lowest possible temperature setting to use residual heat and keep a meal warm.
Moist Fan Baking
Function designed to save energy during cooking.
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
Only a qualified person must install this appliance.
Cabinet minimum height (Cabinet under the worktop minimum height) | 590 (600) mm |
Cabinet width | 560 mm |
Cabinet depth | 550 (550) mm |
Height of the front of the appliance | 594 mm |
Height of the back of the appliance | 576 mm |
Width of the front of the appliance | 595 mm |
Width of the back of the appliance | 559 mm |
Depth of the appliance | 569 mm |
Built in depth of the appliance | 548 mm |
Depth with open door | 1022 mm |
Ventilation opening minimum size. Opening placed on the bottom rear side | 560x20 mm |
Mounting screws | 4x25 mm |
Risk of fire and electric shock.
Cable types applicable for installation or replacement for Europe: |
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F |
UK and Ireland only. This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse. Minimum size cable / flex: 1,5 mm².
For the section of the cable refer to the total power on the rating plate. You can also refer to the table:
Total power (W) | Section of the cable (mm²) |
maximum 1380 | 3 x 0.75 |
maximum 2300 | 3 x 1 |
maximum 3680 | 3 x 1.5 |
The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).
Cable types applicable for installation or replacement for UK only | ||
Connection via | Min. size cable / flex | Cable / flex type / Fuse |
Oven Control Circuit | 2,5 mm² | PVC / PVC twin and earth / 15 A min. PVC / PVC twin and earth / 20 A max. |
Risk of injury, burns and electric shock or explosion.
Risk of damage to the appliance.
Risk of injury, fire, or damage to the appliance.
Risk of electric shock.
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Subject to change without notice.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Need help?
Do you have a question about the KOFGH40TW and is the answer not in the manual?
Questions and answers
