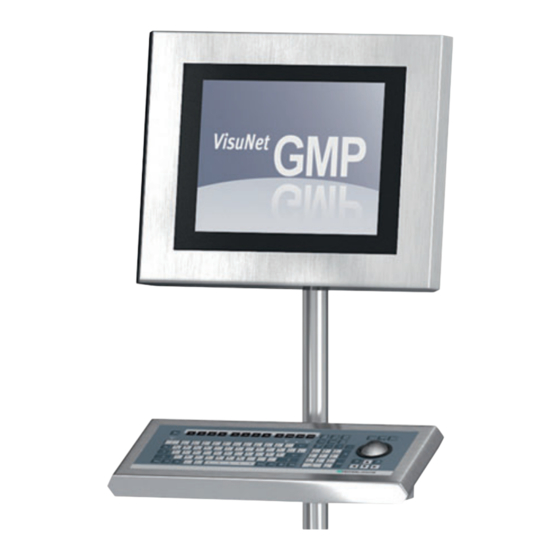

Pepperl+Fuchs VisuNet GMP Series Hardware Manual
  1. Manuals
  2. Brands
  3. Pepperl+Fuchs Manuals
  4. Monitor
  5. VisuNet GMP Series
  6. Hardware manual

Pepperl+Fuchs VisuNet GMP Series Hardware Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
VisuNet GMP DM
Hardware Manual
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VisuNet GMP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pepperl+Fuchs VisuNet GMP Series

Summary of Contents for Pepperl+Fuchs VisuNet GMP Series

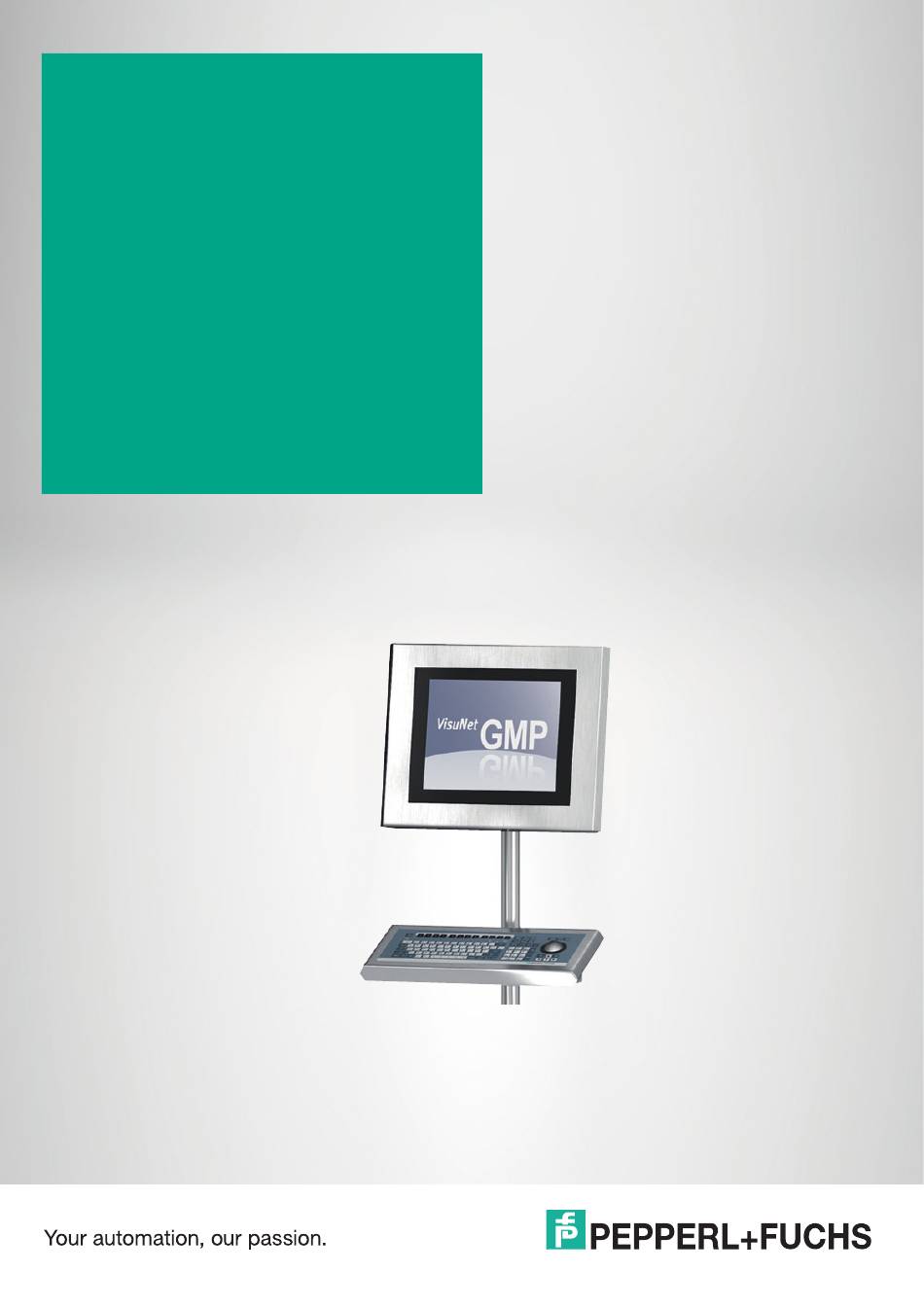

  • Page 1 VisuNet GMP DM Hardware Manual Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
  • Page 3 VisuNet GMP DM Contents Safety .......................... 5 Validity ......................5 Symbols Used ....................5 System Operator and Personnel ..............5 Pertinent Laws, Standards, Directives, and further Documentation ..6 Intended use ....................6 Installation and commissioning ..............6 Product Specifications....................7 Overview ......................
  • Page 4 VisuNet GMP DM Contents Chemical resistance of keyboard foil ............32 Chemical resistances of the touch screen ..........32 Cofigurator VisuNet GMP DM ..............35...
  • Page 5 VisuNet GMP DM Safety Safety Validity The chapter “Safety” is valid as instruction manual. Specific processes and instructions in this instruction manual require special provisions to guarantee the safety of the operating personnel. Symbols Used This document contains symbols for the identification of warning messages and of informative messages.
  • Page 6 VisuNet GMP DM Safety Pertinent Laws, Standards, Directives, and further Documentation Observe directives, standards, and national laws applicable to the intended use and the operating location. Observe Directive 1999/92/EC in relation to hazardous areas. The corresponding datasheets, manuals, declarations of conformity, EU-type examination certificates, certificates, and control drawings if applicable (see datasheet) are an integral part of this document.
  • Page 7 VisuNet GMP DM Product Specifications Product Specifications Overview GMP (“Good Manufacturing Practice”) is a set of guidelines for assuring the quality of produc- tion processes in controlledindustries and closely follow the guidelines issued by the European Commission or the FDA in the US. GMP applications are typically used in the pharmaceutical and food industries.
  • Page 8 VisuNet GMP DM Product Specifications max. 5 m HOST Overview of features • The brilliant display provides high meter-reading comfort • Easy, user-friendly handling due to optionally available touch screen • Image position, pixel frequency and phase will be detected and synchronized automati- cally •...
  • Page 9 VisuNet GMP DM Product Specifications Technical Data VisuNet GMP DM219 VisuNet GMP DM221 VisuNet GMP DM222 General specifications Type Direct monitor Supply Power supply 20 ... 30 V DC Power consumption 40 W Indicators/operating means Display Type TFT, LCD, High Color (24 bit) Screen diagonal 19 '' 21,5 "...
  • Page 10 VisuNet GMP DM Product Specifications Dimensions VisuNet GMP DM series Figure 2.1 Dimensions DM219 Figure 2.2 Dimensions DM221/DM222...
  • Page 11 VisuNet GMP DM Product Specifications Interfaces and connectionsVisuNet GMP DM The interfaces and connections of the VisuNet GMP are located within the VESA adapter at the back of the housing. The following interfaces are available: Figure 2.3 VESA adapter at the back of the VisuNet GMP housing grounding bolt Phoenix DFK-MSTB 2,5/ 4-GF-5,08 VGA interface...
  • Page 12 VisuNet GMP DM Product Specifications 2.4.2 Supply Voltage 24 V 4-pin socket required for supply voltage connection (Phoenix Contact DFK-MSTB 2,5/ 4-GF- 5,08). The VisuNet GMP KM has inverse-polarity protection. Matching plug: Phoenix Contact MSTBT 2,5/ 4-STF-5,08 Picture Signal + 24 V DC + 24 V DC 2.4.3 Supply voltage 12 V (PA version)
  • Page 13 VisuNet GMP DM Product Specifications 2.5.1 Keyboards There are several keyboard models available. All keyboards have an antibacterial coating. For this reason the keyboards are perfectly suitable for environments with high hygienic standards. Keyboard EXTA*-K3 Keyboard with integrated trackball (mechanical/optical) for controlling the mouse pointer. 2 separate buttons below the trackbal assume the function of left and right mouse button.
  • Page 14 VisuNet GMP DM Product Specifications Keyboard EXTA2-K6 Keyboard with integrated joýstick for controlling the mouse pointer. 2 separate buttons below the joystick assume the function of left and right mouse button. Figure 2.6 EXTA2-K6 2.5.2 Pedestals Figure 2.7 Pedestal models for VisuNet GMP Model number Description PEDESTAL1-150-1V-KP-G-T-...
  • Page 15 VisuNet GMP DM Product Specifications Model number Description PEDESTAL1-130-3V-NP-G-T- Pedestal, turnable approx. 350°, inclination of monitor 30° PEDESTAL1-130-3V-NP-G-F- Pedestal, fix mounted, inclina- tion of monitor 30° PEDESTAL1-56-3V-NP-G-T- Pedestal turnable approx. 350°, inclination of monitor 30° 2.5.3 Wall arm versions Figure 2.8 Wall arms for VisuNet GMP Model number Description...
  • Page 16 VisuNet GMP DM Product Specifications 2.5.4 Wall bracket Figure 2.9 Wall bracket for VisuNet GMP Model number Description WALL-BRACKET1-0-0V-G- Wall bracket 2.5.5 Hole pattern of the mounting versions Figure 2.10 Bottom attachment, turnable, fastening at front...
  • Page 17 VisuNet GMP DM Product Specifications 42-50 63-64 Figure 2.11 Bottom attachment, fix mounted Ø Figure 2.12 Wall bracket 2.5.6 Power supply accessories Power supply Model number Description BN-24/5000-HS-10 Power supply DATL-A2-2.5-0 Power cable 2x 2.5mm², wire end ferrule, max. length 80 m DATL-A2-4.0N/2.5F-1 Power cable 2x 4.0mm²...
  • Page 18 Check the package contents against your order and the shipping documents to ensure that all items are present and correct. Should you have any questions, direct them to Pepperl+Fuchs. Retain the original packaging in case the device is to be stored or shipped again at a later date.
  • Page 19 Installation and Commissioning 3.2.1 Grounding at pedestal and wall arm Note Pepperl+Fuchs recommand to use a cable with a core-cross section of 4 mm for grounding. Figure 3.1 Ground connection at pedestal/wall arm Grounding VisuNet GMP at pedestal and wall arm...
  • Page 20 VisuNet GMP DM Installation and Commissioning Figure 3.2 Grounding at Pedestal/Wall Arm washer lock washer M4 screw cable lug Commissioning VisuNet GMP RM/PC Use a low restistance connection between device and control cabinet. Use cables with a minimum cross core-section of 2,5 mm for power supply.
  • Page 21 VisuNet GMP DM Operation Operation On Screen Display VisuNet GMP features a graphical user interface for setting up the display via the On screen display (OSD menu). A control panel with four buttons for operating the system is located on the right hand side of the housing.
  • Page 22 VisuNet GMP DM Operation Selecting the OSD menu Menu To select the OSD menu, press the button. The OSD menu is divided in the following menu items : • Color • Image Setting • Position • OSD Menu • Language •...
  • Page 23 VisuNet GMP DM Operation Quitting OSD menu/sub menus Menu To quit a sub menu, select the menu item Back or press the button. The sub menu will be quit. Note Image Sticking Displaying a fixed pattern may cause burn-in-effects (image sticking due to the LCD characteristics).
  • Page 24 VisuNet GMP DM Operation Note The VisuNet GMP has no audio speaker. 4.1.2 Bright-Contrast menu Menu Item Name Description Brightness Decrease/increase brightness Contrast Decrease/increase contrast Exit Quit the sub menu and return to the menu one lever higher.
  • Page 25 VisuNet GMP DM Operation 4.1.3 Menu Color Sub menu Description Contrast Adjust the contrast of the image Brightness Adjust the brightness of the image...
  • Page 26 VisuNet GMP DM Operation Sub menu Description Color Adjust Adjust the value of red, green and blue Color Temp Adjust the color temperature Auto Color Run the auto config of the color Back Back to main menu...
  • Page 27 VisuNet GMP DM Operation 4.1.4 Image menu Sub menu Description Clock Adjust the clock of the image Phase Adjust the phase of the image...
  • Page 28 VisuNet GMP DM Operation Sub menu Description Gamma Adjust the gamma level of the image Sharpness Adjust the sharpness of the image Auto Adjust... Run the auto config of the image Back Back to main menu 4.1.5 Tools menu Menu item Name Description Select more sub menus: time,...
  • Page 29 VisuNet GMP DM Operation 4.1.6 Input menu Menu item Name Description Activate VGA interface Activate DVI interface Exit Quit the sub menu and return to the menu one lever higher...
  • Page 30 VisuNet GMP DM Operation 4.1.7 Exit menu...
  • Page 31 VisuNet GMP DM Maintenance Maintenance Note As a part of regular maintenance and depending on the operating conditions (vibration, shocks, additional load...) it is recommended to check the torques (20 Nm / 30 Nm) of the set screws (see below). Figure 5.1 Possible wall arm constructions / applications...
  • Page 32 VisuNet GMP DM Appendix Appendix Chemical resistance of keyboard foil The keyboard foil is manufactured from a biaxially aligned polyester-based material and there- fore has a greater restistance to solvents. The foil is stronger and more durable than other stan- dard foils used on keyboards and front panels, such as polycarbonate and PVC.
  • Page 33 VisuNet GMP DM Appendix Aldehyde: Ethyldioctyl Dibutyl phthalate Phthalate Butyl cellosolve Iron chlorid (FeCl Iron chlorid (FeCl Lyes: Ammonia <10 % Sodium hydroxide <10 % Alkali carbonate Ester: Ethylacetate N-butyl acetate Amyl acetate Technical oils and greases: Drilling emulsion Diesel oil Varnish Heating oil Liquid paraffin...
  • Page 34 VisuNet GMP DM Appendix Slight discoloration Intense examinations established that the following products caused slight discoloration: • Mustard • Tomato juice • Tomato ketchup • Lemon juice No resistance Not resistant to: • concentrated mineral acids • concentrated alkaline solutions •...
  • Page 35 VisuNet GMP DM Appendix Cofigurator VisuNet GMP DM Monitor type DM21 19 '' Direct Monitor, SXGA (1280x1024 Pixel), ambient temperature 0 °C to 50 °C DM22 21.5 '' Direct Monitor, HD1080 (1920x1080 Pixel), ambient temperature 0 °C to 50 °C DM22 22 '' Direct Monitor, WSXGA (1680x1050 Pixel), ambient temperature 0 °C to 50 °C Screen type...
  • Page 36 VisuNet GMP DM Appendix No keyboard, no key- board layout German keyboard lay- US international key- board layout French keyboard lay- Danish keyboard lay- Spanish keyboard lay- Accessories No special accessories Options option stan- dard cus- tomize d ver- sion...
  • Page 37 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications 219365 / DOCT-1800B...
