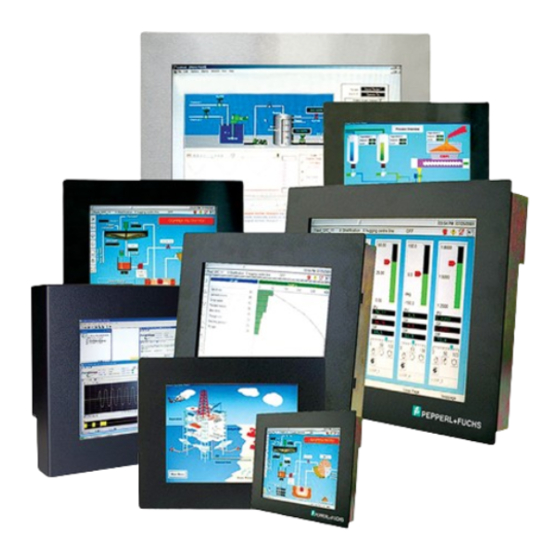

- Page 1 Industrial Flat Panel Monitors VisuNet IND DM5xx Series Manual...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Industrial Flat Panel Monitors Contents System Operator and Personnel ................4 Introduction........................ 5 Warnings and Cautions..................... 6 Certification Markings....................7 Conditions of Safe Use ................... 10 Technical Specification ................... 11 Power Supply ......................12 Sunlight Readable Display..................13 Cabinet or Panel Mounting ..................14 Wiring the Monitor .................... -
Page 4: System Operator And Personnel
Industrial Flat Panel Monitors System Operator and Personnel System Operator and Personnel The operator of the system is responsible in terms of planning, mounting, commissioning, operating, and maintenance. Assembly, commissioning, operation, and dismounting of any devices may only be carried out by trained, qualified personnel who have read and understood the instruction manual. -
Page 5: Introduction
Introduction Introduction Thank you for choosing a Pepperl+Fuchs VisuNet monitor. We have designed our products for easy installation, configuration, and use. While there is nothing difficult or tricky about installing this monitor, you should read this entire manual prior to installation. It is not long and may save you some time in the end. -
Page 6: Warnings And Cautions
Industrial Flat Panel Monitors Warnings and Cautions Warnings and Cautions When so labeled, this equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F, G; ATEX \ IECEx Zone 2; or non-hazardous locations only. When so labeled and installed in an enclosure that reduces environment to a Division 2/Zone 2/Zone 22 or non-hazardous location, this equipment is suitable for use in Class I, Division 1 Groups A, B, C, and D, and Class II Division 1 Groups F and G, as well as ATEX/IECEx Zone 1. -
Page 7: Certification Markings
Industrial Flat Panel Monitors Certification Markings Certification Markings Labels for V3 Option Figure 4.1 Figure 4.2... - Page 8 Industrial Flat Panel Monitors Certification Markings Label for D1 Option Figure 4.3 Model Current Rating DM512 1.2 A max. DM515 2.5 A max. DM519 3.8 A max. DM521 4.1 A max. DM522 4.4 A max. Certification for V3 Option ATEX Certificate: DEMKO 14 ATEX 1379X IECEx Certificate: IECEx UL 14.0090X...
- Page 9 Industrial Flat Panel Monitors Certification Markings Class I Division 2 Groups A, B, C, D, T4 Class II Division 2 Groups, F, G, T4 Class III T4 Certification for D1 Option ATEX Certificate: DEMKO 16 ATEX 1682U DEMKO 16 ATEX 1692U IECEx Certificate: IECEx UL 16.0050U ATEX Marking:...
-
Page 10: Conditions Of Safe Use
Industrial Flat Panel Monitors Conditions of Safe Use Conditions of Safe Use Conditions of Safe Use - General • The devices shall be mounted in an IECEx / ATEX certified enclosure with a minimum ingress protection rating of at least IP54 and used in an area of not more than pollution degree 2 as defined in IEC 60664-1. -
Page 11: Technical Specification
Industrial Flat Panel Monitors Technical Specification Technical Specification Resolution 10'' resolution 800 x 600 px 12'' resolution 800 x 600 px 15'' resolution 1024 x 768 px 19'' resolution 1280 x 1024 px 21.5'' resolution 1920 x 1080 px 22'' resolution 1680 x 1050 px Ambient conditions Degree of protection... -
Page 12: Power Supply
Industrial Flat Panel Monitors Power Supply Power Supply This product requires a regulated external power source to provide power as follows: DM510 series +12 VDC, 1.2 A continuous DM512 series +12 VDC, 1.2 A continuous DM515 series +12 VDC, 2.5 A continuous DM519 series +12 VDC, 3.8 A continuous DM521 &... -
Page 13: Sunlight Readable Display
Industrial Flat Panel Monitors Sunlight Readable Display Sunlight Readable Display For applications in high ambient light, there are options for a high bright display for sizes 15" (1200 nit), 19" (1000 nit), and 21.5" (1200 nit). Refer to the datasheet for specifications and model configuration. -
Page 14: Cabinet Or Panel Mounting
Industrial Flat Panel Monitors Cabinet or Panel Mounting Cabinet or Panel Mounting The monitor is designed for easy panel mounting in a control or machine cabinet. Ensure that the mounting surface is flat so as not to bend or twist the bezel or compromise the usefulness of the outer gasket. - Page 15 Industrial Flat Panel Monitors Cabinet or Panel Mounting 2. Pre-assemble the mounting clip Pre-assemble the mounting clips by threading each thumbscrew about 1/4 of the way into a clip. Note that the thumb head goes on the 2-prong side of the clip and the threaded side goes towards the single prong side.
- Page 16 Industrial Flat Panel Monitors Cabinet or Panel Mounting 4. Insert mounting clips and tighten With the monitor placed in the panel cutout, insert the clips, single prong side first into the rect- angular holes in the rear metal case. Tighten the thumbscrews firmly to compress the outer gasket;...
-
Page 17: Wiring The Monitor
Industrial Flat Panel Monitors Wiring the Monitor Wiring the Monitor There are several electrical connections to be made depending on your exact monitor configu- ration. All connectors are located in the middle of the rear enclosure and designed for space saving cable routing. - Page 18 Power Supply Input for 10", 12", & 15" Monitors An external DC supply is required for system power. If you did not purchase a supply from Pepperl+Fuchs, you should install a well-regulated supply wired to a standard 5-pin DIN connector, as shown below.
- Page 19 Industrial Flat Panel Monitors Wiring the Monitor Power Supply Input For 19", 21.5", and 22" Monitors An external 12-VDC supply is required for system power. You should connect a well-regulated supply wired as shown. Caution! Incorrect application of power could seriously damage your monitor and is not covered under warranty.
- Page 20 Industrial Flat Panel Monitors Wiring the Monitor Intrinsically Safe Ground (I.S. touch screen versions only) Intrinsically safe circuits with zener barriers without galvanic isolation must be grounded. The cross-section of the ground connection, using a copper conductor, must be at least 12 AWG (4 mm2).
-
Page 21: Touch Screen Interface
Industrial Flat Panel Monitors Touch screen Interface Touch screen Interface Note The standard 5-wire resistive touch screen (“TA” option) has not been evaluated for potential damage from UV exposure. Therefore, installation is restricted against direct exposure to sunlight. Examples of acceptable installations include indoor applications away from direct sunlight;... -
Page 22: Configuring The Video Software Drivers
Industrial Flat Panel Monitors Configuring the Video Software Drivers Configuring the Video Software Drivers There are no special software drivers required for your VisuNet monitor. Select a standard ana- log driver in your computer’s software. Most reputable computer vendors supply documenta- tion on how to configure their software drivers and hardware adapter. -
Page 23: Adjusting Video Image 10'', 12'', 15'', & 19
Adjusting Video Image 10'', 12'', 15'', & 19'' Adjusting Video Image 10'', 12'', 15'', & 19'' Pepperl+Fuchs industrial monitors work right out of the box with no further configuration or setup. However, there are quite a few image, size, and position adjustments available if neces- sary. - Page 24 Industrial Flat Panel Monitors Adjusting Video Image 10'', 12'', 15'', & 19'' Press the Menu button again to enable the Image Adjust submenu. Press the Menu button once again to start the Auto Adjust function. Figure 13.3 The video image freezes for up to 5 seconds while sizing and positioning itself, ultimately moving to the center and filling full screen.
- Page 25 Industrial Flat Panel Monitors Adjusting Video Image 10'', 12'', 15'', & 19'' If needed, when complete, move to the Save and Exit function by pressing the Select five times, and then the Menu button once. Figure 13.5 If you must adjust other video modes, follow the same procedure for each mode the computer operates in (such as 640 x 480).
-
Page 26: Adjusting The Video Image 21.5" & 22
Industrial Flat Panel Monitors Adjusting the Video Image 21.5" & 22'' Adjusting the Video Image 21.5" & 22'' DM521 and DM522 industrial monitors automatically configure themselves at initial power up and each subsequent change in video input. So there is usually no need to perform setup or screen adjustments. - Page 27 Industrial Flat Panel Monitors Adjusting the Video Image 21.5" & 22'' Follow these steps to adjust brightness: Press the Menu button once to make the menu appear. The Image submenu is selected by default. Press the Adjust button once to highlight Brightness, and press the Adjust button a second time to select it.
- Page 28 Industrial Flat Panel Monitors Adjusting the Video Image 21.5" & 22'' Follow these steps to select input: Press the Menu button once to make the menu appear, then press a select button to scroll to the System submenu. Press the Adjust button twice to select Input Select. Use the select buttons to scroll through possible inputs.
- Page 29 Industrial Flat Panel Monitors Adjusting the Video Image 21.5" & 22'' Follow these steps to perform a factory reset: Press the Menu button once, then press a select button to scroll to the System submenu. Press the Adjust button once and use the select buttons to scroll to Factory Reset. When Factory Reset is highlighted, press the Adjust ...
-
Page 30: Load Touch Screen Software (Touch Versions Only)
Load Touch Screen Software (touch versions only) Load Touch Screen Software (touch versions only) All Pepperl+Fuchs VisuNet touch screen monitors incorporate the Elo Touch systems control- lers. This includes a touch screen as the front surface of the display, an embedded controller, and software device drivers for you to install into your computer. -
Page 31: Maintenance
Industrial Flat Panel Monitors Maintenance Maintenance Note As a part of regular maintenance and depending on the operating conditions (vibration, shocks, additional load...) it is recommended to check the torques (20 Nm / 30 Nm) of the set screws (see below). Figure 16.1 Possible wall arm constructions / applications... -
Page 32: Other Information
Industrial Flat Panel Monitors Other Information Other Information 1. Cleaning the Screen Standard resistive touch screen models have a polyester coating over the front glass sur- face. Use any mild glass cleaner with a soft cloth. Do not use abrasives, as scratching would damage this surface. -
Page 33: Troubleshooting
Industrial Flat Panel Monitors Troubleshooting Troubleshooting Error Description Screen is completely blank (dark) No video signal, or computer screen saver is active, or computer energy conservation mode is active. Ensure there is power and video; try cycling power to the monitor Slow scrolling bright and dim horizontal Power supply is not well regulated lines, image is stable... -
Page 34: Contact Us
Industrial Flat Panel Monitors Contact Us Contact Us If you must contact Pepperl+Fuchs for any reason, please have the following information avail- able: • Product part number, series, and serial number (located on rear nameplate) • Your name, company, and location where you are working •... - Page 35 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-B086H...
