PROCESS AUTOMATION
MANUAL
VisuNet GMP DM200 Series
Hardware Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VisuNet GMP DM200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pepperl+Fuchs VisuNet GMP DM200 Series

Summary of Contents for Pepperl+Fuchs VisuNet GMP DM200 Series

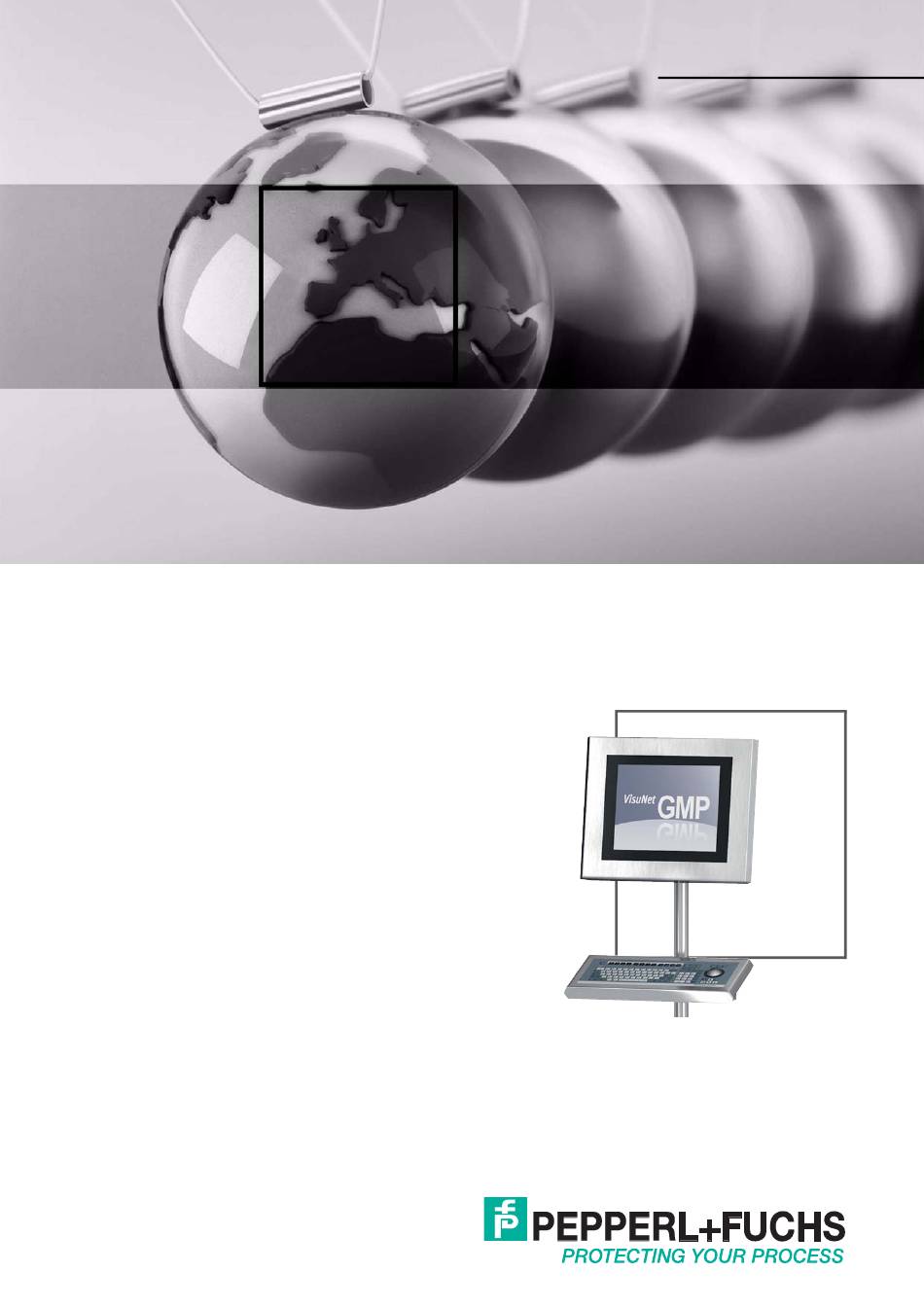

  • Page 1 PROCESS AUTOMATION MANUAL VisuNet GMP DM200 Series Hardware Manual...
  • Page 2 VisuNet GMP DM With regard to the supply of products, the current issue of the following document is ap- plicable: The General Terms of Delivery for Products and Services of the Electrical Indus- try, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...

  • Page 3: Table Of Contents

    VisuNet GMP DM Safety ..................5 Validity....................5 Symbols Used ..................5 System Operator and Personnel ............5 Pertinent Laws, Standards, Directives, and further Documentation5 Intended use..................6 Installation and commissioning ............6 Product Specifications............... 7 Overview ....................7 Technical Data ..................8 Dimensions VisuNet GMP DM series ..........
  • Page 4 VisuNet GMP DM Operation................... 24 On Screen Display................24 Audio menu ..................26 4.1.1 4.1.2 Bright-Contrast menu ............... 27 4.1.3 Menu Color ..................28 Image menu ..................29 4.1.4 Tools menu..................30 4.1.5 4.1.6 Input menu ..................31 4.1.7 Exit menu ..................32 Appendix ...................

  • Page 5: Safety

    VisuNet GMP DM Sicherheit Safety Validity The chapter “Safety” is valid as instruction manual. Specific processes and instructions in this instruction manual require special provisions to guarantee the safety of the operating personnel. Symbols Used This document contains symbols for the identification of warning messages and of informative messages.

  • Page 6: Intended Use

    VisuNet GMP DM Sicherheit The corresponding datasheets, manuals, declarations of conformity, EU-type examination certificates, certificates, and control drawings if applicable (see datasheet) are an integral part of this document. You can find this information under www.pepperl-fuchs.com. Due to constant revisions, documentation is subject to permanent change. Please refer only to the most up-to-date version, which can be found under www.pepperl-fuchs.com.

  • Page 7: Product Specifications

    VisuNet GMP DM Product Specifications Product Specifications Overview GMP (“Good Manufacturing Practice”) is a set of guidelines for assuring the quality of production processes in controlled industries and closely follow the guidelines issued by the European Commission or the FDA in the US. GMP applications are typically used in the pharmaceutical and food industries.

  • Page 8: Technical Data

    VisuNet GMP DM Product Specifications max. 5 m HOST Overview of features The brilliant display provides high meter-reading comfort ■ Easy, user-friendly operation due to optionally available touch screen ■ Image position, pixel frequency, and phase will be detected and ■...

  • Page 9: Dimensions Visunet Gmp Dm Series

    VisuNet GMP DM Product Specifications Input devices Analog resistive touchscreen (optional) , Input device combined with keyboard and optional trackball/touch screen/joystick Interface Interface type VGA or DVI Ambient conditions Ambient temperature 0 ... 50 °C 0 ... 50 °C 0 ... 45 °C Mechanical specifications Protection degree IP65...

  • Page 10: Interfaces And Connectionsvisunet Gmp Dm

    VisuNet GMP DM Product Specifications Interfaces and connections VisuNet GMP DM The interfaces and connections of the VisuNet GMP are located within the VESA adapter at the back of the housing. The following interfaces are available: Figure 2.3 VESA adapter at the back of the VisuNet GMP housing Phoenix DFK-MSTB 2,5/4-GF-5,08 Ground connection (M4) VG inter...

  • Page 11: Supply Voltage 24 V

    VisuNet GMP DM Product Specifications 2.4.3 Supply Voltage 24 V 4-pin socket required for supply voltage connection (Phoenix Contact DFK-MSTB 2,5/ 4-GF- 5,08). The VisuNet GMP KM has inverse-polarity protection. Matching plug: Phoenix Contact MSTBT 2,5/ 4-STF-5,08 Picture Signal + 24 V DC + 24 V DC 2.4.4 Supply Voltage 120/230 V (AC)

  • Page 12: Accessories

    VisuNet GMP DM Product Specifications Accessories The following accessories are available. 2.5.1 Keyboards There are several keyboard models available. All keyboards have an antibacterial coating. For this reason, the keyboards are perfectly suitable for environments with high hygienic standards. Keyboard TA3-K4 Keyboard with touchpad for controlling the mouse pointer.
  • Page 13 VisuNet GMP DM Product Specifications TA3-K4 Storage temperature -20 ... 70 °C (-4 ... 158 °F) Relative humidity max. 85 % , non-condensing Mechanical specifications Material anodized aluminium , Polyester foil Mass 1.2 kg Dimensions 482.6 mm x 177.8 mm x 45 mm Cable length 1.8 m , wire end ferrule Keyboard TA3-K6...
  • Page 14 VisuNet GMP DM Product Specifications TA3-K6 Ambient conditions Ambient temperature -20 ... 50 °C (-4 ... 122 °F) Storage temperature -20 ... 70 °C (-4 ... 158 °F) Relative humidity max. 85 % , non-condensing Mechanical specifications Material anodized aluminium , Polyester foil Mass 1.2 kg Dimensions...

  • Page 15: Pedestals

    VisuNet GMP DM Product Specifications TA3-K8 Interface Interface type Conformity Protection degree IP65 Ambient conditions Ambient temperature 0 ... 50 °C (32 ... 122 °F) Storage temperature -10 ... 70 °C (14 ... 158 °F) Relative humidity max. 85 % , non-condensing Mechanical specifications Material anodized aluminium , Polyester foil...

  • Page 16: Wall Arm Versions

    VisuNet GMP DM Product Specifications 2.5.3 Wall arm versions Figure 2.8 Wall arms for VisuNet GMP Model number Description WALL-ARM1-55- Wall arm, inclination of monitor 10°, without pipe for keyboard 1V-NT-G-*-304 2 models available: WALL-ARM1-55-1V-NT-G-F-304: fix ■ WALL-ARM1-55-1V-NT-G-T-304: approx. 350° turnable ■...

  • Page 17: Hole Pattern Of The Mounting Versions

    VisuNet GMP DM Product Specifications 2.5.5 Hole pattern of the mounting versions Figure 2.10 Bottom attachment, turnable, fastening at front 42-50 63-64 Figure 2.11 Bottom attachment, fix mounted Ø Figure 2.12 Wall bracket...

  • Page 18: Power Supply Accessories

    VisuNet GMP DM Product Specifications 2.5.6 Power supply accessories Power supply Model number Description BN-24/5000-HS-10 Power supply DATL-A2-2.5-0 Power cable 2x 2.5mm², wire end ferrule, max. length 80 m DATL-A2-4.0N/2.5F-1 Power cable 2x 4.0mm² +2.5m 2.5mm², wire end ferrule, length: 110 m 2.5.7 Barcode Reader...

  • Page 19: Dimensions With Barcode Handheld

    VisuNet GMP DM Product Specifications 2.5.8 Dimensions with Barcode handheld Dimensions VisuNet GMP DM 219 with Barcode handheld 29,5 Dimensions VisuNet GMP DM 221 and DM 222 with Barcode handheld 29,5...

  • Page 20: Holder For Handheld Barcode Reader

    VisuNet GMP DM Product Specifications 2.5.9 Holder for handheld barcode reader Dimensions 67,6...

  • Page 21: Installation And Commissioning

    Keep the ambient temperature below the specified maximal value. ■ Note! The device is not delivered in sterile condition. 3.2.1 Grounding at pedestal and wall arm Note! Pepperl+Fuchs recommends using a cable with a core-cross section of 4 mm for grounding. Figure 3.1 Ground connection at pedestal/wall arm...

  • Page 22: Commissioning Visunet Gmp

    VisuNet GMP DM Installation and Commissioning Grounding VisuNet GMP at pedestal and wall arm Note! Depending on the grounding cable, you need the adequate cable lug (not included in delivery). 1. Insert the grounding cable into a cable lug (4). 2.
  • Page 23 VisuNet GMP DM Installation and Commissioning Note! Use the VisuNet GMP only with safety-low voltage (protective extra-low-voltage). The power supply needs to be in line with applicable standards. Turning off the VisuNet GMP 1. Disconnect the device from the power supply. 2.

  • Page 24: Operation

    VisuNet GMP DM Operation Operation On-Screen Display VisuNet GMP features a graphical user interface for setting up the display via the on-screen display (OSD menu). A control panel with four buttons for operating the system is located on the right-hand side of the housing. The following table describes the buttons and their functions.
  • Page 25 VisuNet GMP DM Operation Navigating in the OSD menu 1. If applicable select the OSD menu. – 2. Navigate to the designated tab with the button (scroll to the right) and button (scroll to the left) respectively. The active tab will be marked. Select 3.

  • Page 26: Audio Menu

    VisuNet GMP DM Operation 4.1.1 Audio menu Menu item Name Description Volume Change the volume Mute Mute the audio Exit Quit the sub menu and return to the menu one lever higher. Note! The VisuNet GMP has no audio speaker.

  • Page 27: Bright-Contrast Menu

    VisuNet GMP DM Operation 4.1.2 Bright-Contrast menu Menu Item Name Description Brightness Decrease/increase brightness Contrast Decrease/increase contrast Exit Quit the sub menu and return to the menu one lever higher.

  • Page 28: Menu Color

    VisuNet GMP DM Operation 4.1.3 Menu Color Sub menu Description Contrast Adjust the contrast of the image Brightness Adjust the brightness of the image Color Adjust Adjust the value of red, green, and blue Color Temp Adjust the color temperature Auto Color Run the auto config of the color Back...

  • Page 29: Image Menu

    VisuNet GMP DM Operation 4.1.4 Image menu Sub menu Description Clock Adjust the clock of the image Phase Adjust the phase of the image Gamma Adjust the gamma level of the image Sharpness Adjust the sharpness of the image Auto Adjust... Run the auto config of the image Back Back to main menu...

  • Page 30: Tools Menu

    VisuNet GMP DM Operation 4.1.5 Tools menu Menu item Name Description Select more sub menus: time, horizontal, vertical, OSD menu direction, exit Reset Reset to factory settings Sharpness Change sharpness Language Change language of OSD menu Exit Quit the sub menu and return to the menu one lever higher.

  • Page 31: Input Menu

    VisuNet GMP DM Operation 4.1.6 Input menu Menu item Name Description Activate VGA interface Activate DVI interface Exit Quit the sub menu and return to the menu one lever higher...

  • Page 32: Exit Menu

    VisuNet GMP DM Operation 4.1.7 Exit menu...

  • Page 33: Appendix

    VisuNet GMP DM Appendix Appendix Chemical resistance of keyboard foil The keyboard foil is manufactured from a biaxially aligned polyester-based material and therefore has a greater restistance to solvents. The foil is stronger and more durable than other standard foils used on keyboards and front panels, such as polycarbonate and PVC. The keyboard foil is resistant against the following substances: (Test method: DIN42115): Alcohols ■...
  • Page 34 VisuNet GMP DM Appendix Aldehyde: Dimethylformamide Dioxane Ethyldioctyl Dibutyl phthalate Phthalate Butyl cellosolve Iron chlorid (FeCl Iron chlorid (FeCl Lyes: Ammonia <10 % Sodium hydroxide <10 % Alkali carbonate Ester: Ethylacetate N-butyl acetate Amyl acetate Technical oils and greases: Drilling emulsion Diesel oil Varnish Heating oil...
  • Page 35 VisuNet GMP DM Appendix Resistance to surface desinfectant can be determined on request. Slight discoloration Intense examinations established that the following products caused slight discoloration: Mustard ■ Tomato juice ■ Tomato ketchup ■ Lemon juice ■ No resistance Not resistant to: concentrated mineral acids ■...
  • Page 36 PROTECTING YOUR PROCESS Worldwide Headquarters Pepperl+Fuchs GmbH 68307 Mannheim · Germany Tel. +49 621 776-0 E-mail: info@de.pepperl-fuchs.com For the Pepperl+Fuchs representative closest to you check www.pepperl-fuchs.com/contact www.pepperl-fuchs.com Subject to modifications 219365 / TDOCT-1800A_ENG Copyright PEPPERL+FUCHS • Printed in Germany 02/2017...
