- Page 1 User Guide Getting Started with Instadose ®...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page # Introducing the Instadose ® Exploring the Instadose VUE Dosimeter ® Wearing Instadose VUE Dosimeter ® Caring and Storage of Instadose VUE Dosimeter ® Features of Instadose VUE Dosimeter ® Instadose VUE Iconography ® Compliance Star & Motion Detection Icons for Dose Communication Temperature Error Icons Service &... -
Page 4: Introducing The Instadose ® Vue
Introducing the Instadose ® Combining the science of better radiation monitoring with state-of-the-art wireless processing and communication technologies, Instadose VUE effectively captures, measures, ® wirelessly transmits, and reports occupational radiation exposure anytime, ON-DEMAND. The active electronic display screen enhances user visibility, engagement, and compliance. - Page 5 Instadose ® Dosimetry System The Instadose VUE dosimetry system consists of three main ® components: a wireless dosimeter, a communication device (either a smart device with the Instadose Companion Mobile App or an InstaLink 3 Gateway), and an online reporting ™...
-
Page 6: Exploring The Instadose ® Vue Dosimeter

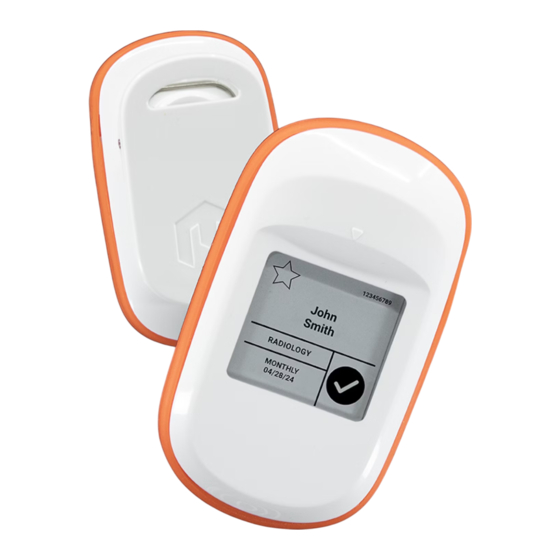

Exploring the Instadose ® Dosimeter The Instadose VUE dosimeter features the latest ® Bluetooth 5.0 Low Energy (BLE) Technology, allowing for ® rapid and wireless transmission of radiation dose exposure data at anytime, and as often as needed. On-screen visibility and feedback enable users to verify the health and status of the device and provides operational feedback about dose reads and wireless transmissions (communications). - Page 7 Instadose VUE Dosimeter ® Front Back #123123123 #123123123 J J ANE SMI I TH RADIO RADIOL L OGY A A U U T T OREADS OREADS 2WK 1M/3M 2WK 1M/3M Wearer’s Name Side Location/ Department Auto-Read Schedule Account Number Dosimeter Wear Location (Body Region) Detector Location Read Button...
-
Page 8: Wearing Instadose ® Vue Dosimeter
#123123123 #123123123 J J ANE SMI I TH RADIO RADIOL L OGY A A U U T T OREADS OREADS 2WK 1M/3M 2WK 1M/3M Wearing Your Dosimeter Wear the dosimeter according to the body position indicated on the screen (collar, torso, fetal). Consult your RSO or Dosimeter Administrator for wear questions. -
Page 9: Vue Dosimeter
Storing the Instadose ® Dosimeter Extreme temperatures (high or low) can impact dosimeter performance, compromising dosimeter operations, and may permanently damage critical internal components. Similar to modern smartphones, if the Instadose VUE dosimeter is exposed ® to extreme temperatures, communication (dose transmission) is not possible until it cools down and recovers to room temperature. -
Page 10: Features Of Instadose ® Vue Dosimeter
Features... -
Page 12: Instadose ® Vue Iconography
Instadose ® Iconography The display screen provides wearer information, device status, and dose read/communication feedback using icons. The following section provides a guide of common icons that will appear on the display screen. Dosimeter Wear Location Where to wear the Dosimeter: •... -
Page 13: Compliance Star & Motion Detection
Star Icon Checkmark Icon COMPLIANCE STAR & MOTION DETECTION • Checkmark Icon will briefly appear to confirm that the dose communication has been successfully completed. • Star Icon* The compliance status can be found in the top left corner, indicated by a star icon. To achieve compliance, the dosimeter must be actively worn for the minimum number of hours required by the organization/ facility. -
Page 14: Icons For Dose Communication
ICONS FOR DOSE COMMUNICATION To initiate or read the dosimeter, a communication device is required to transmit the dose data from the dosimeter to the online reporting system. The dosimeter MUST be within range of a communication device, either the InstaLink 3 Gateway or the smart device running ™... - Page 15 Communication Establishing Uploading Successful for Connection for Dose Data for On-Demand Reads On-Demand Reads On-Demand Reads On-Demand Scheduled Communication Communication Unsuccessful Unsuccessful...
-
Page 16: Temperature Error Icons
TEMPERATURE ERROR ICONS Temperature Error • High Temperature Icon–Dosimeter has reached a high temperature above 122°F (50°C). It must stabilize to room temperature (between 41°F -113°F or 5-45 °C) for the icon to disappear from the screen, indicating the dosimeter is able to communicate again. - Page 17 Low Temperature Fatal Temperature High Temperature Error Error Error Call Customer Recall Support Initiated...
-
Page 18: Instadose ® Vue Communication Devices
Instadose ® Communication Devices. A communication device must be used to perform dose readings and transmit dose data to the legal dose-of-record: 1. The InstaLink 3 Gateway device is recommended ™ when there are 10 or more dosimeters in one location. -
Page 20: Instalink ™ 3 Gateway
InstaLink ™ Gateway The InstaLink 3 serves as a secure and proprietary communication ™ gateway designed specifically to enable fast and reliable connection and transmission of dose data from Instadose wireless dosimeters. With a unique hardware and software design, advanced security technologies, and robust diagnostic and management capabilities, the InstaLink 3 Gateway improves ™... -
Page 21: Scan To Access The Instalink™3 User Guide
Scan to access the InstaLink 3 User Guide ™ Scan the QR code with the camera of your smartphone or tablet to link directly to the InstaLink 3 Gateway User Guide ™ for more details on how to set-up, operate, and troubleshoot the InstaLink 3 Gateway communication device. -
Page 22: Gateway Status Leds
InstaLink 3 Gateway Status LEDs ™ The four LEDs on the top of the InstaLink 3 indicate the ™ device status and will help guide troubleshooting, when necessary. • LED 1: (Power) A green light indicates the device is receiving power. •... - Page 23 InstaLink 3 Gateway ™ LED 1 LED 2 LED 3 LED 4 Status Dosimeter Transmitting Blinking Green Green Data Green Blinking Blinking Uploading Dose Data Green Green Green No Power To Unit Dosimeter Unsuccessful Blinking Green Green Transmitting Data Yellow NTP Failed Green Yellow...
-
Page 24: Instadose Companion Mobile App
Instadose Companion Mobile App The Instadose Companion mobile app provides a wireless communication gateway that allows the dosimeter to be read via a smart device. Dose data to can be transmitted anytime/anywhere, as long as there is an established internet connection. The mobile app also allows users to access and view both current and historical dose results. -
Page 25: Manual Read Via The Instadose Companion Mobile App
Manual Read via the Instadose Companion mobile app To perform a manual read via the mobile app, follow the instructions below. You can verify that the dose was successfully transmitted by logging into the Instadose Companion mobile app or your AMP+ (Account Management Portal) online. -
Page 26: Communicating Dose Reads
Communicating Dose Reads. To initiate or read the dosimeter, a communication device is required to transmit the dose data from the dosimeter to the online reporting system. The dosimeter must be within range of a communication device – either the InstaLink ™... -
Page 27: Calendar Read
Press and hold the read button on the right side of the dosimeter for 2 seconds until the hourglass icon appears. Connection with InstaLink 3 is active and ™ device is uploading data to the reading device If the transmission of dose data is successful, a checkmark icon will appear on the dosimeter screen. -
Page 28: Accessing Dose Data & Reports
Accessing Dose Data & Reports All standard monthly, quarterly and other frequency reports can be accessed via the AMP+ and Instadose.com online account management portals. Special Instadose reports ® are available to assist in managing dosimeters and exposure data. The Instadose Companion mobile app allows a current and historical view of dose data via the selected smartphone or iPad. - Page 29 Mobile App (via a smart device)* To view current and historical dose data, sign in to the Instadose Companion mobile app on your smart device. *The app is only available for wireless Instadose dosimeters. ® Select the My Badge icon (at the bottom). Select Read History.
-
Page 30: Compliance Notices
Compliance Notice FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 31 Canadian Compliance Statement This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada license-exempt RSS(s). Operation is subject to the following two condi- tions: 1. This device may not cause interference. 2. This device must accept any interference, including interfer- ence that may cause undesired operation of the device.
