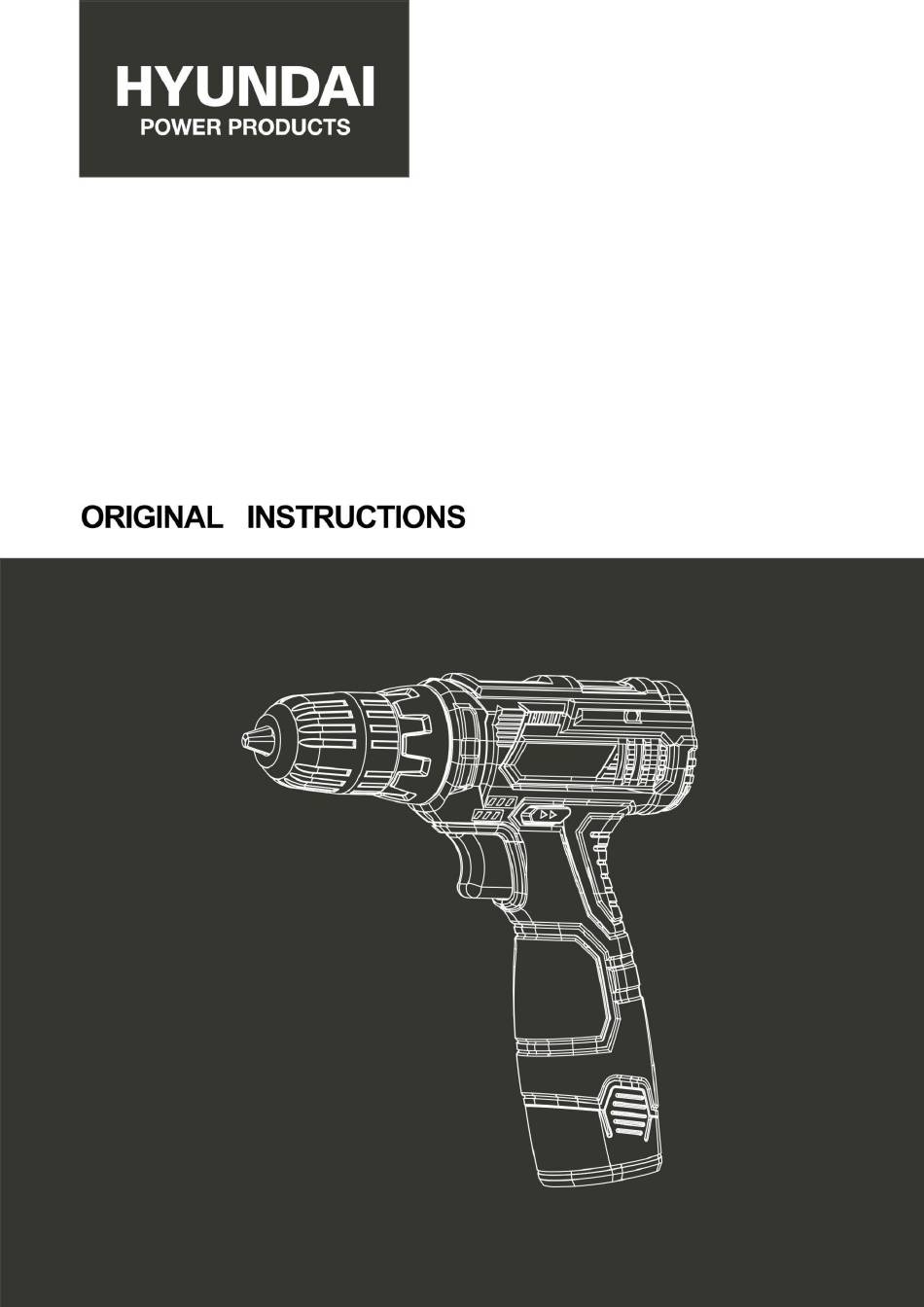

- Page 1 CORDLESS DRILL HPV12V103 WARNING: Read thoroughly the instruction manual before use...
-
Page 2: Table Of Contents
CONTENTS 1. APPLICATION 2. DESCRIPTION (FIG A) 3. PACKAGE CONTENT LIST 4. SYMBOLS 5. GENERAL POWER TOOL SAFETY WARNINGS 6. ADDITIONAL SAFETY WARNINGS 7. OPERATION 8. CLEANING AND MAINTENANCE 9. TECHNICAL DATA 10. STORAGE 11. ENVIRONMENT 12. DECLARATION OF CONFORMITY... -
Page 4: Application
1. APPLICATION The power tool is intended for driving and drilling through wood and plastics. It is not designed for professional use. WARNING! Read these manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions. -
Page 5: Symbols
WARNING: Packaging materials are not toys! Children must not play with plastic bags! Danger of suffocation! 1 x Cordless drill 1 x Charger 1 x Manual 1 x Battery pack If any parts are missing or damaged, please contact your dealer. 4. -
Page 6: General Power Tool Safety Warnings
5. GENERAL POWER TOOL SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 7 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 8 g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
-
Page 9: Additional Safety Warnings
b) Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury. c) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. - Page 10 ▪ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. ▪ Do not open the battery yourself. There is danger of a short circuit. ▪...
- Page 11 ▪Before the use of the charger and the battery read the instruction manual carefully. ▪During the charge process, the current used should correspond to the current of the battery charger. ▪Never let moisture, rain or splashed water reaches the charging location. ▪The ambient temperature must not exceed 40 °C.
- Page 12 Insert the battery packet into the charger. Follow the guidelines provided concerning polarity. ▪Always remove battery packet before working on the machine ▪When the battery is outside the drill, cover the contacts to avoid short circuits (e.g. from tools) ▪Do not throw batteries into water or fire, risk of explosion! ▪Protect the battery from impacts, and don't open it.
-
Page 13: Operation
7. OPERATION 7.1 Charging the battery The battery (5) must be charged before first use. Only after several charge and discharge cycles the battery will attain full capacity. Only use the provided adaptor (9) to charge the battery set. Only charge and use the battery when the ambient temperature is within 10°C - 40 °C. Plug the adaptor (9) to the electric mains. -
Page 14: Cleaning And Maintenance
•For drilling, turn the adjustment collar fully (to the drilling symbol). 7.5 Switching on and off ▪To switch on the machine, press trigger (1). ▪To switch off the machine, release the trigger (1) Position the trigger lock button in the center position (2) to lock the trigger. 7.6 Variable speed •Applying more pressure to the On/Off switch will increase the speed. -
Page 15: Technical Data
9. TECHNICAL DATA Model nr. HPV12V103 Rated voltage 12 Vd.c. No – load speed 0-650/min Torque positions 18+1 Max. drill capacity steel 10mm Charger time 3-5 hours Battery capacity 1300 mAh Battery type Li-ion Max. torque 20 Nm Chuck type... -
Page 16: Storage
10. STORAGE Thoroughly clean the whole machine and its accessories. Store it out of the reach of children, in a stable and secure position, in a cool and dry place; avoid too high and too low temperatures. Protect it from exposure to direct sunlight. Keep it in the dark, if possible. Don’t keep it in plastic bags to avoid humidity build-up. -
Page 17: Declaration Of Conformity
ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declares that the machinery designated below: CORDLESS DRILL HPV12V103 S/N: 20210760156-20210761155 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 18: Warranty
13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 19: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 20: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
