Hyundai power products HPP18V2B2A Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CORDLESS DRILL
HPP18V2B2A
ORIGINAL INSTRUCTIONS
INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPP18V2B2A and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HPP18V2B2A

Summary of Contents for Hyundai power products HPP18V2B2A

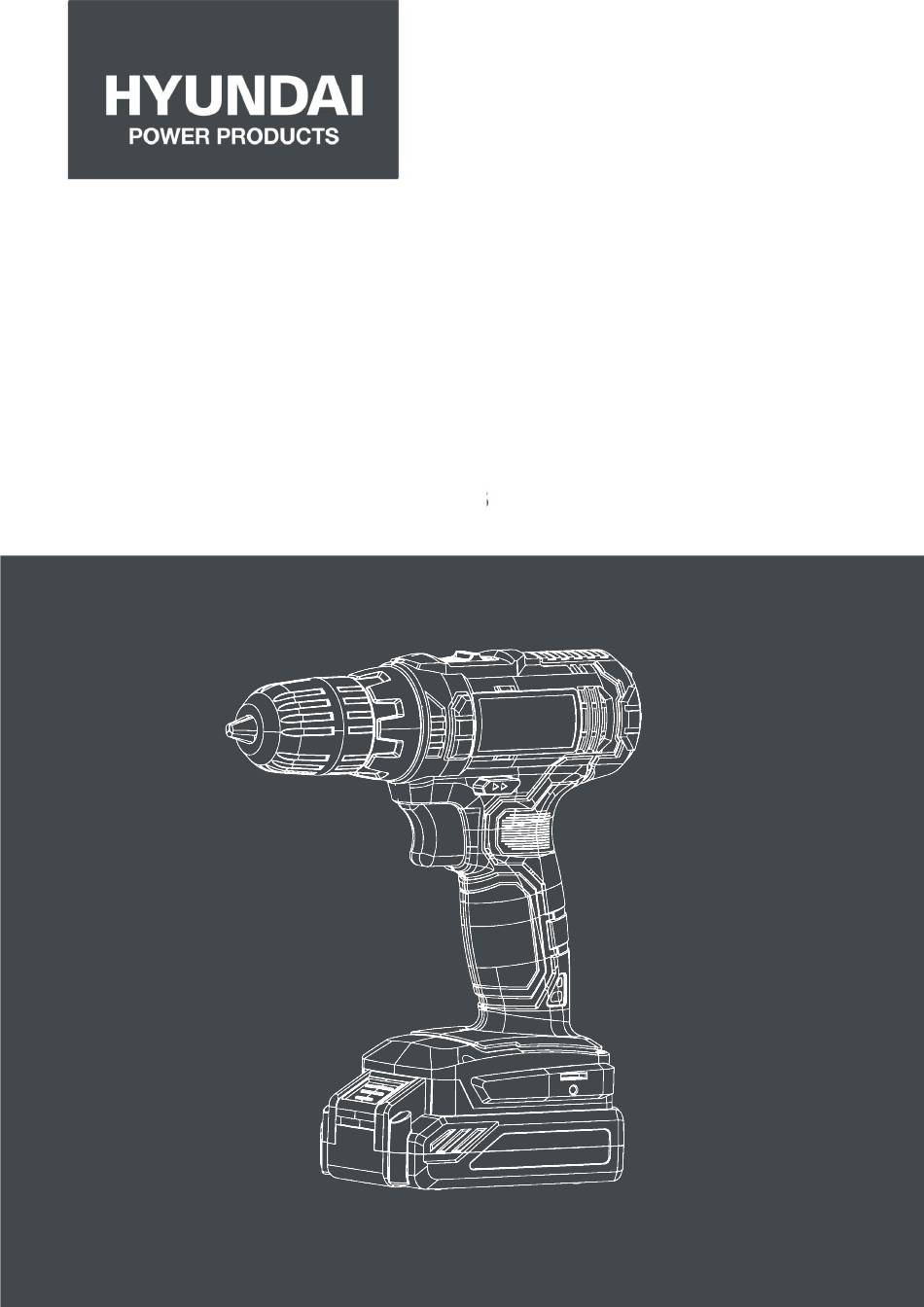

  • Page 1 CORDLESS DRILL HPP18V2B2A ORIGINAL INSTRUCTIONS INSTRUCTION...
  • Page 2 Fig. A...

  • Page 3: Description (Fig A)

    1. APPLICATION The power tool is intended for driving and drilling through wood and plastics It is not designed for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

  • Page 4: General Power Tool Safety Warnings

    4. SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal In accordance with injury or damage to the essential requirements of tool. the European directive(s) Wear eye protection Wear gloves Read manual before use Double insulation (Only for charger) Max temperature...
  • Page 5 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
  • Page 6 h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. 4) Power tool use and care a) Do not force the power tool.
  • Page 7 d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

  • Page 8: Additional Safety Warnings

    6. SCREWDRIVER SAFETY WARNING Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. 7.
  • Page 9 7.1 Special safety instructions for battery and charger 7.2 If under extreme conditions any electrolyte should escape from the battery, it's essential to avoid contact with skin. If electrolyte does come into contact with your skin, rinse it off with water. In the event of electrolyte contact with your eyes, it's essential to consult a doctor.
  • Page 10 ▪Batteries which are defective or damaged or can no longer be recharged must be disposed as a hazardous waste. Hand them over at a special collection point. Never harm our environment. Do not throw unusable storage-battery packet away into the domestic waste, into fire or into water.

  • Page 11: Operation

    ▪Protect the battery from impacts, and don't open it. ▪Never discharge the battery completely and recharge occasionally if not used for a prolonged period WARNING: recharge non-rechargeable batteries. 7.2 Residual risks Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: ▪Damage to lungs if an effective dust mask is not worn.
  • Page 12 To remove the battery, press the battery release button (6) on the top side of the battery set and extract the battery (5). Connect the plug of the charger to the loading-socket (9) of the battery-set. Red LED will light once the battery has been connected to the charger and the charging procedure will proceed.

  • Page 13: Cleaning And Maintenance

    If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. 10. TECHNICAL DATA Model nr. HPP18V2B2A Rated voltage 20Vd.c. No – load speed 0-400 / 0-1400min-¹...
  • Page 14 Battery HPP18V2B2A 18V d.c(20V max).,2000 mAh with 5 Li-ion cells Charger time 1.5 hour Max. torque 30 Nm Chuck type Keyless chuck Acoustic pressure level 87.6 dB(A), K=5dB(A) Acoustic power level 98.6dB(A), K=5dB(A) ah,D=1.298m/s² K =1,5 m/s² Vibration ah,ID=11,505m/s K=1,5m/s 11.

  • Page 15: Battery Pack

    12. STORAGE Thoroughly clean the whole machine and its accessories. Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too high and too low temperatures. Protect it from exposure to direct sunlight. Keep it in the dark, if possible. Don’t keep it in plastic bags to avoid humidity build-up.

  • Page 16: Declaration Of Conformity

    BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declares that the machinery designated below: Drill / Screwdriver HPP18V2B2A S/N: 20210531481-20210531984 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

  • Page 17: Warranty

    16. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 18: Product Failure

    17. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 19: Warranty Exclusions

    18. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
