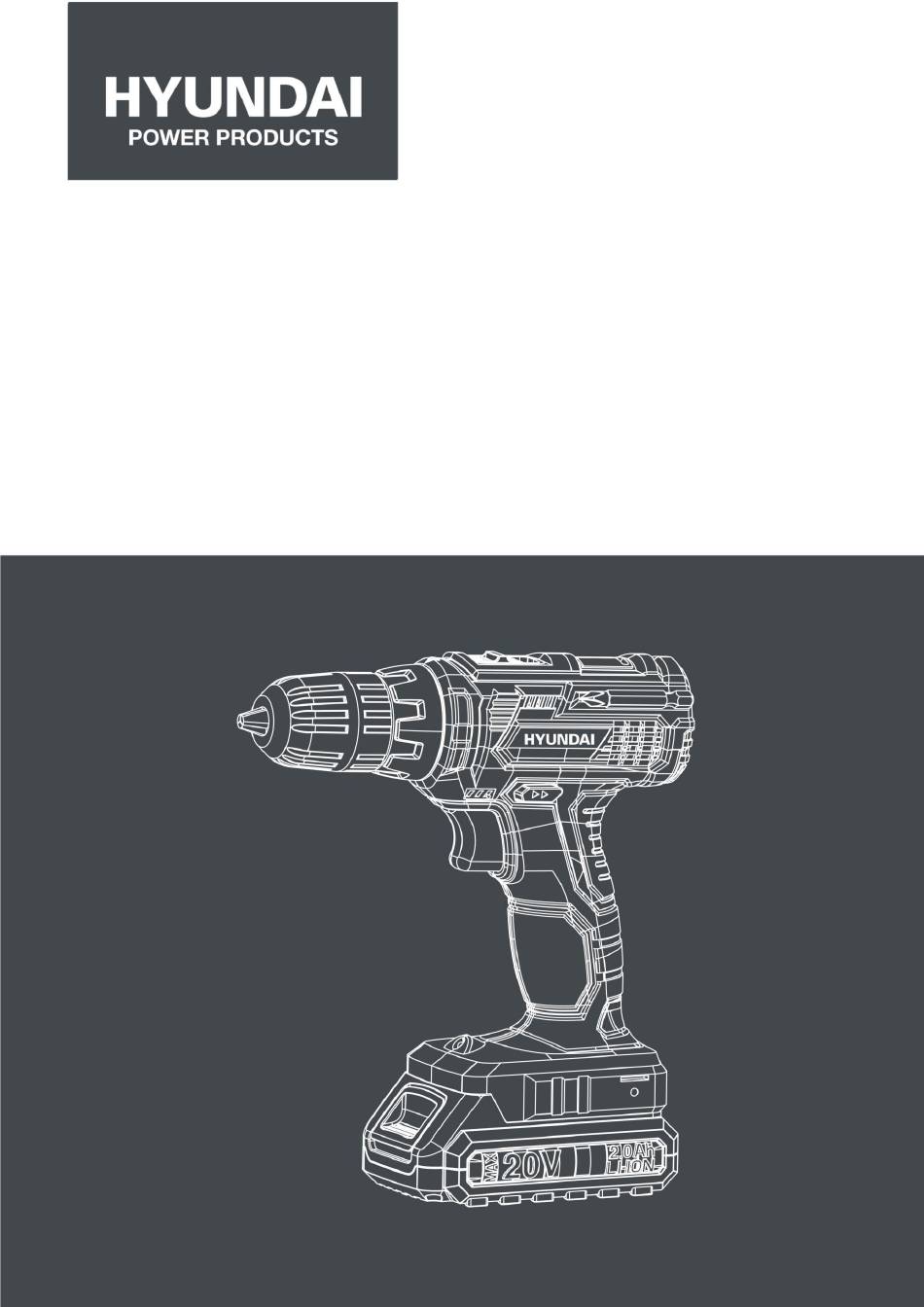

CORDLESS DRILL
HPV20VALU
ORIGINAL INSTRUCTIONS
INSTRUCTION
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPV20VALU and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai power products HPV20VALU

Summary of Contents for Hyundai power products HPV20VALU

  • Page 1 CORDLESS DRILL HPV20VALU ORIGINAL INSTRUCTIONS INSTRUCTION ORIGINAL INSTRUCTIONS...
  • Page 2 Fig. A...

  • Page 3: Description (Fig A)

    1. APPLICATION The power tool is intended for driving and drilling through wood and plastics It is not designed for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.

  • Page 4: General Power Tool Safety Warnings

    4. SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or In accordance with essential damage to the tool. requirements of the European directive(s) Wear eye protection Wear gloves Read manual before use Double insulation (Only for charger) Max temperature...
  • Page 5 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 6: Additional Safety Warnings

    d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
  • Page 7 ▪ Check the battery charger, cable and plug each time before using. Do not use the battery charger when defects are detected. Do not open the battery charger yourself and have it repaired only by qualified personnel using original spare parts.
  • Page 8 ▪During the charge process, the current used should correspond to the current of the battery charger. ▪Never let moisture, rain or splashed water reaches the charging location. ▪The ambient temperature must not exceed 40 °C. ▪Batteries which are defective or damaged or can no longer be recharged must be disposed as a hazardous waste.
  • Page 9 ▪Do not throw batteries into water or fire, risk of explosion! ▪Protect the battery from impacts, and don't open it. ▪Never discharge the battery completely and recharge occasionally if not used for a prolonged period WARNING: recharge non-rechargeable batteries. 7.2 Residual risks Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors.

  • Page 10: Cleaning And Maintenance

    Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts. 10. TECHNICAL DATA Model nr. HPV20VALU Rated voltage 20Vd.c. No – load speed 0-400 / 0-1400min-¹ Torque positions 18+1 Max. drill capacity steel Ø10mm Charger Model: HPV20VALU Input: 100-240~,50/60Hz, 0.8A,...
  • Page 11 21.5V d.c., 2.2A Charger time 1 hour Battery capacity 2000 mAh Battery type Model:HPV20VALU 20V d.c., Li-ion Max. torque 32 Nm Chuck type Keyless chuck Acoustic pressure level 82.0 dB(A) K=5dB(A) Acoustic power level 93.0dB(A), K=5dB(A) Not exceed 2,5 m/s²...

  • Page 12: Battery Pack

    BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declares that the machinery designated below: Drill / Screwdriver HPV20VALU S/N: 20210441722- 20210442471 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.

  • Page 13: Warranty

    16. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 14: Product Failure

    17. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 15: Warranty Exclusions

    18. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
