- Page 1 MODEL # CM3427PC-C Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) TOOLS REQUIRED 2 - People Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...

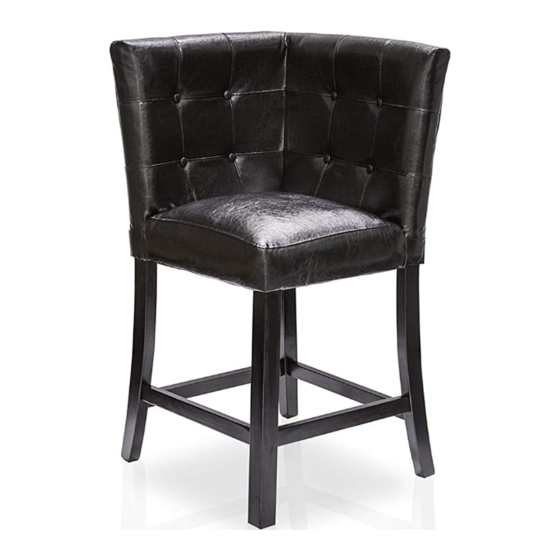

- Page 5 CORNER COUNTER HT. CHAIR CM3427PC-C Please keep instructions for future reference. Check the quantity and irregularity of parts and hardware before you start. PARTS Right Leg Seat Left Leg Front Leg Rear Leg Front Stretcher Rear Stretcher HARDWARE Allen Wrench 5 / 7...
- Page 6 1) Prepare 8 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#E). Align legs (#2,3,4,5) to the holes of the seat (#1) as shown in the picture. Secure with bolts (#E) but do not tighten. Part Part Part...
- Page 7 If you have bought CM3427PC-T, then you can connect both of these chairs by screwing into the metal brackets with screws (#G). Hardware #F X 6pcs Hardware #G X 12pcs 7 / 7...
