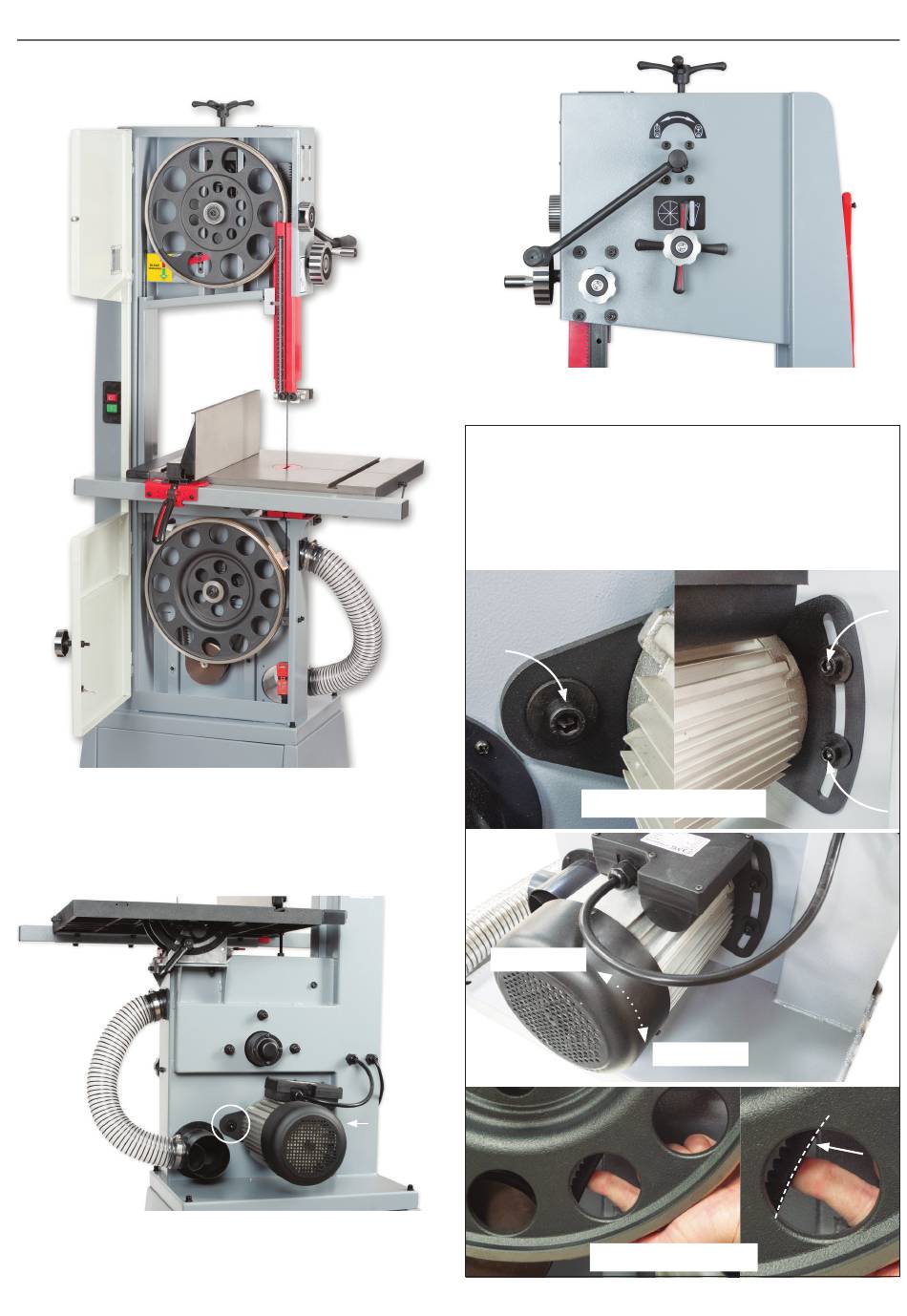

Upper wheel door
Lower wheel door Drive pulley
Table tilt
assembly
Dust extraction outlet
Upper saw wheel
Saw blade
Lower saw
wheel
Micro door switch
Motor
5
Tensioning lever
Upper blade
guide clamp
Tension the Drive Belt
Loosen the three caphead bolts holding the motor,
pivot the motor to increase or to decrease tension on
the drive belt. Note: Check the tension on the belt,
there should be a 1/2 inch depression.
Motor caphead bolts
Decrease
1/2 Inch depression
ANATOMY
Tracking Tracking
control knob control lock
Increase
