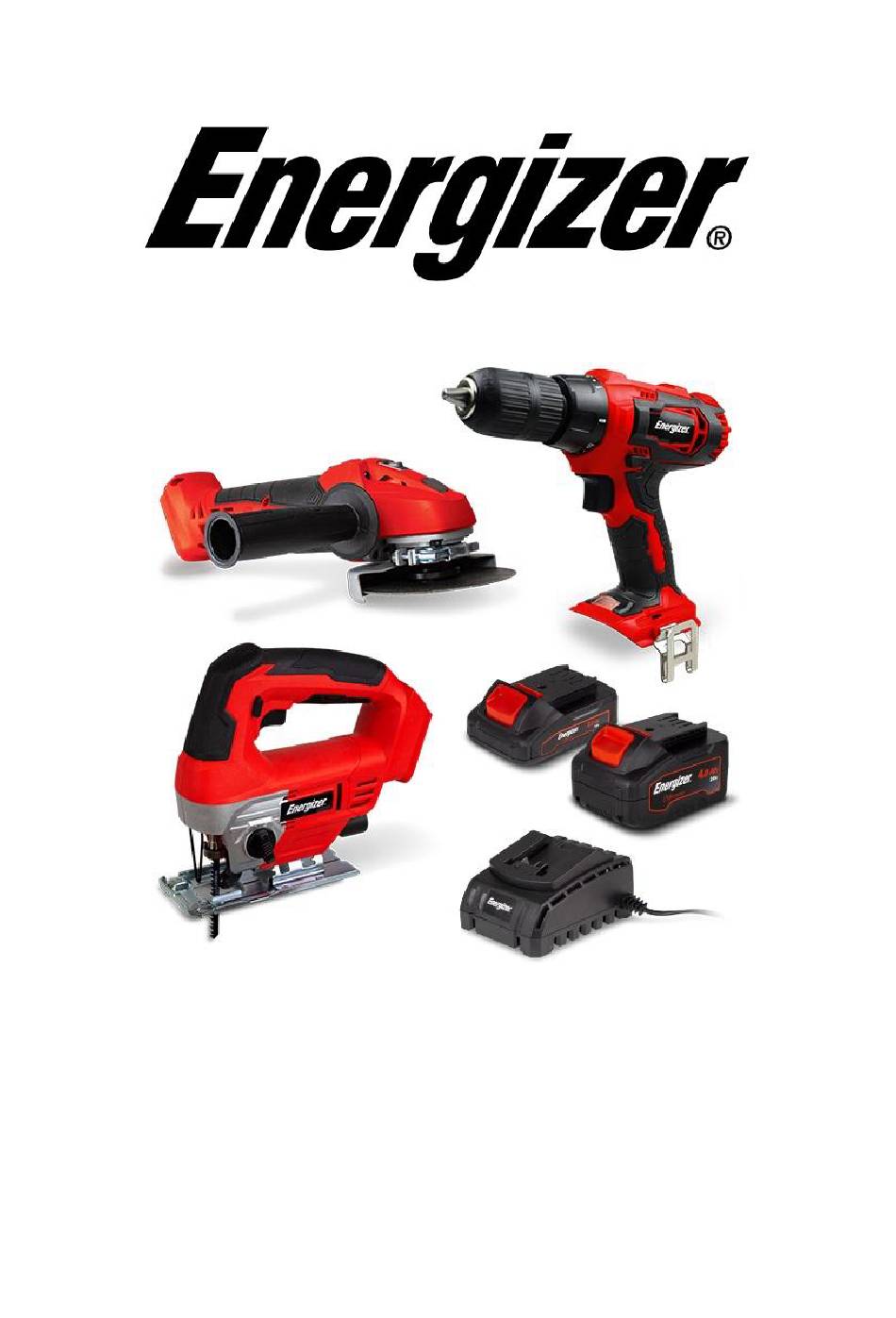

- Page 1 ORIGINAL INSTRUCTIONS >EN 3 CORDLESS TOOLS PACK 20V EZPACK1-24A USER GUIDE CAUTION: Read this manual before using this machine!
- Page 2 ©2022 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENTS 1. INTENDED USE............................. 5 2. SAFETY INSTRUCTIONS........................5 3. CORDLESS DRILL..........................15 4. CORDLESS JIGSAW......................... 22 5. CORDLESS ANGLE GRINDER......................26 6. DISPOSAL............................32 7. WARRANTY............................33 8. PRODUCT FAILURE.......................... 34 9. WARRANTY EXCLUSIONS......................35... -
Page 5: Intended Use
1. INTENDED USE WARNING: For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. DRILL The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. - Page 6 entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
- Page 7 operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc.
- Page 8 SAFETY INSTRUCTIONS WHEN USING LONG DRILL BITS a) Never operate at a higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
- Page 9 u) The saw blade will continue to run a short time after the machine has been switched off. SPECIAL SAFETY INSTRUCTIONS FOR JIGSAW a) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live"...
- Page 10 dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. Keep bystanders a safe distance away from the work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
- Page 11 e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. ADDITIONAL SAFETY INSTRUCTIONS FOR ANGLE GRINDER FOR GRINDING OPERATIONS Safety warnings specific for grinding and abrasive cutting-off operations: a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel.
-
Page 12: Residual Risks
under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. - Page 13 b) Hearing damage if effective hearing protection is not worn. c) Body injuries caused by vibration emissions if the electrical appliance is used improperly or for a prolonged or poorly maintained period. SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER 1) Batteries a) Never attempt to open for any reason.
- Page 14 The charger is intended for indoor use only. This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 15: Cordless Drill
Do not expose the charger or the battery to water. Do not incinerate the battery or charger. Ambient temperature of 40°C max (only for the battery). Battery and charger are to be used indoors only. Recycling. 3. CORDLESS DRILL DESCRIPTION Keyless chuck LED work light 1a Ring A... -
Page 16: Technical Details
(recyclable). TECHNICAL DETAILS Power supply 20V d.c. Chuck 10mm keyless Gear Train 2 Speed No Load Speed 0-400/0-1600 min Clutch 19+1 Positions EZPACK1-24A Charger type Input: 220-240V~ 50-60Hz, 65W Output: 21V d.c., 2.5A... -
Page 17: Operation
EZPACK1-24A Battery type 20V d.c. 2Ah/4Ah Lithium-ion 2Ah: 1hour Charging time 4Ah: 2hours Torque 40Nm (MAX.) LpA =75dB(A) Sound pressure level LpA Uncertainty: K=5 dB(A) LWA =86dB(A) Sound power level LwA Uncertainty: K=5 dB(A) (Vibration) <2.5m/s , K=1.5m/s Drilling model:... - Page 18 NOTE: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger. NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging.
- Page 19 8) Clockwise rotation Right: To select forward rotation, release the on/off switch and push the forward/reverse lever to the left side of the tool. 9) Counterclockwise rotation Left: To select reverse rotation, push the lever to the right side of the tool. 10) Variable speed This tool has a variable speed switch that delivers higher speed and torque with increased trigger pressure.
-
Page 20: Cleaning And Maintenance
Before using for drilling, the function mode selector should be set on drill position . When drilling a hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the drill or bit into the work piece, applying only enough pressure to keep the bit cutting. -
Page 21: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France declares that， Product: Cordless Drill 20V Trade mark:ENERGIZER Model: EZPACK1-24A Serial number: 20220903781-20220904180 It is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 22: Cordless Jigsaw
19mm Sound power level LwA 92dB(A), K= 5dB(A) Cutting steel Vibration ah,M=7.27m/s , K=1.5m/s capacity Cutting wood 56mm EZPACK1-24A capacity Input: 220-240V~ 50-60Hz, Charger Output: 21V d.c., 2.5A Inclination degree Battery pack EZPACK1-24A º 20V d.c. 2Ah/4Ah Lithium-ion Charge time... - Page 23 INFORMATION The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value(s) and the declared noise emission value(s) may also be used ...
- Page 24 Never use a blade unsuitable for the task and item to be cut. Hold the saw in front of you with a firm grip on the handle. Ensure that the saw blade is not touching anything and that the power cable is not in the way ...
-
Page 25: Delaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France, declares that, Product: Cordless Jigsaw 20V Trade mark: ENERGIZER Model: EZPACK1-24A Serial number: 20220903781-20220904180 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 26: Cordless Angle Grinder
5. CORDLESS ANGLE GRINDER DESCRIPTION 1. Lock lever for protection guard 7. Protective guard 2. Spindle lock button 8. Grinding disc (not included) 3. Main handle 9. Speed adjuster 10. Release button 4. On/Off switch 11. Battery pack 5. Air vents 12. -
Page 27: Package Content List
PACKAGE CONTENT LIST Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug of the charger and all accessories in case ... - Page 28 TECHNICAL DATA Rated voltage (direct current) 20V d.c. Rotation speed 8500/min Max. disc diameter Ø115mm Drive spindle thread EZPACK1-24A Battery type 20V d.c. 2Ah/4Ah Lithium-ion EZPACK1-24A Charger type Input: 220-240V~ 50-60Hz, 65W Output: 21V d.c., 2.5A 2Ah: 1hour Charging time...
- Page 29 NOTE: If the protective guard can not be fixed firmly by the lock lever (1), use a hexagon wrench to tighten the hexagon nut. 3) Replacing the grinding disc (Fig. 4-5) NOTE: A disc which has been used may be very hot. Depress and hold down the spindle lock button (2) to secure the spindle.
-
Page 30: Service Department
CLEANING AND MAINTENANCE Always disconnect the battery pack from the angle grinder before making any adjustment or attaching any accessories. 1) Cleaning Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. ... - Page 31 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France declares that, Product: Cordless Angle Grinder 20V Trade mark: ENERGIZER Model: EZPACK1-24A Serial number: 20220903781-20220904180 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
-
Page 32: Disposal
6. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose. Talk with your local authorities or dealer for advice on recycling. -
Page 33: Warranty
7. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 34: Product Failure
8. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 35: Warranty Exclusions
9. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
