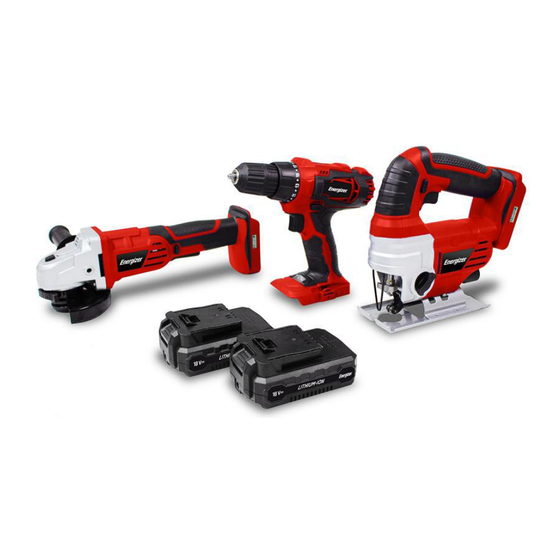

Energizer EZPACK1 User Manual

18v cordless tool pack

Hide thumbs

Table Of Contents

Quick Links

Download this manual

ORIGINAL INSTRUCTIONS >EN

18V CORDLESS TOOL PACK

EZPACK1

EZPACK1-UK

USER GUIDE

Table of Contents

Need help?

Do you have a question about the EZPACK1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Energizer EZPACK1

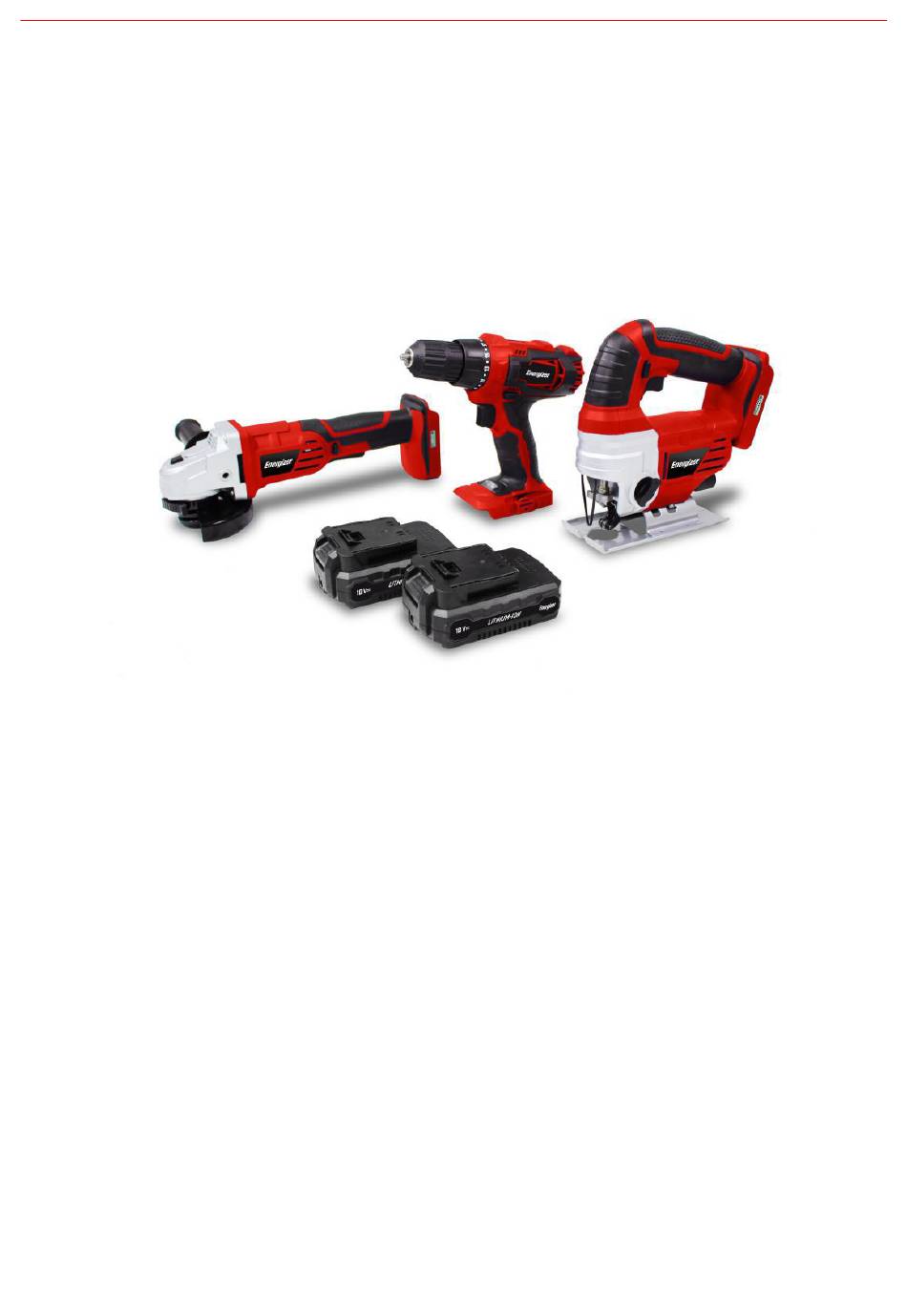

Page 1 ORIGINAL INSTRUCTIONS >EN 18V CORDLESS TOOL PACK EZPACK1 EZPACK1-UK USER GUIDE...
Page 2 ORIGINAL INSTRUCTIONS >EN ©2021 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor...
Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
Page 4: Table Of Contents
CONTENT 18V CORDLESS JIGSAW ............5 18V CORDLESS DRILL ............. 16 18V CORDLESS ANGLE GRINDER ........27 WARRANTY................. 44 PRODUCT FAILURE..............45 WARRANTY EXCLUSIONS............46...
Page 5: Cordless Jigsaw
18V CORDLESS JIGSAW 1. APPLICATION The power tool is intended for sawing wood, metal and plastics. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.
Page 6 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
Page 7: Special Safety Instructions For Jig Saws
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
Page 8 cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER Batteries Never attempt to open for any reason.
Page 9 Charger Use the charger provided with the tool only to charge  the battery. Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger.  Do not probe the charger. ...
Page 10 Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation(only for charger) Do not dispose of old appliances with domestic rubbish Do not expose the charger or the battery to water.
Page 11: Your Product
3. YOUR PRODUCT 1. Quick-change blade clamping holder 2. Safety guard 3. Lock-off button 4. ON/OFF switch 5. Release button for battery pack 6. Battery pack 7. Dust extraction outlet 8. Soleplate 9. Pendulum regulation control 10. Guide roller 11, Battery capacity indication 12.
Page 12: Operation
5. OPERATION 5.1 Charging the battery pack IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) To assure that the charger you use are applicable to the battery pack. 2) Insert the charger into 100-240V~,50-60Hz outlet.
Page 13 5.2 Adjusting the soleplate • The soleplate (8) can be tilt adjusted 45° (left or right) in relation to the saw perpendicular to facilitate contour sawing. •Loosen the two clamping screws (B) under the soleplate using the hexagon key (A) supplied with the tool, adjust the soleplate to the desired angle and re- tighten the screws (B).
Page 14: Cleaning And Maintenance
=6.7m/s , K=1.5m/s Cutting metal: =6.4m/s , K=1.5m/s Cutting depth steel 6 mm Battery pack EZPACK1 / EZPACK1-UK 18V d.c. 1.5Ah Lithium-ion Cutting depth wood 56 mm Connection type T-shank Charger EZPACK1 / EZPACK1-UK Input 100-240V~ 50-60Hz, 19W Output; 21V d.c. 0.5A...
Page 15: Battery Pack
32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: Cordless Jigsaw 18V Trade mark: Energizer Model: EZPACK1 / EZPACK1-UK Serial number: 20210338857-20210339006 / 20210365279-20210365878 20210339007-20210339156 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
Page 16: Cordless Drill
18V CORDLESS DRILL 1. APPLICATION The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable for professional use. WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.
Page 17 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
Page 18 f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
Page 19 Do not heat. If batteries are heated to above 100°C (212°F), sealing and insulating separators and  other polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire, explosion and/or intense burning may result.
Page 20 Children shall not play with the appliance. Cleaning  and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by  the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. CAUTION: Do not recharge non-rechargeable batteries.
Page 21 3. YOUR PRODUCT (Fig.1) Keyless chuck Torque adjustment ring Two speed selector On/off switch trigger Battery pack Forward/reverse knob LED work light Button for battery capacity indicator Belt clip 10. Battery capacity indicator 11. Charger 4. FEATURES 4.1 Li-ion battery (5) Advantages of Li-ion batteries: Li-ion batteries have a higher capacity/weight ratio (more power for less heavy, more compact, battery) ...
Page 22 4.3 Torque adjustment ring (2) The drill has a torque adjustment ring. It allows you to select the desired torque depending on the task you have to perform (screwing / different types of screws into different materials). The proper setting depends on the type of material and the size of screw you are using.
Page 23 6).Frequently monitor the charger and battery pack while connected. 7).Unplug the charger and disconnect it from the battery pack when finished. 8).Allow the battery pack to cool completely before using it. 9).Store the charger and battery pack indoors, out of reach of children. Note: If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct model for this charger as shown on the specification chart.
Page 24 2) Switch lock The switch trigger can be locked in the center position. This helps to reduce the possibility of accidental starting when not in use. To lock the switch trigger, place the direction of rotation selector in the center position. 3) Direction of rotation (Fig.4) Direction of rotation is controlled by the direction of rotation selector located above the switch trigger.
Page 25 10) DRILLING (1) Drilling Before use for drilling, set the torque When drilling hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. Hold the tool firmly and place the tip of the drill or bit into the work piece, applying only enough pressure to keep the bit cutting.
Page 26 Chuck 10 mm keyless Gear Train 2 Speed No Load Speed 0-400/0-1600 min Clutch 19+1 Positions EZPACK1 / EZPACK1-UK Charger type Input 100-240V~ 50-60Hz, 19W Output 21V d.c., 0.5A EZPACK1 / EZPACK1-UK Battery type 18V d.c. 1.5Ah Lithium-ion Charging time...
Page 27 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product:Cordless Drill 18V Trade mark: Energizer Model: EZPACK1 / EZPACK1-UK Serial number: 20210338857-20210339006 / 20210365279-20210365878 20210339007-20210339156 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
Page 28: Cordless Angle Grinder
18V CORDLESS ANGLE GRINDER 1. APPLICATION This machine is developed for grinding and roughing of metal and stone. With correct accessories the machine can also be used for brushing and sanding. It is not designed for commercial use. WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance.
Page 29 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
Page 30 f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions.
Page 31 cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
Page 32 broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing. d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
Page 33 Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the  surface to be cut. Always wear safety goggles and hearing protection. If desired or required also use another kind of  protection like for example an apron or helmet. Ensure that mounted wheels and points are fitted in accordance with the manufacturer’s instructions.
Page 34 Charger Use the charger provided with the tool only to charge  the battery. Never attempt to charge non-rechargeable batteries.  Have defective cords replaced immediately.  Do not expose to water.  Do not open the charger.  Do not probe the charger. ...
Page 35 Symbols Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. Wear eye protection. Do not dispose of old appliances with domestic rubbish Class II, double isolation(only for charger) Ne pas exposer le chargeur ni la batterie à...
Page 36 3. YOUR PRODUCT Fig A: 1. Lock lever for protection guard 7. Guard 8. Grinding disc (not 2. Spindle lock button included) 3. Main handle 9. Lock button 4. On/Off switch Release button 5. Air vents Battery pack 6. Auxiliary handle Charger...
Page 38 4. PACKAGE CONTENT LIST Remove all packaging materials.  Remove remaining packaging and packing inserts (if included).  Check that the package contents are complete.  Check the appliance, the power cord, the power plug of charger and all accessories for transportation ...
Page 39 correct model for this charger as shown on the specification chart. Do not charge any other battery pack or any battery pack that does not securely fit the charger. NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging.
Page 40 For grinding wheels up to approx. 3 mm thick, screw on the flange nut with the flat side facing the grinding wheel. 5.5 Switching on / off (Fig. 6) Before engage the ON/OFF switch button, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened.
Page 41: Technical Data
18V d.c. Rotation speed 8500/min Max. disc diameter: Ø 115mm Drive spindle thread: M 14 Battery type EZPACK1 / EZPACK1-UK 18V d.c. 1.5Ah, Lithium-ion Charger type EZPACK1 / EZPACK1-UK Input 100-240V~ 50-60Hz,19W Output 21V d.c., 0.5A Charging time 3-5 hours Pression acoustique 79.1 dB(A), K= 3 dB(A)
Page 42: Service Department
8. SERVICE DEPARTMENT Damaged switches must be replaced by our after-sales service department.  If the connecting cable (or mains plug) is damaged, it must be replaced by a special connecting cable  which is available from our service department. Replacement of the connecting cable should only be carried out by our service department (see last page) or by a qualified specialist (qualified electrician).
Page 43: Delaration Of Conformity
32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: Angle Grinder 18V Trade mark: Energizer Model: EZPACK1 / EZPACK1-UK Serial number: 20210338857-20210339006/20210365279-20210365878 20210339007-20210339156 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
Page 44: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
Page 45: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
Page 46: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
