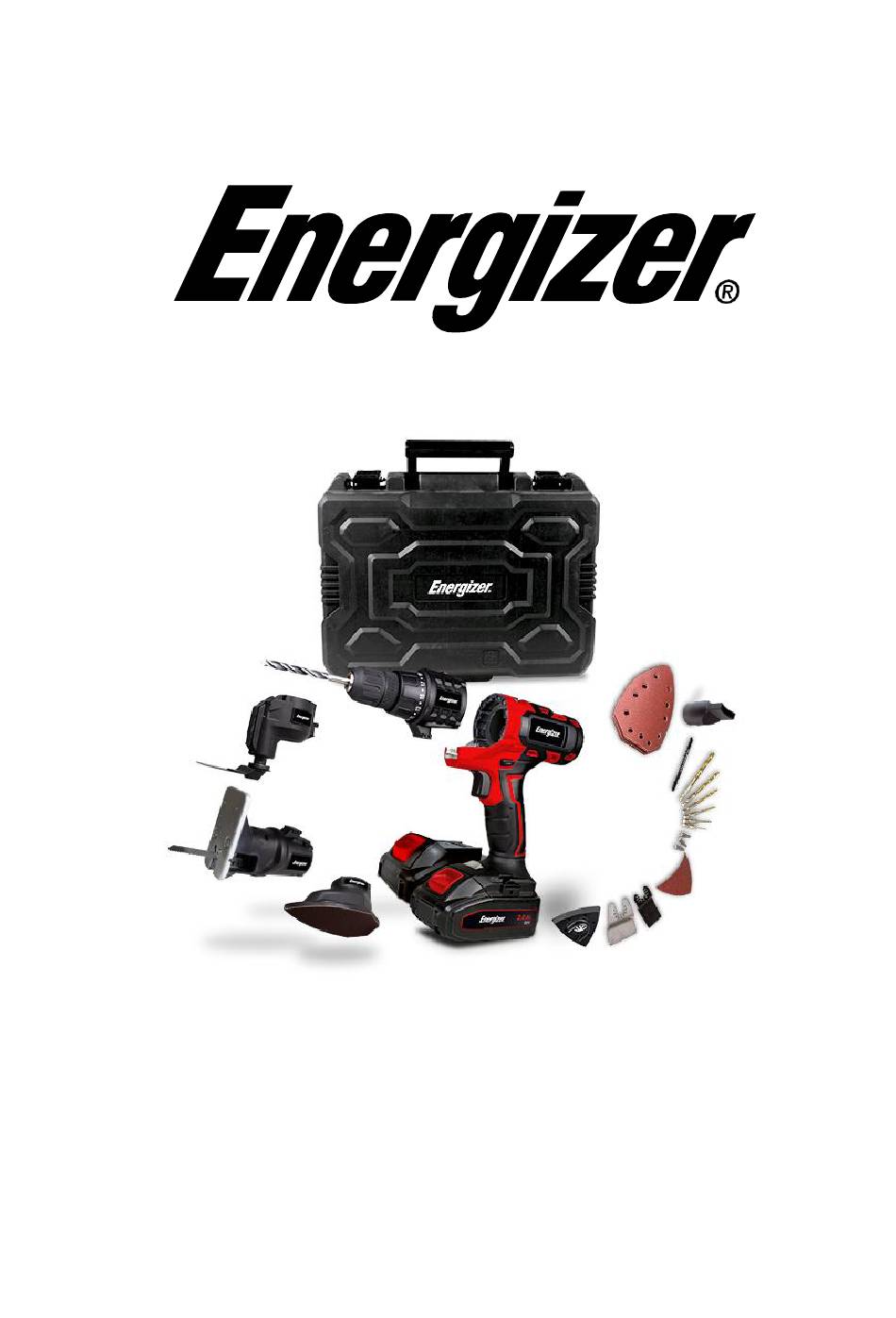

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS TOOL 20V 4IN1 EZPV20V4IN1 EZPV20V4IN1-UK USER GUIDE IMPORTANT: Please read the instruction manual before using.
- Page 2 ©2021 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENTS 1. INTENDED USE 2. SAFETY INSTRUCTIONS 3. YOUR PRODUCT 1 122 4. PACKAGE CONTENT LIST 1 133 5. TECHNICAL DATA 1 133 6. OPERATION 1 155 7. CLEANING AND MAINTENANCE 1 199 8. STORAGE 1 199 9. DISPOSAL 2 200 10. -
Page 5: Intended Use
1. INTENDED USE The cordless tool of 20V 4 in 1 is intended for: 1) Screwing screws in and out and for drilling holes in wood, metal or plastic. 2) Sawing wood, metal and plastics. 3) Dry sanding of wood, plastic, putty and painted or vanished surfaces. This product is not suitable for sanding plaster-based substrates. - Page 6 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
-
Page 7: Safety Instructions
5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. - Page 8 Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery. Charger Use the charger provided with the tool only to charge the battery. Never attempt to charge non-rechargeable batteries. Have defective cords replaced immediately. ...
-
Page 9: Additional Safety Instructions
2.3 ADDITIONAL SAFETY INSTRUCTIONS WARNING! Sawing or sanding can result in the formation of hazardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity. Make sure that the workplace is well ventilated. -
Page 10: Residual Risks
Be very careful when handling tools such as saws, scraper blades and drills. These are sharp and present an injury hazard. Wear safety gloves when changing attachments. This enables you to avoid injuries if the appliance attachment has heated up after use. 2.7 SPECIFIC SAFETY INSTRUCTIONS WHEN SAWING ... - Page 11 d) Eye damage if suitable eye protection is not worn. e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly. 2.10 SYMBOLS Conforms to relevant safety standards.
-
Page 12: Your Product

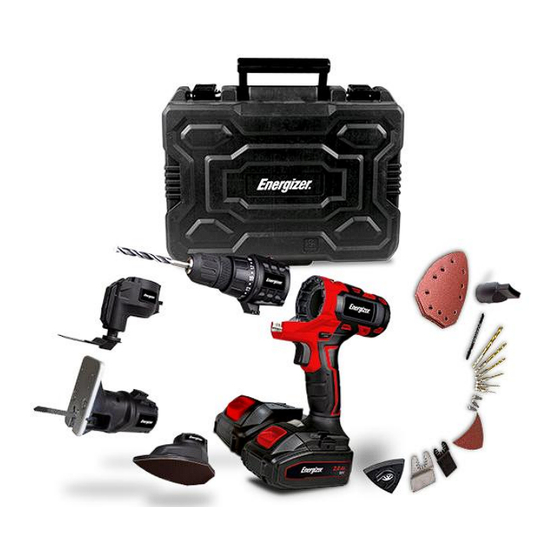

3. YOUR PRODUCT 10 Unlock button for battery 1 Keyless chuck 11 On/off switch 2 Torque adjustment ring 12 Jig saw attachment 3 Gear selection switch 13 Footplate 4 Drill attachment 14 Sawblade 5 Unlocking lever for appliance attachment 15 Lever for unlocking sawblade 6 Motor unit 16 Multi-sander attachment 7 Direction switch... -
Page 13: Package Content List
4. PACKAGE CONTENT LIST Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug of charger and all accessories for any possible transportation damage. - Page 14 Jig saw function Vibration: “Cutting board” mode: ah, B=2.665m/s , K=1.5m/s “Cutting sheet metal” mode: ah, M= 3.026m/s , K=1.5 m/s No load speed: 0-10000/min. Sander function Sound pressure level (LpA) ..90.8 dB(A) K=3 dB(A) Sound power level (LWA) ....101.8 dB(A), K=3 dB(A) Vibration (ah) .........4.773 m/s2, K=1.5 m/s Multi-tool function Oscillation:0-21000/min.
-
Page 15: Operation
6. OPERATION 6.1 CHARGING THE BATTERY PACK IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) Assure that the charger you are using matches your battery pack. Insert the charger into 100-240V~, 50/60Hz outlet. -
Page 16: Replacing The Appliance Attachment
WARNING! Before making any adjustments ensure the drill is switched off with the direction of rotation selector in the center position a) Remove the battery: press the battery release latch in and at the same time pull the battery pack off. - Page 17 Set the direction of rotation The appliance's direction of rotation can be changed with the rotational direction switch. 1) Wait for the appliance to come to a standstill. 2) Push the rotational direction speed (7) into the desired position: a. Clockwise rotation: to drill and screw in screws. b.
- Page 18 - Do not use any blunt or bent blades or blades which are damaged in any other way. - Always insert a suitable sawblade. Installing the blade: 1) Push the lever (15) for sawblade unlocking upwards as far as the stop. Push the sawblade shaft into the sawblade mounting slot.
-
Page 19: Cleaning And Maintenance
Selection of sawblade: Wood sawblade for wood, plastic, plasterboard. Metal sawblade for metal sheets, profiles and tubes. Sanding Use a dust extraction system when sanding with the multi-sander attachment. Move the appliance against the workpiece once it is switched on. ... -
Page 20: Disposal
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: CORDLESS TOOL 20V 4 IN 1 Trade mark: ENERGIZER Model: EZPV20V4IN1 Serial number: 20211240518-20211241017 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 21: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
