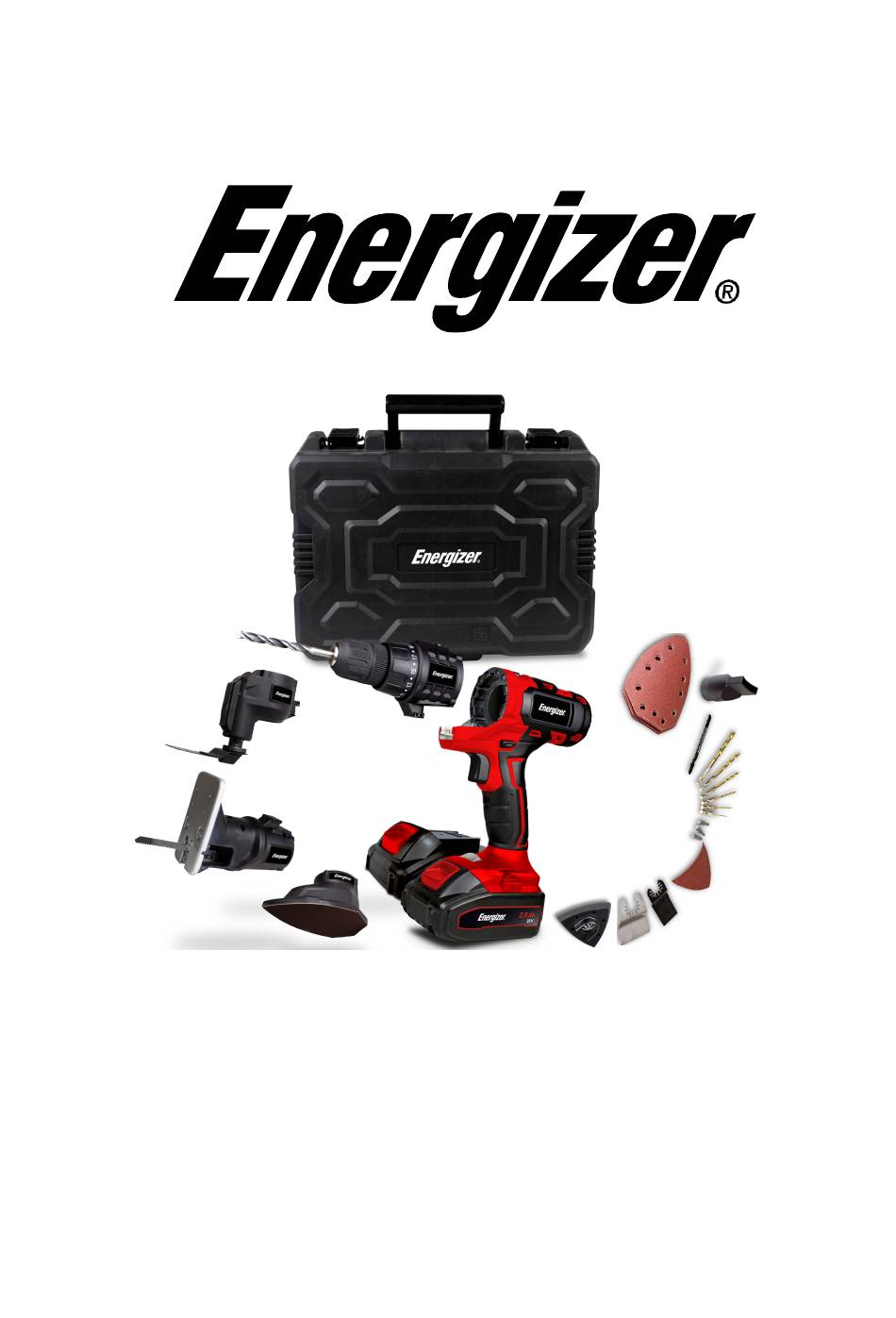

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS TOOL 20V 4 IN 1 EZPV20V4IN1 EZPV20V4IN1-UK USER GUIDE IMPORTANT: Please read the instruction manual before using.
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE 2. SAFETY INSTRUCTIONS 3. YOUR PRODUCT 4. PACKAGE CONTENT LIST 5. TECHNICAL DATA 6. OPERATION 7. CLEANING AND MAINTENANCE 8. STORAGE 9. DISPOSAL 10. DECLARATION OF CONFORMITY 11. WARRANTY 12. PRODUCT FAILURE 13. WARRANTY EXCLUSIONS... - Page 4 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 5: Intended Use
1. INTENDED USE The cordless tool of 20V 4 in 1 is intended for: 1) Screwing screws in and out and for drilling holes in wood, metal or plastic. 2) Sawing wood, metal and plastics 3) Dry sanding of wood, plastic, putty and painting surfaces or varnished. This product is not suitable for sanding plaster-based substrates. - Page 6 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 7 c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery;...
- Page 8 Charger Use the charger provided with the tool only to charge the battery. Never attempt to charge non-rechargeable batteries. Have defective cords replaced immediately. Do not expose to water. Do not open the charger. Do not probe the charger. ...
- Page 9 2.3 ADDITIONAL SAFETY INSTRUCTIONS WARNING! Sawing or sanding can result in the formation of hazardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity. Make sure that the workplace is well ventilated.
- Page 10 Be very careful when handling tools such as saws, scraper blades and drills. These are sharp and present an injury hazard. Wear safety gloves when changing attachments. This enables you to avoid injuries if the appliance attachment has heated up after use. 2.7 SPECIFIC SAFETY INSTRUCTIONS WHEN SAWING ...
- Page 11 d) Eye damage if suitable eye protection is not worn. e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly. 2.10SYMBOLS Conforms to relevant safety standards.
-
Page 12: Your Product

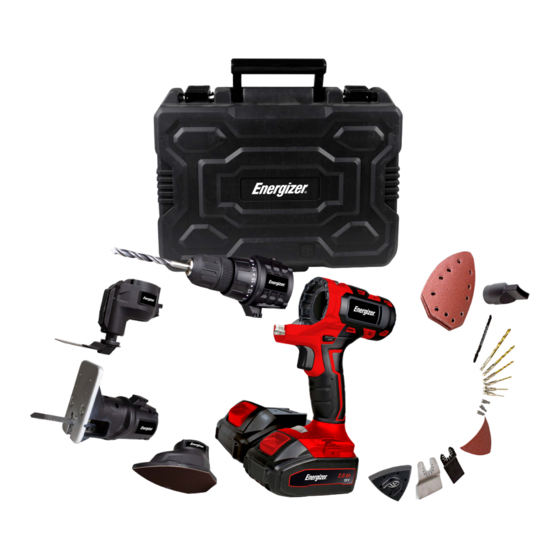

3. YOUR PRODUCT 10 Unlock button for battery 1 Keyless chuck 11 On/off switch 2 Torque adjustment ring 12 Jig saw attachment 3 Gear selection switch 13 Footplate 4 Drill attachment 14 sawblade 5 Unlocking lever for appliance attachment 15 Lever for unlocking sawblade 6 Motor unit 16 Multi-sander attachment 7 Direction switch... -
Page 13: Package Content List
4. PACKAGE CONTENT LIST Remove all packaging materials. Remove remaining packaging and packing inserts (if included). Check that the package contents are complete. Check the appliance, the power cord, the power plug of charger and all accessories for transportation ... - Page 14 Sound pressure level (LpA) ..92.5 dB(A), K=3 dB(A) Sound power level (LWA) ... 103.5dB(A), K=3 dB(A) Vibration (ah) ......K=1.5 m/s Battery type EZPV20V4IN1-UK 20V d.c. 2Ah (40Wh) Lithium-ion Charger type EZPV20V4IN1-UK Input 100-240V~ 50-60Hz, 0.8A Output 20V d.c., 1500mA...
-
Page 15: Operation
6. OPERATION 6.1 CHARGING THE BATTERY PACK IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them, thoroughly read all of the safety instructions. 1) To assure that the charger you use are applicable to the battery pack. 2) Insert the charger into 100-240V~, 50/60Hz outlet. - Page 16 WARNING! Before making any adjustments ensure the drill is switched off with the direction of rotation selector in the center position 1) Remove the battery: press the battery release latch in and at the same time pull the battery pack off. 2) To insert the battery, push the battery pack onto the contacts of the tool.
- Page 17 Set the direction of rotation The appliance's direction of rotation can be changed with the rotational direction switch. 1) Wait for the appliance to come to a standstill. 2) Push the rotational direction speed (7) into the desired position: a) Clockwise rotation: to drill and screw in screws. b) Anticlockwise rotation: to unscrew screws.
- Page 18 - Do not use any blunt or bent blades or blades which are damaged in any other way. - Always insert a suitable sawblade. Installing the blade: 1) Push the lever (15) for sawblade unlocking upwards as far as the stop. Push the sawblade shaft into the sawblade mounting slot.
-
Page 19: Cleaning And Maintenance
Metal sawblade for metal sheets, profiles and tubes. Sanding • Use a dust extraction system when sanding with the multi-sander attachment. • Move the appliance against the workpiece once it is switched on. • Clean the sanding plate before you attach a sanding sheet. •... -
Page 20: Disposal
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that, Product: CORDLESS TOOL 20V 4 IN 1 Trade mark: ENERGIZER Model: EZPV20V4IN1-UK Serial number: 20210923025-20210923524 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 21: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
