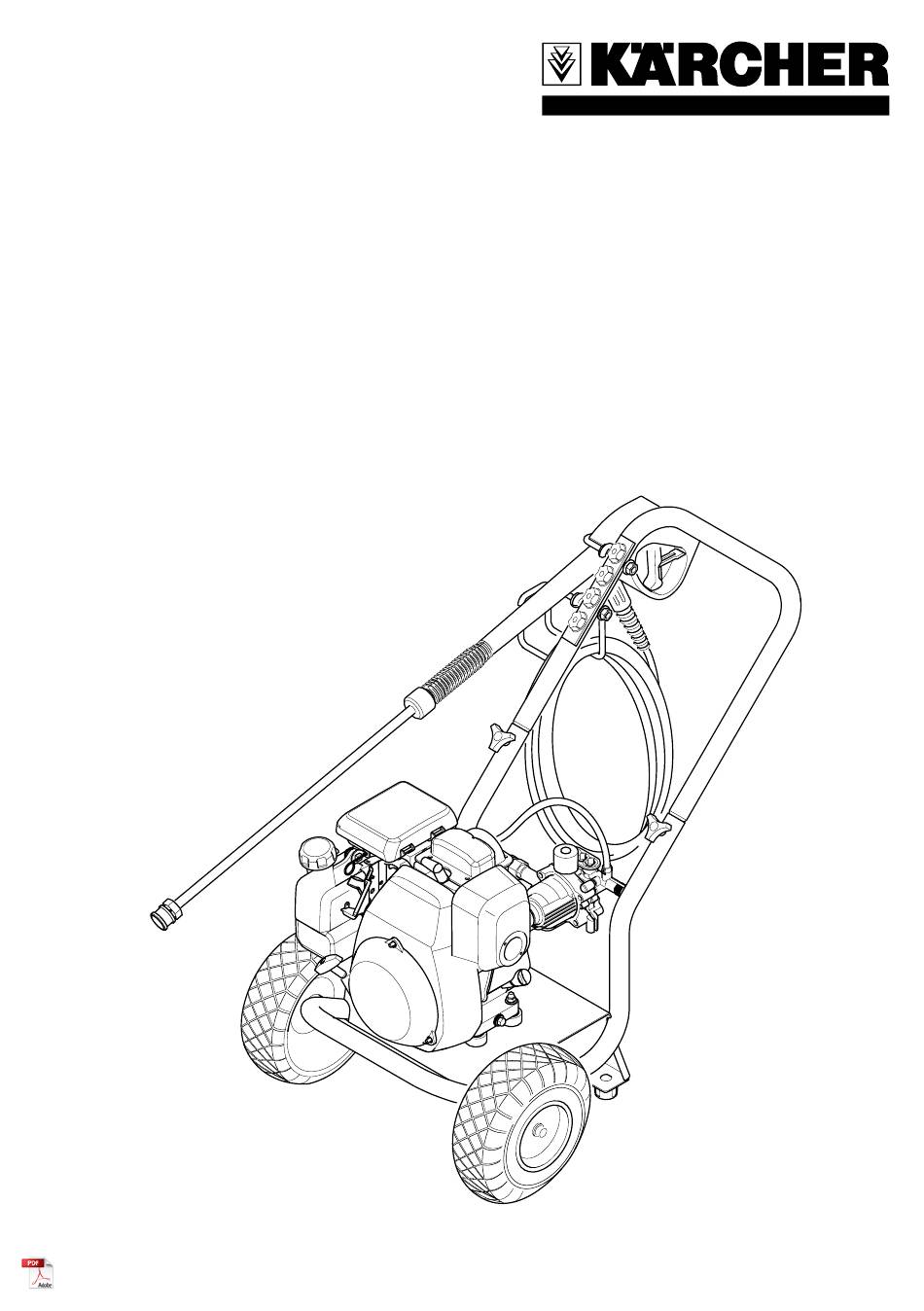

- Page 1 G 2500 OH 9.139-176 (10/05) https://manual-hub.com/...
-
Page 2: Table Of Contents
High Pressure Washer Operator Manual Overview ................ 3 Precautions ..............4 Assembly Instructions ..........5 Operating Instructions ..........6 Using the Accessories ..........7 Working with Detergents ..........8 Shut Down and Clean-Up ..........9 Taking a Break ............... 9 Winterizing and Long-Term Storage ...... -
Page 3: Overview

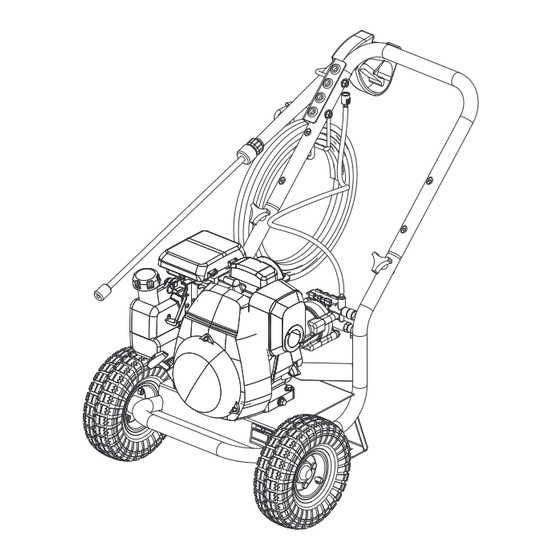

Model G 2500 OH OVERVIEW Item Description 8 Water inlet with garden hose connector 1 Handle 9 High pressure outlet 2 Trigger gun 10 Detergent filter 3 Trigger gun safety lock 11 Detergent suction tube 4 High pressure hose 12 Spark plug... -
Page 4: Important Precautions - Read First
IMPORTANT PRECAUTIONS – Read First! IMPORTANT SAFETY INSTRUCTIONS • The Gun Safety Lock PREVENTS the trigger from accidentally being engaged. WARNING – When using this product ba- This safety feature DOES NOT lock trig- sic precautions should always be followed, ger in the on position. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1 Step 5 Attach the handle to the frame of the pres- Pull the spring-loaded collar of the wand sure washer. Align holes, insert bolts, and back to insert your choice of quick tighten with knobs. connect nozzle. Step 2 Step 6 Mount the nozzle holder and gun/hose stor-... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Step 8 Important! Engine with manual throttle: Do not run the engine with a high or low oil Slide the throttle lever away from the SLOW level as this can cause engine damage. position, about 1/3 of the way toward the FAST position. -
Page 7: Using The Accessories
USING THE ACCESSORIES The color-coded quick connect nozzles pro- DANGER vide a wide array of spray widths from 0° to High pressure in nozzle area. 65° and are easily accessible when placed Risk of injury caused by improper locked in the convenient rubber nozzle holder, nozzle. -
Page 8: Working With Detergents
WORKING WITH DETERGENTS Detergents can only be applied with the For best results see Cleaning Tips on black nozzle. pages 10 & 11 for specific information on how to clean different surfaces. Step 1 Install the black quick-connect low pressure Always Use Kärcher nozzle for detergent application at low pres- Detergents for Best Results. -
Page 9: Shut Down And Clean-Up
SHUTTING DOWN Step 1 TAKING A BREAK Remove detergent suction tube from con- ... FIVE MINUTES OR MORE tainer and insert into 1 gallon of fresh wa- Step 1 ter. Engine with manual throttle: Siphon water at low pressure for one Move the throttle lever to the SLOW minute. -
Page 10: Cleaning Tips
CLEANING TIPS Deck Cleaning Cement Patios, Brick and Stone (with or without detergent) (with or without detergent) Pre-rinse deck and surrounding area with Pre-rinse cleaning surface with fresh wa- fresh water. If using Kärcher Deck & Patio ter. If using Kärcher All Purpose and Ve- Cleaner, (Canada: Deck + Fence Wash) hicle Wash (Canada: Pressure Wash or De- place detergent suction tube directly into... -
Page 11: Optional Cleaning Accessories
CLEANING TIPS – continued Equipment & Gardening Tools Recommendations (with or without detergent) • Before cleaning any surface an incon- Pre-rinse cleaning surface with fresh wa- spicuous area should be cleaned to test ter. If using Kärcher All Purpose and Ve- spray pattern and distance for maximum hicle Wash or Heavy Duty Degreaser cleaning results. -
Page 12: Troubleshooting
TROUBLESHOOTING Please remove the spark plug cable to Output pressure varies high and low. prevent accidental ignition of the engine • Not enough inlet water supply. before making any repair. - Turn water on full force. Check garden hose for kinks, leaks or blockage. Engine will not start. - Page 13 TROUBLESHOOTING – continued Garden hose connection leaks. WARRANTY USA / CDN • Loose fittings. See enclosed warranty card. - Tighten fittings. • Missing/worn rubber washer. - Insert new washer. Spray wand leaks. • Spray wand not properly attached. - Attach the wand to the spray gun. Turn the wand collar clockwise onto the gun threads until tight.
