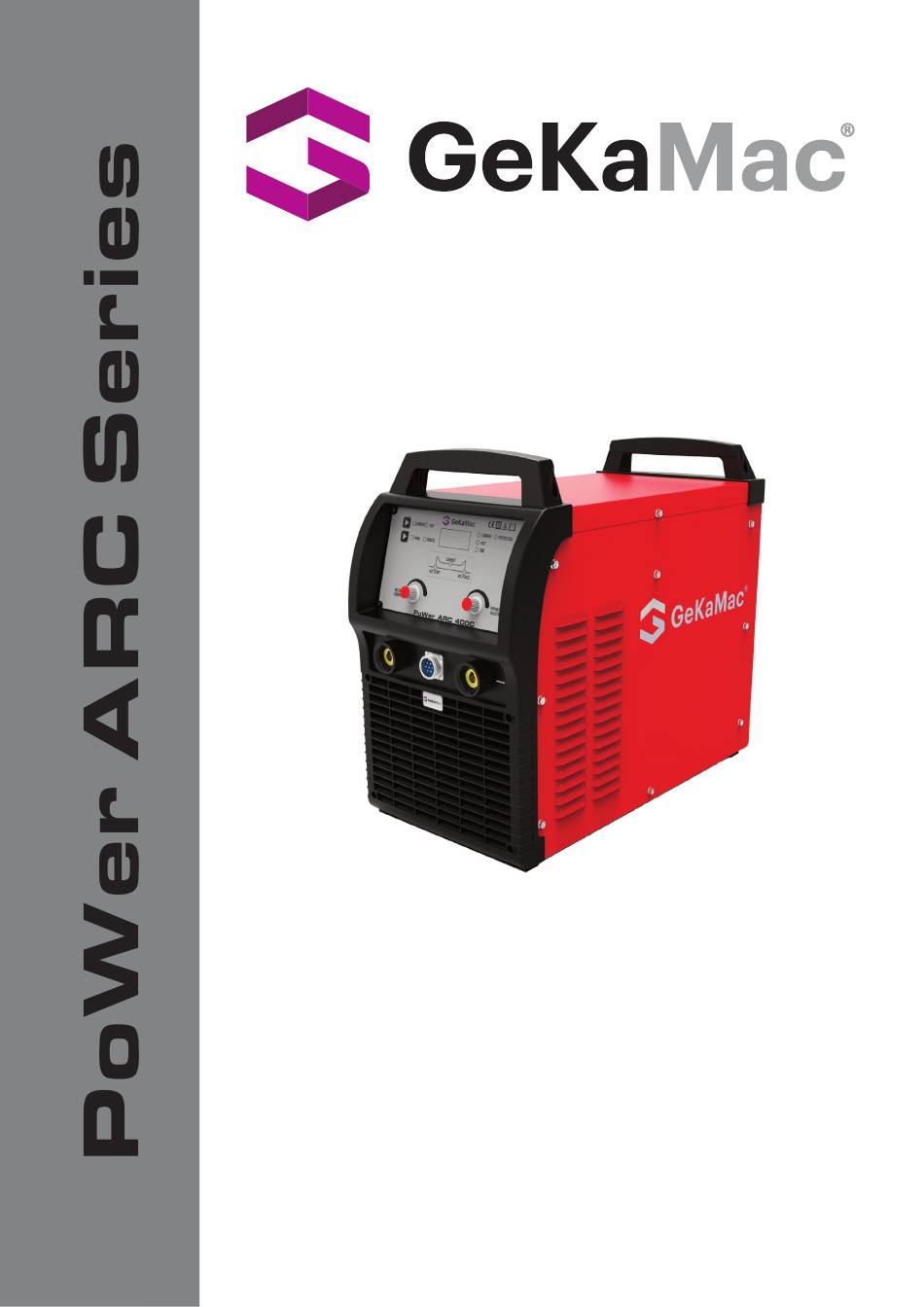

  • Page 1 PoWer ARC 400 C Users Manual Please Read and Understand This Manual Before Operating The Welding Machine www.gedikwelding.com...

  • Page 2: Dear Customer

    Dear Customer Thank you for choosing our product! This instruction manual will help you get to know your new machine. Read the manual carefully and you will soon be familiar with all the many great features of your new product. Please also take special note of the safety rules in the manual and follow exactly the instructions.

  • Page 3: Safety Rules

    Safety Rules “Danger” indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. “Warning!” indicates a possible hazardous situation which, if not voided, could result in death or serious injury. The possible hazards are explained in the text.
  • Page 4 • Connect the primary input cable according to rules. Disconnect input power or stop machine before installing or maintenance. • If welding must be performed under electrically hazardous conditions as follow: in damp locations or wearing wet clothing; on metal structures such as floors, gratings, or scaffolds;...
  • Page 5 the arc nor expose themselves to the arc rays or to hot spatter or material. Fumes and gases can be dangerous • Welding may produce fumes and gases, breathing these fumes and gases can be hazardous to your health. • When welding, keep your head out of the fume. If inside, ventilate the area at the arc to keep fumes and gases away from the breathing zone.
  • Page 6 contact tip when not in use. Apply correct fuses or circuit breakers. Do not oversize or bypass them. Cylinder can explode if damaged. • Pressure gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are normally part of the welding process, be sure to treat them carefully.
  • Page 7 Moving parts can injure • Stay away from moving parts such as fans. • Stay away from pinch points such as drive rolls. • Keep all doors, panels, covers, and guards closed and securely in place. • Have only qualified persons remove doors, panels, covers, or guards for servicing and maintenance.

  • Page 8: Table Of Contents

    Contents 1-GENERAL REMARKS .................. 8 1-1 Power source features ............... 8 1-2 Functional principle ................8 1-3 Output characteristics ................ 9 1-4 Duty cycle ..................9 1-5 Applications ..................10 1-6 Warning label ................... 10 2-VERSIONS BRIEFS ..................10 3-BEFORE COMMISSIONING ............... 11 3-1 Utilization for intended purpose only ..........

  • Page 9: 1-General Remarks

    1-GENERAL REMARKS 1-1 Power source features This series welding machine include 400A., which are novelty high-efficient and energy- saving DC Arc welding machines, suitable for mild steel, alloy steel welding with perfect welding performance. Features and benefits: -MCU controlled technology -Adjustable arc force and knee point voltage to make sure that arc does not broken and stick when on long cable welding.

  • Page 10: Output Characteristics

    1-3 Output characteristics Fig. 1-3-1: Output characteristics 1-4 Duty cycle Duty cycle is percentage of 10 minutes that a machine can weld at rated load without overheating. If overheats, thermostat(s) will open, output stops. Wait for fifteen minutes for the machine to cool down. Reduce amperage or duty cycle before welding. Note! Exceeding duty cycle can damage the machine and greatly reduce its lifespan.

  • Page 11: Applications

    1-5 Applications The power source is suitable for mild steel, alloy steel, stainless steel, copper, silver and titanium welding, and is designed for the following recommended areas: Shipbuilding and offshore engineering Maintenance and repair Industry plant construction Pipeline industry Shipyard 1-6 Warning label The warning label is affixed on the top of machine.

  • Page 12: 3-Before Commissioning

    3-BEFORE COMMISSIONING Warning! Operating the equipment incorrectly can cause serious injury and damage. Do not use the functions described here until you have read and completely understood “safety rules”. 3-1 Utilization for intended purpose only The power source may only be used for SMAW. Utilization for other purposes, or in any other manner, shall be deemed to be "not in accordance with the intended purpose".
  • Page 13 b. If extended cable is used, please do as shown in Fig. 3-4-1. Wrong Coil the excess ground cable and welding cable in same direction respectively. Correct Straighten the ground cable and welding cable and make them close to each other. Bundle the ground cable and welding cable together, running the wires close to the ground.

  • Page 14: 4-Powerarc 400 C

    4-PoWerARC 400 C 4-1 System components This series welding machine can be equipped with many different accessories and can be used in different special sites with different configurations. Fig. 4-1-1: System components 4-2 Basic equipments for welding Only be equipped with the necessary accessories, can the power source operate well. The following is the needed accessories list.
  • Page 15 Fig. 4-3-1: Control panel 1.Current/ Volt selection button Select between welding current and welding voltage. When choose current, digital display current, when choose voltage, it displays voltage. 2.Remote/Panel selection button On “Panel” position, adjust welding parameters by welding machine front panel; On “Remote”...

  • Page 16: Other Function

    6.Welding parameters: Fig. 4-3-2:Parameters Parameters Description Unit Setting Factory range setting HOT START Current of starting arc 10-200 CURRENT Welding current 4~410 ARC FORCE Current of arc- force 5-200 Table. 4-3-1: Parameter list 7.Parameters selection and adjustment knob Used for selecting and adjusting welding parameters except welding current. Default setting is for adjusting arc force current by tuning the knob.
  • Page 17 When the “Arc force” indicator lights up, operator can adjust knee point voltage by pressing the “Welding current ” and “Parameters adjustment” knobs simultaneously. Redo it can come back to arc-force current adjustment mode. 4-4-2 Adjustment of hot start time(0.1-1.5s) Fig.

  • Page 18: Interface

    4-5 Interface Fig. 4-5-1: Front panel Fig. 4-6-2: Rear panel 1.Output terminal (+) Connect electrode holder when in SMAW mode; Connect with the work piece when in TIG mode. 2.Control socket Connect to remote controller. Pin no. Description Null 9VDC power supply Remote preset current signal Power GND Remote preset arc force current signal...

  • Page 19: Installation

    5.Fuse 6.Nameplate 7.Fan Cooling down the heating components in the welding machine. 8.Circuit breaker The function of circuit breaker is to protect welding machine and operator by automatic trip to turn-off power supply when overload or short circuit happens to the power source. Normally, the switch flipped to upward means power-on.
  • Page 20 Note! Welding machine must be taken special design if it is powered by generator, please contact with manufacturer if you have such needs. connections of power cord and distribution box Warning! -Avoid hot-line work - Operating by professional electrician - Avoid connecting two power sources to one breaker - Please refer to Table 4-6-1 to check if standard of input voltage, breaker and input cable is suitable Fig.4-6-1: Connections of power cord and distribution box...

  • Page 21: Technical Data

    4-7 Technical data Note! For machines designed for special voltages, below is the technical data on the name plate. Model Power ARC 400 C Input voltage/frequency AC400V Rated input capacity (KW) Rated input current (A) 26.6 Output current adjustment range (A) 20～400 Duty Cycle (%) OCV (V)

  • Page 22: Disassembly And Reassembly

    4-9 Disassembly and reassembly Fig.4- 10-1:Disassembly and reassembly...
  • Page 23 Item Stock NO. Quick socket 740002-00026 Control socket 740001-00030 Knob 730031-00137 Output socket mounting plate 766003-02400 Control panel sticker 771001-01103 Plastic front panel 262005-01040 Front panel 262035-01039 Display board 220503-00018 Left side panel 262017-00602 Top cover 262029-00476 Handle 766003-02388 Plastic back edging 766003-02389 Filter 752004-00017...

  • Page 24: 5-Remote Controller

    Output reactor 763004-00041 current sensor 75300100064 Positive connection plate 766003-00399 Fast recovery diode module 735006-00029 Exchange current inductance 220281-00008 Output diode radiator 264011-00121 IGBT radiator 264005-00028 Temperature relay 745008-00006 IGBT module 735007-00046 Three-phase rectifier module 735005-00002 IGBT protection board 220005-00164 Polypropylene capacitor 722001-00067 Table.4- 10-1: spare parts...

  • Page 25: Spare Parts

    1. “Amp” display It displays preset value while in open load, and displays real value of welding current while in actual working. 2. “Welding current” regulation knob: same function with welding machine knob. 3. “Arc force current” regulation knob: same function with welding machine knob. 4.

  • Page 26: 7-Care And Maintenance

    FAULT CAUSE REMEDY Default phase Check power source Indicator light does not light on and Check whether the fan, welding machine Fuse (2A) is broken power transformer and doesn’t work when control board are in good machine switches on condition Wire disconnection Check and repair Check and replace...
  • Page 27 compressed air by professional technician, not less than twice per year. Clean the components at a certain distance only -If a lot of dust has accumulated, clean the cooling-air ducts Maintenance of water-cooled welding torch -Check the connections of water cooling system -Check the coolant level, cleanliness of coolant etc.
  • Page 28 Gedik Welding Inc. Ankara Caddesi No: 306 Şeyhli 34906 Pendik - İstanbul / Turkey +90 216 378 50 00 • +90 216 378 20 44 www.gedikwelding.com...
