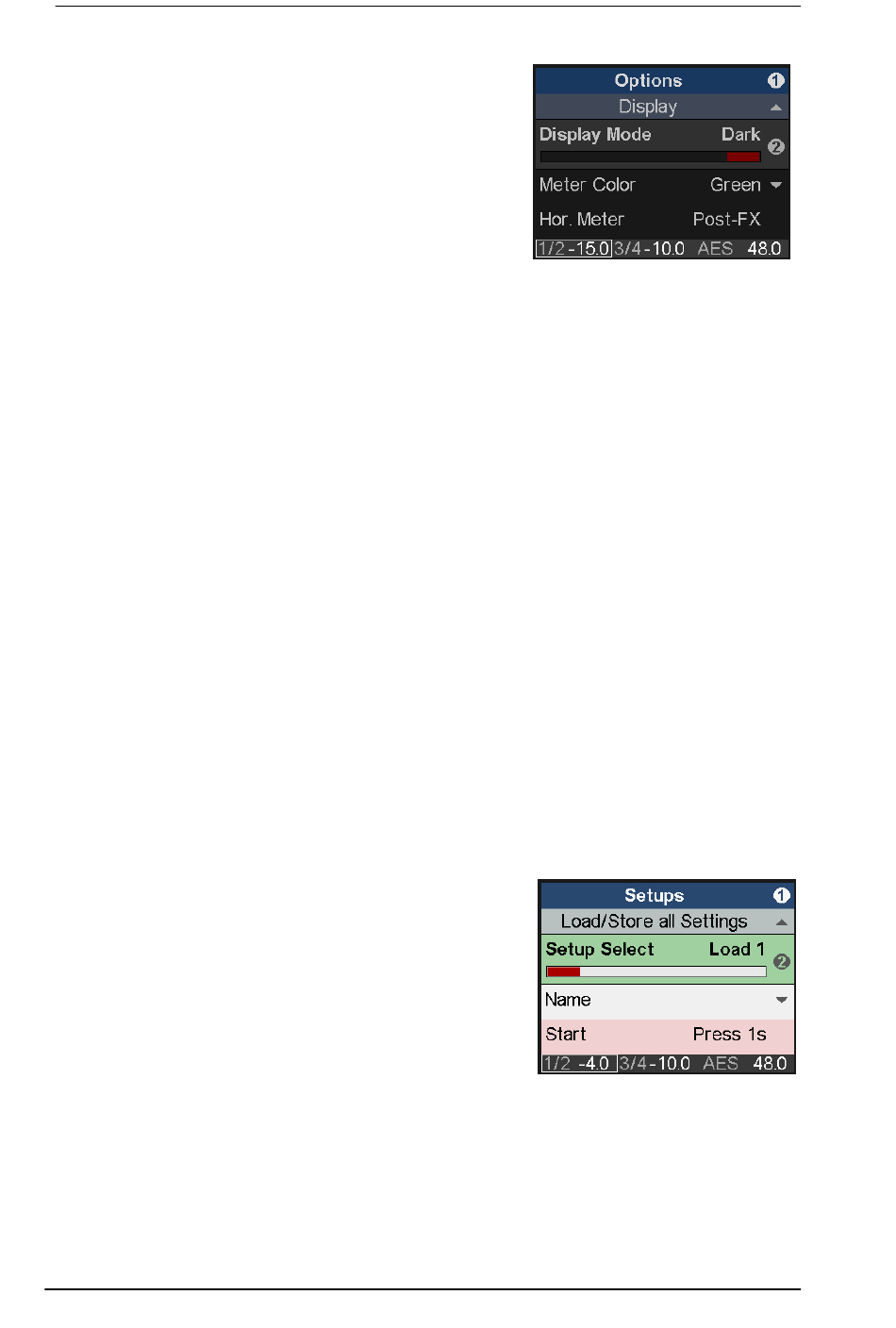

14.1.5 Display

Display Mode
Available settings are: Default, Dark. The dark scheme in-
verts the white background and black numbers/text to black
background and light-grey numbers/text.
Meter Color
Green, Cyan, Amber. Default: Green. Changes the color of
the level meters for PCM and DSD mode.
Hor. Meter
The horizontal stereo level meter below the Analyzer can show the peak level before all DSP
processing (Pre, equals the current input level from USB playback and SPDIF In), after all pro-
cessing including volume control (Post), or both at the same time (Dual). The outer thin line is
the Pre level. In Dual mode the peak values to the right refer to Post level.
AutoDark Mode
OFF, 10s. Automatically turns off all LEDs and the display (exception: Standby button) after 10
seconds of user inactivity. A key press and turning an encoder will temporarily activate LEDs and
display again. Info and warning messages are shown for 3 seconds.
Show Vol. Screen
ON, OFF. Default: ON. When turning the VOLUME knob the Volume screen is shown.
LCD Brightness
Adjustable from 20% to 100%. Default is 80%.
LCD Tint Control
Adjustable from -8 (yellow) to 8 (blue). Enables compensation of the display's colour deviation as
well as suiting the user's taste.

14.2 Load/Store all Settings

This option allows to save the whole state of the unit as Setup in 9 memory slots. The EQ Pre-
sets are not included, they are stored separately and are available for any setup. The current
state of the EQ is also stored, and written to the EQ memory slot Manual during load of a Setup.
The page Setups, Load/Store all Settings, has the following entries:
Setup Select
Choices are Load 1-9, Factory (Reset All) and Store 1-9.
Name
Allows to edit the name of the Setup during the store pro-
cess. To edit an existing name load the respective Setup
and store it on the same memory slot with edited name. See
EQ - Name for details about the Edit operation.
Start
Press 1s. Pressing and holding encoder 2 for at least one second triggers the action selected
(Load or Store).
