Summary of Contents for RME Audio ADI-2
- Page 1 User's Guide ADI-2 SyncAlign SyncCheck Intelligent Clock Control SteadyClock Hi-Precision 24 Bit / 192 kHz 2-Channel AD / DA-Converter AES / SPDIF / ADAT Interface Hi-Power Hi-End Headphone Output AES/EBU 192 kHz / 24 Bit Interface...
-
Page 2: Table Of Contents
Analog Outputs ............8 Headphones............9 Digital Inputs ............9 Digital Outputs............10 Clock Section............11 Noise Level in DS / QS Mode .........12 SteadyClock.............12 Controls and Connectors ........13 Connector Pinouts ..........14 Firmware ..............14 Block Diagram ............15 Warranty..............16 Appendix ..............16 User's Guide ADI-2 © RME... -
Page 3: Introduction
AES/EBU, SPDIF coaxial and optical, as well as ADAT optical. To maintain the full dynamic range within the best operating level, RME's ADI-2 includes elec- tronic switches of the latest technology, which introduce no additional noise or distortion to the audio path. -
Page 4: Technical Specifications
• Output level at 0 dBFS @ +4 dBu: +13 dBu • Output level at 0 dBFS @ -10 dBV: +2 dBV DA - Stereo Monitor Output (Phones) • as DA, except: • Output: 6.3 mm stereo TRS, unbalanced • Output impedance: 30 Ohm User's Guide ADI-2 © RME... -
Page 5: Digital Specs
The large voltage range of the ADI-2 also allows for the use of a rechargeable lead-battery in- stead of a power supply, for completely independent mobile operation. A matching connection cable (power jack to terminals 6.3 mm) is available from RME. A Panasonic LC-R122R2PG battery, 12 V 2.2 Ah, can operate the ADI-2 for 4 hours. -
Page 6: First Usage - Quick Start
The ADI-2 stores all current settings and automatically activates them when the device is turned Transferring digital data into a PCI bus equipped computer is best done using RME's digital ®... -
Page 7: Inputs And Outputs
One of the main issues when working with an AD-converter is to maintain the full dynamic range within the best operating level. To achieve this, RME's ADI-2 includes a discrete hard- ware gain stage, directly in front of the AD-converter. Electronic switches of the latest technol- ogy, which introduce no additional noise or distortion to the audio path, are used to control the gain, and offer highest operating comfort. -
Page 8: Analog Outputs
LEVEL to Hi Gain gives a loudness boost of 6 dB, while setting it to –10 will reduce loudness by 9 dB – with the pot still unchanged! * The hardware revision 1.4 uses a white QS LED. User's Guide ADI-2 © RME... -
Page 9: Headphones
The ground-free design, with transformers for digital inputs and outputs, offers a trouble-free connection of all devices along with perfect hum rejection. The ADAT optical inputs of the ADI-2 are fully compatible with all ADAT optical outputs. RME's unsurpassed Bitclock PLL prevents clicks and drop outs even in extreme varipitch operation, and guarantees a fast and low jitter lock to the digital input signal. -
Page 10: Digital Outputs
1/2 and 3/4 (S/MUX) or 1 to 8 (SMUX/4). All devices compatible to S/MUX can receive and recombine the ADI-2's data into two channels 96 kHz, like the Hammerfall, HDSP and ADI- 8 series from RME. User's Guide ADI-2 © RME... -
Page 11: Clock Section
The ADI-2's unique clock section layout makes it easy to use, easy to understand and easy to read. Additionally RME's Intelligent Clock Control (ICC) enables a flexible operation of the AD- and DA-converter with internal clock or the digital input signals. A clear display of the lock and sync state further improves the clock section's usability. -
Page 12: Noise Level In Ds / Qs Mode
When limiting the measured area to 22 kHz (audio bandpass, weighted) the value would be - 110 dB again. This can be verified even with RME's DIGICheck. Although a dBA weighted value does not include such a strong bandwidth limitation as from an audio bandpass, the displayed value of –108 dB is nearly identical to the one at 48 kHz. -

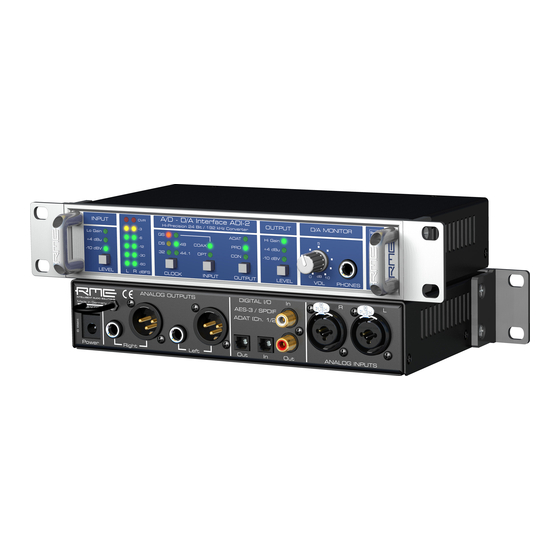

Page 13: Controls And Connectors
11. Controls and Connectors Front Level Digital Output Meters Input Level Input Sample Output Volume Sensitivity rate Format Headphones Rear Analog Line Analog Line Outputs Inputs Power Digital supply Inputs / Outputs User's Guide ADI-2 © RME... -
Page 14: Connector Pinouts
The firmware version is shown after power-on of the unit on the Level Meters for a brief mo- ment, with 1 for the lowest and 6 for the highest LED. The left channel shows the first number, the right channel the second number. User's Guide ADI-2 © RME... -
Page 15: Block Diagram
14. Block diagram User's Guide ADI-2 © RME... -
Page 16: Warranty
All entries in this User’s Guide have been thoroughly checked, however no guarantee for correctness can be given. RME cannot be held responsible for any misleading or incorrect information provided throughout this manual. Lending or copying any part or the complete manual or its contents as well as the software belonging to it is only possible with the written permission from RME. - Page 17 For this the device has to be sent free to the door to: IMM Elektronik GmbH Leipziger Straße 32 D-09648 Mittweida Germany Shipments not prepaid will be rejected and returned on the original sender's costs. User's Guide ADI-2 © RME...
