Cantek DS30 Operations & Parts Manual

Variable speed power feeders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operations & Parts
Manual
www.cantekamerica.com
DS30 / DC40
DS300 / DS400
Variable Speed Power Feeders
Please ensure you have your serial number available when contacting us for parts or service.
Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cantek DS30

Summary of Contents for Cantek DS30

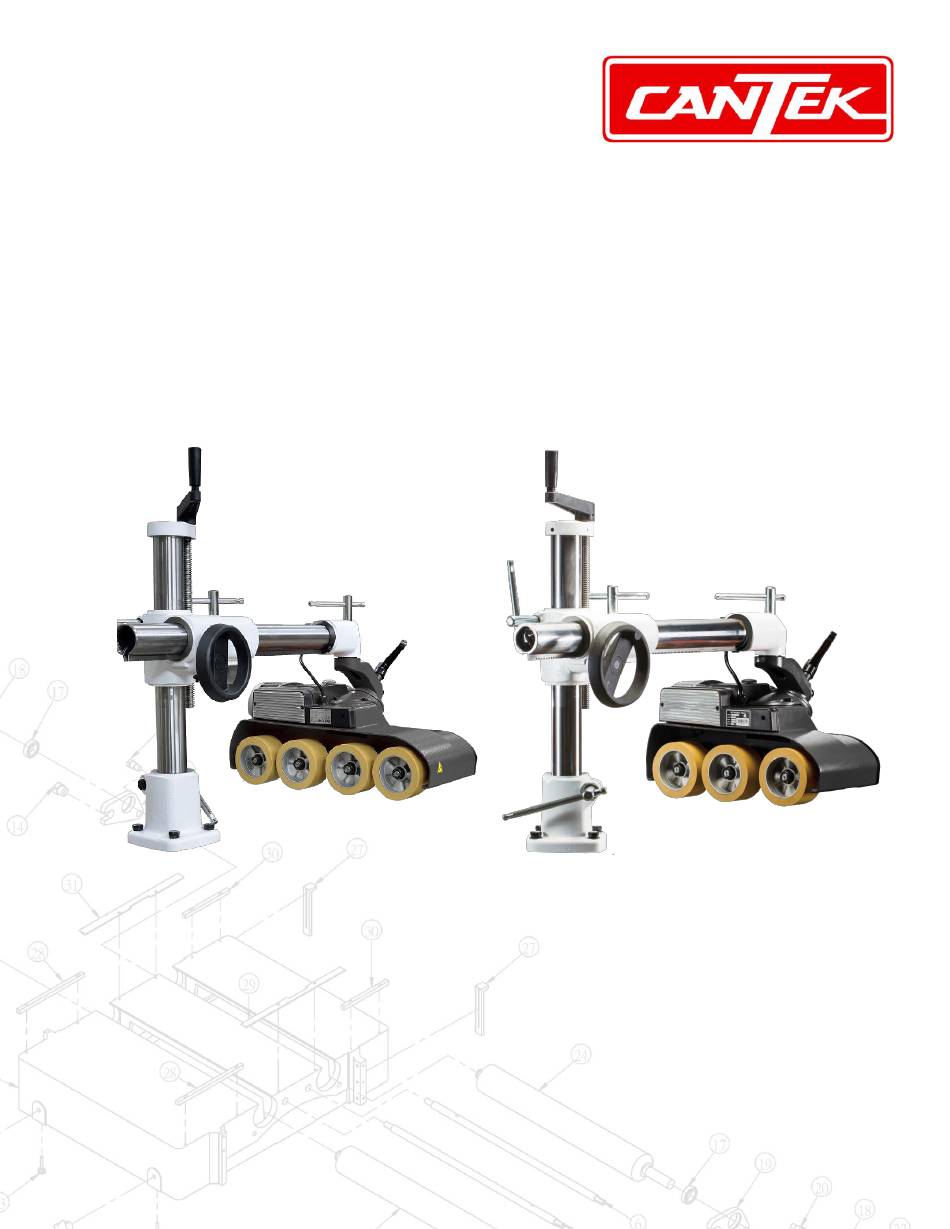

  • Page 1 Operations & Parts Manual www.cantekamerica.com DS30 / DC40 DS300 / DS400 Variable Speed Power Feeders Please ensure you have your serial number available when contacting us for parts or service. Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com...

  • Page 2: Table Of Contents

    Date：2023.12.01 WARNING：Failure to follow these rules may Version：2.1 result in serious personal injury. Language：ENGLISH When using electric appliances, basic precautions should always be followed, CLUE： including the following: SAFETY RULES ............2 1. SAFETY RULES SPECIFICATIONS ............4 ⚫ Read all the instructions before using the TOOLS FOR INSTALLATION ........

  • Page 3: Warning Note

    ⚫ Don’t operate in dangerous environment. Keep feeder in well ventilated and lighted area. Avoid damp or wet location. Wear eyes protection and earpieces to avoid ⚫ Room temperature ±5℃～±40℃；Humidity the noise. 30～95%；Voltage deviation ±5% are recommend. ⚫ Keep table and working area clean to ensure safe operation.

  • Page 4: Specifications

    2. SPECIFICATIONS 4. INSTALLATION Collocate with SG13 Stand MODE/ RAL 7026 CANDC30 CANDC40 COLOR H (Hnadle) 750 mm 750 mm 292 mm 292 mm L (Handle) 950 mm 950 mm Roller Size 3（ Ø120x60mm） 4（ Ø120x60mm） Motor DC Brushless Motor DC Brushless Motor Horsepower 0.5 KW 0.5KW...
  • Page 5 conductor to a live terminal. Check with a electrician to install the proper outlet. Do not qualified electrician or serviceman if the change the plug in any way.” • For grounded, cord-connected appliances grounding instructions are not completely understood, or if in doubt as to whether the other than nominal 120 V supply circuit: appliance is properly grounded.

  • Page 6: Locate Mounting Position

    4.1. Locate mounting position： 4.3. DC ASSEMBLY ⚫ Base is required to be mounted by rear-side of the out-feed and positioned the feeder towards in-feed direction. (FIG 2)。 ⚫ Stand vertical elevation distance= 170mm(6.9”). DC Series ⚫ Fasten BASE to table：Insert “Stand”to base and Assemble Handle.(FIG 4.5)。...

  • Page 7: Install Control Joint And Feeder

    4.3.2. Setup reference points： ⚫ Position feeder in regular in-feed position, 3 rollers feeder: Position tooling after first roller; 4rollers feeder: Position tooling between second and third roller, lower feeder rollers onto the workbench to ensure they are aligned, Memo position pin should be locked in.

  • Page 8: Ds Series Assembling

    4.4. DS Series Assembling DS Series 90° ⚫ Fasten Base to table, insert “STAND” to Base(FIG 15). ⚫ Assemble HANDLE. (FIG 17) 4.4.1. Install CONTROL JOINT and FEEDER： ⚫ Place the Feeder on the work table, lower OVER-ARM CONE onto the Control Joint, thghten the lever(FIG18).

  • Page 9: Dc Opeartion Adjustment

    ⚫ 5. DC Opeartion Adjustment When operating 4 rollers feeder: (Porceed step 1) then loosen lever (F) turn CONTROL-JOINT 90° clockwise (FIG 21)，then process step 2. (FIG 21) (FIG 19) 5.2. Inclined Feeding： ⚫ OVER-ARM rotation ： Loosen LEVER ⚫ Loosen LEVER, swing feeder off the table.

  • Page 10: Ds Operation And Adjustment

    ⚫ Elevating ： in-feed roller should be 3-4mm greater than Loosen Lever(D), turn out-feed roller. handle(E). ⚫ Memo-Position Pin has default pressing angle setting, after initial gaping adjustment ⚫ Feeder body rotation： loosen when switching to side feeding, gaping lever(D), rotate feder body. re-adjustment is not necessary.

  • Page 11: Digital Control Panel

    8. POWER CONNECTION AND GROUNDING ⚫ Read motor specification properly, make sure electric current matches the motor specification.（Range：±5%） 。 ⚫ Power of feeding unit should be connected to the over current protect device NFB (No Fuse Breaker) or fuses before connected to the master machine.

  • Page 12: Feeder Roller Change And Operation

    (FIG 28) (FIG 27) 9. Feeder Roller Change and Operation ⚫ Featured two types of roller for selection: Ø120 × 60mmwidth，and Ø120 × 25mm width. IN FEEDER (FIG 29) 10. LUBRICATION & MAINTENANCE Single Roller set ⚫ The fastener is a quick-released wing-type ⚫...

  • Page 13: Trouble Shooting

    CODE Specification Solution ⚫ Refer to below when error message The motor fails to Please check if anything stuck occurred on the display panel. start. in the feeder. The temperature The roller pressing too deep. ⚫ Restart main power after obviate the of driver is too Please judgment the deep of high.
  • Page 14 Version 1.2...
  • Page 15 Wiring Diagram 1Phase 110-120V ~ 60Hz ⚫ 1Phase 220-230V ~ 60Hz ⚫ Version 1.2...
  • Page 16 Phase 220-230V ~ 60Hz Version 1.2...

  • Page 17: Exploded View、Part List

    12. EXPLODED VIEW、PART LIST CANDC30 Version 1.2...
  • Page 18 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Sprocket Case Sprocket Kit A500303 Sprocket 01D-1 C020332 Sprocket Case 07D-1 A500309 Sprocket A500307 Double-Sprocket 01D-2 G320299 Axle 07D-2 N050057 Lock Washer K330028 Chain 01D-3...
  • Page 19 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty 36D-2. S900525 Cap Screw Chip on board kit(110-240V) Wire clamp Kit 58D-1 J011245 Chip on board 37D-1 U010278 Wire clamp 58D-2. S500408 Cap Screw 37D-2.
  • Page 20 CANDC40 Version 1.2...
  • Page 21 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty A500303 Sprocket Case Sprocket Kit Sprocket 01D-1 C020332 07D-1 A500309 A500307 Sprocket Case Sprocket Double-Sprocket 01D-2 G320299 07D-2 N050057 K330026 Axle Lock Washer Chain 01D-3 N030012...
  • Page 22 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty 36D-2. S900525 Cap Screw Q010060 O Ring Grounding Wire Kit Wire clamp Kit Q022502 63D-1 S300512 Oil seal Cap Screw 37D-1 U010278 Wire clamp U210041 63D-2...
  • Page 23 SG13 Version 1.2...
  • Page 24 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Base Kit 08A-3. S900825 Cap Screw M8X25L 17A-3. N11004R Column Cape Kit Over Arm Cone Kit 01A-1 A250401 Column Base Column Cape Over Arm Cone 01A-2 S601275...
  • Page 25 CANDS400 Version 1.2...
  • Page 26 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Sprocket Case 08A-5. S100610 Screw 28A-2. S050408-001 Tap Screw 01B-1 C020332 Sprocket Case Flip Handle-Kit J530003 Cable Gland 01B-2 G320299 Axle 09A-1 U010275 Flip Handle Drive Plate Kit...
  • Page 27 SS130 Version 1.2...
  • Page 28 Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Part No. Code No. Description Q’ty Column Base 08A-1 S010616 Carriage Screw 14A-1 T050001 Elevating Handle 01A-1 A470005 Column Base 08A-2 N11006R 14A-2. N810630 Lock Pin 01A-2 S601250 Hex Screw 08A-3 G320046...
  • Page 29 Version 1.2...
