Summary of Contents for Cantek MX550AU

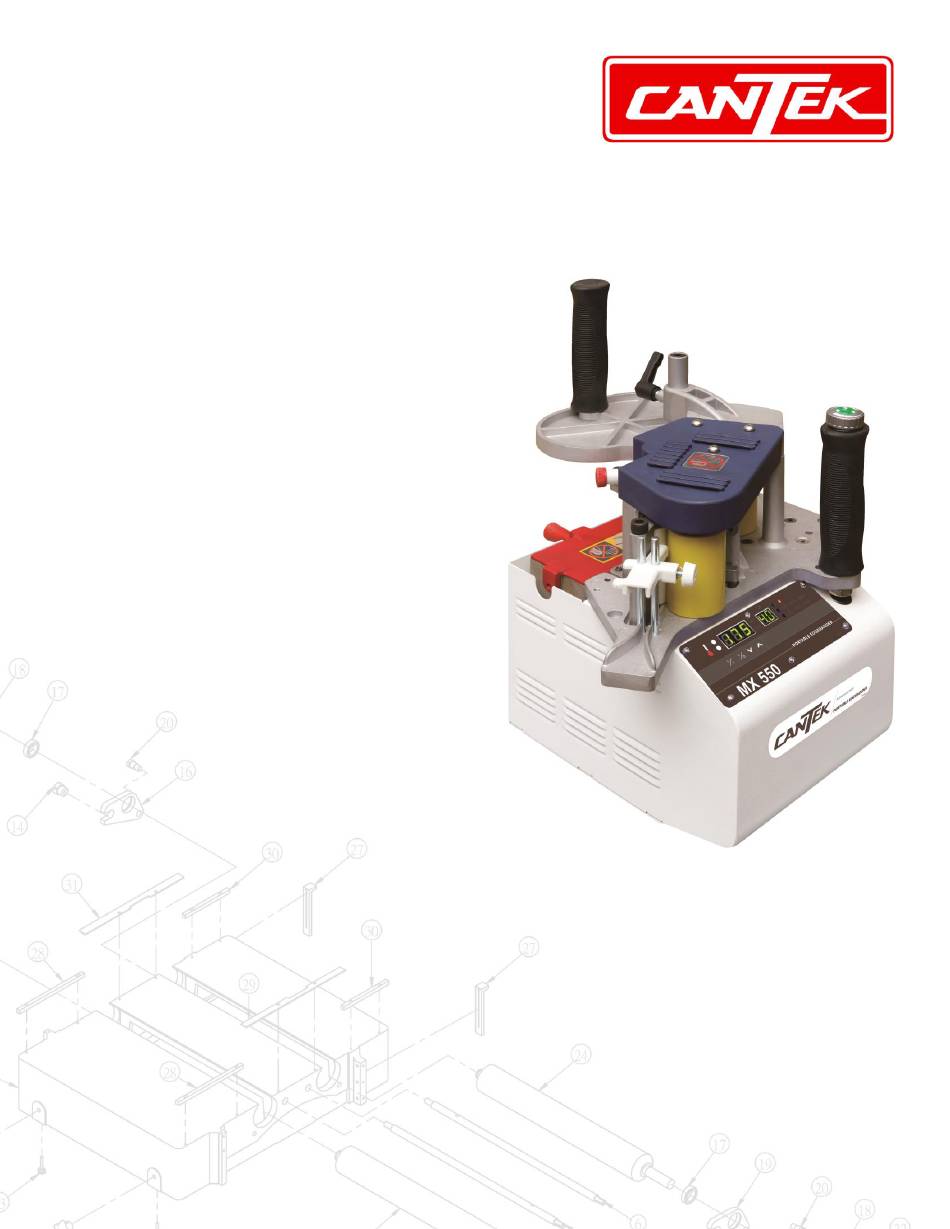

- Page 1 Operations & Parts Manual www.cantekamerica.com MX550AU Portable Edgebander Please ensure you have your serial number available when contacting us for parts or service. Cantek America Inc. | 1.888.982.2683 | Parts: sales@cantekamerica.com | Service: service@cantekamerica.com...
-
Page 2: Table Of Contents
Manual Information Date: 2018.01.08 1. SAFETY RULES Version：1.4 Language：English A. SAFETY ADVICE Read instruction manual before operation and Clue： follow the safety rules. This machine is built with high manufacturing SAFETY RULES........... 2 technology and safety regulation. However, use SAFETY ADVICE ............. -
Page 3: Maintenance
rated voltage. D. Maintenance Conduct mandatory cleaning and maintenance words within the time limit. During all cleaning, maintenance and repair works, machine must be disconnected from electrical supply. Safety information High Temperature High TEMPERATURE, DO NOT TOUCH WHEN YOU OPEATRE Respirator mask 2. -
Page 4: Model And Specification
ensure the original high temperature glue from the glue pot is removed. Remove the original glue from the glue tank thoroughly before initiate low temp mode. To prevent possible damage to the machine during low temp. mode: use low temp glue with 80℃(176℉) melting point and set the machine between 100~120℃(212~248℉) 3. -
Page 5: Preparation For Operation
BR500 5. Preparation for Operation Keep machine clean at all time. Keep panel and materials in room temperature. The humid place might affect the quality of adhesion. Always apply sufficient contact pressure onto the work piece when edge-banding not enough pressure might cause insufficient attachment on the work piece. -
Page 6: Operation
seconds can be switch to low temperature mode, operate same procedure can return to original mode. Temperature display will blink once for every 3 seconds, when reaches up to setting temperature the heating indicator light will turn on then switch on the motor accordingly. -
Page 7: Chain Adjustment
Thickness adjustment: Adjust thickness adjustment knob and screw accordingly when feeding soft or thin edge band. (FIG6) (Fig 8) 7.6 Interior guide plate mounting & instruction Installation：Locate corner guiding on to the (Fig 5) (Fig 6) whole position, tighten the screws. (Fig 9) ... -
Page 8: Malfunction Analysis
Malfunction Cause Solution Machine Exchange Fuse (use same does Fuse is defect specification) start The granulate in the Open cover glue pot is not fully check if all granulate melted into liquid become liquid. Glue amount is not Increase the glue amount adjusted by glue adjustment knob. - Page 9 Name Diagram Purpose Prevent possible damage to hanging long edging. Easy Mobile clip on design and Dispenser could hold up edge band from height 10-92mm, thickness 0.4-3.0mm. Electronic control Edge and adjustment for bander perfect finish Trimmer panel edge. Dual End Cut extra tape off.
-
Page 10: Circuit Diagram
10. Circuit diagram BR300 Version 1.4... -
Page 11: Br500
BR500 Version 1.4... - Page 12 Version 1.4...
