aXp RACING AX1737 Assembling Instructions

AX1737
Touring skid plate
KTM 790/890 Adventure R/L
What's in the box ?
2 NE09-01-001 - Silent blocks
1 PM03-04-109 - Rear left alloy part
1 PM03-04-133 - Rear right alloy part
1 PM03-01-021 - 13mm alloy spacers
1 NE04-01-262 - Sticker kit
1 PM03-04-126 - Left alloy part
1 PM03-04-127 - Right alloy part
1 PM01-10-023 - 30mm HDPE block
1 PM01-05-015 - 15mm HDPE block
1 PM01-06-080 - 8mm mud guard
1 NE01-06-022 - TH 8x50mm screws
2 NE01-01-003 - TBHC 8x20mm screws
3 NE01-03-002 - M8 washers
1 NE01-04-001 - EM8F bolts
6 NE01-02-002 - TFHC 6x20mm screws
10 NE01-04-003 - EM6F bolts
10 NE01-03-001 - M6 washers
4 NE01-04-002 - Clamped bolts
8 NE01-02-003 - TFHC 6x25mm screws
4 NE01-11-001 - Special screws
2 NE13-01-001 - 8mm foam sticker
The paper instructions may
be limitless, scan the QR
code to watch the tutorial
video online.

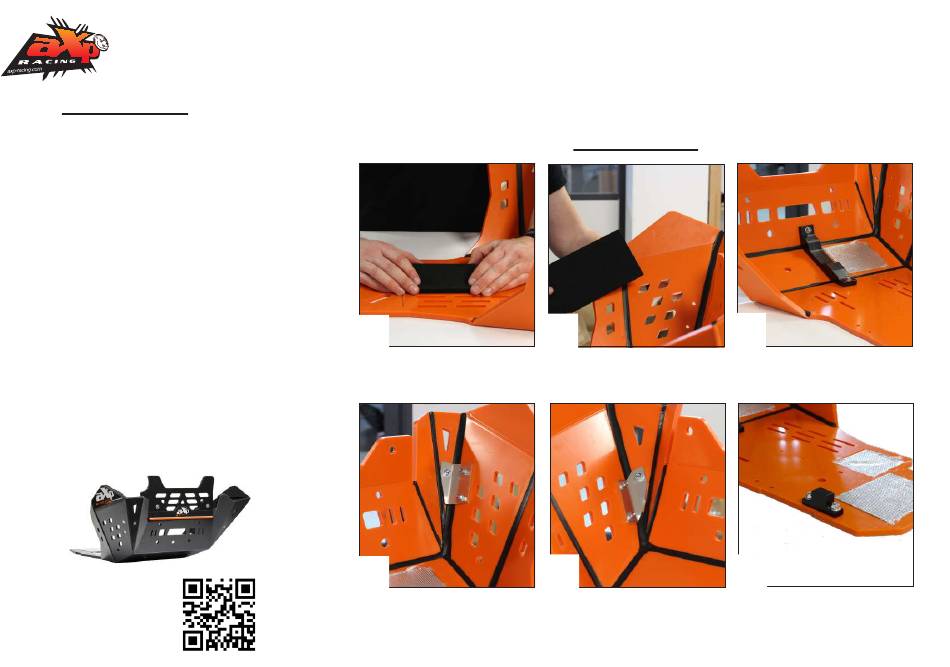

Assembling instructions
Approximate time of assembly: 30 minutes.
A skid plate is made to protect the vital components of your bike and does not have a « life warranty ».
However, production default may happen and we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Stick the foam in the middle of the
skid plate.
4
Fix the alloy parts on each side of the skid plate using 3 TFHC 6x20mm
screws + M6 washers and EM6F bolts.
Follow the steps
2
Cut the foam and stick both parts
on each side of the skid plate.
5
3
Place the HDPE block using 2
TFHC 6x25mm screws + M6
washers and EM6F bolts.
6
Fix the 15mm HDPE block using
the TFHC 6x25mm screws + M6
washers and EM6F bolts.
