User Manual
Accessories for small steam
sterilizers
EN
Dear customer,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument reprocessing and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
management system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in
accordance with EN ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance
with strict quality criteria.
The MELAG management and team.
Germany", we guarantee that these demands will be met. Our certified quality
"competence in
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MELAG A Plus mount
Summary of Contents for MELAG A Plus mount
- Page 1 Dear customer, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.
-
Page 3: Table Of Contents
Contents Contents 1 Usage instructions for mounts ............................ 4 Intended use .................................. 4 2 Safety..................................... 6 3 Overview of the loading variants of the respective mounts .................... 7 4 Application .................................. 10 Standard mount ................................. 10 “Plus” mounts.................................. 10 Universal Mount................................. 12 Mounts and loading slide for Vacuclave 550 ........................ 14 Mounts for Careclave 618.............................. 15 5 Cleaning and maintenance .............................. 17 Replace slide clips ................................ 17... -
Page 4: Usage Instructions For Mounts
Intended use The mounts serve the acceptance of trays, MELAstore Boxes or sterilization containers. Validity The mounts are compatible with the following device classes: A Plus mount Device class Device type Pro-Class Vacuklav 23 B+, 24 B+, 24 BL+, 30 B+, 31 B+... - Page 5 1 Usage instructions for mounts Mount 4+2, 6+2 Device class Device type Combination steam sterilizer Careclave 618...
-
Page 6: Safety
The loaded Universal Mount can only be placed on the work surface without the lower narrow tray. Use only original accessories and original equipment from MELAG. We do not provide a guarantee for non-MELAG accessories/equipment, even if they are in possession of validation. -
Page 7: Overview Of The Loading Variants Of The Respective Mounts
Mount A Plus, C Plus, D, D Plus, E Plus and F Plus Art. no. Short Long Short Long – – – – – – – – – Short ME82620 – A Plus mount Long – – – ME82630 – – – – – – – – – Short ME81370 –... - Page 8 Universal Mount Art. no. Short Long Short Long Universal ME22921 Short mount Universal ME22922 Long mount Basic, Comfort mount and loading slide for Vacuclave 550 Art. no. Short Long – – – – – – – – – – – –...
- Page 9 2) This mount can additionally accommodate two narrow trays (art. no. ME01310, depth 40 cm). 3) This also applies to the previous generation. 4) Only applies to A Plus mount. 5) Only applies to mounts with short chamber depth. 6) This also applies to Premium Plus Class Evolution and Premium Class.
-
Page 10: Application

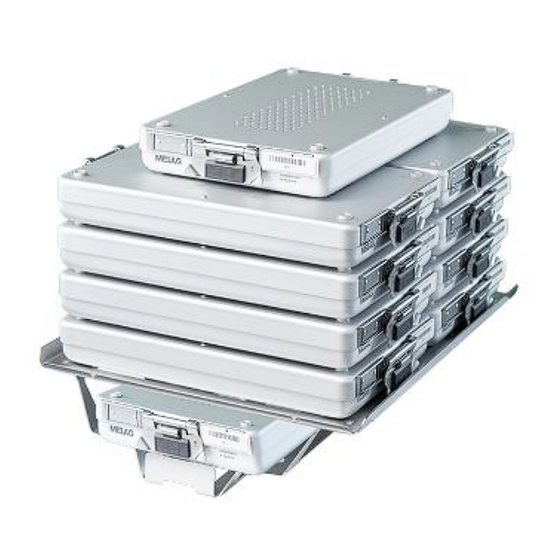

Remove the bag with the slide clips before first use. Replace any slide clips exhibiting visible wear immediately, see Replace slide clips [} Page 17]. A Plus mount Art. no. ME82620 (for chamber depth 35 cm) Art. no. ME82630 (for chamber depth 45 cm) 90°... - Page 11 4 Application Mount C Plus Art. no. ME81370 (for chamber depth 35 cm) Art. no. ME81380 (for chamber depth 45 cm) 90° for 6 trays for 3 MELAstore Box 100 (mount rotated by 90°) Mount D Plus Art. no. ME82640 (for chamber depth 35 cm) Art.
-
Page 12: Universal Mount
4 Application Mount F Plus Art. no. ME82660 (for chamber depth 35 cm) Art. no. ME82670 (for chamber depth 45 cm) for 3 MELAstore Box 100 and 2 narrow trays Universal Mount The mounts are fitted with slide clips on their edges. These protect the chamber against scratches and simplify pushing in and pulling out during loading and unloading. - Page 13 4 Application For 2 MELAstore Box 200 and 2 nar- For 2 MELAstore Box 100, 2 trays For 1 MELAstore Box 200, 3 trays row trays and 2 narrow trays and 2 narrow trays Tray, flat Art. no. ME22923 (for chamber depth 35 cm) Art.
-
Page 14: Mounts And Loading Slide For Vacuclave 550
4 Application Mounts and loading slide for Vacuclave 550 Leave the Basic mount in the sterilization chamber during loading and unloading. If you remove the mounts, e.g. for cleaning, first remove the trays and then the mount. Basic mount Art. no. ME22486 for 7 trays (41 x 29 cm) and 2 long trays or for 14 short trays and 2 long trays Comfort mount... -
Page 15: Mounts For Careclave 618
4 Application Loading slide with Comfort mount Art. no. ME22485 (Comfort mount) Art. no. ME22606 (loading slide) for 7 trays (41 x 29 cm) and for 7 trays (41 x 29 cm), 1 long tray and 2 long trays or for 14 short trays and 1 MELAstore Box 100 or 2 long trays for 14 short trays, 1 long tray and... - Page 16 4 Application Mount 6+2 Art. no. ME22346 for 6 trays (18.5 x 13.5 cm) and 2 narrow trays (11.5 x 10.7 cm)
-
Page 17: Cleaning And Maintenance
5 Cleaning and maintenance 5 Cleaning and maintenance Check the mount for loading once a week for contaminants, deposits and damage. If you find any contaminants, pull the trays or cassettes and the associated mount out of the sterilization chamber from the front. -
Page 18: Accessories And Spare Parts
6 Accessories and spare parts 6 Accessories and spare parts Accessories You can obtain the specified articles and an overview of further accessories from your stockist. Category Article Art. no. (depending on chamber depth) 35 cm 45 cm Trays Tray ME00280 ME00230 Tray, narrow ME01320 ME01310... - Page 20 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
