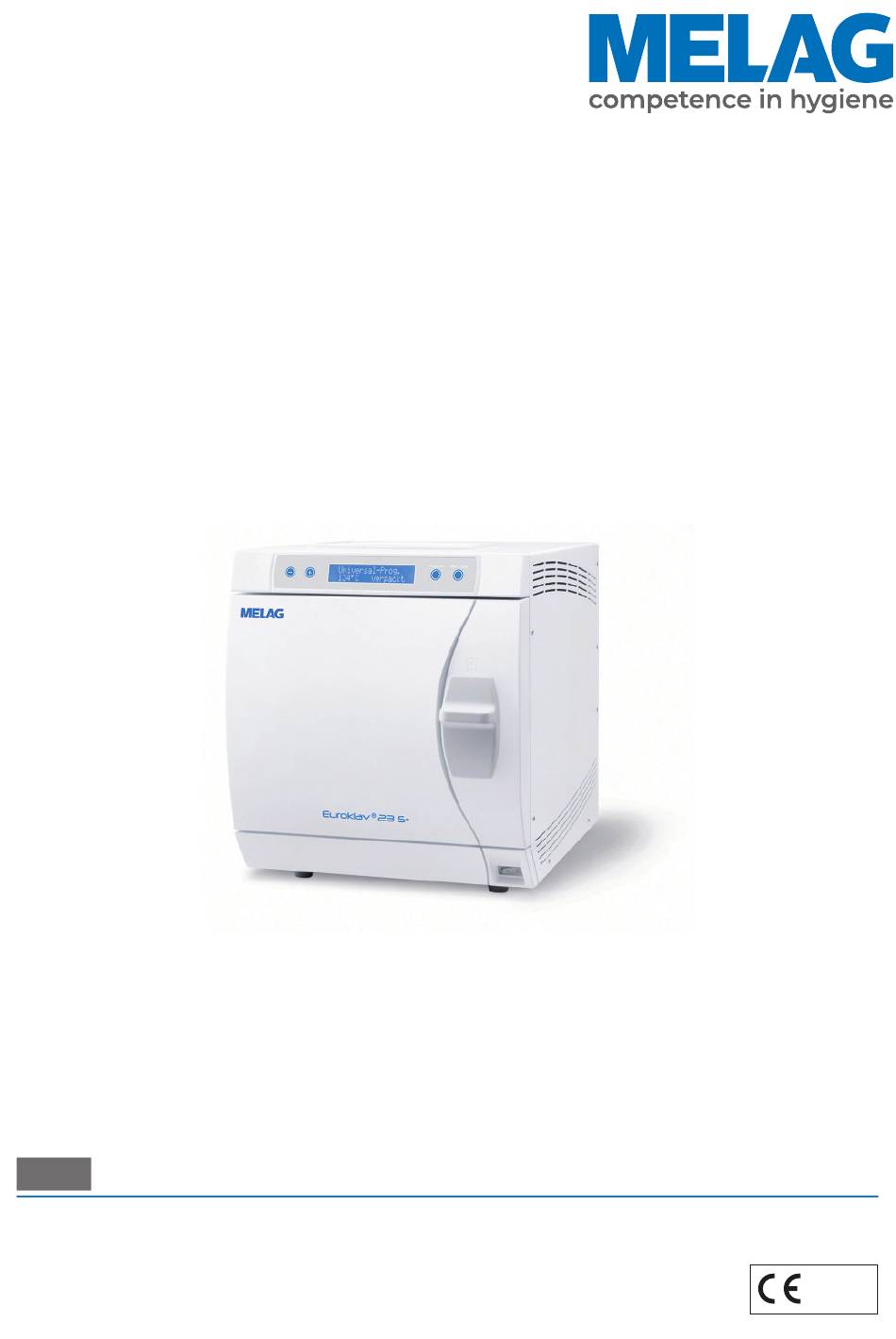

Technical Manual
Euroklav
Steam sterilizer
from software version 5.21
EN
Read this manual carefully and in the correct order before setting up and commissioning the device. The instructions
include important safety information. You also receive a user manual with the device. Please store this manual and the
user manual carefully and in close proximity to the device. They represent a component of the product.
®
23 S+
0197

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Euroklav 23 S+ and is the answer not in the manual?

Questions and answers

Related Manuals for MELAG Euroklav 23 S+

Summary of Contents for MELAG Euroklav 23 S+

  • Page 1 Technical Manual ® Euroklav 23 S+ Steam sterilizer from software version 5.21 Read this manual carefully and in the correct order before setting up and commissioning the device. The instructions include important safety information. You also receive a user manual with the device. Please store this manual and the user manual carefully and in close proximity to the device.

  • Page 3: Table Of Contents

    Contents Contents 1 General guidelines ................................ 4 Symbols used .................................. 4 Formatting rules................................... 4 2 Installation requirements.............................. 5 Installation location ................................ 5 Electromagnetic environments ............................ 5 Space requirements................................ 6 On-site requirements ................................ 7 System and network safety.............................. 9 3 Setup and installation ................................ 11 Removing from the packaging ............................ 11 Aligning the door seal sealing lips ............................. 11 Installation examples ................................. 13 Aligning the steam sterilizer............................... 17 Test runs.................................... 17...

  • Page 4: General Guidelines

    They represent a component of the product. Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG download centre at www.melag.com. Symbols used Symbol...

  • Page 5: Installation Requirements

    The steam sterilizer should only be setup, installed and commissioned by persons authorised by MELAG. The steam sterilizer is not suitable for operation in explosive atmospheres. The steam sterilizer is conceived for use outside the patient care area. The device should be located a minimum of 1.5 m radius away from the treatment area.

  • Page 6: Space Requirements

    2 Installation requirements Space requirements View from the front, the right and above Dimensions Euroklav 23 S+ Width 42.5 cm Height 49 cm Depth 70 cm Clearance between the device feet 43.5 cm Clearance from rear device foot up to the rear panel 9.5 cm Min.

  • Page 7: On-Site Requirements

    2 Installation requirements The space requirements of the steam sterilizer corresponds to its dimensions plus an additional 10 cm to the left and rear and an extra 5 cm to the right. The area above the steam sterilizer should be freely accessible in order to enable easy filling of the storage tank and good ventilation. PLEASE NOTE The steam sterilizer is not suitable for installation in a cupboard device.
  • Page 8 MELAdem) in accordance with EN 1717 to protect against backflow into the drinking water supply. Leakage water detector MELAG recommends the installation of a leakage water detector with a cut-off valve (e.g. MELAG water stop). PLEASE NOTE Fit the outlet hose at a constant decline without kinks or sagging. In case of deviations to the installation arrangements, consult with MELAG.

  • Page 9: System And Network Safety

    NOTICE When performing a device software update, use only the update data authorised by MELAG for the corresponding device type. Operating the device with memory media To prevent data loss, only use memory media to save the log data with the following characteristics: functional (without malware, etc.)
  • Page 10 2 Installation requirements Operating the device in the local network (LAN) NOTICE Do not connect the device to a public network (e.g. the internet). An Ethernet/IP-based network connection (LAN) is required to operate the device in a local network. In its delivery state, the MELAnet Box IP address is 192.168.40.100.

  • Page 11: Setup And Installation

    WARNING Improper installation may lead to a short-circuit, fire, water damage or electrical shock. This could result in serious injury. Only have the device set up, installed and commissioned by people authorised by MELAG. Removing from the packaging CAUTION Danger of injury from incorrect carrying.
  • Page 12 3 Setup and installation Press your thumb between the two sealing lips and separate the sealing lips once around with your thumb. PLEASE NOTE Note the differences in the widths of the sealing surfaces when inserting the door seal. The door can only be shut correctly and the sterilization chamber sealed, if the door seal sits correctly in the groove.

  • Page 13: Installation Examples

    On the following pages, you will find examples of the recommended installation types for the feed water supply. The connection of a different water treatment unit with the same water quality is possible after consultation with MELAG. Example 1 - Standard delivery state Direct feed water inflow from the internal storage tank.
  • Page 14 3 Setup and installation Example 2 - one-way drain via siphon Direct feed water inflow from the internal storage tank. The steam sterilizer is supplied with feed water directly from the internal storage tank via a hose bridge. A float switch integrated in the device notifies the absence of feed water. Programs can only be started after feed water has been filled.
  • Page 15 3 Setup and installation Example 3 - MELAdem 40 Feed water inflow from the MELAdem 40 ion exchanger. Connection of the MELAdem 40 ion exchanger with MELAjet. The MELAdem 40 can be connected directly to the steam sterilizer feed water inflow; this generates demineralised water from normal tap water. 11.1 10.1 11.2...
  • Page 16 The connection of a different water treatment unit with the same water quality is possible after consultation with MELAG. The used feed water (wastewater) is discharged into the double chamber siphon via the water outlet hose.

  • Page 17: Aligning The Steam Sterilizer

    3 Setup and installation Position Description Art. no. contained in 11.2 Water outlet hose for steam sterilizers, 2 m ME36585 ME09031 11.3 Water branch ME37241 ME09031 11.4 Cold water adapter 3/4” to 1/4” (direct connection water hose) ME09037 ME09031 present on device-side on-site Aligning the steam sterilizer To enable fault-free operation, the steam sterilizer must be setup level using a spirit level placed on the...

  • Page 18: Settings And Adjustment

    4 Settings and adjustment 4 Settings and adjustment Settings on the device Date and time Check the date and time and set if necessary, see User manual. Feed water inlet The feed water supply is effected either via the internal storage tank or via a separate water treatment unit (e.g.

  • Page 19: Technical Tables

    5 Technical tables 5 Technical tables Feed water quality Minimum requirements to the feed water following EN 13060, Appendix C Substance/property Feed water Evaporation residue ≤ 10 mg/l Silicon oxide, SiO ≤ 1 mg/l Iron ≤ 0.2 mg/l Cadmium ≤ 0.005 mg/l Lead ≤ 0.05 mg/l Traces of heavy metal apart ≤ 0.1 mg/l from iron, cadmium, lead Chloride...

  • Page 20: Pressure-Time Chart

    5 Technical tables Pressure-time chart Universal-Program Fig. 1: Pressure-time chart for the Universal-Program, 134 °C and 2.1 bar Quick-Program S Fig. 2: Pressure-time chart for the Quick-Program S, 134 °C and 2.1 bar...

  • Page 21: Empty Chamber Test

    5 Technical tables Gentle-Program Fig. 3: Pressure-time chart for the Gentle-Program, 121 °C and 1.1 bar Prion-Program Fig. 4: Pressure-time chart for the Prion-Program, 134 °C and 2.1 bar Empty chamber test The coldest point in the sterilization chamber during the empty chamber test lies directly on the temperature sensor (see circular marking in the following figure).
  • Page 22 Certificate of Suitability According to the recommendations of the Commission for Hospital Hygiene and Infection Prevention at the Robert Koch Institute Manufacturer: MELAG Medizintechnik GmbH & Co. KG Address: Geneststraße 6-10 10829 Berlin Country: Germany ® Product: Euroklav 23 S+...
  • Page 24 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
