Fiido M3 Manual

Folding electric bike
Hide thumbs Also See for M3:
Table of Contents

Advertisement

Quick Links

Download this manual

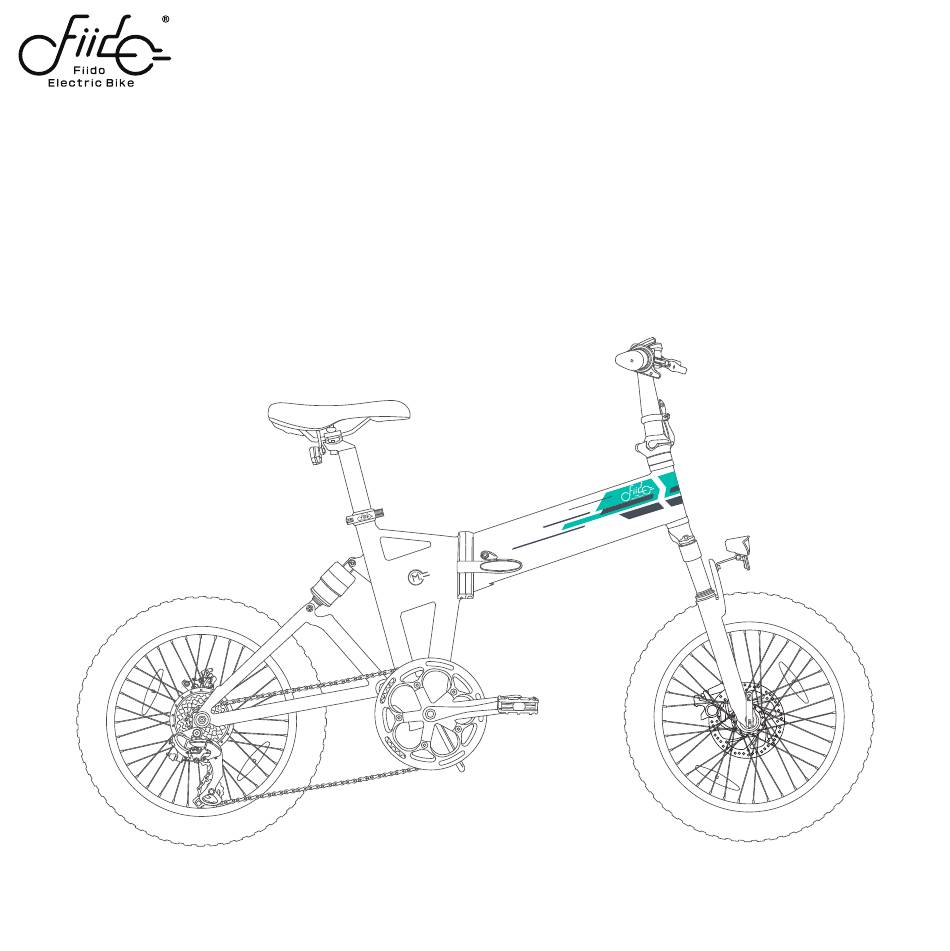

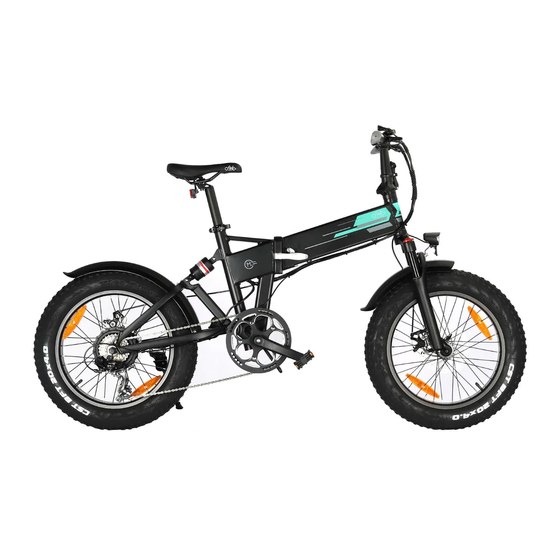

Fiido M3
(Off Road)
Folding Electric Bike
3
D ear u ser s！Be sur e to p e ad th is man ual caref u lly be f o r ri di ng , do u nde r s ta nd t h e ope ra t ion s a nd se e p
thi s m anu al an d oth er ma te r ia l f o r f ur th e r us in g .
WAR N IN G: DO N OT U SE T H E B IK E B EF OR E Y O U K NO E H OW TO US E .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fiido M3

Summary of Contents for Fiido M3

  • Page 1 Fiido M3 (Off Road) Folding Electric Bike D ear u ser s！Be sur e to p e ad th is man ual caref u lly be f o r ri di ng , do u nde r s ta nd t h e ope ra t ion s a nd se e p thi s m anu al an d oth er ma te r ia l f o r f ur th e r us in g .
  • Page 2 In this manual,we will introduce the specification,installation,usage,precautions,and maintenance of FIIDO M3.Be sure you know everything you need to know about the bike that introduced in this manual. Any questions,please contact Fiido After-sales Team or our Local Service Center,and a prompt and feasible solution will be provided.
  • Page 3 8. Do not attempt to charge while the charger or power supply is wet, please follow the local safety regulations if you need to charge the bike in public area. 9. For effective protection and as convenient as possible for yourself, please be sure to use Fiido specific parts.

  • Page 4: Table Of Contents

    CONTENTS 1.Product introduction 2. Using guide 3.Maintenance precautions 4. Service directory 1.1 Bike overview 2.1 Installation guide 3.1 Using precautions 4.1 Troubleshooting methods 1.2 Packing list 2.2 First time using 3.2 Bike maintenance & repair 4.2 Specifications 1.3 Bike diagrams 2.3 Charging instructions 3.3 Motor maintenance &...

  • Page 5: Product Introduction

    1. Product introduction 1.1 Bike overview 1.2 Packing list 1.3 Bike diagrams 1.4 Function DESC...

  • Page 6: Bike Overview

    1.1 Bike overview THE FUTURE STARTS HERE M3, the iconic off-road electric bicycle of Fiido. Equipped with 48V large battery and advanced torque sensor,  it could accurately sense the rider's pedaling force, and then output the corresponding power. The max speed  could reach to 15.5MPH. With 20 inch off-road tires and upgraded suspension system, easier to challenge any  difficult outdoor terrain. Furthermore, the flexible battery is removable, portable and capable; solve the problem  of outdoor charging. 20*4.0 inch wheels and non-slip tread design, easy through jungle, sand, stone beach, water hole and other difficult terrain. Fiido M3 has 3 riding modes, 3 power gear, 7 speed transmission system, to provide a richer riding experience.  The bike can be folded to be pushed, extending more cycling scenes.

  • Page 7: Packing List

    1.2 Packing list Bike parts Key*2 handlebar*1 Electric Bike*1 Seatpost*1 tires*1 Bike accessories Taillight*1 Fenders*1 Pendals*1 Charger*1 User manual*1 Tools Socket Spanner *1 Hex wrench*5 Front wheel quick release*1 *Please carefully check whether all items are complete and intact. If there is any problem such as missing or damaged, please contact the official after-sales team asap.

  • Page 8: Bike Diagrams

    1.3 Bike Diagrams Handlebar Stem Saddle Stem Clamp Rear Light Shock absorber Seat clamp Shock absorber Headlight Tire Disc Brake Disc Brake Motor Pedal Rear Derailleur Crank Charge Valve Chainwheel Chain *Non professionals are forbidden to disassemble and assemble the battery. Please contact after-sales team for assist.

  • Page 9: Function Desc

    USB Charging Port 6 Speed Shirft Up (For emergency charge ONLY) (Click the button to shift up) Parts Battery Folding pandals Charging Port (Press the pendal in the direction of the arrow to (Insert the Fiido charger ONLY) fold for easier storage.)

  • Page 10: Using Guide

    2.Using Guide 2.1 Installation guide 2.2 First time using 2.3 Charging instructions 2.4 Folding instructions...

  • Page 11: Installation Guide

    2.1 Installation guide The basic installation of the bike has been completed before leaving the factory. After receiving the bike, you only need to install the handlebar, front wheel and front light for complete installation. Install the handlebar ① Lift the stem from bottom to top, open the stem ②...
  • Page 12 Install the front wheel ① Unscrew the nut and spring of the front wheel ② Lift the front part of the bike, align the front quick release wheel and insert the front fork sleeve ring ③ Put the front axle through the front wheel, and load the spring, screw the nut, lock the front wheel quick disassembly...
  • Page 13 安装座管 Install the seatpost 安装座管 ② Adjust the seatpost to suitable height, the recommended ① Open the seat clamp, insert the seatpost. height is when the saddle is level with the user’s pelvis when standing naturally.The height of the adjustment can NOT Install the front light exceed the safety line ①...
  • Page 14 Install pendals Use the open spanner of the tools bag, screw the pedal shaft into the threaded hole and tighten it in the direction of the arrow. Caution: While installing the pendal, pay attention to the left / right pendal corresponding to the left / right crank, the pendal screw and the inside of the crank are respectively marked L(left) / R(right).

  • Page 15: First Time Using

    2.2 First time using Before riding, please follow the installation guide to install components properly, check whether the firmware is loose, ensure sufficient power, and take appropriate protection for riding. Step 1：Adjust the seat Please adjust the seat to the appropriate riding height according to your height. （the recommended height is when the saddle is level with the user’s pelvis when standing naturally.
  • Page 16 Step 3：Mode switching Switch and choose the riding mode according to the cycling road conditions and personal needs. ① Electric mode：Equipped with pure electric mode, gently press down the electric mode button to switch to the pure electric mode, the stonger the press, the faster the speed ②...

  • Page 17: Charging Instructions

    2.3 Charging instructions The battery comes with a small amount of electricity, before the first time use, please make sure to charge it to full power before riding. Charging 1.Charging connection: Connect the charging interface of the charger to the charging port, then connect the power plug of the charger to the power socket.
  • Page 18 ② Disassembly battery charging 1） Use the key to turn off the power, push the key up, turn it clockwise to the bottom and remove the key 2） Open the frame clamp and fold the bike in half. 3） Hold the handle of the battery cover and pull out the battery to charge. Caution: Charger has high voltage device, DO NOT repair without permission.

  • Page 19: Folding Instructions

    2.4 Folding instructions Lower the seatpost Lift the seat clamp upward, to keep it in open status. Gently press down the seatpost to the bottom. Press down the seat clamp to keep it in closed status. Fold the stem Open the stem safety hook, turn the stem clamp downward to keep it in open status. Gently turn the stem downward to the bottom, to finish the stem folding.
  • Page 20 Fold the bodywork ① Open the safety hook, open the frame clamp outward and keep it in open status. ② Fold the front part of the bike backward, until the front and rear wheel is matched, to finish the bike folding.

  • Page 21: Maintenance Precautions

    3.Maintenance precautions 3.1 Using precautions 3.2 Bike maintenance & repair 3.3 Motor maintenance & repair 3.4 Battery maintenance & repair 3.5 Reflex reflector cautions...

  • Page 22: Using Precautions

    3.1 Using precautions （Ⅰ）Users should pay attention to the safety of bicycle use 1. No parking in building foyers, evacuation stairs, walkways and safety exits. 2. No charging in residential buildings. Charging should be far away from combustible, and no longer than 9 hours. 3.
  • Page 23 （Ⅲ）Examination before riding: please repair in time or go to the local maintenance point for repair, if there’ s any abnormality. 1. Please confirm the normal power use when using the kickstand and the rear wheel is off the ground. 2.

  • Page 24: Bike Maintenance & Repair

    3.2 Bike maintenance & repair 1. The bicycle has been checked and adjusted before out of factory, any problems please contact Fiido After Sales Team for support. 2. Normally the spokes of the wheel should be adjusted once after half a month of riding to ensure the best use.

  • Page 25: Reflex Reflector Cautions

    2. Fiido reflex reflector has been fixed on the vehicle, please do not change the position, modify, disassemble, etc. 3. Make sure to check the normal function of reflex reflector before each use, and keep the surface clean.

  • Page 26: Service Directory

    4.Service directory 4.1 Troubleshooting methods 4.2 Specifications 4.3 Warranty coverage 4.4 Repair record...

  • Page 27: Troubleshooting Methods

    4.1 Troubleshooting methods Fault code description Fault code Fault phenomenon Communication issues Throttle issues Brake lever issues Motor hall issues Motor issues Controller issues General fault Fault phenomenon Fault cause Rule out way Poor contact of regulating handlebar Change regularing handlebar Poor contact of brake cut-off...

  • Page 28: Specifications

    4.2 Specifications Property index Item Fiido M3 Before folding: Length*Width*Height (mm) 1750*580*1060 After folding: Length*Width*Height (mm) 960*450*790 Product size Tires 20'x4 inch Product weight Net weight (kg) Maximum load (kg) 120kg Applicable age Riding requirement Applicable height 155cm(5.0') - 200cm(6.5')

  • Page 29: Warranty Coverage

    * The above ata allow for 5% manufacturing tolerances. * After receiving the goods,there may be some differences between individual accessories and display drawings,which are different due to the different batches,and donot affect the use. Including：Charger, Front & Rear light, Bell, Controller, Display, Mileage, Tire, Light/Speaker button,Brakes, Rear derailleur etc. 4.3 Warranty coverage (Ⅰ）Warranty principle 1.
  • Page 30 (Ⅱ）Warranty scope and period Item Parts Guarantee time Service Natural deformation, open welding, desoldering fracture 12 months Frame phenomenon, quality problems caused by poor manufacturing can be replaced. Self-modification, collision 12 months Fork, Handlebar, Stem, Seatpost damage, etc. are not warranted. Kickstand, Tires, Saddles, Fenders, Safety hook, Seat Basic parts...

  • Page 31: Repair Record

    Warranty notification 1. Accessories will be guaranteed in strict accordance with the warranty period. 2. The warranty period shall be calculated from the date of delivery. 3. No warranty will be provided if the charger, battery and motor are disassembled without permission. 4.
  • Page 32 Shenzhen Fiido Technology Ltd Address：Shenzhen, Guangdong, China. Website： www.fiido.com If you have any questions or suggestions about this user manual, please contact us via following mailaddress Contact us：support@fiido.com Scan for video instruction 9356685001216...
