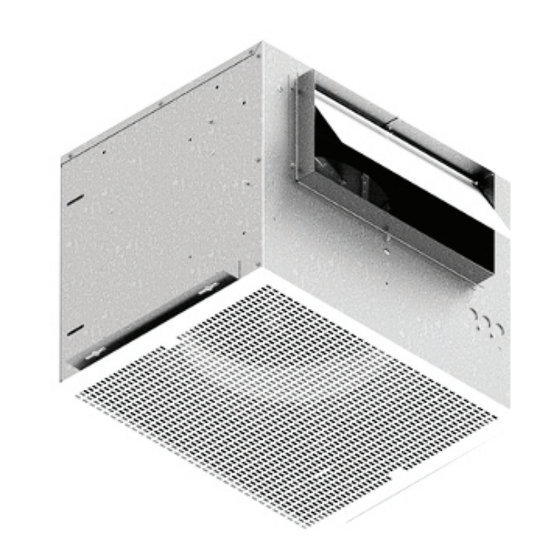

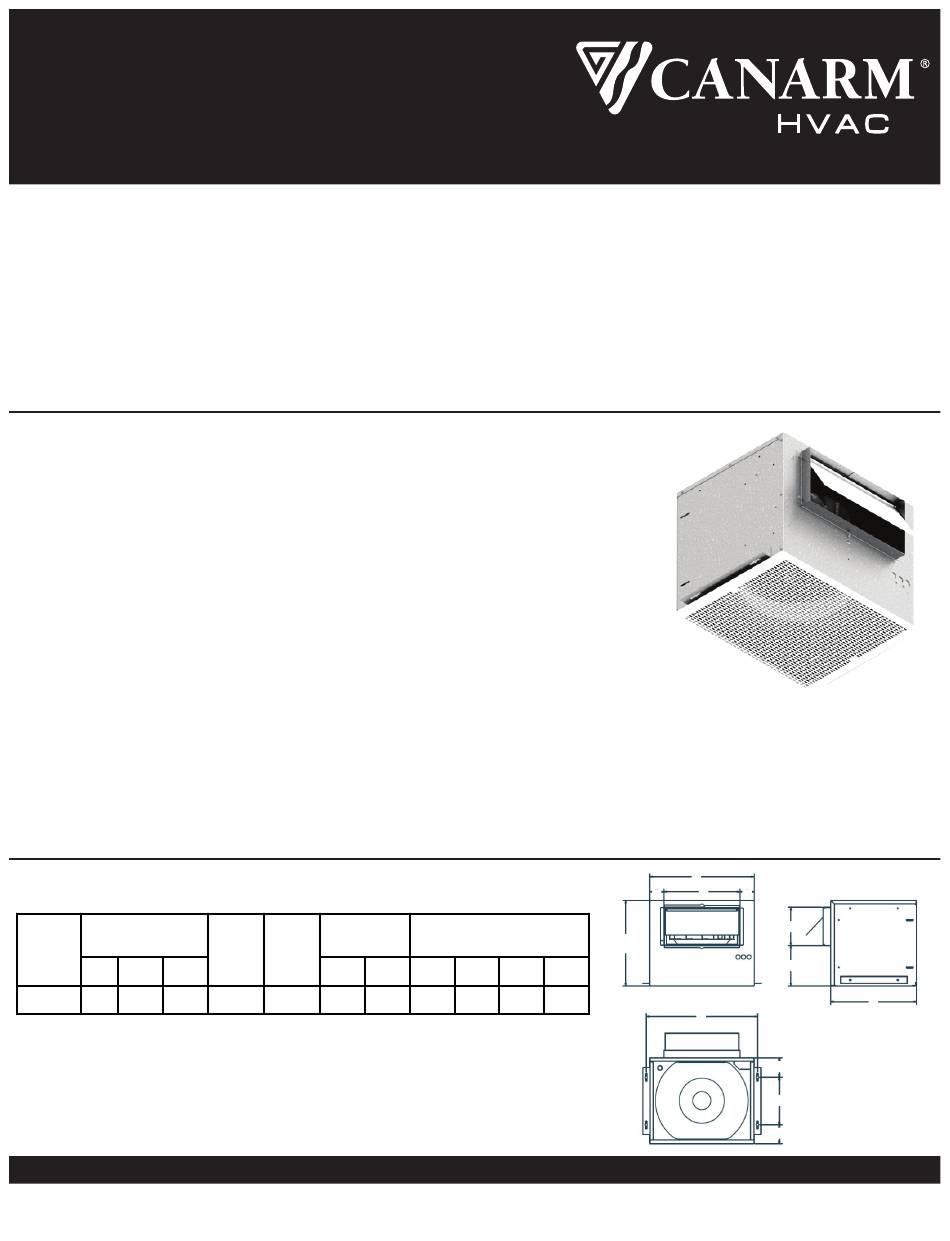

CBF SERIES BATH
FAN VENTILATORS
OPERATION INSTRUCTIONS AND PARTS MANUAL
READ AND SAVE THESE INSTRUCTIONS
Model:
CBF
THE PURPOSE OF THIS MANUAL IS TO AID IN THE PROPER INSTALLATION AND OPERATION OF THE
CANARM BATH FAN (CBF). THESE INSTRUCTIONS ARE INTENDED TO SUPPLEMENT GOOD GENERAL
PRACTICES AND ARE NOT INTENDED TO OVERWRITE LOCAL CODES AND ORDINANCES.
IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND
MAINTENANCE OF THIS EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL.
INSPECT ALL SHIPMENTS CAREFULLY FOR DAMAGE. THE RECEIVER MUST NOTE ANY DAMAGE ON
THE CARRIER'S BILL OF LADING AND FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.
GENERAL SAFETY
1. All electrical work must be done in accordance with all applicable electrical codes by a
qualified electrician.
2. Prior to wiring, ensure the power supply is locked in the OFF position and that the motor
nameplate voltage matches the supply voltage.
3. Do not install or operate this fan in an environment where combustible materials, gases, fumes,
or heavy moisture are present. Not rated/intended for use over a tub or shower.
4. Caution: the fan contains rotating parts and electrical service. Appropriate safety precautions
should be taken during installation, operation and maintenance. When servicing, the fan motor
may be hot. Open grille, inlet & faceplate to allow time for it to cool down.
5. Before starting the unit, carefully remove the grille, and ensure the wheel rotates freely.
6. Check and tighten, where necessary all screws, nuts, bolts, split pins etc. prior to fan start up.
(As some may have loosened during shipping)
7. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
8. Ducted fans must always be vented outdoors.
9. To reduce risk of fire, use only metal ductwork.
10. This unit must be electrically grounded.
DIMENSION & COMPONENT
&"'()*+
!"#$%
#
$
%
!"#$%&&
''(
$)(
$)*$+$,(
M-CBF_FEB 2021
Canarm Ltd. - Corporate Head Office
Tel: (613) 342-5424
"',%$,
!
"
&
'
-(
)*$+'(
$,(
)(
www.CANARM.COM
2157 Parkedale Avenue, PO Box 367
Fax: (613) 342-8437
11. Please follow all applicable national, state/provincial and
local codes, all of them will supersede this manual.
12. Failure to follow the safety instructions in this manual may
cause serious injury or death due to electrical shock or
high speed rotating parts.
13. Caution: Automatically operated device. To reduce risk of
injury, disconnect from power supply before servicing.
!"'*,)*+
(
)
*
+
'-*-+)(
.*$+)(
$&(
-*$%+$,(
hvacsales@canarm.ca
!
#
"
#
%
$
&
(
)
*
+
Brockville, Ontario Canada K6V 5V6
www.canarm.com
'
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Canarm CBF Series

  • Page 1 Model: THE PURPOSE OF THIS MANUAL IS TO AID IN THE PROPER INSTALLATION AND OPERATION OF THE CANARM BATH FAN (CBF). THESE INSTRUCTIONS ARE INTENDED TO SUPPLEMENT GOOD GENERAL PRACTICES AND ARE NOT INTENDED TO OVERWRITE LOCAL CODES AND ORDINANCES.
  • Page 2: Installation

    CBF SERIES BATH FAN VENTILATORS INSTALLATION 1. Remove bath fan and associated parts from its packaging. 2. IMPORTANT: Remove tape securing the damper to the outlet flange prior to install. 3. To avoid damage to the fan, ensure the unit is cleaned out and free of construction debris, i.e. drywall tape or dust.
  • Page 3: Variable Speed Control

    CBF SERIES BATH FAN VENTILATORS STANDARD WIRING INSTRUCTIONS 1. All wiring should be completed by a qualified electrician in accordance with National Electrical Codes, and all local ordinances. 2. Ensure power supply is disconnected and locked out prior to making electrical connections.
  • Page 4: Maintenance Replacement Parts

    WARRANTY CANARM Ltd. warrants every new fan to be free of defects in material and workmanship to the extent that, within a period of one year from the date of purchase CANARM Ltd. shall either repair or replace at CANARM’s option, any unit or part thereof, returned freight prepaid and found to be defective.
  • Page 5: Sécurité Générale

    LE BUT DE CE MANUEL EST D’AIDER À L’INSTALLATION ET AU BON FONCTIONNEMENT DU VENTILATEUR DE SALLE DE BAIN CANARM (CBF) CES INSTRUCTIONS SONT DESTINÉES COMME ÉTANT DES INFORMATIONS COMPLÉMENTAIRES AUX BONNES PRATIQUES ET NE SONT PAS DESTINÉES À REMPLACER LES CODES ET ORDONNANCES LOCAUX.
  • Page 6 BLANCS POUR SÉCURISER LE RILLA E COMME ÉTAPE FINALE m-cBF_FeB 2021 www.canarm.com page 2 de 4 canarm ltd. - corporate Head office 2157 Parkedale Avenue, PO Box 367 Brockville, Ontario Canada K6V 5V6 Tel: (613) 342-5424 Fax: (613) 342-8437 hvacsales@canarm.ca...
  • Page 7: Variateur De Vitesse

    être inspecté après 30 minutes, 8 heures & 24 heures d’opération afin d’assurer que toutes les fixations soient serrées et que l’unité opère correctement. m-cBF_FeB 2021 www.canarm.com page 3 de 4 canarm ltd. - corporate Head office 2157 Parkedale Avenue, PO Box 367 Brockville, Ontario Canada K6V 5V6 Tel: (613) 342-5424 Fax: (613) 342-8437 hvacsales@canarm.ca...
  • Page 8: Garantie

    CANARM Ltd. garantit que chaque nouveau ventilateur est exempt de défauts de matériaux et de fabrication dans la mesure où, dans un délai d'un an à compter de la date d'achat, CANARM Ltd. réparera ou remplacera au choix de CANARM, toute unité ou partie de celle-ci, fret retourné...
