  • Page 1 FITZ16 E L E C T R I C D I R T B I K E USER MANUAL...

  • Page 3: Table Of Contents

    Contents Congratulations on your purchase! ........... 01 Don't Ride Until You Read This ..........02 Warning Message ................ 03 Unpacking ..................05 Get To Know Your Electric Dirt Bike .......... 06 Assemble Your Electric Dirt Bike ..........07 Charge Your Electric Dirt Bike ............ 10 Electric Dirt Bike Console Functions ...........

  • Page 4: Congratulations On Your Purchase

    This user manual will help you assemble and operate your new Electric Dirt Bike. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your Electric Dirt Bike.

  • Page 5: Don't Ride Until You Read This

    Don’t ride until you read this ALWAYS wear a helmet when riding your Electric Dirt Bike. Make sure your Electric Dirt Bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the Electric Dirt Bike under the influence of drugs or alcohol.

  • Page 6: Warning Message

    Abuse - We do not cover physical damage due to negligent care and extreme riding. Whenever you ride the GOTRAX Electric Dirt Bike, you risk severe injury or even death from loss of control, collisions, and falls. Use caution and ride at your own risk.
  • Page 7 This Electric Dirt Bike is suitable for children aged 6 to 12. Maximum Speed - Your Electric Dirt Bike reaches a maximum speed of 15.5 mph (25 km/h).

  • Page 8: Unpacking

    Unpacking You should find each of these items in your box: Electric Dirt Bike Console & Handlebars Approved Power Adapter / Charging Unit 4mm Allen wrench 5mm Allen wrench Front wheel quick-release locking bolt Front wheel Front fender Remove all packaging material, then inspect each item for any accidental damage that may have occurred during shipping.

  • Page 9: Get To Know Your Electric Dirt Bike

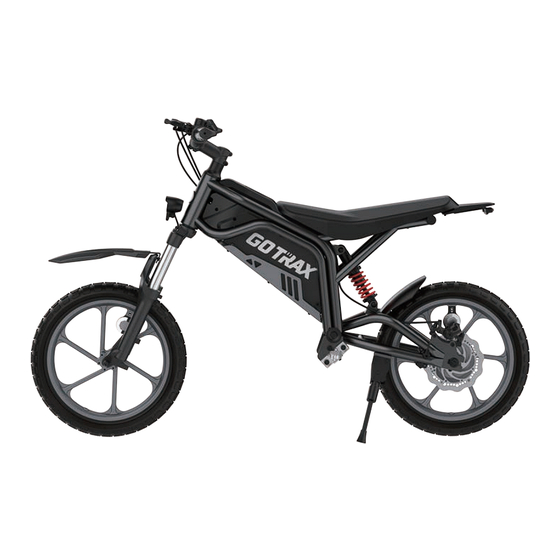

    Get To Know Your Electric Dirt Bike Bell LCD Display Handle bar Stem Headlight Saddle Suspension Fork Rear shock absorber Pedal Kickstand Tire Motor The Electric Dirt Bike comes partially assembled. Top Speed: 15.5mph Max Load Weight: 220lbs Battery Type: 36Vdc Battery Input: 42Vdc 1.5A...

  • Page 10: Assemble Your Electric Dirt Bike

    Assemble Your Electric Dirt Bike 1. Installing the Handlebar Turn the front of the dirt bike straight. Then, using a 4 mm wrench, loosen the handlebar attachment clamp. Load the handlebar into the stem in a centered position, then use the wrench to lock the attachment clamp and secure the handlebars.
  • Page 11 2. Install the front fender/headlight Prepare the front mudguard and a 5 mm hex wrench. Attach the front fender and headlight to the frame. The screws come installed on the frame, so you will first need to remove the screws to install the fender and headlight.
  • Page 12 Insert the quick-release screw Then, pull the quick-release screw into the front wheel axle. Note inward to secure it. Confirm that the wheel is working properly. that the screw is equipped with two springs. Install one spring on each side of the wheel axle and tighten the screws.

  • Page 13: Charge Your Electric Dirt Bike

    Charge Your Electric Dirt Bike Before using the Electric Dirt Bike, you must fully charge the battery. Open the rubber charging port cover. Insert the charging plug into the port. The charger box will have a green light when fully charged and a red light when charging.

  • Page 14: Electric Dirt Bike Console Functions

    Electric Dirt Bike Console Functions Power on/off: Press and hold the power button for 2-3 seconds. The display will light up, and the dirt bike will power on. Press and hold the power button again for 2-3 seconds. The display screen will turn off, and the dirt bike will power off.
  • Page 15 Switching Between Single Mileage and Total Mileage Display: While the dirt bike is on, press the M button to switch the display between single mileage and total mileage. Switching Between Miles and Kilometers: While the dirt bike is powered on, press the gear button and the M button simultaneously for 5 seconds. This will switch the display unit between miles and kilometers.

  • Page 16: Error Code

    Error Code Error code Failure definition Controller malfunction Throttle malfunction Brake failure Mos tube fault Motor Hall sensor malfunction Stall protection Under voltage protection Over voltage protection Motor over-temperature protection Communication failure...

  • Page 17: Riding Tips

    To begin riding the electric dirt bike, you will first need to sit on the saddle, placing one foot on the pedal and keeping the other foot on the ground. Then, twist the throttle on the handlebar to accelerate and begin moving.

  • Page 18: Maintenance & Repair

    Maintenance & Repair If you regularly clean and maintain your electric dirt bike, you will extend its life. Adjusting the Shock Absorber: If the shock absorbing is too hard, turn the shock absorber nut counterclockwise to loosen the spring. lf the shock absorbing is too soft, turn the shock absorber nut clockwise to compress the spring.
  • Page 19 Tires: If you notice that the tire pressure is low, you will need to fill the tires to the recommended PSI, which is listed on the side of the tire. The recommended PSI is 36. DO NOT use alcohol, gasoline, kerosene, or other corrosive chemical solvents to clean the electric dirt bike.

  • Page 20: Battery Information

    Only use the approved GOTRAX power adapter to charge your electric dirt bike. Using other adapters may cause risk of fire and equipment may be damaged. Improper disposal of used batteries may seriously pollute the environment. Please comply with local disposal regulations.

  • Page 21: Warranty

    Warranty Please contact our customer service team if you are experiencing problems or need more detailed information. US team after-sales email: support@gotrax.com CA team after-sales email: canada@gotrax.com Users should operate in accordance with the product manual. In case of any...
  • Page 23 (US) W W W .G OT R A X . C O M ( C A ) w w w . g o t r a x c a n a d a . c o m...
  • Page 24 (US) GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006 (CA) Tao Motor Canada Inc. 170 Bartor Road, Unit 1 North York, Ontario M9M 2W6, Canada.
