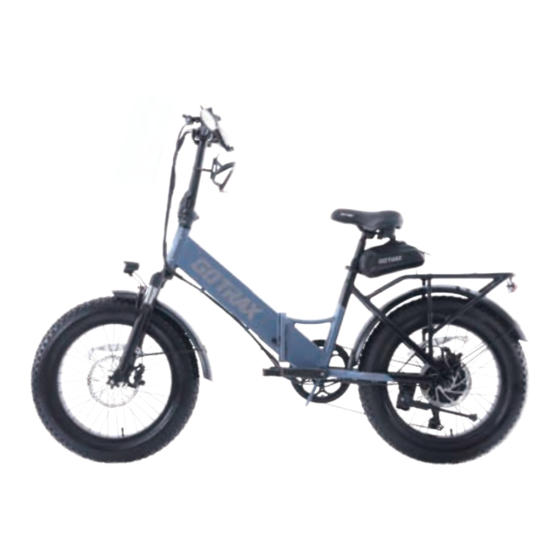

F3LR
E L E C T R I C B I K E
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F3LR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gotrax F3LR

Summary of Contents for Gotrax F3LR

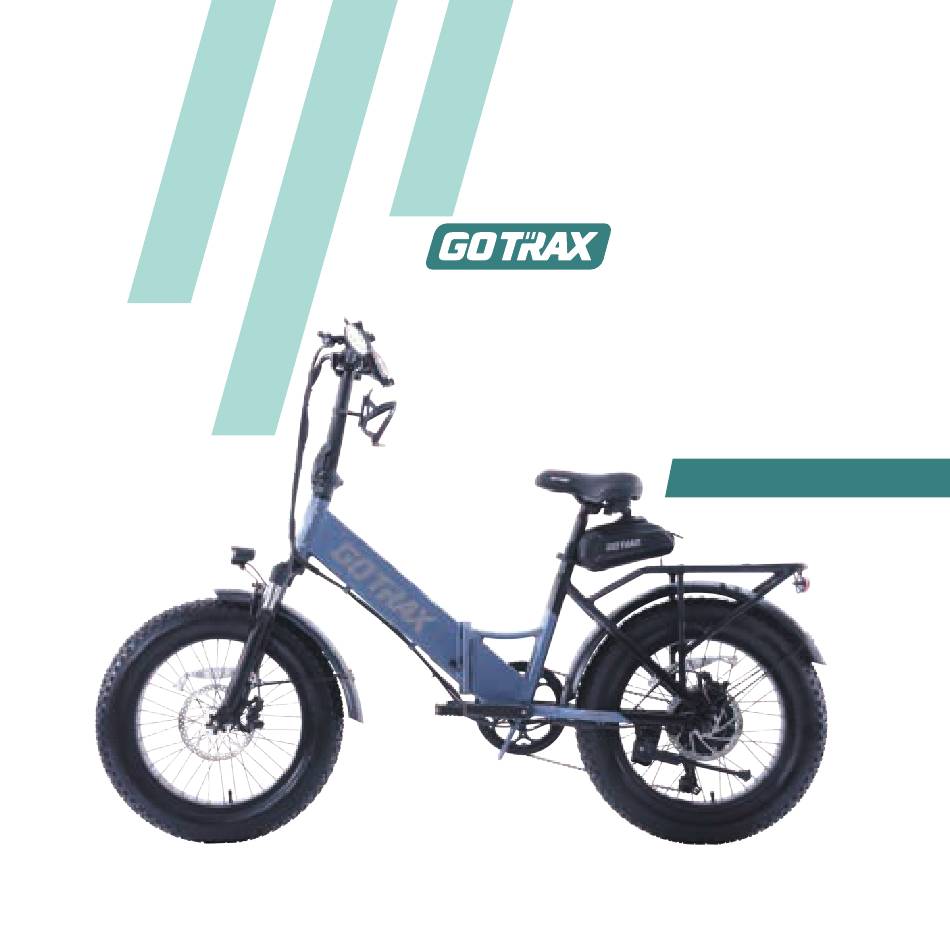

  • Page 1 F3LR E L E C T R I C B I K E USER MANUAL...

  • Page 3: Table Of Contents

    Contents Congratulations on your purchase ............Don’t Ride Until You Read This .............. Warning Message ..................Unpacking and Product Specs ............... Get to Know Your E-Bike ................ Install the Front Fender/Headlight............Install the Front Wheel................Handle Bar Installation and Folding ............Body Folding and Unfolding ..............

  • Page 4: Congratulations On Your Purchase

    Congratulations on your purchase! This user manual will help you assemble and operate your new electric bike. Be sure to read ALL OF THE INFORMATION in this manual before riding. NOTE TO ALL RIDERS UNDER 18 YEARS OF AGE: It’s very important that you get parental permission before riding your electric bicycle.

  • Page 5: Don't Ride Until You Read This

    Don’t Ride Until You Read This: ALWAYS wear a helmet when riding your electric bike. Make sure your electric bike has a full battery before taking it out to ride. Always be aware of local road laws, and follow them. Do not ride the bike under the influence of drugs or alcohol.

  • Page 6: Warning Message

    Warning Message 1. Avoid water - The electric bike is not waterproof. The electronics may be damaged due to water and water damage is not covered by our warranty. Riding in wet conditions is also very dangerous and may result in injury. 2.
  • Page 7 16. Make note that additional insurance may be required to cover situations you encounter while riding an electric bike. It is recommended that you contact an insurance company or broker for advice and consultation. 17. To conserve electricity, use assist mode and avoid zero starting, frequent braking, driving against the wind, carrying heavy loads including other people and riding with insufficient air pressure.
  • Page 8 ALWAYS WEAR A HELMETIT COULD SAVE YOUR LIFE! A properly fitting, CPSC approved， bicycle helmet should be worn at all times when riding your bicycle. In addition, if you are carrying a passenger (only use an approved child safety seat), and remember, the passenger must also be wearing a helmet.
  • Page 9 following measures: *Reorient or relocate the receiving antenna. *Increase the separation between the equipment and receiver. *Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. *Consult the dealer or an experienced radio/TV technician for help.

  • Page 10: Unpacking And Product Specs

    TOOLS: (1)LARGE WRENCH, Seat Bag (5)ALLEN WRENCHES, (1)SCREWDRIVER Rearview Mirror Folding Lock Phone Holder Pedals Cup Holder ITEM SPECIFICATIONS Model F3LR Unfolded Dimensions 1700*680*1290mm（66.9*26.8*50.8in) Folded Dimensions 970*500*740mm(38.2*19.7*29.1in) Package Dimensions 1430*310*740mm(56.2*12.2*29.1in) Max Load 120kg(264lbs) Max Speed 32km/h(20MPH) Battery 48Vdc 13.6Ah Input 100-240V 50/60Hz AC Plug: Output 54.6Vdc 3A...

  • Page 11: Get To Know Your E-Bike

    Get To Know Your E-Bike Phone Holder LCD Display Bell Rearview Mirror Reflector Cup Holder Stem Saddle Seat Post Seat Bag Front Light Removable Battery Suspension Front Fork Crankset Pedal Wheel Chain Tire Disc Brake Motor...

  • Page 12: Install The Front Fender/Headlight

    Install the front fender/headlight Get the front fender ready. Fix the front fender and headlight to the frame (the screws have been installed on the frame, remove the screws to install). Fix the front fender support to the frame (the screws have been installed on the frame, remove the screws and install).

  • Page 13: Install The Front Wheel

    Install the front wheel Remove the plastic protective sheet inside the brake. Loosen the front axle screws (it doesn’t need to be totally loose, just to a suitable position for installation). Slowly install the front wheel on the front fork and the brake pads in the brake.

  • Page 14: Handle Bar Installation And Folding

    Handle Bar Installation and Folding Open the quick release clamp and insert the upper stem and handle bars and lock with the quick release clamp. (This can only be done when the tube is folded.)
  • Page 15 Lift up the stem and lock with the folding clamp. When you want to open the folding clamp you need to push the safety buckle upwards and pull the folding clamp outwards at the same time to open it .

  • Page 16: Body Folding And Unfolding

    Body Folding and Unfolding Press the button and pull the folding clamp outward to open it. Crank angle adjusted to 9 o 'clock. Fold the frame so that the front and rear wheels correspond to complete the fold. When unfolding, be sure to check whether the folding clamp is tightly fastened in place.

  • Page 17: Pedal Installtion And Folding

    Pedal Installation and Folding Prepare the pedal and wrench,and distinguish the left and right pedal according to ‘L’ and ‘R’. ‘R’ represents the right side, and turn clockwise to lock the right pedal. ‘L’ represents the left side, and turn counterclockwise to lock the left pedal. The pedal can be folded by pressing inward and lifting up.

  • Page 18: Saddle Installation And Adjustment

    Saddle Installation and Adjustment Open the quick release clamp, insert the seat tube, adjust to a suitable height and angle, and lock the quick release clamp. Lock the quick release clamp.

  • Page 19: Accessory Installation Procedure

    Accessory Installation Procedure Installation instructions for the rearview mirror, seat bag, and phone holder please follow the below notes 1. Install the seat bag: align the guide groove on the seat bag at the lower seat and hanger, advance and tighten. 2.

  • Page 20: Cup Holder Installation

    Cup Holder Installation 1.Find the cup holder and conversion seat among the items included with the vehicle. 2. Use a 3mm Allen wrench to unscrew 3. Install the conversion base onto the the two long screws on the pressure frame seatpost, and tighten the block of the conversion base.
  • Page 21 4. Use a 3mm internal hex tool to 5. Align the cup holder holes with the remove the two screws securing the installation holes on the conversion cup holder on the conversion seat. seat, then use a 3mm internal hex tool to tighten (ensure the cup holder opening faces upwards).

  • Page 22: Removing The Battery

    Removing the Battery STEP 2 STEP 1 Insert and turn the key counterclockwise to open the battery safety lock and pull out the key. Fold the frame and pull out the battery. Turn on the battery output please turn the key clockwise to turn on the battery output, and then it can be turned on for use.

  • Page 23: Fold The Bike

    Fold the bike Open the seatpost clamp and adjust the saddle to the lowest position. Open the pole folding handle and fold the pole down. Open the body folding handle and fold the front wheel towards the rear wheel to complete the folding.

  • Page 24: Charge Your E-Bike

    Charge Your E-Bike You can also charge your battery installed in the bike using the exterior charging port. 1. Locate the charging port. 2. Plug one side of the charger into the charging port and plug the other into an outlet. 3.

  • Page 25: How To Use The Transmission

    How to use the transmission adjust the riding speed. This operation is prohibited in the static state or non-pedal riding state)

  • Page 26: Charge Your E-Bike: Method 2

    Charge Your E-Bike: Method 2 Remove the battery, plug one end of the charger into the battery and the other end into the power supply. Red light shows the battery is charging and the green light means the battery is full.

  • Page 27: Tire Inflation Instructions

    Tire Inflation Instructions Tires and Tubes After assembling your bike, it will be necessary to inflate the tires. Check the sidewall of the tire for the correct tire pressure (PSI) and inflate tires accordingly with a MANUAL BICYCLE PUMP. Improper inflation is the biggest cause of tire failure. Due to the slightly porous nature of bicycle inner tubes, it is normal for your bike tires to lose pressure over time.
  • Page 28 Tire pressure is given either as maximum pressure or as a pressure range. How a tire performs under different terrain or weather conditions depends largely on tire pres- sure. Inflating the tire to near its maximum recommended pressure gives the lowest rolling resistance;...

  • Page 29: Maintenance & Repair

    Maintenance & Repair Correct routine maintenance of your new bike will ensure a longer life for your bike and a safer ride for you. Every time you ride your bike, its condition changes. The more you ride, the more frequently maintenance will be required. We recommend you spend a little time on regular maintenance tasks.
  • Page 30 Note: The frequency of maintenance should increase with use in wet or dusty conditions. Do not over lubricate-remove excess lubricant to prevent dirt build up. Never use a degreaser to lubricate your chain (WD-40T™) Schedule2 - Service Checklist NOTE: Many instructions for adjustments can be found in the assembly portion of this manual.
  • Page 31 check all nuts and bolts are tight Every six months lubrication as per schedule 1 check all points as per monthly service check and replace brake pads, if required check chain for excess paly or wear lubrication as per schedule 1 Yearly NOTE: OWNERS ARE RESPONSIBLE FOR ALL MAINTENANCE AND SERVICE OF THE BICYCLE.

  • Page 32: Function Definition

    Headlight Icon Battery level display Fault Indication Speed Unit Display Real-time Speed Power Assist Push Icon Gear Display Single Trip Mileage Total Travel Distance Maximum Speed Range and Unit Display Average Speed Plus Button Minus Button Confirm "i" Button Power On/Off Button Headlight Button...
  • Page 33 Power On/Off: Press and hold the button for 2-3 seconds to activate the display and press the button again for 2-3 seconds to turn off the display (the bike will automatically power off , if there is no activity for 10 minutes in a stationary state). Display Data Switching: After the display panel is powered on, it defaults to display- ing real-time, speed and total mileages.
  • Page 34 Only when the fault is resolved can you exit the fault display screen. After a fault occurs, the electric bike will not be able to continue to operate. Please contact the GOTRAX after-sales team for assistance or seek the help of a professional technician to diagnose and rectify the issue.
  • Page 35 Metric/Imperial Unit Setting: "01P" is the option for selecting metric or imperial units. "00" represents metric and "01" represents imperial Use the button to make the selection, and press the button shortly to save the parameter setting and return to the personalized parameter selection interface. Voltage Setting: "02P"...
  • Page 36 Speed Limit Setting: "05p" is the option for setting the speed limit in power assist mode, and the adjustable range for the vehicle speed limit is 10 to 40 km/h. The factory default is 32 km/h, and the maximum limit is 40 km/h. This mode allows you to adjust the speed limit only for power assist mode, as the electric mode has a maximum limit of 32 km/h, which is not adjustable.
  • Page 37 To change the password: In the "06P" interface, press the button shortly to enter the parameter change mode.Use the button to select "PSd-y" to enable password change.Press button to confirm and enter the four-digit password setting mode.In the password setting interface, input your new password. Use the button to select the digits and press the button to save each digit and move to the next.

  • Page 38: Function Mode

    Function Mode 1. Three Riding Modes: Electric Assisted Mode, Pedal-Assisted Mode, Bicycle Mode. 2. Throttle Assisted Mode: When you turn the bike on, the assist level will be at 0. Press the button to increase auxiliary levels 1-5. Press the throttle to reach the start motor and move the bike.

  • Page 39: Battery Information

    Battery Information Before using the charger locate the voltage selector switch (li-ion chargers only) on the back of the charger. Select either 115 volts or 230 volts depending on your country of residence. Using the wrong voltage setting will permanenty damage the charger and/or electrical components on the hybrid electric bicycle.

  • Page 40: Precautions For Battery Protection

    Precautions For Battery Protection 1. Do not place anything on the battery and charger when charging, otherwise the charger may overheat and cause serious damage. 2. Only use the charger supplied by the original factory to charge the battery, if you use a different charger your battery will be disqualified from warranty.

  • Page 41: Troubleshooting Guidance

    Check the motor connection cable. If the connection cable is The motor current failure ERROR 21 normal, replace the a new motor. Check the throttle connection The throttle abnormal cable. If the connection cable is ERROR 22 normal, replace the throttle. Please check the motor connec- tion cable at firstly.

  • Page 42: Warranty

    Warranty Please contact our customer service team if you are experiencing problems or need more detailed information. support@gotrax.com US team after-sales email: canada@gotrax.com CA team after-sales email: 1. Users should operate in accordance with the product manual. In case of any...
  • Page 43 ( U S ) W W W . G O T R A X . C O M (CA) w w w . g o t r a x c a n a d a . c o m #RideGOTRAX...
  • Page 44 (US) GOLABS, INC GOTRAX.com 2201 Luna Rd. Carrollton, TX 75006 (CA) Tao Motor Canada Inc. 170 Bartor Road, Unit 1 North York, Ontario M9M 2W6, Canada.
