Cal-Royal ALBR22V Series Installation Instructions

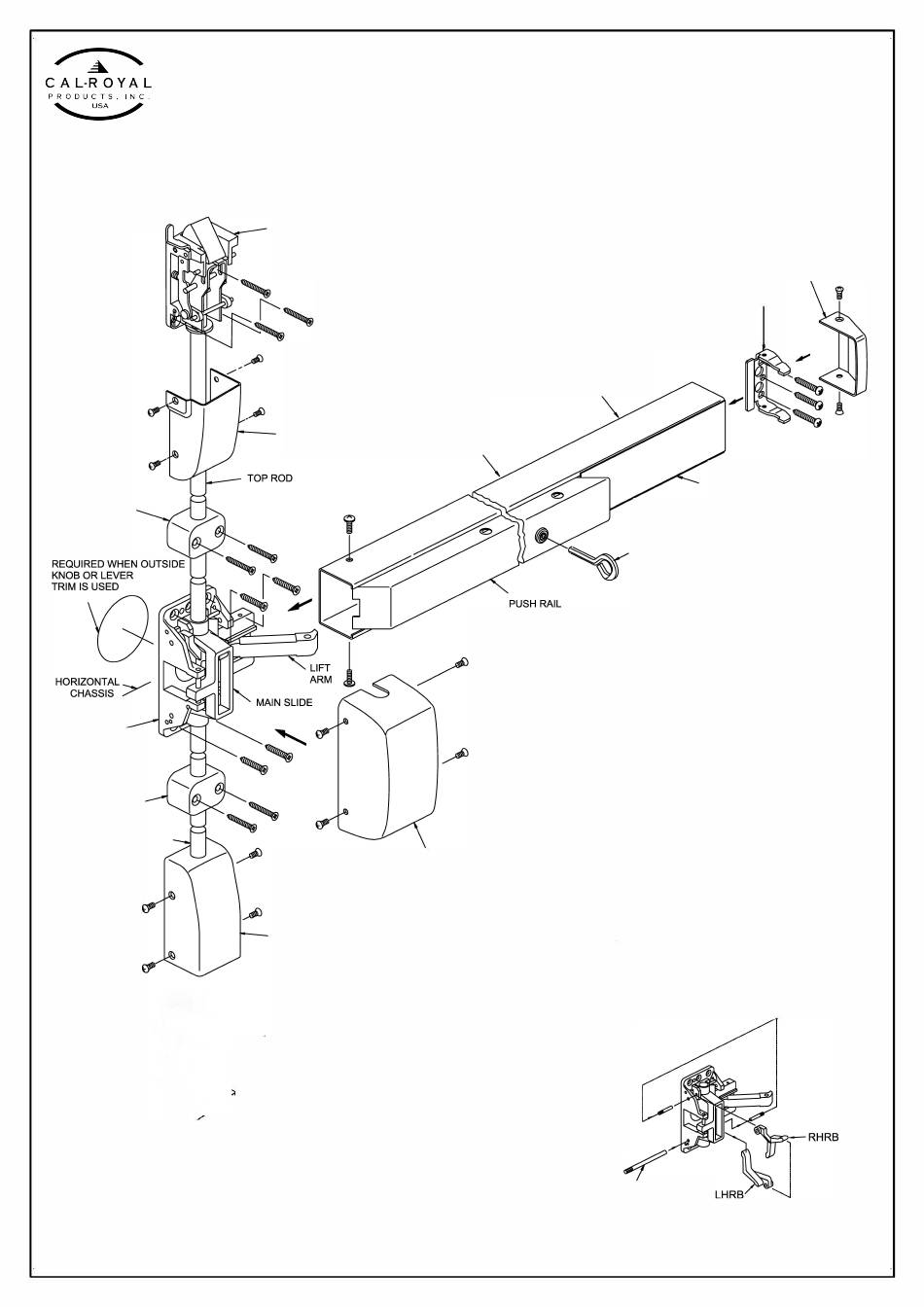

INSTALLATION INSTRUCTION FOR ALBR22V
SERIES PANIC VERTICAL ROD EXIT DEVICE
LATCH
RELEASE
\
CAM
TOP
ROD
GUIDE
CHASSIS
ASSEMBLY
BOTTOM
ROD
GUIDE
PULLMAN LATCH
TOP CHASSIS
ASSEMBLY
STEEL TOP COVER
MOUNTING RAIL MOUNTING RAIL
HEAD COVER
STEEL BOTTOM COVER
SURFACE OF DOOR FOR EXIT DEVICE SURFACE OF DOOR FOR EXIT DEVICE
APPLIED MUST BE FLUSHED. APPLIED MUST BE FLUSHED.
DOGGING DOGGING
HEX KEY HEX KEY
BEFORE INSTALLING DEVICE, PLEASE CHECK :
1. IF DOOR FITTED AND HUNG.
2. SIZE OF EXIT DEVICE, FUNCTION AND DESIGN ...
2.1. 36"DOORS, CAN BE CUT TO FIT DOORS DOWN TO 30"
WIDE.
2.2. 48"DOORS, CAN BE CUT TO FIT DOORS DOWN TO 36"
WIDE.
2.3. HAND OF DEVICE AGAINST APPLICATION
RIGHT HAND
REVERSE BEVEL
�
3. TO CHANGE HAND OF DEVICE.
3.1. USE PIN, 2 1/4"LONG, TO KNOCK OUT
LIFT LEVER PIN.
3.2. REMOVE LIFT LEVER AND REASSEMBLE
OTHER END
LIFT PIN
PIN, 2 1/4"LONG,USE TO
KNOCK OUT LIFT PIN.
LIFT LEVER
END CAP
RAIL MOUNTING
BRACKET
SLIDING SHIM SLIDING SHIM
OUT
LEFT HAND
��
• REVERSE BEVEL
�
EDG-4099-10/23-1of2
