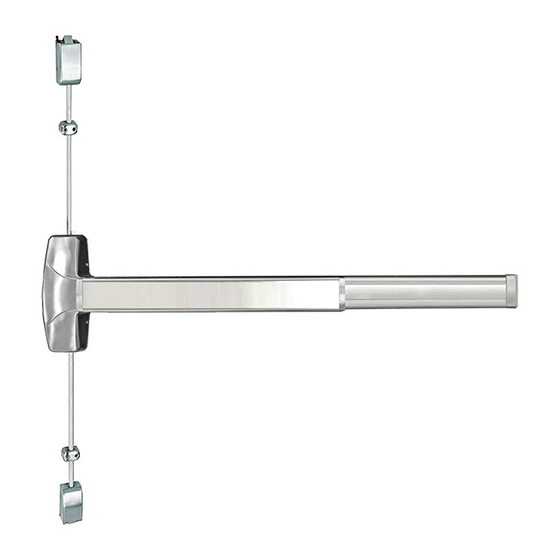

Cal-Royal A7760V Series Installation Instruction

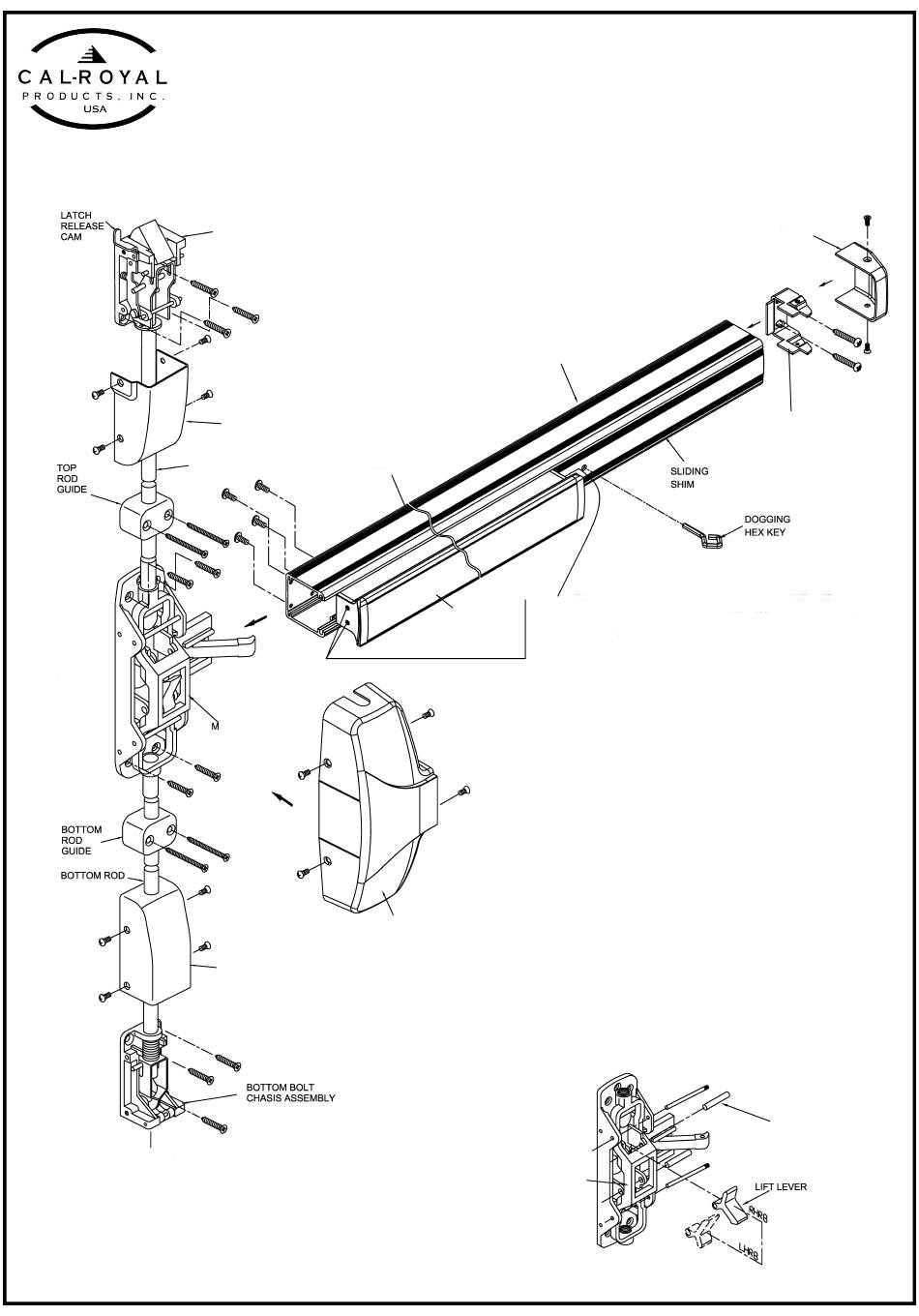

INSTALLATION INSTRUCTION FOR A7760V SERIES
PANIC VERTICAL ROD EXIT DEVICE.
2 1/8" BORE IS
REQUIRED WHEN
OUTSIDE
KNOB OR LEVER
G
TRIM IS USED
HORIZONTAL
--..,­
� CHASIS
,'
/
CHASIS --­
ASSEMBLY
� VERTICAL
I
� CHASIS
( LHRB)
PULLMAN LATCH
TOP CHASIS
ASSEMBLY
STEEL TOP COVER
TOP ROD
0
�IFT ARM
AIN SLIDE
HEAD COVER
STEEL BOTTOM COVER
SURFACE OF DOOR FOR
EXIT DEVICE APPLIED MUST
BE FLUSHED.
MOUNTING
RAIL
��� PANIC BAR SET SCREWS (12-24 X 5/16") MUST BE ACTIVATED AT TOP AND
PUSH RAIL
BEFORE INSTALLING DEVICE, PLEASE CHECK:
1. IF DOOR FITTED AND HUNG.
2. SIZE OF EXIT DEVICE, FUNCTION AND DESIGN ...
2.1. 36"DOORS, CAN BE CUT TO FIT DOORS DOWN TO 30"
2.2. 48"DOORS, CAN BE CUT TO FIT DOORS DOWN TO 36"
2.3. HAND OF DEVICE AGAINST APPLICATION
RIGHT HAND
REVERSE BEVEL
TO CHANGE HAND OF 7760V EXIT DEVICE.
1.REMOVE CHASSIS PINS AND MAIN SLIDE.
2.REMOVE LIFT LEVER PIN AND LIFT LEVER.
3.REASSEMBLE LIFT LEVER AT OPPOSITE SIDE, AS SHOWN.
4.REPLACE MAIN SLIDE AND CHASSIS PINS .
MAIN SLIDE
BOTTOM OF PUSH RAIL TO ACHIEVE IMPACT RATING.
SET SCREWS TO BE USED IN THE EVENT OF IMMINENT SEVERE WEATHER
OF HURRICANE FORCE.
WIDE.
WIDE.
OUT
� �
•
� �
.---CHASSIS PIN
END CAP
RAIL MOUNTING
BRACKET
LEFT HAND
REVERSE BEVEL
LIFT LEVER PIN
EDG-4102-10/23-1of2
