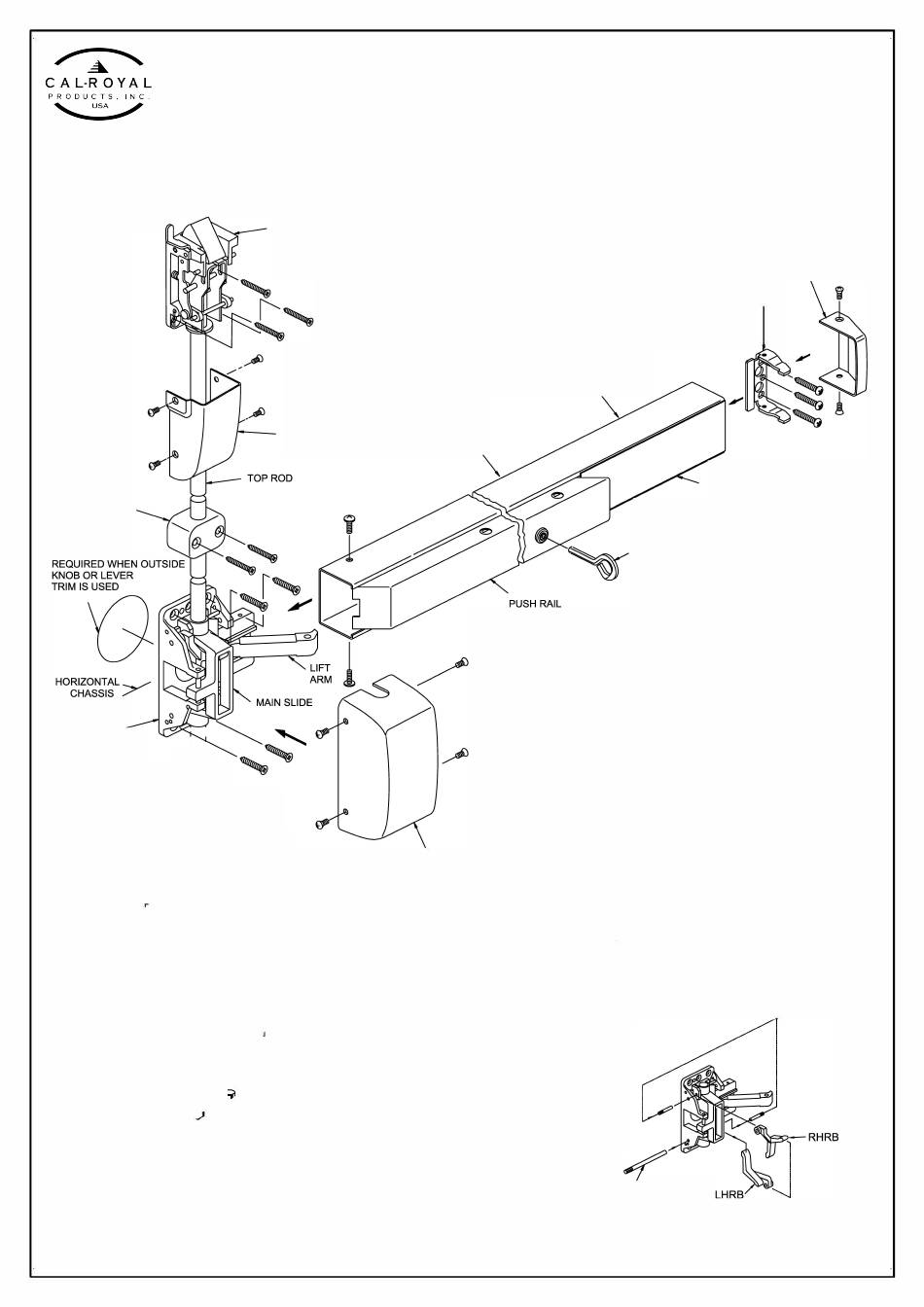

INSTALLATION INSTRUCTION FOR A2260V SERIES
PANIC VERTICAL ROD EXIT DEVICE
LATCH
RELEASE
\
CAM
TOP
ROD
GUIDE
CHASSIS
ASSEMBLY
PULLMAN LATCH
TOP CHASSIS
ASSEMBLY
STEEL TOP COVER
MOUNTING RAIL
HEAD COVER
SURFACE OF DOOR FOR EXIT DEVICE
APPLIED MUST BE FLUSHED.
DOGGING
HEX KEY
BEFORE INSTALLING DEVICE, PLEASE CHECK :
1. IF DOOR FITTED AND HUNG.
2. SIZE OF EXIT DEVICE, FUNCTION AND DESIGN ...
2.1. 36"DOORS, CAN BE CUT TO FIT DOORS DOWN TO 30"
WIDE.
2.2. 48"DOORS, CAN BE CUT TO FIT DOORS DOWN TO 36"
WIDE.
2.3. HAND OF DEVICE AGAINST APPLICATION
RIGHT HAND
REVERSE BEVEL
�
3. TO CHANGE HAND OF DEVICE.
3.1. USE PIN, 2 1/4"LONG, TO KNOCK OUT
LIFT LEVER PIN.
3.2. REMOVE LIFT LEVER AND REASSEMBLE
OTHER END
LIFT PIN
PIN, 2 1/4"LONG,USE TO
KNOCK OUT LIFT PIN.
LIFT LEVER
END CAP
RAIL MOUNTING
BRACKET
SLIDING SHIM
OUT
LEFT HAND
��
•
REVERSE BEVEL
�
EDG-4098-05/25-1of2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cal-Royal ALBR2260V Series
Summary of Contents for Cal-Royal ALBR2260V Series
- Page 1 INSTALLATION INSTRUCTION FOR A2260V SERIES PANIC VERTICAL ROD EXIT DEVICE LATCH RELEASE PULLMAN LATCH TOP CHASSIS ASSEMBLY END CAP RAIL MOUNTING BRACKET SURFACE OF DOOR FOR EXIT DEVICE APPLIED MUST BE FLUSHED. STEEL TOP COVER MOUNTING RAIL SLIDING SHIM GUIDE DOGGING HEX KEY BEFORE INSTALLING DEVICE, PLEASE CHECK :...
- Page 2 1. MARK VERTICAL AND HORIZONTAL 4. ATTACH TOP CHASSIS REFERENCE LINE ON DOOR PULLMAN LATCH _... TOP CHASSIS ASSEMBLY r - J �'"" ..p . , , ,.,.. DETERMINE BACKSET TO LOCATE VERTICAL REFERENCE LINE. 1. IF LOCK STILE IS 4-1/2" WIDE OR WIDER, BACKSET IS 2-3/4". DOOR STRIKE 2.
