Mercia Garden Products 03DTSHAX0705HGD2MW-V2 Manual

7x5 shiplap apex summerhouse
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 03DTSHAX0705HGD2MW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 03DTSHAX0705HGD2MW-V2

Summary of Contents for Mercia Garden Products 03DTSHAX0705HGD2MW-V2

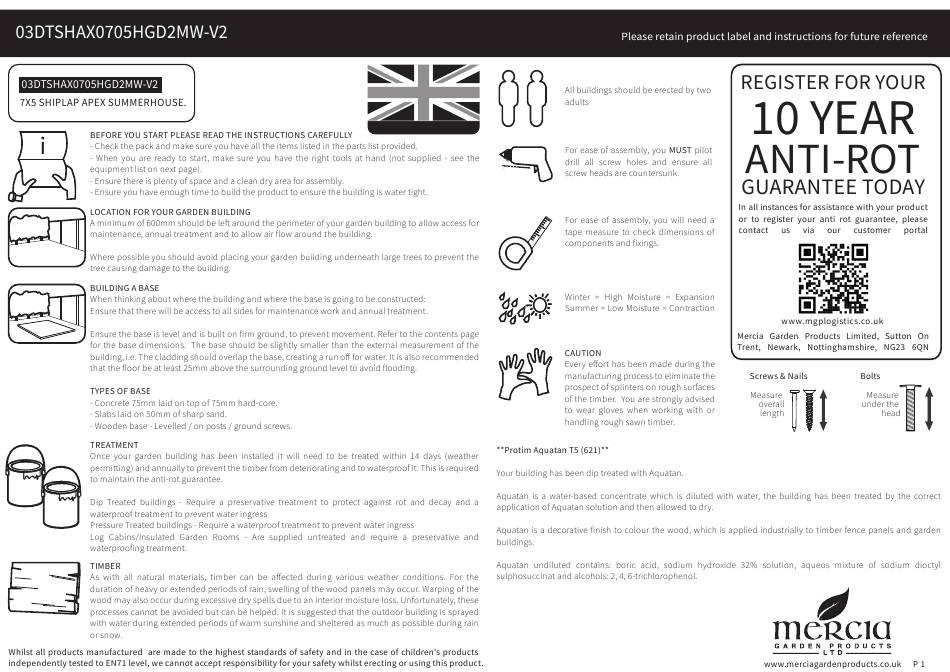

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 Floor QTY 1 AI-03S11SHAGDD2018X2166-V1 AI-03S11SHAGP2018X2166-V1 AI-S11MBOHAR1720X1250-V1 AI-R11MBF2066X1456-V1 Blue Label Green Label 7x7 Summerhouse with Veranda 03DTAX0207VPB-V1 & 03DTSHAX0705HGD2MW-V2 Overall Dimensions: Width = 2293mm Depth = 2233mm Height = 2279mm Plain Panel QTY 2 Secondary Door QTY 1 Master Door QTY 1...

  • Page 5: Missing Parts

    Building Contents: End View 03DTAX0207VPB-V1 Door Support Bar 12x40x1192mm QTY 1 S1240-1192mm End View Gable Cover trims 12x28x560mm QTY 2 Veranda Floor QTY 1 S1228-560mm AI-R11STVF2066X457-V1 End View Gable Cover trims 12x28x533mm QTY 2 S1228-533mm End View Roof QTY 2 Window Strip 12x30x441mm QTY 2 AI-S11MBOHAR465X1250-V1 S1230-441mm...

  • Page 6: Pre-Assembly

    Step 2 Pre Assembly IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Before assembling remove the transportation blocks from the bottom of each panel. No. 21 QTY 2 No. 25 QTY 2 Take care removing the blocks as to not damage the panels. Tap with a at headed screwdriver and hammer.
  • Page 7 Step 3 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 15 QTY 2 Parts needed - No. 2 QTY 1 No .16 QTY 4 No. 5 QTY 1 Position the Window Strips (No. 15) at Place the Plain Gable (No.
  • Page 8 Step 7 Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 8 QTY 1 Parts needed - No. 3 QTY 2 No. 22 QTY 2 Place the Roof Panel (No. 3) on top of the Place the Ridge Bar (No.
  • Page 9 Step 9 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 9 QTY 4 Secure the Roofs (No. 3) to the panels below No. 13 QTY 2 No. 14 QTY 2 using 10x40mm screws per Roof, as shown. Position the cover trims (No.
  • Page 10 Step 12 Step 13 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 1 Parts needed - No. 10 QTY 4 No. 17 QTY 2 Cut the felt (No. 18) into 3 strips measuring: 1820mm (L) x 1000mm (W) Position the Fascias (No.
  • Page 11 Step 15 Step 17 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 2 No. 12 QTY 1 Once constructed, apply a preserving treatment and a waterproo ng treatment On the inside of the building, x the Door to your garden building as soon as Frame Strips (No.
  • Page 12 Step 9a IMPORTANT: Pre-drill before xing screws. 7x7 Summer House with Pack B Veranda Parts needed - No. 3 QTY 2 No. 28 QTY 2 extension instruction steps from this point No. 31 QTY 2 Place the assembled Roof Panels (No. 3, 28 & 31) on top of the building, position the smaller roof Step 8a panel to the back of the summer hosue.
  • Page 13 Step 12a Step 10a IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 9 QTY 4 No. 13 QTY 2 Secure the Roofs (No. 3 & 28) to the No. 14 QTY 2 panels below using 10x40mm screws per Roof, as shown.
  • Page 14 Step 16a Step 14a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 29 QTY 2 Parts needed - No. 18 QTY 1 Align one Railing (No. 29) ush to Cut the Felt (No. 18) into three strips measuring: 2285mm (L) x 1000mm (W) either end of the Veranda and ush against the door gable.
  • Page 15 Step 17a Step 19a IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 10 QTY 4 Parts needed - No. 11 QTY 2 No. 17 QTY 2 No. 12 QTY 1 Position the Fascias (No. 10) to the front On the inside of the building, x the Door and back of the building, ensuring to trap Frame Strips (No.
  • Page 16 Step 20a Step 21a IMPORTANT: Pre-drill before xing screws. Parts needed - No. 23 QTY 1 No. 26 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment Attach the press lock (No. 23) to the to your garden building as soon as master door with 4x25mm screws, possible.
  • Page 17 ANY QUESTIONS? Scan code contact us via our customer portal.
