Carrier FS3QX0 UN00AAAA Series Installation Instructions

Carrier FS3QX0 UN00AAAA Series Installation Instructions

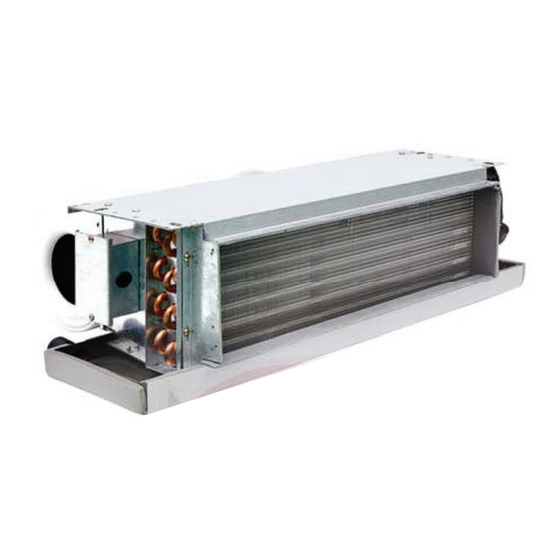

Slim line ducted fan coil without plenum sizes 012 thru 060

Advertisement

Quick Links

FS3QX0**UN00AAAA
Slim Line Ducted Fan Coil Without Plenum
Sizes 012 thru 060
NOTE:
Read the entire instruction manual before starting
installation.
TABLE OF CONTENTS
SAFETY CONSIDERATIONS
INSTALLATION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Initial Check
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location & Mounting
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refrigerant Piping
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Condensate Drain
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WIRING DIAGRAMS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
