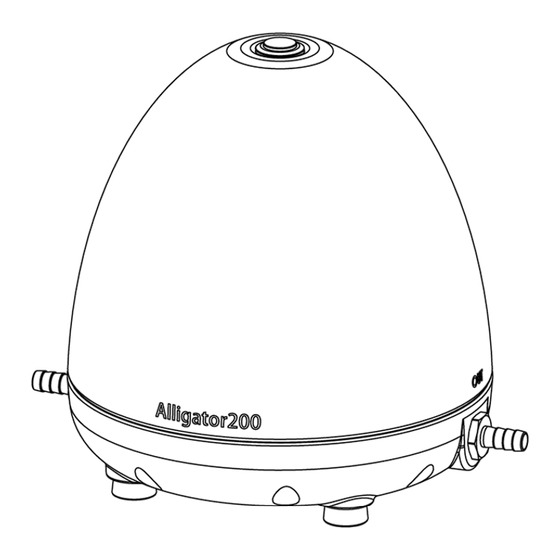

Rocker Alligator 200 Service Manual
Diaphragm liquid pump
Hide thumbs
Also See for Alligator 200:
- Quick start manual (4 pages) ,
- Instruction manual (12 pages) ,
- User manual (24 pages)
Advertisement
Quick Links
Service Manual
CONTENTS
1. Instruction
2. Failure to start – Maintenance SOP
3. Poor / No Vacuum – Maintenance SOP
4. Most Common Problems
5. Explored View & Part List
Alligator 200
6. Service Video Links
Alligator
Diaphragm Liquid Pump
©Rocker Scientific Co., Ltd.
Version. ROC-202010-01
Model No.
Alligator 200
Advertisement
Related Manuals for Rocker Alligator 200
Summary of Contents for Rocker Alligator 200
- Page 1 2. Failure to start – Maintenance SOP 3. Poor / No Vacuum – Maintenance SOP 4. Most Common Problems 5. Explored View & Part List Alligator 200 6. Service Video Links ©Rocker Scientific Co., Ltd. Version. ROC-202010-01...
-
Page 3: Applicable Models
Instruction Important notice before troubleshooting: 1. Ensure the power cord is plugged into power outlet securely. 2. Ensure the on/off switch is turned on. 3. Ensure the power supply specifications are applicable before plugging in the power cord. 4. Make sure to unplug the power cord before disassembling the pump. 5. Make sure to use the right tools for disassembly to avoid damage to parts. Applicable Models: Alligator 200 Tools Preparation: Screwdriver Wrench : No. 14 and 19 Hexagon socket : 22mm Hexagon socket : 7mm ... - Page 4 Circuit Diagram: Tube Diagram: ...
- Page 5 Failure to start / Low Vacuum – Maintenance SOP ...
-
Page 6: Most Common Problems
Most Common Problems Issue Cause Solution 1. Incorrect power adaptor and output Reconnect plug to power supply and power plug by voltage. using original power adaptor. 2. Loose plug. Reconnect plug to power supply and power plug. A. Replace a new wiring harness (7) and install it 3. Incorrect, loose or damaged wiring. Fail to start correctly. 4. Power switch is not conductive. (with Replace a new power switch (3). multimeter) Replace a new 60W Liquid Pump Module (8) or 5. Pump fail to work at correct power supply. return to factory for repairing. Replace a new wiring harness (7) and install it 1. Incorrect or loose wiring. B. correctly. Switch indicator failure 2. Failure to light at correct power supply. Replace a new power switch (3). ... -
Page 7: Exploded View And Parts List
Exploded view & Parts List Parts List of Alligator 200 Item Cat. No. Product Name Qty 1 181200‐31 Upper Case 1 2 181200‐32 Bottom Case 1 3 24V/3A Power Switch (Metal) 1 181200‐41 4 Power Switch Hex Nut 1 5 OR‐S016‐SI O‐ring 1 7 181200‐52 Wiring Harness 1 8 181200‐39‐00 60W Liquid Pump 1 9 ... - Page 8 Parts List of 60W Liquid Pump Module (181200‐39) Item Cat. No. Product Name Qty Note 5 181200‐39‐08 Buffer Board 2 7 OR‐P010‐FP O‐ring 2 181200‐39‐05 8 181200‐39‐20 Tier Connector 2 9 181200‐39‐04 Valve Plate 2 10 OR‐2202‐FP O‐ring 2 12 181200‐39‐09 Diaphragm Plate 1 14 181200‐39‐17 BLDC Motor 1 ...
- Page 9 Service Video Links Model No. Subject Video Link Alligator 200 Disassembly https://drive.google.com/file/d/1d_eqzKOzwszwLZTMRllmj0dp8VC8‐3C0/view?usp=sharing Alligator 200 Assembly https://drive.google.com/file/d/1gdEdeYure3G6UckuXsPKLYN4lFzJgfts/view?usp=sharing Alligator 200 Replacement of valve plate https://drive.google.com/file/d/1jS7C5YbOEShm3afNyPLCx9cUzIzP3meW/view?usp=sharing ...
