Installation and Conversion Instructions
Smoker Package (I-no. 583)
Retrofitting
Concern:
As of 2017
Model Year:
Note:

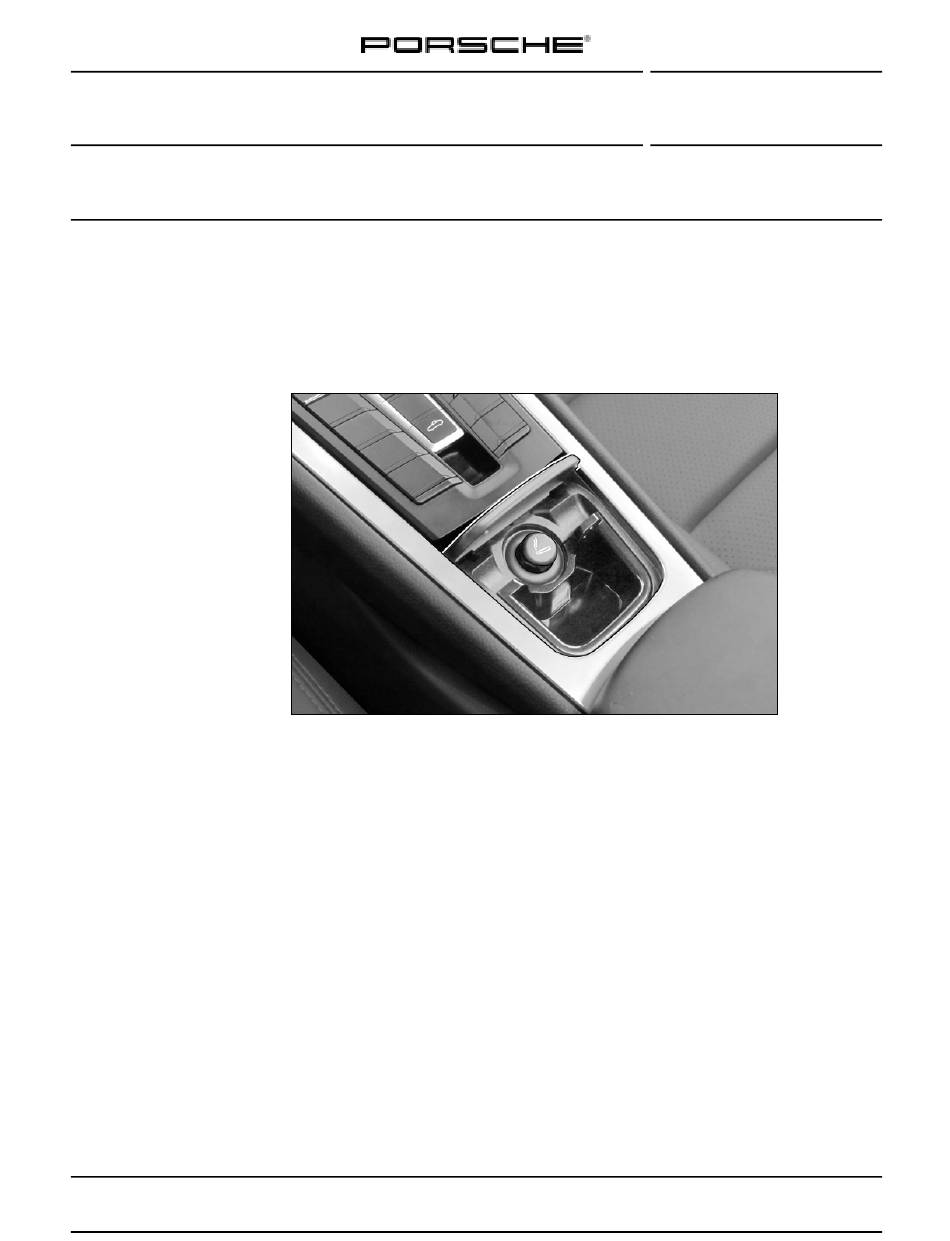

Ashtray and cigarette lighter instead of the oddments tray in the front center console.
Parts Info.:
991.044.901.40
Parts list:
991.553.141.02 DML
9P1.971.641.C
Work Procedure: 1
Preparatory work:
1.1
1.2
1.3
1.4
2016© Porsche Cars North America, Inc.
Smoker package
1 x

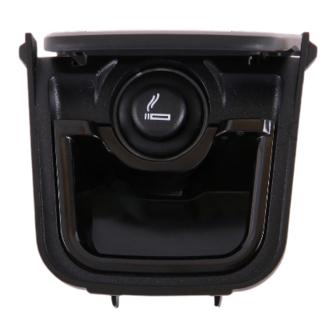

Ashtray, complete
1 x
Wire harness for center console
Connect a battery charger.
Remove center console trims at the sides and footwell outlet vents.
'681419 Removing and installing centre console trim'
Only for PDK: Remove selector knob.
installing knob'
Only for manual transmission: Remove shift-lever knob.
Removing and installing shift-lever knob'
Tequipment
Workshop Manual '2X00IN Battery trickle charging'
Workshop Manual '370419 Removing and
911 (991)
13/16
6820
ENU
Workshop Manual
Workshop Manual '340419
Apr 22, 2016
Page 1 of 5
6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Porsche 991.044.901.40
Summary of Contents for Porsche 991.044.901.40
- Page 1 Only for PDK: Remove selector knob. Workshop Manual '370419 Removing and installing knob' Only for manual transmission: Remove shift-lever knob. Workshop Manual '340419 Removing and installing shift-lever knob' 2016© Porsche Cars North America, Inc. Apr 22, 2016 Tequipment Page 1 of 5...
- Page 2 The number of plug connections can vary, depending on equipment. Convert electric wire harness for centre console. Remove standard wire harness. 2.1.1 Disconnect plug connection for interior sensor Figure 2 -arrow-. Figure 2 2016© Porsche Cars North America, Inc. Apr 22, 2016 Tequipment Page 2 of 5...
- Page 3 3.11 Install center console trims at the sides and footwell outlet vents. Workshop Manual '681419 Removing and installing centre console trim' Code smoker package. 2016© Porsche Cars North America, Inc. Apr 22, 2016 Tequipment Page 3 of 5...
- Page 4 A table containing the values to be changed appears. Save the values by pressing •F8“. Wait until the message Generation of vehicle data is complete..appears. 4.1.7 Press •F12“ to switch to Report management. 2016© Porsche Cars North America, Inc. Apr 22, 2016 Tequipment Page 4 of 5...
- Page 5 Properly trained Porsche technicians have the equipment, tools, safety instructions, and know-how to do the job properly and safely. If a particular condition is described, do not assume that the bulletin applies to your vehicle, or that your vehicle will have that condition. See your authorized Porsche Dealer for the latest information about whether a particular technical bulletin applies to your vehicle.
