Installation and Conversion Instructions
SportDesign Package (I-no. XAT)
CAUTION
Different approach angle compared to standard vehicle
•
Risk of damage to components
Avoid steep ascents, descents or ramps wherever possible.
Always drive according to the prevailing driving conditions.
NOTICE
Cleaning the vehicle
•
Risk of damage to the vehicle, paintwork and components
When washing the vehicle in an automatic car wash, check that the spoiler is detected by the light
barriers.
If in doubt, seek the advice of the operator of the automatic car wash.
Only use cleaning agents listed in the owner's manual.
Information
Please inform the customer of this accordingly.
Concern:
Retrofitting
Model Year:
As of 2013
Note:

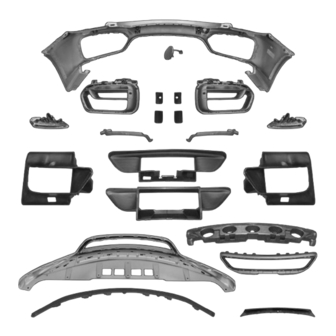

The SportDesign package comprises the following components:
•
New front apron
•
New spoiler lip
•
New rear apron (ready-primed)
If it has not already been installed in the vehicle, a –middle– radiator (I-no. 153) also needs to be retro-
fitted.
The components have been tested and approved together. Fitting of individual components is not
permitted!
The SportDesign package (
requesting optional equipment "XAT".
2015© Porsche Cars North America, Inc.
Figure 1) is also available straight from the factory for new vehicles by
Tequipment
Boxster (981)
32/14
6699
ENU
Mar 12, 2015
Page 1 of 16
6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Porsche 981.044.800.80
Summary of Contents for Porsche 981.044.800.80
- Page 1 The components have been tested and approved together. Fitting of individual components is not permitted! The SportDesign package ( Figure 1) is also available straight from the factory for new vehicles by requesting optional equipment “XAT”. 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 1 of 16...
- Page 2 Number plate carrier, assembly kit (I-no. 211/075) ONLY for vehicles WITHOUT –middle– radiator (I-no. 153): Order additional parts for –middle– radiator in accordance with the parts list! 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 2 of 16...
- Page 3 Holder for spacer (not shown) 981.505.563.03.OK1 Retaining frame, left-hand side –black matt– Figure 2 -3- 981.505.653.03.OK1 Retaining frame trim, left-hand side –black matt– (636) Figure 2 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 3 of 16...
- Page 4 Oval-head screw, 6.0 x 18.0 -Q St 26 D0 (auxiliary headlights and strut, not shown) ONLY contained in respective set! Including glued holder for ParkAssist (I-no. 636) 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 4 of 16...
- Page 5 Figure 3 -8- Material: PP-T20-HI Figure 3 -9-10-): Parts for radiator ( Figure 3 -9- 991.106.037.02 –Middle– radiator ASSY 900.377.010.01 M6 nut Figure 3 -10- 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 5 of 16...
- Page 6 Remove front apron ( Workshop Manual '631519 Removing and installing front apron'). Remove foam part (insert) on the bumper ( Workshop Manual '631019 Removing and installing front bumper'). 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 6 of 16...
- Page 7 – Side radiator (right side) – Holder for water hose (right side) Figure 5 WARNING Caustic fluid • Danger of chemical burns Avoid contact with caustic fluid. 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 7 of 16...
- Page 8 Install new foam part (insert Figure 6 -6-) on the bumper ( Workshop Manual '631019 Removing and installing front bumper'). NOTICE Components stored or set down incorrectly 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 8 of 16...
- Page 9 Guide spoiler lip into the front apron from below and secure with expansion rivet St 4.2. 4.2.5 Install new towing lug cover ( Workshop Manual '631555 Replacing front apron'). 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 9 of 16...
- Page 10 4.5.2 ONLY for vehicles with KESSY (I-no. Figure 9 -4-): Convert KESSY control unit ( Workshop Manual '966719 Removing and installing antenna for KESSY/PAS'). 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 10 of 16...
- Page 11 Converting and installing rear apron Remove rear skirt and tailpipe cover trim frame from the rear apron ( Workshop Manual '636819 Removing and installing rear skirt') 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 11 of 16...
- Page 12 Risk of damage to control unit • Fault entries in the control unit • Coding in the control unit is aborted • Malfunctions in control unit, even during programming 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 12 of 16...
- Page 13 Press •F10“ to open the log. Check that vehicle equipment "XAT – SPORT DESIGN pack. (Boxster)" is entered and close the log. Code the new vehicle equipment. 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 13 of 16...
- Page 14 Paint preparation (separate LO No.)! 63 15 61 51: –Front apron (SportDesign package), new part painted– Labor time: 130 TU Includes: Materials: 15 MU Without: Paint preparation (separate LO No.)! 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 14 of 16...
- Page 15 Testing front lights and 3rd brake light. Programming/coding "SportDesign package – XAT" option. Without: Bleeding the cooling system (separate LO No.)! 19 01 07 50: ONLY for vehicles WITHOUT –middle– radiator: 2015© Porsche Cars North America, Inc. Mar 12, 2015 Tequipment Page 15 of 16...
- Page 16 Properly trained Porsche technicians have the equipment, tools, safety instructions, and know-how to do the job properly and safely. If a particular condition is described, do not assume that the bulletin applies to your vehicle, or that your vehicle will have that condition. See your authorized Porsche Dealer for the latest information about whether a particular technical bulletin applies to your vehicle.
