Installation and Conversion Instructions
Music Player Interface
Concerns:
RetroÏtting
Model Year:
As of 2006 up to 2008
Information:
The music player interface has the following main features:
•
Discrete installation position in the center console storage bin
•
Connection for external music players (iPod®, MP3 player, etc.)
•
Standard connection socket for 3.5-mm jack plug
•
Battery charge function for the iPod®
•
Volume control via PCM
•
Music tracks can be selected using an external music player
The standard plug socket in the center console storage bin is no longer used when the music player
interface is installed.
For more information on operation and the various functions available, refer to the "Music player
interface" operating instructions.
Parts Info:
997.044.901.77
2008© Porsche Cars North America, Inc.

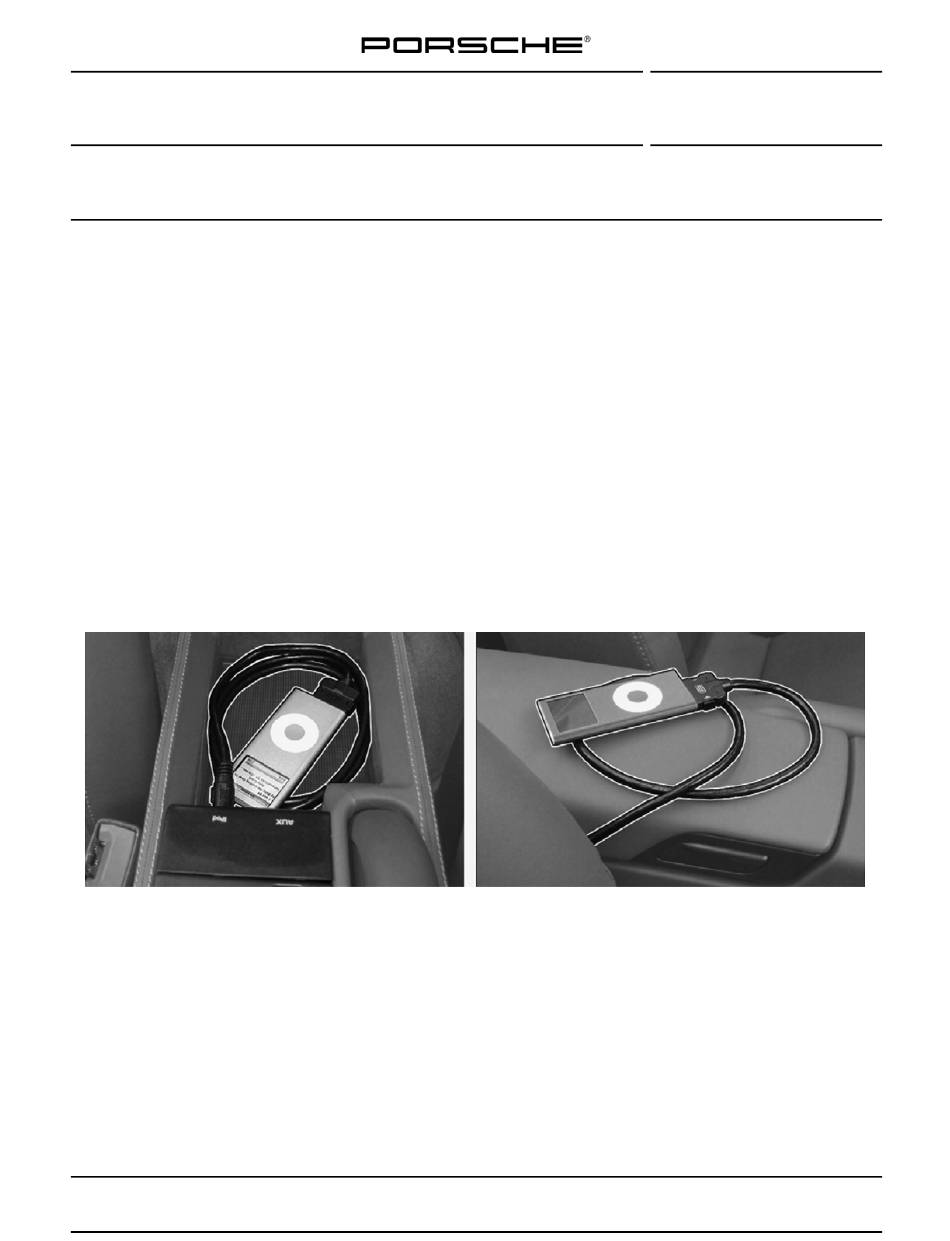

Figure 1
Ÿ Set, music player interface - USA
Tequipment
Cayman (987)
23/07
9122
ENU
Jun 6, 2008
Page 1 of 15
9
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Porsche 997.044.901.77
Summary of Contents for Porsche 997.044.901.77
- Page 1 For more information on operation and the various functions available, refer to the “Music player interface” operating instructions. Figure 1 Parts Info: 997.044.901.77 Ÿ Set, music player interface - USA 2008© Porsche Cars North America, Inc. Jun 6, 2008 Tequipment Page 1 of 15...
- Page 2 Operating instructions (not shown) 000.044.901.78 Connecting cable for iPod®, USA version (not shown) Only contained in set 997.044.901.70 (Not for USA). Only contained in set 997.044.901.77. Tools: Press-out tool set Nr.155 Pos.1 Cable repair kit Nr.155-1 Pos.1 PIWIS Tester 9718...
- Page 3 Switch on PCM and select Frequency selection using the right rotary knob. The frequency range limits are shown in the display. Take note of the frequency range and switch off PCM. 2008© Porsche Cars North America, Inc. Jun 6, 2008...
- Page 4 Secure connector from the plug socket on the standard wire harness with tie-wraps Ÿ Figure 5 -arrow-. Route wire harness (retrofit kit) in center console. Figure 5 Jun 6, 2008 2008© Porsche Cars North America, Inc. Tequipment Page 4 of 15...
- Page 5 8 -arrows-. To do this, slide one Figure 8 Ÿ -C- or both retaining clips on the insert for the locking mechanism and console as required. Figure 8 2008© Porsche Cars North America, Inc. Jun 6, 2008 Tequipment Page 5 of 15...
- Page 6 Secure insert for locking mechanism with the screw Figure 10 -A-. Ÿ Fit center console. Workshop Manual ’681719 Ÿ Removing and installing centre console’ Figure 10 Jun 6, 2008 2008© Porsche Cars North America, Inc. Tequipment Page 6 of 15...
- Page 7 Continue to use the standard center console floor. Fit center console floor and tighten the screw Figure 12 -A- on the center console floor. Ÿ Install console. Figure 12 2008© Porsche Cars North America, Inc. Jun 6, 2008 Tequipment Page 7 of 15...
- Page 8 Insert console Figure 14 -A- in center Ÿ console. The bars Figure 14 -C- on the console Ÿ must engage in the retaining clips. Figure 14 Jun 6, 2008 2008© Porsche Cars North America, Inc. Tequipment Page 8 of 15...
- Page 9 Loosen protective film Figure 17 Ÿ -arrow- on the control unit. Figure 17 ATTENTION Using unsuitable tools • Risk of serious or irreparable damage to the control unit. 2008© Porsche Cars North America, Inc. Jun 6, 2008 Tequipment Page 9 of 15...
- Page 10 PCM/car radio used. The four DIP switches are set to the “RoW” position, i.e. the four DIP switches are set to “ON”. Jun 6, 2008 2008© Porsche Cars North America, Inc. Tequipment Page 10 of 15...
- Page 11 (Figure 18 -A-). Stick loosened protective film on the control unit. Figure 18 Route wire harness Figure 19 -A- to the Ÿ installation slot. Figure 19 2008© Porsche Cars North America, Inc. Jun 6, 2008 Tequipment Page 11 of 15...
- Page 12 PCM installation slot and press on it so that the angled antenna connector Figure Ÿ 22 -C- is positioned between the bars of the installation slot Figure 22 -B-. Ÿ Figure 22 Jun 6, 2008 2008© Porsche Cars North America, Inc. Tequipment Page 12 of 15...
- Page 13 Release secondary lock Figure 24 -A- on Ÿ 8-pin connector. Join RD 0.5 line (retrofit kit) to RD/GN 2.5 line (term. 30, chamber 4). Figure 24 2008© Porsche Cars North America, Inc. Jun 6, 2008 Tequipment Page 13 of 15...
- Page 14 Workshop Manual ’911019 Ÿ Removing and installing PCM display and operator control unit’ Connect the battery. Workshop Manual ’2X00IN02 Work instructions after disconnecting Ÿ the battery’ Jun 6, 2008 2008© Porsche Cars North America, Inc. Tequipment Page 14 of 15...
- Page 15 Properly trained technicians have the equipment, tools, safety instructions and know-how to do a job properly and safely. If a condition is described, do not assume that the bulletin applies to your vehicle, or that your vehicle will have that condition. See your Porsche Dealer for information on whether your vehicle may benefit from the information.
