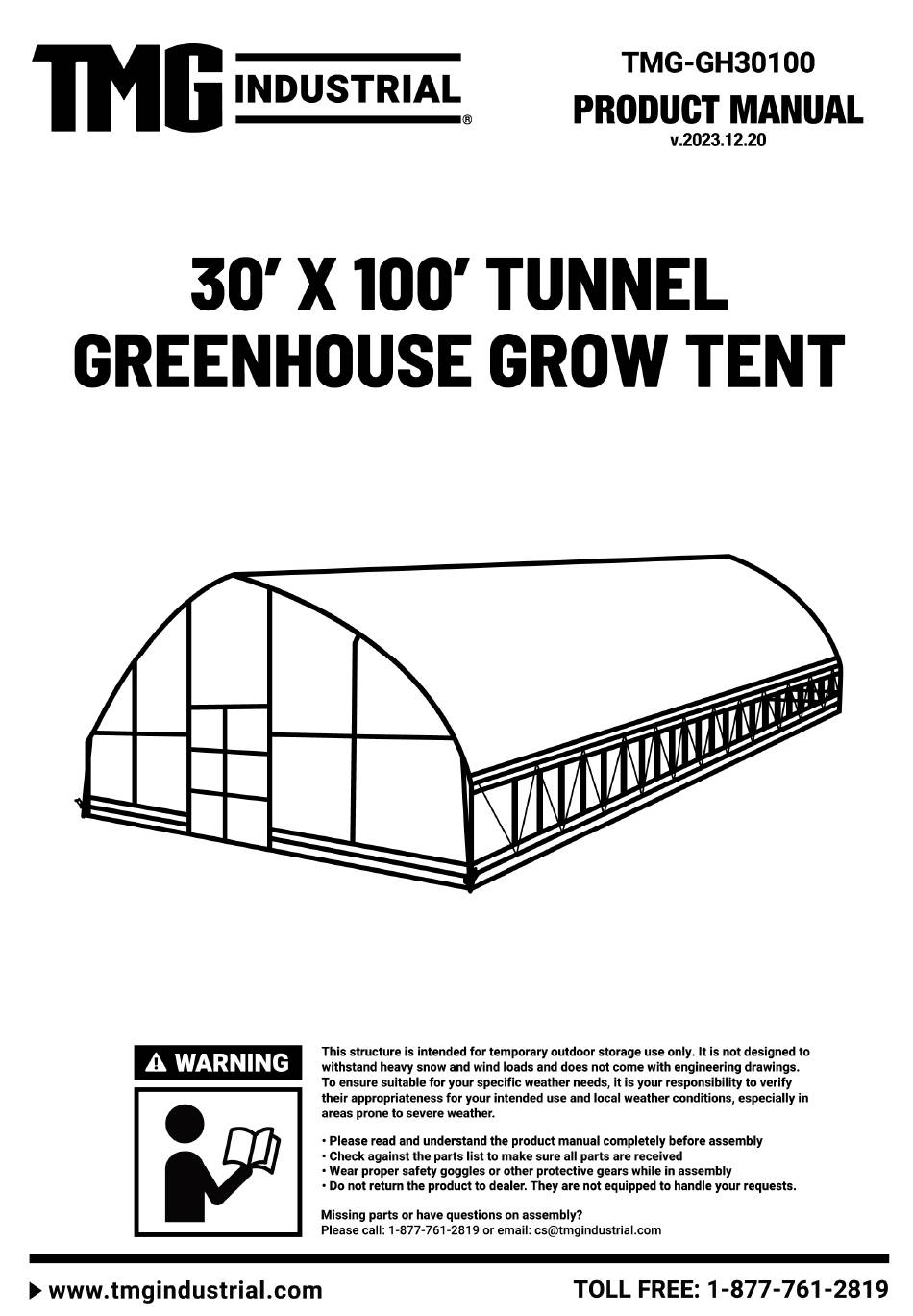

TMG -GH30100 Product Manual

30' x 100' tunnel greenhouse grow tent
Hide thumbs

Advertisement

Table of Contents

www.tmgindustrial.com
0/17
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-GH30100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-GH30100

Summary of Contents for TMG TMG-GH30100

  • Page 1 www.tmgindustrial.com 0/17 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : W9.15 x L29.9x H4 (m) / W30 x L98.1 x H13.1 (ft)  Shoulder height : H1.43 m /4.7ft  Door : W2.2 x H2 (m) / 7.2 x 6.6 (ft)  CONCRETE FOUNDATION SIZE SEE BELOW FIGURE The layout of foundation (one).
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block. Depth of cement Unit: mm (ft) www.tmgindustrial.com 2/17 TOLL FREE:1-877-761-2819...
  • Page 4 Baseplate layout.  PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing ...
  • Page 5 TMG-GH30100 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH LENGTH CODE Peak arch tube L1470mm 1470mm Upper rafter tube L1996mm 1996mm Upper rafter tube L1996mm 1996mm (front and rear trusses) Lower rafter tube L1996mm 1996mm Lower rafter tube L1996mm 1996mm (front and rear trusses)
  • Page 6 Door right upper vertical tubes L1977mm 1977mm Connector tube L120mm 120mm Door cross tubes L1377mm 1377mm Door cross tubes L1689mm 1689mm Door frame cross pull tube L2154mm 2154mm Ceiling cross bar L1987mm 1987mm Door frame column tube L1978mm 1978mm Door frame column left tube L1978mm 1978mm Door frame column right tube...
  • Page 7 Half round head bolt M6x50 M6x50mm Self locking bolt and nuts M8x60mm Self locking bolt and nuts M8x70mm M8x70mm Hex bolt and nuts M10x70mm M10x70mm Hex bolt and nuts M10x30mm M10x30mm Hex bolt and nuts M10x120mm M10x120mm Self tapping screw #12x25 #12x25 Self tapping screw...

  • Page 8: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Installation diagram of expansion bolt Installation diagram of expansion bolt.  PART PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 9 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 24 trusses trusses : (2) front and rear trusses, and (22) middle trusse ) middle trusses.  Install front and rear trusses.  PART PART 12x2 www.tmgindustrial.com www.tmgindustrial.com 8/17 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 10 Install (22) middle trusses.  PART PART 1x22 1x22 2x22 12x22 2x22 2x22 2x22 www.tmgindustrial.com www.tmgindustrial.com 9/17 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 11 Lay down all (24) trusses on the ground when the assembly is all sses on the ground when the assembly is all completed and before moving to next step completed and before moving to next step,  and then wrap (#33) around the sharp points of the joint to avoid friction between the fabric and the interface, and then wrap (#33) around the sharp points of the joint to avoid friction between the fabric and the interface, and then wrap (#33) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 12 STEP 3 : PUT UP ALL TRUSSES. Put up the truss, use hex bolt (#2 Put up the truss, use hex bolt (#23) to secure the truss to the base plates.   Attach all purlins, then wrap the sharp points with tape (#33) to pr Attach all purlins, then wrap the sharp points with tape (#33) to prevent scratching the top fabric event scratching the top fabric.
  • Page 13 STEP 4: INSTALL THE FRONT AND REAR DOOR FRAMES. STEP 4: INSTALL THE FRONT AND REAR DOOR FRAMES.  Install 2 left door frames. PART PART PART 26x2 www.tmgindustrial.com www.tmgindustrial.com 12/17 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 14 Install 2 right door frames.  PART PART PART 26x2 www.tmgindustrial.com www.tmgindustrial.com 13/17 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 5 : INSTALLATION OF FRONT AND REAR TRUSSES : INSTALLATION OF FRONT AND REAR TRUSSES. PART PART PART 16x2 www.tmgindustrial.com www.tmgindustrial.com 14/17 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 16 STEP 6 : INSTALL BOARDS (#36) AND REED GROOVE (#14). REED GROOVE (#14).  Fix the board (#36) with self tapping screw (#2 tapping screw (#28).  Fix the reed groove (#14) with the self ) with the self tapping screw (#27). PART PART www.tmgindustrial.com...
  • Page 17 STEP 7 : INSTALL FRONT AND REAR FILM. : INSTALL FRONT AND REAR FILM. Lift the film (#32A) and fix the film with a and fix the film with a clip spring (#14A) from top to bottom.  Install door buckle (#17) with self tapping screw (#27). with self tapping screw (#27).
  • Page 18 STEP 8 : INSTALL TOP COVER FILM.  when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on one side.
  • Page 19 STEP 9 : INSTALL ROLL FILM SYSTEM.  Install the roll film tube(#16), add a round plug(#30) at the end. t Install the roll film tube(#16), add a round plug(#30) at the end. the film (# 32) is wound on a roll film tube , and ) is wound on a roll film tube , and clamped with a pressure film carrier (# clamped with a pressure film carrier (# 20).
  • Page 20 A round plug (# 30) is put on both ends of the ) is put on both ends of the film rolling machine guide tube (# 1 15), and the guide tube is  mounted on the frame with a hex bolt (# 2 mounted on the frame with a hex bolt (# 26), and it is required to swing freely.

  • Page 21: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the tunnel greenhouse periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
