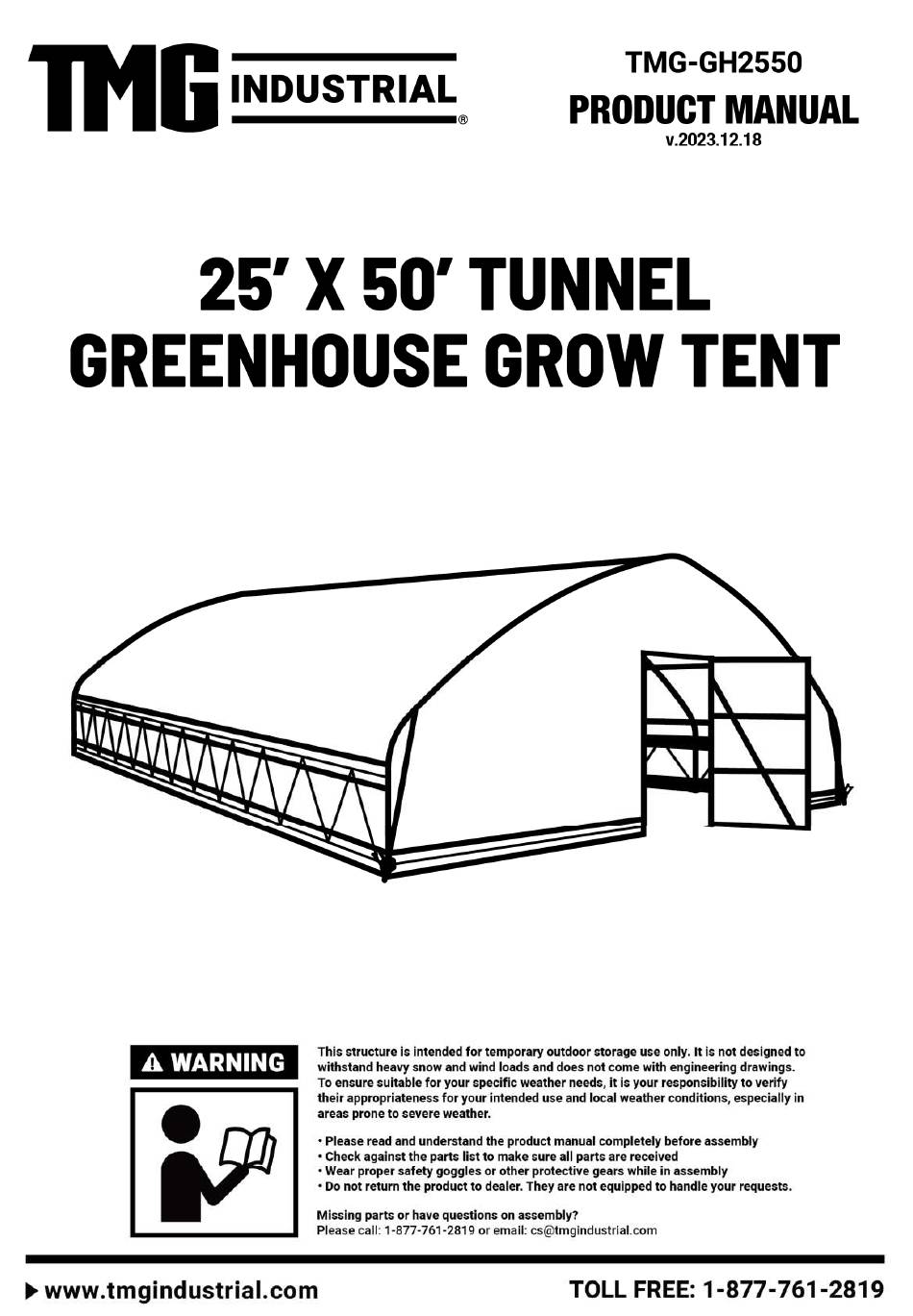

TMG -GH2550 Product Manual

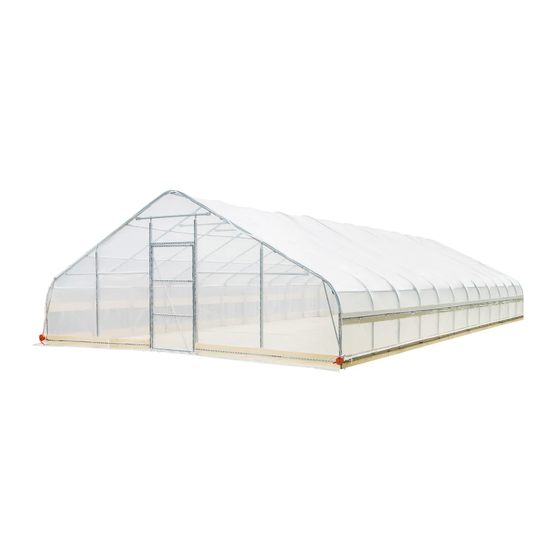

25' x 50' tunnel greenhouse grow tent
Hide thumbs Also See for TMG-GH2550:

Advertisement

Table of Contents

www.tmgindustrial.com
0/19
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-GH2550 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-GH2550

Summary of Contents for TMG TMG-GH2550

  • Page 1 www.tmgindustrial.com 0/19 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : W7.62 x L15.6 x H3 (m) / W25 x L51.2 x H10.5 (ft)  Shoulder height : H1.2 m / 3.9ft  Door : W1.2 x H2 (m) / 3.9 x 6.6 (ft) ...
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block. Depth of cement Unit: mm (ft) www.tmgindustrial.com 2/19 TOLL FREE:1-877-761-2819...

  • Page 4: Prior To Assembly

    Baseplate layout.  PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing ...
  • Page 5 TMG-GH2550 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH LENGTH CODE Peak arch tube L1458mm 1458mm Upper rafter tube L2882mm 2882mm Upper rafter tube L2882mm 2882mm (front and rear trusses) Shoulder tube L1840mm 1840mm Shoulder tube L1840mm 1840mm (front and rear trusses)
  • Page 6 Ceiling cross bar L1987mm 1987mm Tube clamp 42mm φ42 Film rolling machine guide tube L1430mm 1430mm Roll film tube L1993mm 1993mm Roll film tube L2100mm 2100mm Door buckle L145mm 145mm Film rolling machine Reed groove Clip spring Eight clip spring L120mm L120mm Pressure film carrier...
  • Page 7 Hex bolt and nuts M10x70mm M10x70mm Hex bolt and nuts M10x30mm M10x30mm Hex bolt and nuts M10x100mm M10x100mm Self tapping screw #12x25 #12x25mm Self tapping screw #12x35 #12x35mm Square plug 30x30mm 30x30mm Round plug 25mm φ25 Braided rope Top cover film W11.8 1.8xL16.4m Front and rear door film...

  • Page 8: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Installation diagram of expansion Installation diagram of expansion bolt.  PART PART PART www.tmgindustrial.com www.tmgindustrial.com...
  • Page 9 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 13 trusses trusses : (2) front and rear trusses, and (11) middle trusses. ) middle trusses.  Install front and rear trusses.  PART PART www.tmgindustrial.com www.tmgindustrial.com 8/19 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 10 Install (11) middle trusses.  PART PART 1x11 1x11 2x11 8x11 2x11 2x11 www.tmgindustrial.com www.tmgindustrial.com 9/19 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 11 Lay down all (13) trusses on the ground when the assembly is all completed and before moving to next step,  and then wrap (#31) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 12 STEP 3 : PUT UP ALL TRUSSES. Put up the truss, use hex bolt (#2 truss, use hex bolt (#22) to secure the truss to the base plates.  Connect all purlins, and then wrap (#31) around the sharp points. , and then wrap (#31) around the sharp points.
  • Page 13 STEP 4 : INSTALLATION OF FRONT AND REAR TRUSSES INSTALLATION OF FRONT AND REAR TRUSSES. Installation of door frame.  PART PART PART 27x2 www.tmgindustrial.com www.tmgindustrial.com 12/19 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 14 Installation of front and rear trusses nstallation of front and rear trusses.  PART PART PART 12x2 www.tmgindustrial.com www.tmgindustrial.com 13/19 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 5 : INSTALL BOARDS (#34) AND REED GROOVE (#17) REED GROOVE (#17). Fix the board (#34) with self tapping screw tapping screw (#26).  Fix the reed groove (#17) with the self ) with the self tapping screw (#25). ...
  • Page 16 STEP 6 : INSTALL FRONT AND REAR FILM 6 : INSTALL FRONT AND REAR FILM. Lift the film (#30A) and fix the film with a and fix the film with a clip spring (#17A) from top to bottom.  Install door buckle (#15) with self tapping screw (#25) with self tapping screw (#25).
  • Page 17 STEP 7 : INSTALL TOP COVER FILM. when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on  one side. the cover must be pulled over the top of the truss frame without being snagged or stressed on any frame members.
  • Page 18 STEP 8 : INSTALL ROLL FILM SYSTEM. Install the roll film tube (#14), add a round plug (#14), add a round plug (#28) at the end. the film (#30) is wound on a roll film tube , ) is wound on a roll film tube , ...
  • Page 19 A round plug (#28) is put on both ends of the ) is put on both ends of the film rolling machine guide tube (#13), and the guide tube is ), and the guide tube is  mounted on the frame with a hex bolt (# on the frame with a hex bolt (#24), and it is required to swing freely.

  • Page 20: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
