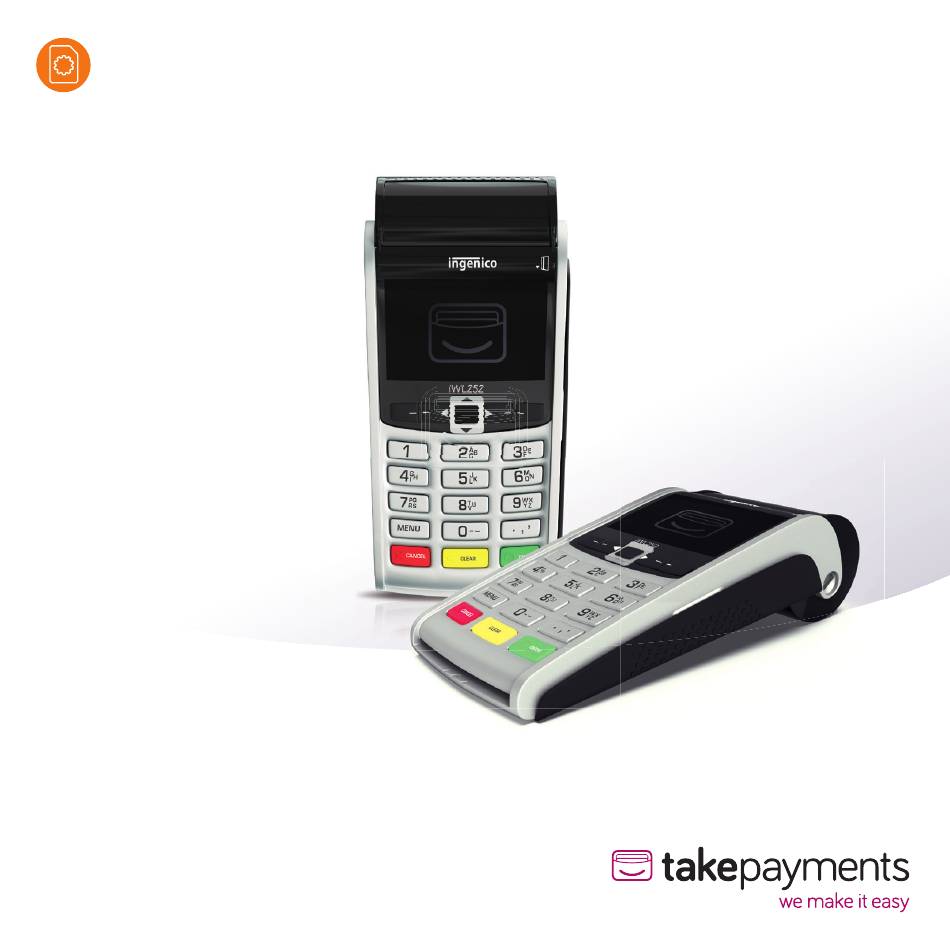

- Page 1 Merchant User Guide. Your iWL252 installation and user guide.
- Page 2 We’re excited to have you on board. Our easy guide will help you get up and running in no time. We'll cover: 1. Plugging in the power supply. 2a. Connecting your terminal through a phoneline. 2b. Installing your terminal through a phoneline. 3a.
- Page 3 Plugging in the power supply. Take the power cable and plug it into the circular port on the base unit, as shown below. Power Supply Once it’s plugged in, you’ll be able to connect the terminal either through your phoneline or broadband.
- Page 4 Connecting your terminal through a phoneline. Illustration 1: If you’d like to connect through your phoneline, you’ll need to plug the black phone cable in to your base unit. First, turn the base upside down and you’ll see two Two clips clips (similar to where a battery would be stored).
- Page 5 ENTER Please Wait... test transaction of 1p. You can fi nd out how to do this in your Ingenico Type in your merchant number and This screen will show as the iWL252 Quick-Start Guide.
- Page 6 Connecting your terminal through broadband. If you’d like to connect using broadband, you’ll need to connect your broadband router to your base unit. First, take the purple Ethernet cable that comes with your terminal and plug it into your broadband router.
- Page 7 To make sure the terminal is fully installed, we recommend doing (6 digit number) a test transaction of 1p. You can fi nd out how to do this in your Ingenico iWL252 Quick-Start Guide. and then press ENTER Type in your merchant number and press ‘Enter’.
- Page 8 We’re here to help make things easy. For any installation questions, give our team a call on: 01606 566 600 Monday-Friday, 9am-5pm takepayments.com takepayments Limited is a company registered in England and Wales under company number 3102137. Registered offi ce address: 4th Floor Highbank House, Exchange Street, Stockport, SK3 0ET.
