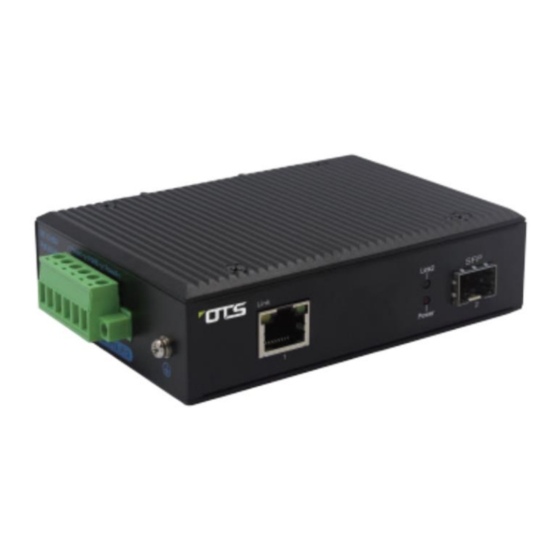

Industrial Grade 10/100/1000Base-TX (PoE+) to 1000Base-SFP Ethernet Media
Converter
Overview:
ET1212Pp-S-DR Media Converter has the operating temperature of -40℃ ~ 85℃, has
the super firmness can adapt to all kinds of harsh environment, can also be conveniently
placed in the compact space of the control box. The installation characteristics of the
guide rail, wide temperature operation, IP40 protection class housing and LED indicator
light make the ET1212Pp-S-DR a plug and play industrial grade device, providing a
reliable and convenient solution for users to network their Ethernet devices.
Package Content
Media Converter x 1
l
Quick Start Guide x 1
l
Din Rail mount bracket x 1
l
Keep power off during installation
◎
use Antistatic Wrist Strap correctly
◎
Make sure using correct power supply, voltage must match
◎
Make sure enough power supply from PSU that will not overload
◎
Double check the wiring ( +/- ) is correct.
◎
Keep installation dry and clean.
◎
Do not open the chassis
◎

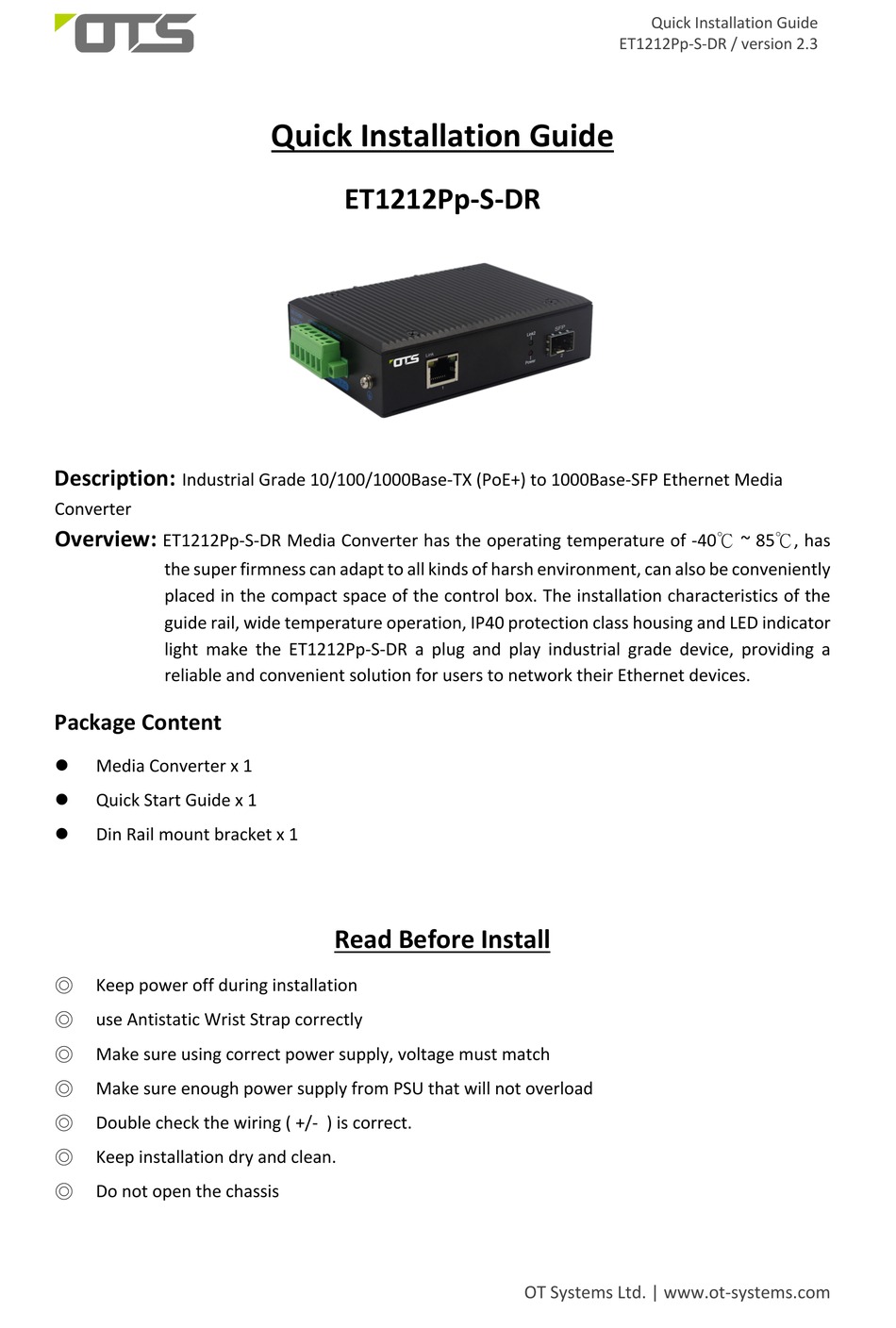

Quick Installation Guide
ET1212Pp-S-DR
Read Before Install
Quick Installation Guide
ET1212Pp-S-DR / version 2.3
OT Systems Ltd. | www.ot-systems.com
Advertisement
Related Manuals for OTS ET1212Pp-S-DR
Summary of Contents for OTS ET1212Pp-S-DR
- Page 1 The installation characteristics of the guide rail, wide temperature operation, IP40 protection class housing and LED indicator light make the ET1212Pp-S-DR a plug and play industrial grade device, providing a reliable and convenient solution for users to network their Ethernet devices.
- Page 2 Earthing screw, used for earthing equipment. ET1212Pp-S-DR Front panel: The yellow light on the port is the LINK light, which is on when the connection is established and the data transmission is flashing. The green light is PoE light, which is only on when the switch port is supplying power to the PD devices.
- Page 3 Quick Installation Guide ET1212Pp-S-DR / version 2.3 Note: "Tx ±" refers to sent data ±, "Rx ±" refers to received data ±, and "-" refers to unused data. LED Indicator LED indicator Status Definition Red LED on Power supplying in normal...
- Page 4 Quick Installation Guide ET1212Pp-S-DR / version 2.3 Din rail installation The first step is to check the grounding and stability of the guide rail: the guide rail slot of the switch is clamped into the guide rail; The second step: from the center to both sides of the guide rail positioning screws in order.
