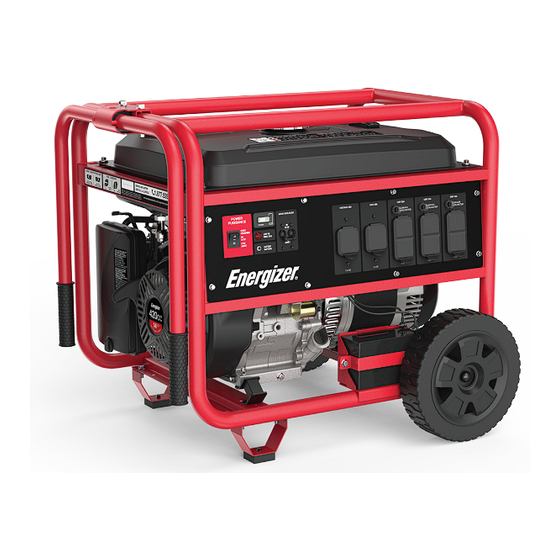

- Page 1 series USER GUIDE...
- Page 2 Energizer Brands, LLC and related subsidiaries and are used under license by Midland Power, Inc. All other brand names are trademarks of their respective owners. Neither Midland Power, Inc. nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
- Page 3 Thanks for choosing the EG Series! You're excited to power up, so we'll keep this brief. Let's get started!
- Page 4 THIS PRODUCT MEETS ALL CERTIFICATION REQUIREMENTS FROM:...
- Page 5 WE’VE GOT YOU COVERED! Contact us by phone at 1-877-528-3772, email us at support@energizergenerators.com, or visit us online at www.energizergenerators.com SAVE THESE INSTRUCTIONS This user guide contains important instructions for your product, that should be followed during installation and maintenance of the generator. This user guide covers the safety, operation and maintenance procedures for the EG6850 and EG8750.
-
Page 6: Warranty Information
Product registration is required for all product support and warranty coverage. Warranty support, operation assistance and product support is provided by Midland Power Inc., a licensed manufacturer of Energizer Generators. Please contact us directly for any ® warranty service questions. -
Page 7: Table Of Contents
3.2 Check the Oil Level 3.3 Check the Fuel Level 3.4 Electric Start Battery Connection 4. Using Your Generator 4.1 Starting your Generator 4.2 Using the EG Series with Your Appliances 4.3 Folding The Handle 5. Stopping the Engine 6. Maintenance 6.1 Maintenance Schedule 6.2 Changing the Oil... -
Page 8: Safety
1. SAFETY DANGER! USING A GENERATOR INDOORS CAN KILL YOU IN MINUTES. THE ENGINE EXHAUST FROM THIS PRODUCT CONTAINS CHEMICALS KNOWN TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. 1.1 OPERATOR SAFETY WARNING! Always perform an oil, fuel and air filter check before starting the engine. ... -
Page 9: Maintenance Safety
operation. Do not operate the generator in rain or snow. Do not allow any moisture to come in contact with the generator. Do not touch the spark plug while the engine is operating or shortly after the engine has been shut down. 1.2 AC SAFETY WARNING! Before connecting the generator to an electrical device or power cord:... -
Page 10: Other Safety Tips
cause skin irritation. Do not clean the filter element with flammable liquids like gasoline because an explosion may occur. Turn off the engine before performing any maintenance. Otherwise it can cause severe personal injury or death. Allow the generator set to cool down before performing any maintenance. -
Page 11: Learn About Your Generator
2. LEARN ABOUT YOUR GENERATOR This section will show you how to identify key parts of your generator. Going over the terminology below will make sure we’re on the same page. 2.1 COMPONENT IDENTIFICATION Fuel Gauge Handle Mount Choke Lever Fuel Tank Fuel Valve Gas Cap... -
Page 12: Control Panel
2.2 CONTROL PANEL... -
Page 14: Control Functions
2.3 CONTROL FUNCTIONS AC Circuit Breakers While the generator is running, the breakers should be in the ON position. If the current has exceeded its limits the breaker will automatically pop out to the OFF position. Reduce the electrical load on the generator and push the button back to the ON position. -
Page 15: Make Sure You Have Everything
2.4 MAKE SURE YOU HAVE EVERYTHING Make sure your generator has everything listed in the table below. ITEMS INCLUDED QUANTITY English user guide French user guide Engine oil Oil funnel Spark plug wrench Metal bar for turning spark plug wrench Wheel axle Wheels Cotter Pin... -
Page 16: Assembly Instructions
2.5 ASSEMBLY INSTRUCTIONS Setup of your EG generator is designed to get you up and running as quickly as possible. Install the wheel, feet, and handle kits. Install Wheel Kit Install Feet Kit... -
Page 18: Pre-Operation Check
3. PRE-OPERATION CHECK These quick checks should be done each time the generator is started to ensure you get the most out of your generator. Set the generator on a level surface and the power switch to OFF. WARNING! EXHAUST GAS CONTAINS POISONOUS CARBON MONOXIDE. NEVER RUN THE GENERATOR IN AN ENCLOSED AREA. -
Page 19: Check The Oil Level
NOTE Running the engine without the air filter will quickly degrade the engine Always inspect air filter before using the generator. Check and clean the air filter according to the maintenance schedule. 3.2 CHECK THE OIL LEVEL Maximum Oil Level Minimum Oil Level Ensure the generator is on a level surface. - Page 20 Effective Viscosity Range of Engine Oils 15W-50 Synthetic 5W-30 10W-30 5W-30 0°C °C 32°F °F NOTE Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. Using non-detergent or 2-stroke oil could shorten the engine’s working life.
-
Page 21: Check The Fuel Level
3.3 CHECK THE FUEL LEVEL WARNING! GASOLINE IS HIGHLY FLAMMABLE AND EXPLOSIVE UNDER CERTAIN CONDITIONS. REFUEL IN A WELL-VENTILATED AREA WITH THE ENGINE STOPPED. DO NOT SMOKE OR ALLOW OPEN FLAMES OR SPARKS IN THE AREA WHERE THE GENERATOR IS BEING REFUELED OR WHERE GASOLINE IS STORED. -
Page 22: Electric Start Battery Connection
3.4 ELECTRIC START BATTERY CONNECTION (EG8750) Negative Terminal (Black) Positive Terminal (Red) WARNING! BATTERIES PRODUCE EXPLOSIVE GASES. KEEP SPARKS, FLAMES AND CIGARETTES AWAY FROM THE BATTERY AT ALL TIMES. BE SURE TO CONNECT THE ELECTRIC START BATTERY TO THE GENERATOR SET BEFORE OPERATION. -
Page 23: Using Your Generator
4. USING YOUR GENERATOR DANGER! CARBON MONOXIDE USING A GENERATOR INDOORS WILL KILL YOU IN MINUTES. GENERATOR EXHAUST CONTAINS HIGH LEVELS OF CARBON MONOXIDE, A POISONOUS GAS YOU CANNOT SEE OR SMELL. IF YOU CAN SMELL THE GENERATOR EXHAUST YOU ARE BREATHING CARBON MONOXIDE. EVEN IF YOU CANNOT SMELL THE EXHAUST, YOU COULD BE BREATHING CARBON MONOXIDE. -
Page 24: Starting Your Generator
4.1 STARTING YOUR GENERATOR WARNING! CONSULT A QUALIFIED LOCAL ELECTRICIAN AND REFER TO LOCAL AND NATIONAL ELECTRICAL CODES TO DETERMINE GROUNDING REQUIREMENTS FOR YOUR APPLICATION. NOTE Before starting the engine, disconnect all devices from the outlets on the front panel. ... - Page 25 Pull the starter slowly until you feel it engage then pull quickly. Repeat until the generator starts. When the engine warms up push the choke to the RUN/OPEN position. 4.1.2 ELECTRIC START (IF EQUIPPED) OPEN START Rotate the fuel valve to the OPEN position. If the engine is cold push the choke lever to the START/CLOSED position.
-
Page 26: Using The Eg Series With Your Appliances
4.2 USING THE EG SERIES WITH YOUR APPLIANCES After starting the EG Series you can connect your devices to it. Before starting make sure you know what you can power with your generator. Here’s how you can decide: Add the watt ratings of all the loads that the generator set will be powering at the same time. -
Page 27: Folding The Handle
4.3 FOLDING THE HANDLE The handle folds down for compact storage and locks into position for easy maneuvering. Pull up the handle into the upright position. Insert the locking pin. -
Page 28: Stopping The Engine
CLOSED 5. STOPPING THE ENGINE Normal Operation Switch off the connected electrical appliances, and disconnect them from the generator. CLOSED Turn the power switch to the OFF position. Turn the fuel valve to the CLOSED position. Emergency (All Models) To stop the engine in an emergency, turn the power switch OFF immediately. -
Page 29: Maintenance
6. MAINTENANCE Proper maintenance keeps your generator in the best operating condition by ensuring safe, economical and trouble-free operation. Only use genuine parts and recommended fluids to replace the worn components. Improper maintenance may cause the generator to malfunction and can lead to serious injury. Contact customer support if you have any maintenance questions. -
Page 30: Maintenance Schedule
6.1 MAINTENANCE SCHEDULE Maintain the generator according to the maintenance schedule in this section. NOTE Service more frequently when used in dusty areas. These items should be serviced by an authorized service center, unless you have the proper tools and are mechanically proficient. Refer to manual for service procedures. -
Page 31: Changing The Oil
6.2 CHANGING THE OIL WARNING! USED MOTOR OIL CAN CAUSE SKIN IRRITATIONS IF LEFT IN LONG-TERM CONTACT WITH SKIN. THOROUGHLY WASH OFF USED OIL AS SOON AS POSSIBLE WITH SOAP AND WATER. DO NOT DISPOSE OF USED OIL IN DRAINS OR ON SOIL. LOCAL SERVICE SHOPS PROVIDE ENVIRONMENTALLY-FRIENDLY DISPOSAL METHODS. - Page 32 Effective Viscosity Range of Engine Oils 15W-50 Synthetic 5W-30 10W-30 5W-30 0°C °C 32°F °F NOTE SAE10W-30 oil is recommended for general use. Recommended oil quantity: 1.1L DO NOT OVERFILL. NOTE Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine.
-
Page 33: Cleaning The Air-Filter
6.3 CLEANING THE AIR-FILTER WARNING! USING GASOLINE OR OTHER FLAMMABLE SOLVENTS CAN CAUSE A FIRE OR EXPLOSION. DO NOT OPERATE THIS PRODUCT WITHOUT AN AIR FILTER. A dirty air filter will restrict air flow into the carburetor. Clean and maintain the air filter regularly, especially in dusty areas. -
Page 34: Spark Plug Service
6.4 SPARK PLUG SERVICE NOTE DO NOT RINSE SPARK PLUG IN WATER. FOLLOW GUIDELINES AND BE CAREFUL NOT TO OVERTIGHTEN THE SPARK PLUG. Recommended spark plug: F7TC Check the spark plug gap and clean the carbon deposits at the bottom of the spark plug. -
Page 35: Spark Arrester Maintenance
6.5 SPARK ARRESTER MAINTENANCE Spark Arrester After the engine has cooled down remove the spark arrester from the muffler by loosening the screw. Use a brush to remove carbon deposits from the spark arrester. If the spark arrester is worn down, replace it. Reinstall the spark arrester. -
Page 36: Battery Charger
A fully charged battery will read 12.6-12.7 Volts. To top up, plug the charger into a 120V wall outlet and the charging port on your EG series for no longer than 10 hours at a time. This will slowly recharge the battery and prolong its life. -
Page 37: Transportation & Storage
7. TRANSPORTATION & STORAGE Transporting the Generator Siphon Do not overfill the fuel tank (No residual fuel on the neck of tank). Do not use the generator in the vehicle. The generator should ONLY be used while in a well ventilated area. Avoid exposing the generator to prolonged direct sunlight while in an enclosed vehicle. -
Page 38: Draining The Carburetor
Draining the Carburetor Turn OFF the engine and allow it to cool. Turn the fuel valve to OPEN. Position a container under the carburetor drain screw. Loosen the drain screw. Allow fuel to completely drain and re-tighten the drain screw. Turn the fuel valve to CLOSED. -
Page 39: Storage Duration
Long Term Storage Before storing the generator set for an extended period: Ensure that the storage area is free of excess humidity and dust. Drain the fuel tank and the carburetor. To prevent corrosion, coat screws and exposed metal with anti-rust oil at least twice per year. -
Page 40: Troubleshooting
8. TROUBLESHOOTING If the engine does not start: Is there fuel in the tank? Refill the fuel tank. Turn the fuel switch to OPEN. Is the fuel switch OPEN? Turn the power switch to RUN. Is the power switch in RUN? Is there enough oil in the engine? Add the recommended oil. - Page 41 If appliances do not operate: Is the output indicator light ON? Contact an authorized Is the overload indicator light ON? dealer Check the electrical Contact an authorized appliance for any fault dealer Stop the engine and then replace or repair the appliance Restart the engine DC receptacle without any electricity: Repair or replace the appliance.
-
Page 42: Technical Specifications
9. TECHNICAL SPECIFICATIONS EG6850 EG8750 Rated frequency (Hz) 60Hz 60Hz Rated AC Output Power 5500W 7000W Max AC Output Power (W) 6850W 8750W 1-Phase Rated AC Voltage 120/240V 120/240V Power Factor 15 HP, Single Cylinder, 15 HP, Single Cylinder, Type forced air cooling, forced air cooling, 4-stroke, OHV... -
Page 43: Wiring Diagram
10. WIRING DIAGRAM EG6850... - Page 44 WIRING DIAGRAM EG8750...
-
Page 45: Appendix
11. APPENDIX The standard condition of rated power output: Altitude: 0m Ambient temperature: 25°C Relative humidity: 30% Factor of Environment Correction: Altitude (m) Ambient Temperature°C 0.98 0.96 0.93 0.90 0.93 0.91 0.89 0.87 0.84 1000 0.87 0.85 0.82 0.80 0.78 2000 0.75 0.73... -
Page 46: Emission Control System
12. EMISSION CONTROL SYSTEM Emission Source Exhaust gas contains carbon monoxide, nitrogen oxides (NOx) and hydrocarbons. It is very important to control the emissions of NOx and hydrocarbons as they are a major contributor to air pollution. Carbon monoxide is a poisonous gas. The emission of fuel vapors is a source of pollution as well. -
Page 47: Replacement Parts And Accessories
Replacement parts and accessories The parts making up the emission control system in your product’s engine have been specifically approved and certified by the regulatory agencies. You can trust that the replacement parts supplied by customer service have been manufactured to the same production standard as the original parts. -
Page 48: Warranty
13. WARRANTY Toll Free: 1-877-528-3772 E-mail: support@energizergenerators.com Online: www.energizergenerators.com Energizer Generator products are distributed by: ® Midland Power Inc. 376 Magnetic Drive, Toronto, ON M3J 2C4, Canada This product is warranted to be free of defects in material and workmanship for three years from date of purchase. - Page 49 Exclusions Not Covered by this Limited Warranty Normal engine/alternator wear Damage caused by lack of maintenance as described in the Energizer ® User Guides, or negligence by using improper or impure motor oil, coolant, or fuel ...
- Page 50 Batteries Batteries supplied with any generator product should be considered a bonus item and not covered by warranty. Batteries can be damaged by shock, shorting terminals, heat, acid spillage and a number of other factors that cannot be controlled after they have left our facility. It is the customer’s responsibility to take great care when handling a battery so no spillage of acid will occur and cause corrosion;...
- Page 51 Emission Control System Warranty Parts: This list applies to parts supplied by Midland Power Inc. and does not cover parts supplied by the equipment manufacturer. Please see the original equipment manufacturer’s emissions warranty for non-Midland Power Inc. parts. Consumable parts are covered up to a maximum of 30 days. SYSTEMS COVERED PARTS IN WARRANTY...
-
Page 52: Customer Service
Warranty Claim Procedure Warranty service must be performed by one of our authorized service dealers. Do not return your product where purchased. If you feel your generator is malfunctioning due to a defect or misuse, simply contact our customer support center for technical advice, a warranty claim or general information. - Page 53 Enjoy! Be sure to check energizergenerators.com for updates regarding your generator.
