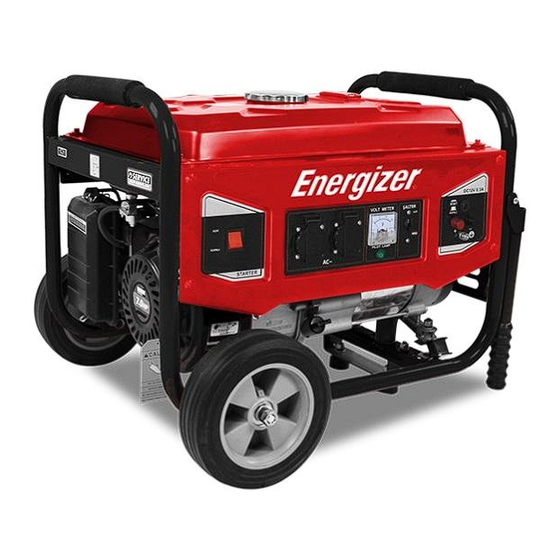

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS DRILL OPEN FRAME PETROL GENERATOR EZG3000/EZG3000UK USER GUIDE CAUTION: Read this manual before using this machine!
- Page 2 ©2023 Energizer. Energizer and certain graphic designs are trademarks of Energizer Brands, LLC and related subsidiaries and are used under license by Builder SAS. All other brand names are trademarks of their respective owners. Neither Builder SAS nor Energizer Brands, LLC is affiliated with the respective owners of their trademarks.
- Page 3 Let’s get started. You’re excited to power up, so we’ll keep this brief!
-
Page 4: Table Of Contents
CONTENTS 1. SAFETY INSTRCUTIONS..........................5 2. COMPONENT IDENTIFICATION........................ 8 3. CONTROLS..............................9 4. GENERATOR USE............................10 5. PRE-OPERATION CHECK........................13 6. STARTING / STOPPING THE ENGINE....................15 7. MAINTENANCE............................15 8. TRANSPORTING AND STORAGE......................19 9. TROUBLESHOOTING..........................21 10. WIRING DIAGRAM............................22 11. SPECIFICATIONS............................. 23 12. DECLARATION OF CONFORMITY....................... 24 13. -
Page 5: Safety Instrcutions
1. SAFETY INSTRUCTIONS Warning: 1. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 2. Children should be protected by keeping them at a safe distance from the generator set! 3. Refilling of the generating sets are not allowed during the operation! 4. - Page 6 Maintenance and repair of the generator must be carried out by a qualified technician from an authorised after-sales service centre. Warning: when you start the generator with the cord, watch out for sudden changes in the rotation of the motor!!! Risk of wounding!!! Never cover the generator when it is running.
- Page 7 Electrical safety Before each use ensure that the load to be connected does not exceed the power of the current produced by the generator. To avoid electric shock, you must follow the following instructions: Do not touch the generator with wet hands. Do not run the generator under rain or snow.
-
Page 8: Component Identification
Guaranteed sound power level No naked fire near the machine! Ground connection It is forbidden to run the generator in an enclosed room because exhaust emissions can lead humans or animals to coma to death. This symbol indicates the surface is very hot and not touching Keep away from the machine Exhaust emissions are harmful to health of body Do not connect with the electricity system. -
Page 9: Controls
3. CONTROLS 1) Engine Switch To start and stop the engine. Switch position: OFF: To Stop the engine. Key can be removed/inserted. ON: To run the engine after starting. START: To start the engine by turning the starter motor. With Electric Starter Without Electric Starter Return the key to the ON position once the engine has started. -
Page 10: Generator Use
5) Circuit Breaker The circuit breaker will automatically switch OFF if there is a short circuit or a significant overload of the generator at the receptacle. If the circuit breaker is switched OFF automatically, check that the appliance is working properly and does not exceed the rated load capacity of the circuit before switching the circuit breaker ON again. - Page 11 connects generator frame components to the ground terminals in the AC output receptacles. The system ground is not connected to the AC neutral wire. If the generator is tested by a receptacle tester, it will not show the same ground circuit condition as for a home receptacle.
- Page 12 must be connected to the generator DC terminals with the proper polarity (battery positive to generator red terminal and battery negative to the generator black terminal). With DC Circuit Protector With DC Fuse DC Circuit Protector (or DC Fuse) The DC circuit protector(or DC Fuse) automatically shuts off the DC battery charging circuit when the DC circuit is overloaded, when there is a problem with the battery, or the connections between the battery and the generator are improper.
-
Page 13: Pre-Operation Check
6) High Altitude Operation At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease, and fuel consumption will increase. High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburetor and readjusting the pilot screw. - Page 14 2) Fuel Recommendation 1. Check the fuel level gauge. 2. Refill the tank if the fuel level is low. Do not fill above the shoulder of the fuel strainer. WARNING • Gasoline is extremely flammable and is explosive under certain conditions. •...
-
Page 15: Starting/Stopping The Engine
NOTICE Oxygenated fuels can damage paint and plastic. Be careful not to spill fuel when filling your fuel tank. Damage caused by spilled fuel is not covered under warranty. 6. STARTING/STOPPING THE ENGINE Starting the engine 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. - Page 16 1) MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD Performed Each First Every 3 Every 6 Every year at every indicated month or operating month or months or months or or 300 Hrs. hour interval, whichever comes first. 20 Hrs. 50 Hrs. (3) 100 Hrs.
- Page 17 CAUTION Used motor oil may cause cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil. Please dispose of used motor oil in a manner that is compatible with the environment We suggest you take it in a sealed container to your local service station or recycling center for reclamation.
- Page 18 5) Fuel Sediment Cup Cleaning The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned. 1) Turn the fuel valve to the OFF position.
-
Page 19: Transporting And Storage
NOTICE The spark plug must be securely tightened. An improperly tightened spark plug can become very hot and could damage the engine. Never use spark plugs which have an improper heat range. Use only the recommended spark plugs or equivalent. 8. - Page 20 The fuel of this machine is combustible and deflagrating. After the machine has been shut down, the additional fuel must be treated properly and the local environmental requirements must be met. 2) Change the engine oil 3) Remove the spark plug, and pour about a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug.
-
Page 21: Troubleshooting
9. TROUBLESHOOTING When the engine will not start: Is there fuel in the tank? Refill the fuel tank Is there oil in the tank? Add the recommended oil. STILL SPARK Is there spark from Replace the Take the generator to an spark plug. -
Page 22: Wiring Diagram
10. CIRCUIT DIAGRAM... -
Page 23: Specifications
0.6 L Sound pressure level: L 73.46 dB(A), K = 1,72dB(A) Sound power level L 93.46 dB(A), K = 1,72dB(A) Guaranteed sound power level 96 dB(A) Generator EZG3000 EZG3000UK AC out put Voltage 230 V~ 230/115V~ Generator AC Frequency 50 Hz AC rated output power (PRP)2.7kW... -
Page 24: Declaration Of Conformity
ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: OPEN FRAME PETROL GENERATOR Model: EZG3000 Serial number: 20230215681-20230215900 Complies with the provisions of the Directive “machinery” 2006/42/CE and national laws transposing it: Also complies with the following European directives:... -
Page 25: Warranty
13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 26: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 27: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
